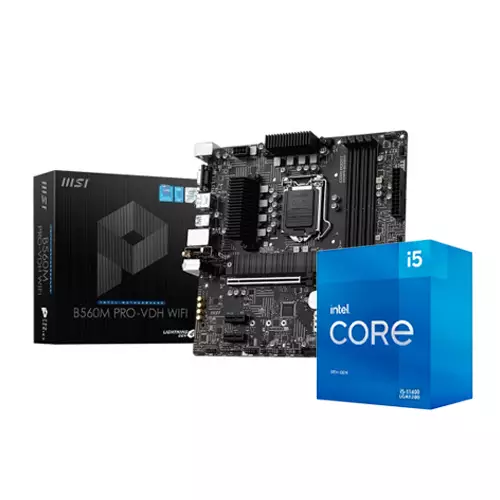

Intel Core i5-11400 11th Gen Processor & MSI B560M PRO-VDH WIFI Motherboard Combo

Intel Core i5-11400 11th Gen Processor & MSI B560M PRO-VDH WIFI Motherboard Combo
Intel Core i5-11400 11th Gen Processor & MSI B560M PRO-VDH WIFI Motherboard Combo
  • Intel B560 chipset
  • Intel Wi-Fi 6 AX201
  • Cache Memory : 12 MB
  • Base Frequency : 2.60 GHz
    • Stock: In Stock
    • Brand: TechLand
    • Model: Intel & MSI Combo
    • Offer Condition: Full Build Only
    Product Views: 1418
    28,999৳
    Ask Our Experts For Details
    Product Image Declaimer:
    Product Image For Illustration Purposes Only. Actual Product May Vary In Size, Color, And Layout. No Claim Will Be Accepted For Image Mismatch
    Stock Availability Declaimer:
    Stock Availability Are Subject To Change. Please Confirm Availability Before Shopping By Calling Us.

    Product Specification

    Motherboard
    Supported CPU Supports 10th Gen Intel Core Processors, 11th Gen Intel Core Processors, Pentium Gold, and Celeron Processors Processor socket LGA 1200
    Chipset Intel B560 chipset
    Memory 4x DDR4 memory slots, support up to 128GB1 Supports 1R 2133/ 2666/ 2933 MHz for 10th Gen Intel® CPU (by JEDEC & POR) Supports 1R 2133/ 2666/ 2933/ 3200 MHz for 11th Gen Intel® CPU (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 5066 MHz 1DPC 2R Max speed up to 4600+ MHz 2DPC 1R Max speed up to 4266+ MHz 2DPC 2R Max speed up to 4000+ MHz Supports Dual-Channel mode Supports non-ECC, un-buffered memory Supports Intel® Extreme Memory Profile (XMP)
    Graphics x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz 1x DisplayPort 1.4 port, supports a maximum resolution of 4K 60Hz 1x VGA port, supports the maximum resolutions of 2048x1536 @50Hz, 2048x1280 @60Hz and 1920x1200 @60Hz
    Slots PCIe x16 slot (From CPU) PCI_E1 (From CPU) Support up to PCIe 4.0 for 11th Gen Intel CPU Support up to PCIe 3.0 for 10th Gen Intel CPU 2x PCIe 3.0 x1 slots (From B560 chipset)
    Supported Storage 6x SATA 6Gb/s ports (From B560 chipset) 2x M.2 slot (Key M) M2_1 slot Supports up to PCIe 4.0 x4 for 11th Gen Intel® CPU (From CPU) Supports up to PCIe 3.0 x4 & SATA 6Gb/s for 10th Gen Intel® CPU (From B560 chipset)1 Supports 2242/ 2260/ 2280/ 22110 storage devices M2_2 slot2 (from B560 chipset) Supports up to PCIe 3.0 x4 Supports 2242/ 2260/ 2280 storage devices Intel Optane Memory Ready Supports Intel Smart Response Technology for Intel Core processors
    LAN Realtek 8125B 2.5Gbps LAN controller
    Audio Realtek AL897 Codec 7.1-Channel High Definition Audio
    USB Port Intel B560 Chipset 2x USB 3.2 Gen 2 10Gbps Type-A ports on the back panel 4x USB 3.2 Gen 1 5Gbps ports (2 Type-A ports on the back panel, and 2 ports are available through the internal USB 3.2 Gen 1 5Gbps connector) 2x USB 2.0 Type-A ports on the back panel USB Hubs GL850G 4x USB 2.0 ports are available through the internal USB 2.0 connectors
    Internal I/O Ports 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 6x SATA 6Gb/s connectors 2x M.2 slots (M-Key) 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB Gen 1 ports) 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x 4-pin CPU fan connector 1x 4-pin water-pump fan connector 2x 4-pin system fan connectors 1x Front panel audio connector 2x System panel connectors 1x Chassis Intrusion connector 1x Clear CMOS jumper 1x TPM module connector 1x Serial port connector 1x Tuning Controller Connector
    External I/O Ports eyboard / Mouse VGA DisplayPort USB 3.2 Gen 2 10Gbps Type-A LAN port WiFi / Bluetooth Audio connector USB 2.0 HDMI USB 3.2 Gen 1 5Gbps Type-A
    WiFi Intel Wi-Fi 6 AX201 The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz (160MHz) up to 2.4Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax WiFi 6 pre-certified Supports Bluetooth® 5.1, FIPS, FISMA
    Form Factor Miro-ATX Form Factor 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
    BIOS 1x 256 Mb flash UEFI AMI BIOS ACPI 6.2, SMBIOS 3.0 Multi-language
    HDMI 1x HDMI 2.0b with HDR port, supports a maximum resolution of 4K 60Hz
    Warranty 03 Years
    Processor
    Cache 12 MB
    Base Frequency 2.60 GHz
    Number Of Cores 6
    Maximum Turbo Frequency 4.40 GHz
    Number Of Threads 12
    TDP 65 W
    Max Memory Size 128 GB
    4K Support Yes, at 60Hz
    Graphics Frequency 1.30 GHz
    Processor Graphics Intel UHD Graphics 730
    Max number of Memory Channels 2
    Warranty 03 years

    Product Details

    MSI B560M PRO VDH WIFI Motherboard

    The MSI B560M PRO-VDH WIFI MATX motherboard is here to support the very latest 10th and 11th Generation Intel processor support. Bursting with exclusive features and high-speed connectivity – the newest 4th Gen PCI-e and M.2, plus Audio/Core & DDR4 Memory boosts. MSI PRO Series motherboards feature plenty of possibilities for prosumers’ needs. Stable LAN, faster storage and USB transfer speed, and other expandable connectors are able to enlarge your flexibility. Mystic Light Extension pin header provides an intuitive thanks to controlling additional RGB strips and other RGB peripherals added to a system, without having a separate RGB controller.MSI B560M PRO VDH WIFI Motherboard Part of the motherboards heatsink design, M.2 SHIELD FROZR is that the next generation M.2 thermal solution to avoid this by offering the simplest thermal protection to form sure that SSD maintains maximum performance. MSI B560M PRO VDH WIFI Motherboard Detecting CPU & GPU temperatures and automatically adjusting fan duty of system fans to a correct value by adopting MSI AI ENGINE. Total Fan Control allows you to check your primary system characteristics during a simplified graphical interface.MSI B560M PRO VDH WIFI Motherboard Designed to support the foremost popular All-In-One & customized water cooling solutions on the market. a fanatical pump PIN header supports up to 2 amp, supplying you with full control of the pump speed.

    INTEL CORE I5-11400 PROCESSOR

    This Intel Core i5-11400 Processor comes with an Intel UHD Graphics 730 graphics. This new Intel Core i5-11400 Processor microarchitecture is manufactured with the 14nm process that comes with six cores but lacks in HyperThreading. As this chip is updated to the latest BIOS revision, it nicely fits into any Intel 400-series motherboard. Focusing on this, all the major motherboard manufacturers have already started BIOS updates for their 400-series lineup. These Intel Core i5-11400 Processor also support 64-bit computing on Intel architecture require an Intel 64 architecture-enabled BIOS. Intel 11th Generation Core i5-11400 Processor having the base frequency of 2.60 GHz that can be reached as max turbo frequency at 4.40 GHz. It has the SmartCache of 12 MB containing 6 cores and 12 threads. With the bus speed of 8 GT/s DMI3, it has thermal design power (TDP) rating of 65W. This latest microchip has few expansion options such 3.0 PCI express revision having configured up to Up to 1x16+1x4, 2x8+1x4, 1x8+3x4. Considering the memory this Intel Core i5-11400 Processor has dual-channel of max 128GB of the size that supports up to DDR4-3200 bus speed.

    Reviews

    Write a review

    Note: HTML is not translated!
    Bad Good

    What is the Intel Core i5-11400 11th Gen Processor & MSI B560M PRO-VDH WIFI Motherboard Combo Price in Bangladesh?

    The Intel Core i5-11400 11th Gen Processor & MSI B560M PRO-VDH WIFI Motherboard Combo Price in BD is 28,999৳ in Today's 2022-01-22 Market. This Intel & MSI Combo Manufacturing by TechLand Comes With Warranty & Based on 0 reviews. Tech Land BD Offers you TechLand Intel & MSI Combo Which is also In Stock Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.

    Intel Core i5-11400 11th Gen Processor & MSI B560M PRO-VDH WIFI Motherboard Combo Short Review:

    product price
    28,999৳
    special price

    Manufactured By
    TechLand
    Product modelIntel & MSI Combo
    Total Reviews
    Based on 0 reviews.
    Last Edit date01/21/2022
