| Motherboard | |
| Supported CPU | Intel® Socket 1151 for 8th Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors ||Supports Intel® 14 nm CPU ||Supports Intel® Turbo Boost Technology 2.0 * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types. |
| Chipset | Intel® H310 |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information |
| Form Factor | Mini ITX Form Factor || 6.7 inch x 6.7 inch ( 17 cm x 17 cm ) |
| Expansion Slots | 1 x PCIe 3.0/2.0 x16 (x16 mode) |
| Memory | 2 x DIMM, Max. 32GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory Dual Channel Memory Architecture ||Supports Intel® Extreme Memory Profile (XMP) * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). * The maximum memory frequency supported varies by processor ** DDR4 2666MHz and higher memory modules will run at max. 2666MHz on Intel® 8th Gen. 6-core or higher processors. |
| Integrated Graphics | Integrated Graphics Processor- Intel® HD Graphics support ||Multi-VGA output support : HDMI/DVI-D/D-Sub ports - Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 25600 x 1600 @ 60 Hz || Supports DVI-D with max. resolution 1920 x 1200 @ 60 Hz ||Supports D-sub with max. resolution 1920 x 1200 @ 60 Hz ||Maximum shared memory of 1024 MB (for iGPU exclusively) ||Supports Intel® InTru™ 3D, Quick Sync Video, Clear Video HD Technology, Insider™ |
| USB Port | Intel® H310 Chipset : 4 x USB 3.1 Gen 1 up to 5Gbps port(s) (2 at back panel, blue, Type-A, 2 at mid-board) ||Intel® H310 Chipset : 4 x USB 2.0/1.1 port(s) (2 at back panel, , 2 at mid-board) |
| LAN Port | Realtek® RTL8111H, 1 x Gigabit LAN |
| Supported Storage | Intel® H310 Chipset : 1 x M.2 Socket 3, , with M Key, type 2260/2280 storage devices support (both SATA & PCIE mode)*1 ||4 x SATA 6Gb/s port(s), gray, |
| Audio Port | Audio Feature : - Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference ||- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals ||- Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity * Choose the chassis with HD audio module in front panel to support 8-channel audio output. |
| Internal I/O Ports | 1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) (19-pin) ||1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) ||1 x M.2 Socket 3 with M key, type 2260/2280 storage devices support (SATA & PCIE x4 mode) ||1 x COM port(s) connector(s) ||4 x SATA 6Gb/s connector(s) ||1 x CPU Fan connector(s) (1 x 4 -pin) ||2 x Chassis Fan connector(s) (2 x 4 -pin) ||1 x S/PDIF out header(s) ||1 x 24-pin EATX Power connector(s) ||1 x 4-pin ATX 12V Power connector(s) ||1 x Front panel audio connector(s) (AAFP) ||1 x Chassis Intrusion connector(s) ||1 x Clear CMOS jumper(s) ||1 x 14-1 pin TPM connector ||1 x System panel connector ||1 x Speaker connector ||1x M.2 Socket 1 with E Key, type 2230 WiFi/BT devices support or PCIe/USB/CNVi mode |
| Manufacturing Warranty | 3 Years Warranty |

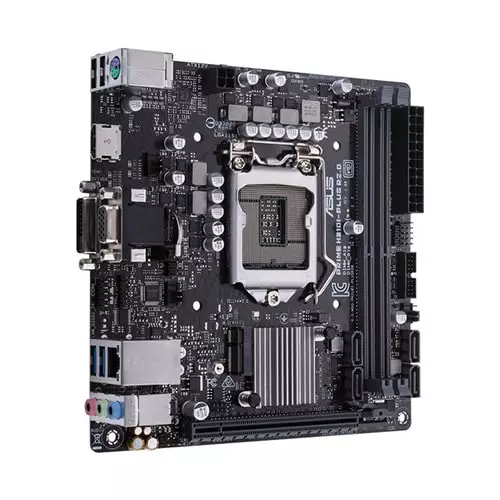

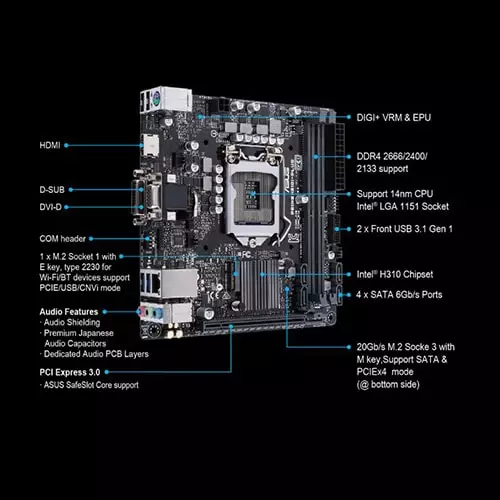

ASUS Prime H310I-Plus
●︎ Fan Xpert 2+: Flexible controls for ultimate cooling and quietness, plus GPU-temperature sensing for cooler gaming
●︎ 5X Protection III: Multiple hardware safeguards for all-round protection.
●︎ Native M.2 (M key) support delivers lightning-fast storage speeds, and native M.2 (E key) support enables faster wireless communication speeds.
●︎ 3 Years Warranty
ASUS Prime H310I-Plus LGA1151 (Intel 8th Gen) Motherboard
This product qualifies for free shipping
This block is set to appear automatically on products above a certain price, which may qualify for free shipping or other perks.
8,000৳
Ex Tax: 8,000৳
