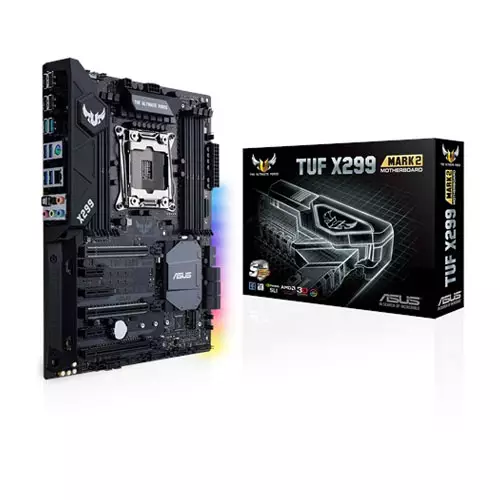

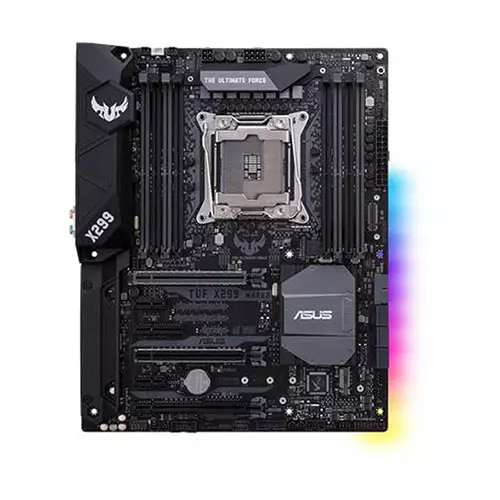

Asus TUF X299 MARK 2 Intel LGA 2066 ATX Motherboard
Asus TUF X299 MARK 2 Intel LGA 2066 ATX Motherboard
Asus TUF X299 MARK 2 Intel LGA 2066 ATX Motherboard - 1
Asus TUF X299 MARK 2 Intel LGA 2066 ATX Motherboard - 2

Asus TUF X299 MARK 2 Intel LGA 2066 ATX Motherboard

0 Reviews
Stock : Discontinued
PID : P00025063260
Brand : Asus
Model : TUF X299 MARK 2
Warranty : 3 Years
  • Chipset- Intel X299
  • CPU- Intel X-Series Processors
  • Intel Socket 2066
  • 8 x DIMM, Max. 128GB, DDR4

SPECIFICATIONS

Processor

Supported CPU Intel® Socket 2066 Core™ X-Series Processors
* The Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types
Supports NVIDIA® Quad-GPU SLI™ Technology
Supports NVIDIA® 3-Way SLI™ Technology
Supports NVIDIA® 2-Way SLI™ Technology
Supports AMD Quad-GPU CrossFireX™ Technology
Supports AMD 3-Way CrossFireX™ Technology

Mainboard

Chipset Intel X299
BIOS 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, WfM2.0, SM BIOS 3.0, ACPI 6.0, Multi-language BIOS,
ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen and ASUS DRAM SPD (Serial Presence Detect) memory information

Memory

Memory Intel® Core™ X-series Processors (6-core above)
8 x DIMM, Max. 128GB, DDR4 4133(O.C.)/4000(O.C.)/3600(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Intel® Core™ X-series Processors (4-core)
4 x DIMM, Max. 64GB, DDR4 4133(O.C.)/4000(O.C.)/3600(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory

Storage

Supported Storage 1 x M.2 x4 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
1 x M.2 x4 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
Intel® X299 Chipset :
Support Raid 1, 0, 10, 5
6 x SATA 6Gb/s port(s)
Supports Intel® Smart Response Technology
Intel® Optane™ Memory Ready
Intel® Rapid Storage Technology 15 support
Support Intel® Rapid Storage Technology enterprise 5.1 for X-Series(6-core and above) CPU RAID

Graphics

Graphics Supports AMD Quad-GPU CrossFireX™ Technology
Supports AMD 3-Way CrossFireX™ Technology
Supports NVIDIA® Quad-GPU SLI™ Technology
Supports NVIDIA® 3-Way SLI™ Technology
Supports NVIDIA® 2-Way SLI™ Technology

Networking & Connectivity

LAN ASUS Turbo LAN Utility
1 x Gigabit LAN Controller(s), featuring Turbo LAN, Intel® I219V

Audio & Microphone

Audio Optical S/PDIF out port(s) at back panel
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
- Unique de-pop circuit: Reduces start-up popping noise to audio outputs
Separate layer for left and right track, ensuring both sound deliver equal quality
- Supports : Front Panel Jack-retasking, Jack-detection, Multi-streaming
- Impedance sense for front and rear headphone outputs
Realtek® S1220A 8-Channel High Definition Audio CODEC
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers

Ports

Slots 44-Lane CPU-
3 x PCIe 3.0/2.0 x16 (x16, x16/x16, x16/x16/x8)
1 x PCIe 3.0 x4 (max at x2 mode) *1
2 x PCIe 3.0/2.0 x1
28-Lane CPU-
2 x PCIe 3.0/2.0 x16 (x16, x16/x8)
1 x PCIe 3.0 x4 (max at x2 mode) *1
2 x PCIe 3.0/2.0 x1
16-Lane CPU-
2 x PCIe 3.0/2.0 x16 (x16 or dual x8)
1 x PCIe 3.0 x4 (max at x2 mode) *1
2 x PCIe 3.0/2.0 x1
Internal I/O Ports 1 x 24-pin EATX Power connector(s)
1 x VROC_HW_Key
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
1 x COM port(s) connector(s)
1 x H_AMP fan connector
1 x 4-pin ATX 12V Power connector(s)
1 x MemOK! button(s)
1 x CPU Fan connector(s)
1 x Thunderbolt header(s)
1 x CPU OPT Fan connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
1 x Clear CMOS jumper(s)
1 x AAFP connector
1 x 5-pin EXT_FAN(Extension Fan) connector
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x AIO_PUMP connector
1 x CPU_OV jumper
1 x W_PUMP+ connector
6 x SATA 6Gb/s connector(s)
2 x Chassis Fan connector(s)
1 x Thermal sensor connector(s)
2 x 3D Mount screw port(s)
1 x M.2_FAN connector
1 x System panel(s) (Q-Connector)
2 x USB 3.1 Gen 1 connector(s) support(s) additional 4 USB 3.1 Gen 1 port(s)

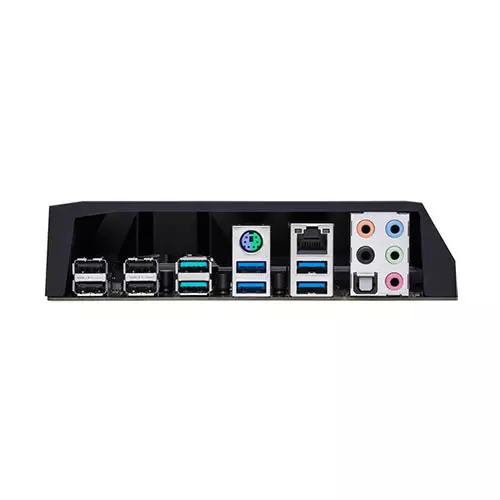

External I/O Ports 2 x USB 3.1 Gen 2 Type-A
1 x PS/2 keyboard/mouse combo port(s)
4 x USB 3.1 Gen 1
1 x LAN (RJ45) port(s)
4 x USB 2.0
5 x Audio jack(s)
1 x Optical S/PDIF out
USB Intel® X299 Chipset :
6 x USB 2.0 port(s) (4 at back panel, , 2 at mid-board)
ASMedia® USB 3.1 Gen 2 controller :
2 x USB 3.1 Gen 2 port(s) (Type-A)
Intel® X299 Chipset :
8 x USB 3.1 Gen 1 port(s) (4 at mid-board, 4 at back panel,

Physical Specification

Form Factor ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Warranty Information

Warranty 3 Years

DESCRIPTION

ASUS TUF X299 MARK 2 Motherboard

The ASUS TUF X299 Mark 2 motherboard features an LGA 2066 socket and an Intel X299 chipset so that you can build a Windows 10 system with an Intel Core X-series processor. The TUFseries motherboard is equipped with high-end components. In addition, this motherboard has two USB 3.1 ports with speeds of 10 Gb/s. The TUF X299 Mark 2 motherboard has eight DDR4 DIMM slots as well as one PCIe 3.0 x4, two PCIe 3.0 x1, and three PCIe 3.0 x16 memory and PCIe slots that work in different modes, depending on the number of cores and PCIe lanes that it offers. It's an Intel Core X-series processor . 5 "/ 3.5" storage drives and optical drives, and six SATA connections are available. You can also install PCIe or SATA-based M.2 SSDs in the two M.2 slots on the motherboard. In addition, VROC support enables RAID on your PCIe SSDs. The Internet can be accessed via a Gigabit Ethernet port, along with two USB 3.1 ports, four USB 3.0 ports, and four USB 2.0 ports. Zero are on board. With audio connections, sound is transmitted via six channels fed by a Realtek ALC S1220A processor. The motherboard also has internal I/O headers, so you can add an optional add-in card to your system with additional USB ports and Thunderbolt 3 ports. ASUS has equipped the TUF X299 Mark 2 motherboard with integrated LEDs that can be easily controlled via ASUS Aura Sync. The RGB headers on the motherboard allow you to add optional RGB LED strips to your case. In addition to lighting, ASUS makes it easy to overclock your unlocked processor with user-friendly software and supports liquid cooling solutions.
