ASUS H810M AYW GAMING WIFI LGA1851 DDR5 mATX Motherboard
- Chipset: Intel H810 Chipset
- Socket: Intel Socket LGA1851
- Memory: 2 x DIMM slots, max. 128GB, DDR5
- Form Factor: micro-ATX
Product Pricing
EMI Start From*
SPECIFICATIONS
Processor
Support Intel Core Ultra Processors (Series 2), LGA1851
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**
* Refer to https://www.asus.com/support/download-center/ for CPU support list.
** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
Intel H810 Chipset
Mainboard
256 (128+128) Mb Flash ROM, UEFI AMI BIOS
Memory
2x DIMM slots, max. 128GB, DDR5
Supports up to 6400MT/s, Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)*
Dual-channel memory architecture
DIMM Fit
Supports Intel Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile II (AEMP II)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration. For more information, please refer to the CPU/Memory Support list under the Support tab of the product information site or visit https://www.asus.com/support/download-center/.
Adjustments will be made based on the specifications of mass-produced memory products available on the market.
** Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Storage
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
Intel H810 Chipset
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x2 mode)
4 x SATA 6Gb/s ports
Graphics
1 x DisplayPort**
1 x HDMI port***
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.
**** VGA resolution support depends on processors' or graphics cards' resolution.
Networking & Connectivity
1 x Intel 1Gb Ethernet port*
ASUS LANGuard
*With Intel I219V LAN, Wake-on-LAN is not supported in S5 after the system transitions from G3.
Wi-Fi 6
1x1 Wi-Fi 6 (802.11ax)
Supports 2.4/5GHz frequency band
Audio & Microphone
Realtek 7.1 Surround Sound High Definition Audio CODEC*
Supports: Jackdetection, Multistreaming, Front Panel Jackretasking
Supports up to 24bit/192 kHz playback
Audio Features
Audio Shielding
Premium audio capacitors
Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Ports
Expansion Slots
Intel Core Ultra Processors (Series 2)
1 x PCIe 4.0 x16 slot
Intel H810 Chipset
1 x PCIe 4.0 x1 slot
- To ensure compatibility of the device installed, please refer to
https://www.asus.com/support/download-center/ for the list of supported peripherals.
Fan and Cooling Related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers
Power Related
1 x 24-pin Main Power connector
1 x 8-pin +12V CPU Power connector
Storage Related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 5Gbps connector (supports USB Type-C)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
1 x USB 2.0 header supports 2 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x S/PDIF Out header
1 x SPI TPM header (14-1 pin)
1 x 10-1 pin Front Panel System header
2 x USB 10Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x Wi-Fi module
1 x Intel 1Gb Ethernet port
3 x Audio jacks

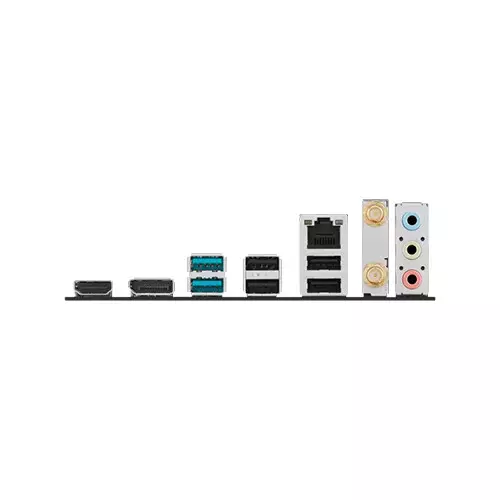

Rear USB (Total 6 ports)
2 x USB 10Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 5 ports)
1 x USB 5Gbps connector (supports USB Type-C)*
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
1 x USB 2.0 header supports 2 additional USB 2.0 ports
* USB Type-C power delivery output: max. 5V/3A
** USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.
Software
ASUS Exclusive Software
Armoury Crate
Aura Sync
Fan Xpert 2+
Power Saving
ASUS DriverHub
ASUS GlideX
ASUS CPUZ
Norton 360 Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
ASUS CrashFree BIOS 3 ASUS EZ Flash
ASUS UEFI BIOS EZ Mode
ASUS MyHotkey
Special Features
ASUS 5X PROTECTION III
DIGI+ VRM
LANGuard
Overvoltage protection
SafeSlot Core+
Stainlesssteel back I/O
ASUS QDesign
QDIMM
QDashboard
QLED Core
QSlot
ASUS Thermal Solution
VRM heatsink design
Aura Sync
Addressable Gen 2 headers
Others

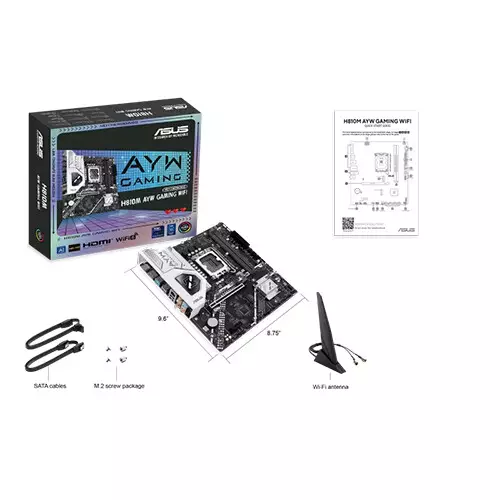

Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS Wi-Fi moving antenna
1 x I/O shield
1 x Screw package for M.2 SSD
Documentation
1 x Quick start guide
Manageability: WOL by PME, PXE
Physical Specification
Warranty Information
3-Year Brand Warranty (Condition applied)
DESCRIPTION
ASUS H810M-AYW GAMING WIFI Motherboard in Bangladesh
ASUS H810M AYW GAMING WIFI LGA1851 DDR5 mATX Motherboards in Bangladesh are a compact yet powerful option for gamers and PC builders seeking stability, performance, and modern connectivity. Built on the Intel H810 chipset, it supports the latest Intel Core Ultra Series 2 processors with Turbo Boost Technology 2.0 and 3.0, ensuring smooth performance for gaming, productivity, and multitasking. With 2 DIMM slots supporting up to 128GB of DDR5 RAM at 6400 MT/s (OC), this board delivers fast memory performance, with support for Intel XMP profiles and ASUS Enhanced Memory Profile II (AEMP II).
Graphics connectivity includes 1 DisplayPort 1.4 and 1 HDMI 2.1 port, both supporting 4K @ 60 Hz, making it suitable for high-resolution displays. Expansion options include 1 PCIe 4.0 x16 slot for modern GPUs and 1 PCIe 4.0 x1 slot for additional cards. Storage flexibility is provided by 2x M.2 slots (PCIe 4.0 x4 and PCIe 4.0 x2) and 4x SATA 6Gb/s ports, supporting RAID 0/1/5/10. Networking is reliable with Intel 1Gb Ethernet, ASUS LANGuard, Wi-Fi 6 (802.11ax), and Bluetooth 5.3, ensuring fast and stable connections.
USB connectivity includes 6 rear ports (2x USB 10Gbps Type-A and 4x USB 2.0) and 5 front ports (USB Type-C, USB 5Gbps, and USB 2.0 headers), offering flexibility for peripherals. Audio is powered by a Realtek 7.1 Surround Sound High Definition Audio CODEC, enhanced with audio shielding, premium capacitors, and dedicated PCB layers, delivering immersive sound quality.
Special features include ASUS 5X Protection III (DIGI+ VRM, LANGuard, SafeSlot Core+, stainless-steel back I/O), Q-Design tools (Q-DIMM, Q-Slot, Q-LED Core), and VRM heatsink design for durability and cooling. RGB customization is supported via Aura Sync with Addressable Gen 2 headers. Compact at 24.4cm x 22.2cm (micro-ATX), the ASUS H810M AYW GAMING WIFI is a reliable choice for budget-conscious gamers and builders in Bangladesh who want DDR5 support, modern connectivity, and ASUS-exclusive features.
Buy the Best ASUS H810M AYW GAMING WIFI Motherboard in Bangladesh from Tech Land BD
ASUS H810M AYW GAMING WIFI LGA1851 DDR5 mATX Motherboards are available at TechLand BD, the most trusted destination for authentic ASUS motherboards in Bangladesh. Tech Land BD offers genuine products at competitive prices, backed by dependable after-sales support. With its support for Intel Core Ultra processors, DDR5 memory, PCIe 4.0 expansion, Wi-Fi 6, and Aura Sync RGB, the H810M AYW GAMING WIFI is the perfect choice for gamers and PC builders seeking performance and reliability. Tech Land BD guarantees quality, affordability, and professional service, making it the best shop to purchase the ASUS H810M-AYW GAMING WIFI motherboard in Bangladesh.
Does the ASUS H810M AYW GAMING WIFI support DDR5 memory?
Yes, it supports DDR5 RAM up to 128GB at 6400MT/s (OC).
Can I use modern GPUs with the ASUS H810M AYW GAMING WIFI?
Yes, it features a PCIe 4.0 x16 slot, ensuring compatibility with current-generation graphics cards.
Does the ASUS H810M-AYW GAMING WIFI have Wi-Fi support?
Yes, it includes Wi-Fi 6 (802.11ax) and Bluetooth 5.3, offering fast, stable wireless connectivity.
