ASUS PRIME H610M-F D4 R2.0 Intel 14th & 13th Gen Micro-ATX Motherboard
ASUS PRIME H610M-F D4 R2.0 Intel 14th & 13th Gen Micro-ATX Motherboard
ASUS PRIME H610M-F D4 R2.0 Intel 14th & 13th Gen Micro-ATX Motherboard - 1
ASUS PRIME H610M-F D4 R2.0 Intel 14th & 13th Gen Micro-ATX Motherboard - 2
ASUS PRIME H610M-F D4 R2.0 Intel 14th & 13th Gen Micro-ATX Motherboard - 3

ASUS PRIME H610M-F D4 R2.0 Intel 14th & 13th Gen Micro-ATX Motherboard

0 Reviews
Stock : In Stock
PID : P0122506864
Brand : Asus
Model : PRIME H610M-F D4 R2.0
Warranty : 3-Years
  • Chipset: Intel Z890 Chipset
  • Socket: Intel Socket LGA1700
  • Memory: 2 x DIMM slots, Max. 64GB, DDR4
  • Storage: Supports 1 x M.2 slot and 2 x SATA 6Gb/s ports

Product Pricing

Discount Price

৳10,300 ৳11,800
+ Available Payment Method

EMI Start From*

৳363

SPECIFICATIONS

Processor

Supported CPU Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors,

Intel Core 12th Gen, Pentium Gold, and Celeron Processors*


Supports up to Intel 65W CPU

Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**

* Refer to www.asus.com for the CPU support list.

** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU type.

Mainboard

Chipset Intel H610 Chipset
BIOS 128 Mb Flash ROM, UEFI AMI BIOS

Memory

Memory 2 x DIMM slots, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*

Dual channel memory architecture

Supports Intel® Extreme Memory Profile (XMP) memory module

* Supported memory types, data rate (speed),

and several DRAM modules vary depending on the CPU and memory configuration,

for more information please refer to the CPU/Memory Support list under

the Support tab of the product information site or visit https://www.asus.com/support/.

Storage

Storage Supports 1 x M.2 slot and 2 x SATA 6Gb/s ports

Intel H610 Chipset

M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)

2 x SATA 6Gb/s ports

Graphics

Graphics 1 x HDMI port

Networking & Connectivity

Ethernet 1 x Realtek 1Gb Ethernet

Audio & Microphone

Audio Realtek 7.1 Surround Sound High Definition Audio CODEC*

- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

- Supports up to 24-bit/192 kHz playback

Audio Features

- Audio Shielding

- Premium audio capacitors

- Dedicated audio PCB layers

Ports

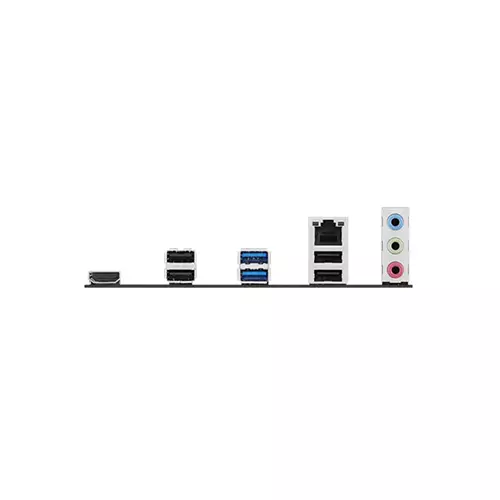

I/O Port Back Panel I/O Ports


2 x USB 5Gbps ports (2 x Type-A)

4 x USB 2.0 ports (4 x Type-A)

1 x HDMI port

1 x Realtek 1Gb Ethernet port

3 x Audio jacks



Internal I/O Connectors

Fan and Cooling Related

1 x 4-pin CPU Fan header

1 x 4-pin Chassis Fan header


Power Related

1 x 24-pin Main Power connector

1 x 4-pin +12V Power connector

Storage Related

1 x M.2 slot (Key M)

2 x SATA 6Gb/s ports


USB

1 x USB 5Gbps header supports 2 additional USB 5Gbps ports

1 x USB 2.0 header supports 2 additional USB 2.0 ports


Miscellaneous

1 x Clear CMOS header 1 x Front Panel Audio header (F_AUDIO)

1 x Speaker header

1 x 10-1 pin System Panel header
USB Rear USB (Total 6 ports)

2 x USB 5Gbps ports (2 x Type-A)

4 x USB 2.0 ports (4 x Type-A)

Front USB (Total 4 ports)

1 x USB 5Gbps header supports 2 additional USB 5Gbps ports

1 x USB 2.0 header supports 2 additional USB 2.0 ports

Software

Operating System Windows 11, Windows 10 64-bit
Software Features ASUS Exclusive Software

Armoury Crate

AI Suite 3

- EPU

- DIGI+ VRM

- PC Cleaner


ASUS CPU-Z

Norton 360 for Deluxe (60 Days Free Trial)

WinRAR (40 Days Free Trial)

UEFI BIOS


ASUS EZ DIY

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

- ASUS UEFI BIOS EZ Mode

Special Features

Special Features ASUS 5X PROTECTION III

- DIGI+ VRM

- LANGuard

- Overvoltage protection

- SafeSlot Core

- Stainless-steel back I/O


ASUS Q-Design

- Q-DIMM

- Q-Slot

- Q-LED Core


ASUS Thermal Solution

- Aluminum heatsink design

Others

Accessories Cables

2 x SATA 6Gb/s cables


Miscellaneous

1 x I/O shield

1 x M.2 anchor

Documentation

1 x Quick Start guide
Other Features Manageability: WOL by PME, PXE

Physical Specification

Color Black
Expansion Slots Intel Core Processors (14th & 13th & 12th Gen)

1 x PCIe 4.0 x16 slot

Intel H610 Chipset

1 x PCIe 3.0 x1 slot
Form Factor micro-ATX Form Factor
8.9-inch x 7.4 inch (22.6 cm x 18.8 cm)

Technical Info

Brand ASUS
Model PRIME H610M-F D4 R2.0

Warranty Information

Warranty 3-Years

DESCRIPTION

ASUS PRIME H610M-F D4 R2.0 Intel 14th & 13th Gen Micro-ATX Motherboard in Bangladesh

ASUS PRIME H610M-F D4 R2.0 Intel 14th & 13th Gen Micro-ATX Motherboard is a powerful and versatile motherboard designed to meet the needs of modern PC builders and upgraders. Available for purchase at Tech Land BD, this motherboard supports Intel Core 14th, 13th, and 12th Gen processors, as well as Pentium Gold and Celeron processors, making it an excellent choice for a wide range of computing tasks. With its Intel H610 chipset, it delivers reliable performance and supports up to 64GB of DDR4 memory across two DIMM slots, with speeds up to 3200 MHz and compatibility with Intel Extreme Memory Profile (XMP) for enhanced memory performance. The motherboard features a PCIe 4.0 x16 slot for high-speed graphics cards and a PCIe 3.0 x1 slot for additional expansion, ensuring flexibility for future upgrades. Storage options include 1 x M.2 slot supporting PCIe 3.0 x4 mode and 2 x SATA 6Gb/s ports, providing ample space for fast SSDs and traditional hard drives. For connectivity, the ASUS PRIME H610M-F D4 R2.0 offers 6 rear USB ports (including 2 x USB 5Gbps Type-A and 4 x USB 2.0 Type-A) and 4 front USB ports (via headers), ensuring seamless connectivity for peripherals. The Realtek 1Gb Ethernet port guarantees fast and stable network connections, while the Realtek 7.1 Surround Sound High Definition Audio CODEC delivers premium audio quality with features like audio shielding, premium capacitors, and dedicated PCB layers. The motherboard also includes an HDMI port supporting 4K@60Hz resolution, making it ideal for high-definition displays. Designed with durability in mind, the motherboard features ASUS 5X Protection III, including DIGI+ VRM, LANGuard, overvoltage protection, SafeSlot Core, and stainless-steel back I/O, ensuring long-term reliability. Additional features like ASUS Q-Design for easy installation and ASUS Thermal Solution with an aluminum heatsink enhance user experience. The UEFI BIOS with EZ Mode simplifies system setup, while bundled software like Armoury Crate, AI Suite 3, and Norton 360 adds value. With its micro-ATX form factor, this motherboard is compact yet packed with features, making it perfect for both home and office builds. Visit Tech Land BD to purchase the ASUS PRIME H610M-F D4 R2.0 and build a high-performance PC tailored to your needs.


What processors are compatible with the ASUS PRIME H610M-F D4 R2.0?

This motherboard supports Intel LGA1700 processors, including 14th, 13th, and 12th Gen Intel Core, Pentium Gold, and Celeron CPUs. Check the ASUS website for the latest CPU compatibility list.


What type of RAM does this motherboard support?

It has two DIMM slots supporting up to 64GB of DDR4 RAM at speeds of 3200/3000/2933/2800/2666/2400/2133 MHz in a dual-channel configuration.


How many storage options does this motherboard have?

It supports one M.2 PCIe 3.0 x4 slot (for NVMe SSDs) and two SATA 6Gb/s ports (for SATA SSDs/HDDs).

REVIEWS

Login to write a review.

No reviews yet

Be the first to share your thoughts about this product.

What is the ASUS PRIME H610M-F D4 R2.0 Intel 14th & 13th Gen Micro-ATX Motherboard Price in Bangladesh 2026 ?

The Asus PRIME H610M-F D4 R2.0 Price in BD is 10,300৳ . This ASUS PRIME H610M-F D4 R2.0 Intel 14th & 13th Gen Micro-ATX Motherboard Manufacturing by Asus Comes With 3-Years Warranty & Based on 0 reviews. Tech Land BD Offers you Asus PRIME H610M-F D4 R2.0 by 10,300৳ and its regular price is 11,800৳ Which is also In Stock Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
