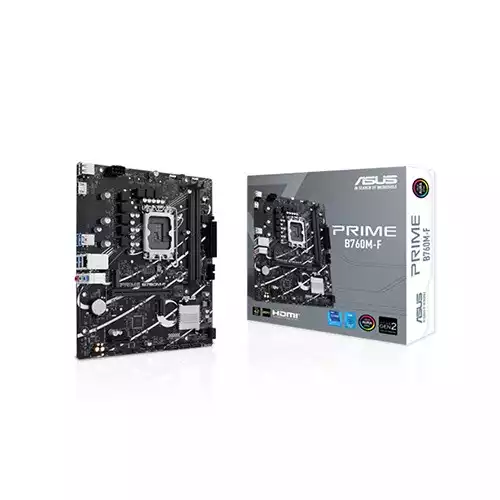

Asus PRIME B760M-F DDR5 LGA1700 mATX Motherboard
Asus PRIME B760M-F DDR5 LGA1700 mATX Motherboard

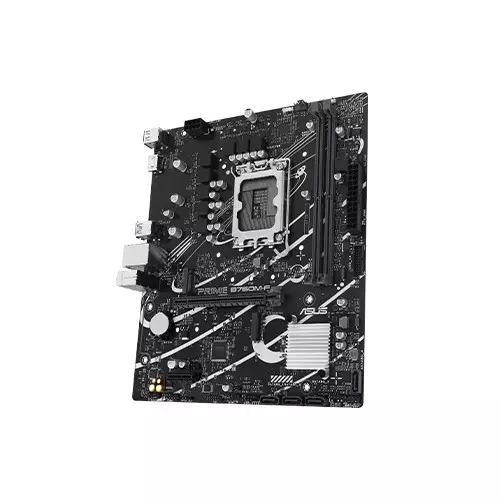

Asus PRIME B760M-F DDR5 LGA1700 mATX Motherboard - 1

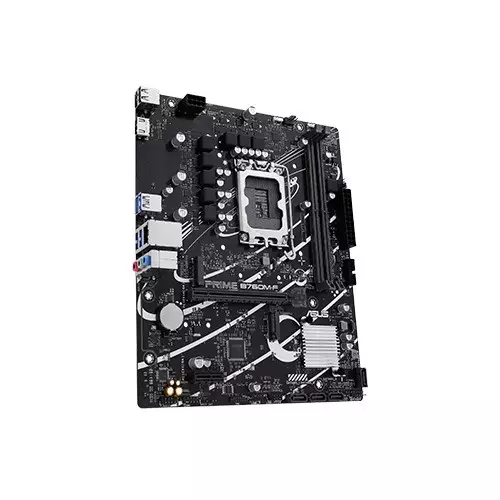

Asus PRIME B760M-F DDR5 LGA1700 mATX Motherboard - 2

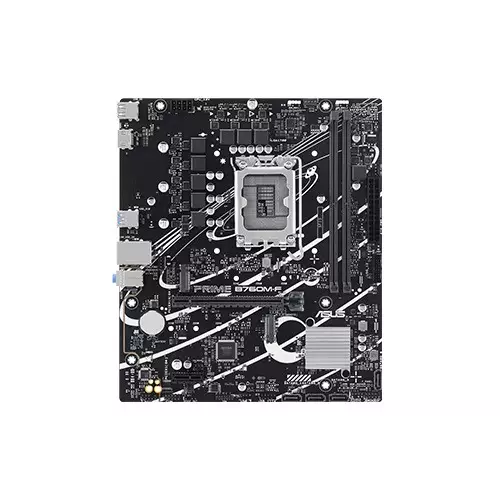

Asus PRIME B760M-F DDR5 LGA1700 mATX Motherboard - 3
Asus PRIME B760M-F DDR5 LGA1700 mATX Motherboard - 4

Asus PRIME B760M-F DDR5 LGA1700 mATX Motherboard

0 Reviews
Stock : In Stock
PID : P0122506774
Brand : Asus
Model : PRIME B760M-F
Warranty : 3-Years
  • Chipset: Intel B760 Chipset for Intel Core14th & 13th Gen
  • Socket: Intel Socket LGA1700
  • Memory: 2 x DIMM slots, Max. 96GB, DDR5
  • Graphics Output: 1 x HDMI

Product Pricing

Discount Price

৳14,700 ৳16,100
+ Available Payment Method

EMI Start From*

৳518

SPECIFICATIONS

Processor

Supported CPU Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors,

Intel Core 12th Gen, Pentium Gold and Celeron Processors

Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0

Mainboard

Chipset Intel B760 Chipset
BIOS 128 Mb Flash ROM, UEFI AMI BIOS

Memory

Memory 2 x DIMM slots, Max. 96GB, DDR5

8000(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/

7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/

6000(OC)/5800(OC)/5600/5400/5200/5000/4800

Non-ECC, Un-buffered Memory

Dual channel memory architecture

Supports Intel® Extreme Memory Profile (XMP) memory module

Storage

Storage Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports

Intel Core Processors (14th & 13th & 12th Gen)

M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)


Intel B760 Chipset

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

4 x SATA 6Gb/s ports

* Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.

Graphics

Graphics 1 x HDMI port

Graphics specifications may vary between CPU types.

Please refer to www.intel.com for any updates.

Supports 4K@30Hz as specified in HDMI 1.4.

Networking & Connectivity

Ethernet 1 x Realtek 1Gb Ethernet

Audio & Microphone

Audio Realtek 7.1 Surround Sound High Definition Audio CODEC*

- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

- Supports up to 24-Bit/192 kHz playback


Audio Features

- Audio Shielding

- Premium audio capacitors

- Dedicated audio PCB layers

* A chassis with an HD audio module in

the front panel is required to support 7.1 Surround Sound audio output.

Ports

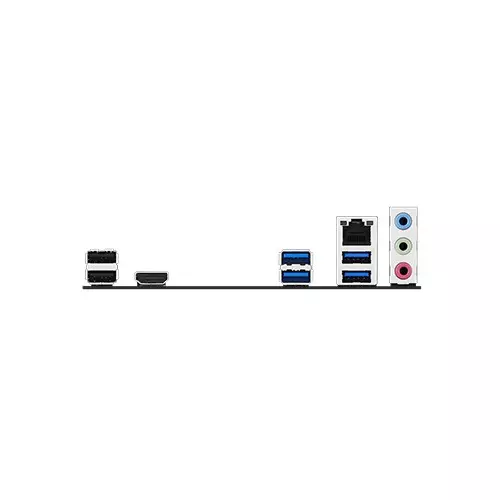

I/O Port Back Panel I/O Ports
4 x USB 5Gbps ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x HDMI port
1 x Realtek 1Gb Ethernet port
3 x Audio jacks
Internal I/O Connectors
Fan and Cooling Related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers

Power Related
1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector



Storage Related

2 x M.2 slots (Key M)

4 x SATA 6Gb/s ports



USB

1 x USB 5Gbps header supports 2 additional USB 5Gbps ports

2 x USB 2.0 headers support 3 additional USB 2.0 ports



Miscellaneous

2 x Addressable Gen 2 headers

1 x Clear CMOS header

1 x COM Port header

1 x Front panel audio header (F_AUDIO)

1 x S/PDIF Out header

1 x Speaker header

1 x SPI TPM header (14-1pin)

1 x 10-1 pin System Panel header
USB Rear USB (Total 6 ports)

4 x USB 5Gbps ports (4 x Type-A)

2 x USB 2.0 ports (2 x Type-A)*



Front USB (Total 5 ports)

1 x USB 5Gbps header supports 2 additional USB 5Gbps ports

2 x USB 2.0 headers support 3 additional USB 2.0 ports

Software

Software Features ASUS Exclusive Software

Armoury Crate

- Aura Sync

- Fan Xpert 2+

- Power Saving

- Two-Way AI Noise Cancelation


AI Suite 3

- DIGI+ VRM

- PC Cleaner


ASUS CPU-Z


Norton 360 Deluxe (60 Days Free Trial)


WinRAR (40 Days Free Trial)


UEFI BIOS


ASUS EZ DIY

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

- ASUS UEFI BIOS EZ Mode

Special Features

Special Features ASUS 5X PROTECTION III

- DIGI+ VRM

- LANGuard

- Overvoltage protection

- SafeSlot Core

- Stainless-steel back I/O


ASUS Q-Design

- Q-DIMM

- Q-LED Core

- Q-Slot


ASUS EZ DIY

- ProCool


ASUS Thermal Solution

- Aluminum heatsink design


Aura Sync

- Addressable Gen 2 headers

Others

Accessories Cables

2 x SATA 6Gb/s cables



Miscellaneous

1 x I/O shield

2 x M.2 anchors



Documentation

1 x Quick Start guide

Physical Specification

Color Black
Expansion Slots Intel Core Processors (14th & 13th & 12th Gen)

1 x PCIe 4.0 x16 slot


Intel B760 Chipset

1 x PCIe 4.0 x1 slot
Form Factor micro-ATX Form Factor

9.6 inch x 8.3 inch (24.4cm x 21.1cm)

Technical Info

Model PRIME B760M-F
Management WOL by PME, PXE
Operating System Support Windows 11, Windows 10 64-bit

Warranty Information

Warranty 3 Years

DESCRIPTION

Asus PRIME B760M-F DDR5 LGA1700 mATX Motherboard in Bangladesh

Asus PRIME B760M-F DDR5 LGA1700 mATX Motherboard is a highly capable, compact motherboard tailored for modern computing needs. Designed to support Intel’s 14th, 13th, and 12th Gen processors, this motherboard offers a solid balance of performance and efficiency, making it an ideal choice for those seeking dependable power at a reasonable price.


Technical Details

Built with the Intel B760 chipset, the Asus PRIME B760M-F motherboard is compatible with LGA1700 socket processors, supporting up to 96GB of DDR5 memory in two DIMM slots with speeds reaching an impressive 8000MHz. This allows for smooth multitasking and enhanced performance for demanding applications. For expansion, it offers a PCIe 4.0 x16 slot for dedicated GPUs and an additional PCIe 4.0 x1 slot. Its storage options include two M.2 slots and four SATA ports, allowing for versatile storage solutions and fast data access. Networking is handled by Realtek 1Gb Ethernet, while the Realtek 7.1 Surround Sound codec provides high-quality audio. With additional USB 5Gbps and 2.0 ports, along with Aura Sync RGB headers, this motherboard offers robust connectivity and customization options.



Availability and Usability

Asus PRIME B760M-F DDR5 LGA1700 mATX Motherboard is available at Tech Land BD, making it accessible for users in Bangladesh looking to build a reliable, feature-packed PC. With support for high-speed DDR5 memory, PCIe 4.0 compatibility, and robust storage solutions, this motherboard is suitable for a wide range of applications, from gaming to productivity tasks. The Asus PRIME B760M-F price in BD offers a competitive option for users wanting a powerful, future-proof motherboard without overspending.


Highlights

  • Supports Intel 14th, 13th, and 12th Gen processors
  • High-speed DDR5 memory up to 96GB with speeds up to 8000MHz
  • Dual M.2 slots for fast, expansive storage options
  • Realtek 1Gb Ethernet for stable, reliable networking
  • Aura Sync RGB support for customizable lighting


Upgrade Now with the Asus PRIME B760M-F at Tech Land BD!

Take your PC experience to the next level with the Asus PRIME B760M-F DDR5 LGA1700 mATX Motherboard, available now at Tech Land BD. This motherboard combines cutting-edge support for Intel processors and ultra-fast DDR5 memory, making it perfect for users who demand excellent performance and efficiency. Don’t miss out on the Asus PRIME B760M-F price in Bangladesh and secure a powerful, dependable motherboard that can handle both current and future computing needs. Visit Tech Land BD and enhance your PC setup with this exceptional motherboard today!

REVIEWS

Login to write a review.

No reviews yet

Be the first to share your thoughts about this product.

What is the Asus PRIME B760M-F DDR5 LGA1700 mATX Motherboard Price in Bangladesh 2026 ?

The Asus PRIME B760M-F Price in BD is 14,700৳ . This Asus PRIME B760M-F DDR5 LGA1700 mATX Motherboard Manufacturing by Asus Comes With 3-Years Warranty & Based on 0 reviews. Tech Land BD Offers you Asus PRIME B760M-F by 14,700৳ and its regular price is 16,100৳ Which is also In Stock Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
