Gigabyte GeForce RTX 3050 GAMING OC 8 GB Graphics Card Overview
GPU
| - GPU Model: NVIDIA GeForce RTX 3050
- Stream Processors: 2560
- Boost Clock Speed: 1822 MHz
- Base Clock Speed: 1777 MHz
- Interface: PCI Express 4.0 x16
- Supported APIs: DirectX: 12
- OpenGL: 4.6
- OpenCL: 3
- Vulkan: 1.2
- Operating System Support Windows
|
Memory
| - Display Connectors: 2 x DisplayPort 1.4a / 2 x HDMI 2.1
- Maximum Digital Resolution: 7680 x 4320
|
Power Requirements
| - PCI Power Connectors: 1 x 8-Pin
- Recommended System Power Requirement: 450 W
|
Dimensions
| - Expansion Slot Compatibility: Full Height
- Height: 4.6" / 117.00 mm
- Length: 11.1" / 282.00 mm
- Width: Dual-Slot
|
General
| - Cooler Type: Open Fansink with Three Fans
- Lighting: RGB LED
|
| Warranty | |

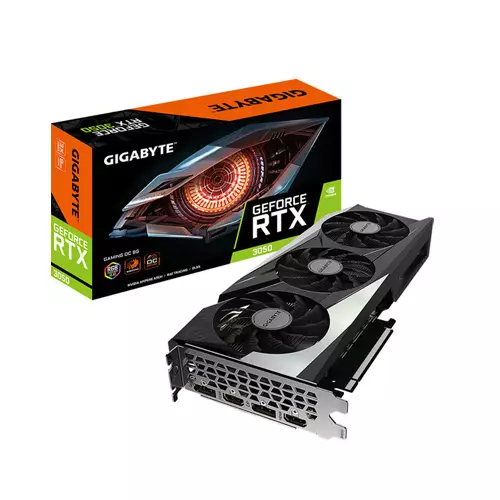

Gigabyte GeForce RTX 3050 GAMING OC 8 GB Graphics Card
Based on the Ampere architecture and designed to handle the graphical demands of Full HD 1080p gaming, the Gigabyte GeForce RTX 3050 GAMING OC Graphics Card brings the power of real-time ray tracing and AI to your PC games. The GPU features 8GB of GDDR6 VRAM and a 128-bit memory interface, offering improved performance and power efficiency over the previous Turing-based generation.
The front panel of the card features a variety of outputs, such as DisplayPort 1.4a and HDMI 2.1. HDMI 2.1 supports up to 48 Gb/s bandwidth and a range of higher resolutions and refresh rates, including 8K @ 60 fps, 4K @ 120 fps, and even up to 10K. The RTX 3050 is not just about high-resolution gaming. Computationally intensive programs can utilize the GPU's 2560 cores to accelerate tasks using CUDA and other APIs.

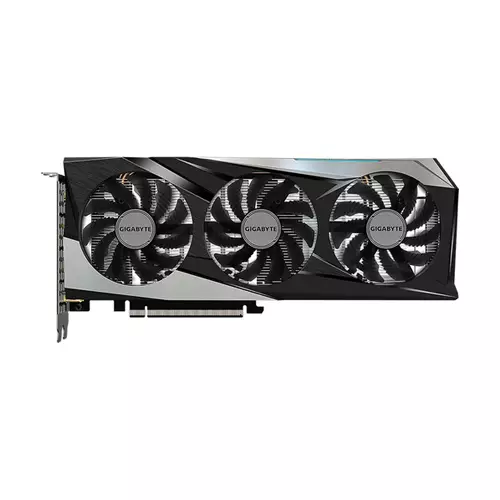

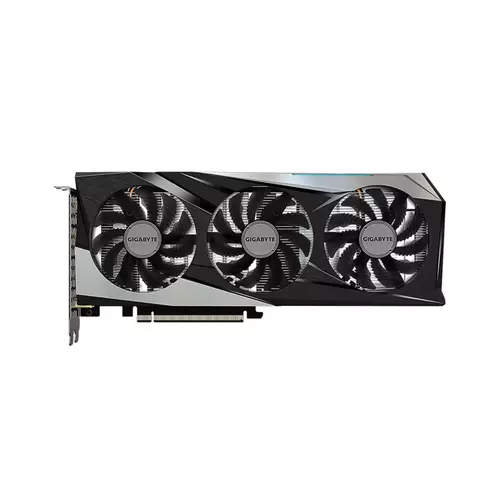

For cooling, Gigabyte implemented the WINDFORCE 3X cooling system. It features two 90mm fans and one 80mm fan. The fans feature unique blades, where the airflow is split by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface. With alternate spinning, the fans reduce turbulence and increase air pressure. The 3D Active Fan provides semi-passive cooling and the fans will turn off when the GPU is in a low-load or low-power state. There are also seven composite copper heat pipes and a large copper plate with direct contact to the GPU and VRAM, which efficiently transfer heat. The extended heatsink design allows air flow to pass through, providing better heat dissipation. It also has RGB Fusion 2.0, which has 16.7 million customizable color options and a variety of lighting effects. You can also use it to synchronize with other devices.
NVIDIA Ampere Architecture
The NVIDIA Ampere architecture can deliver twice the FP32 throughput of the previous generation. Its 2nd Gen RT cores provide enhanced ray tracing and shading while its 3rd Gen Tensor Cores can run AI-powered technologies efficiently.
Real-Time Ray Tracing
The NVIDIA GeForce RTX platform enables real-time ray tracing of objects and environments with physically accurate shadows, reflections, refractions, and global illumination.
DLSS
NVIDIA DLSS (Deep Learning Super Sampling) is AI rendering that boosts frame rates while still providing optimal image quality using the dedicated AI processing Tensor Cores on the GeForce RTX platform. This gives you the performance you need to maximize ray tracing settings and resolutions for an immersive visual experience.
HDMI 2.1
The HDMI 2.1 interface provides increased bandwidth, allowing a single cable to output to 8K HDR TVs for ultra-high-resolution gaming.
