ASUS PRIME B760M-A WIFI D4 DDR4 12TH AND 13TH GEN ATX MOTHERBOARD

ASUS PRIME B760M-A WIFI D4 DDR4 12TH AND 13TH GEN ATX MOTHERBOARD
ASUS PRIME B760M-A WIFI D4 DDR4 12TH AND 13TH GEN ATX MOTHERBOARD
ASUS PRIME B760M-A WIFI D4 DDR4 12TH AND 13TH GEN ATX MOTHERBOARD
ASUS PRIME B760M-A WIFI D4 DDR4 12TH AND 13TH GEN ATX MOTHERBOARD
Save: 2300৳ Out Of Stock
ASUS PRIME B760M-A WIFI D4 DDR4 12TH AND 13TH GEN ATX MOTHERBOARD
ASUS PRIME B760M-A WIFI D4 DDR4 12TH AND 13TH GEN ATX MOTHERBOARD
ASUS PRIME B760M-A WIFI D4 DDR4 12TH AND 13TH GEN ATX MOTHERBOARD
ASUS PRIME B760M-A WIFI D4 DDR4 12TH AND 13TH GEN ATX MOTHERBOARD
ASUS PRIME B760M-A WIFI D4 DDR4 12TH AND 13TH GEN ATX MOTHERBOARD
Stock Status
Out Of Stock
Product ID
30305
Brand
Asus
Product modelPRIME B760M-A WIFI D4
Warranty 3 Years
Total Reviews
 Based on 0 reviews. - Write a review
Based on 0 reviews. - Write a review

Out Of Stock

Add to Wish List Compare this Product
Short Description
  • Chipset: Intel® B760 Chipset
  • Memory: 4 x DIMM, Max. 128GB
  • Graphics: 1 x DisplayPort
  • BIOS: 128 Mb Flash ROM
    • View details

    • Stock availability is subject to change. Please confirm availability before shopping by calling us.
    • The product image is for illustration purposes only. The actual product may vary in size, color, and layout. No claim will be accepted for an image mismatch.
    • Tech Land BD can change the price of any product at any moment due to the volatile price of the technology.
    • We cannot guarantee that the information on this page is 100% correct. Tech Land BD is not responsible for the results obtained from the use of this information.
    Processor
    Supported CPU Intel® Socket LGA1700 for 13th Gen Intel® Core™ Processors & 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*
    Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
    Mainboard
    Chipset Intel® B760 Chipset
    Memory
    Memory 4 x DIMM, Max. 128GB, DDR4 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(
    OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/
    2666/2400/2133 Non-ECC, Un-buffered Memory*
    Dual Channel Memory Architecture
    Supports Intel® Extreme Memory Profile (XMP)
    OptiMem II
    Storage
    Supported Storage Total supports 2 x M.2 slots and 4x SATA 6Gb/s ports*
    Intel® 13th & 12th Gen Processors
    M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
    Intel® B760 Chipset
    M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
    4 x SATA 6Gb/s ports
    * Intel® Rapid Storage Technology supports SATA RAID 0/1/5/10.
    Graphics
    Graphics 1 x DisplayPort**
    2 x HDMI® ports***
    * Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
    ** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
    *** Supports 4K@60Hz as specified in HDMI® 2.1.
    Audio & Microphone
    Audio Realtek 7.1 Surround Sound High Definition Audio CODEC*
    - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
    - Supports up to 24-Bit/192 kHz playback
    Audio Features
    - Audio Shielding
    - Premium audio capacitors
    - Dedicated audio PCB layers
    * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
    Networking & Connectivity
    LAN 1 x Realtek 2.5Gb Ethernet
    WiFi Wi-Fi 6
    2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
    Supports 2.4/5GHz frequency band
    Bluetooth Bluetooth v5.2
    Ports
    Slots Intel® 13th & 12th Gen Processors
    1 x PCIe 4.0 x16 slot
    Intel® B760 Chipset
    1 x PCIe 4.0 x16 slot (supports x4 mode)
    1 x PCIe 4.0 x16 slot (supports x1 mode)
    Internal I/O Ports Fan and Cooling related
    1 x 4-pin CPU Fan header
    1 x 4-pin CPU OPT Fan header
    2 x 4-pin Chassis Fan headers
    Power related
    1 x 24-pin Main Power connector
    1 x 8-pin +12V Power connector
    Storage related
    2 x M.2 slots (Key M)
    4 x SATA 6Gb/s ports
    USB
    2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
    1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
    2 x USB 2.0 headers support 4 additional USB 2.0 ports
    1 x USB 2.0 header supports 1 additional USB 2.0 port
    Miscellaneous
    3 x Addressable Gen 2 headers
    1 x Aura RGB header
    1 x Clear CMOS header
    1 x COM Port header
    1 x Front Panel Audio header (AAFP)
    1 x LPT header
    1 x S/PDIF Out header
    1 x SPI TPM header (14-1pin)
    1 x 20-3 pin System Panel header with Chassis intrude function

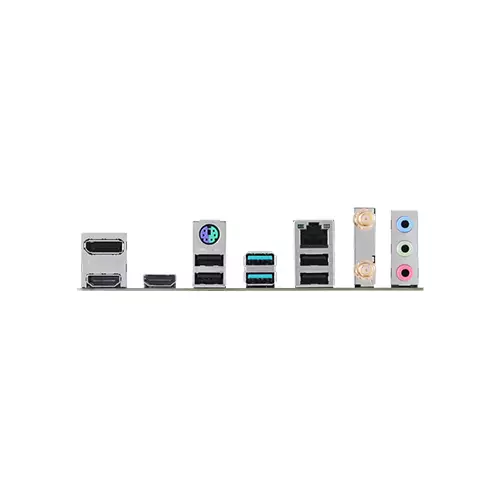

    External I/O Ports 2 x USB 3.2 Gen 2 ports (2 x Type-A )
    4 x USB 2.0 ports (4 x Type-A)
    1 x DisplayPort
    2 x HDMI® ports
    1 x Realtek 2.5Gb Ethernet port
    3 x Audio jacks
    1 x PS/2 Keyboard/Mouse combo port
    USB Rear USB (Total 6 ports)
    2 x USB 3.2 Gen 2 ports (2 x Type-A )
    4 x USB 2.0 ports (4 x Type-A)
    Front USB (Total 10 ports)
    2 x USB 3.2 Gen 1 headers support 4 additional USB 3.2 Gen 1 ports
    1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
    2 x USB 2.0 headers support 4 additional USB 2.0 ports
    1 x USB 2.0 header supports 1 additional USB 2.0 port
    HDMI 2 x HDMI® ports
    Technical Info
    BIOS 128 Mb Flash ROM, UEFI AMI BIOS
    Special Features
    Special Features ASUS 5X PROTECTION III
    - DIGI+ VRM
    - LANGuard
    - Overvoltage Protection
    - SafeSlot Core+
    - Stainless-Steel Back I/O
    ASUS Q-Design
    - Q-DIMM
    - Q-LED Core
    - Q-Slot
    ASUS Thermal Solution

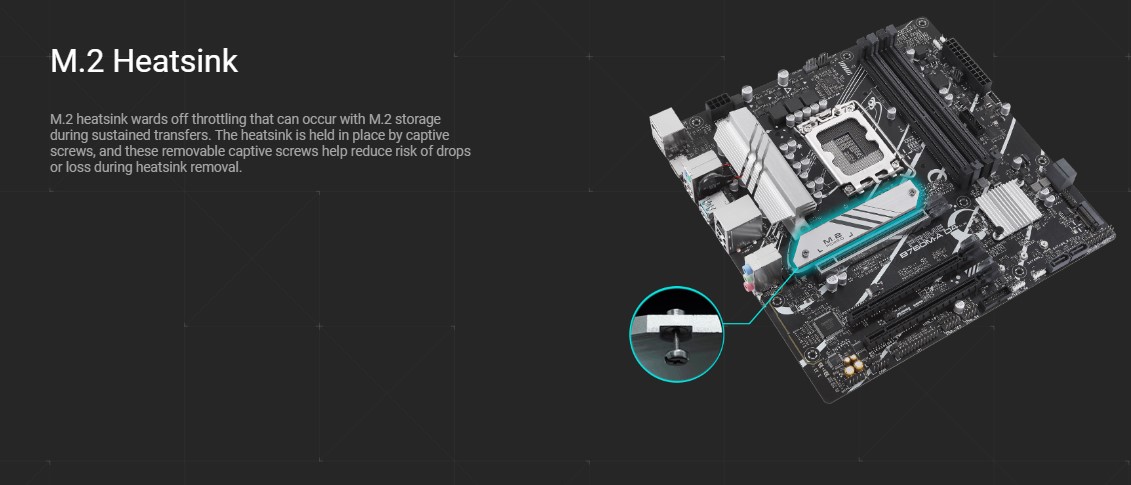

    - M.2 heatsink
    - VRM heatsink design
    ASUS EZ DIY
    - ProCool
    Aura Sync
    - Aura RGB header
    - Addressable Gen 2 headers
    Software Features ASUS Exclusive Software
    Armoury Crate
    - Aura Creator
    - Aura Sync
    - Fan Xpert 2+
    - Power Saving
    AI Suite 3
    - Digi+ VRM
    - PC Cleaner
    ASUS CPU-Z
    Norton Deluxe (60 Days Free Trial)
    WinRAR
    UEFI BIOS
    ASUS EZ DIY
    - ASUS CrashFree BIOS 3
    - ASUS EZ Flash 3
    - ASUS UEFI BIOS EZ Mode
    Physical Specification
    Form Factor mATX Form Factor
    Dimension 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
    Others
    Other Features Manageability: WOL by PME, PXE

    Accessories:

    Cables
    2 x SATA 6Gb/s cables
    Miscellaneous
    1 x I/O Shield
    1 x M.2 Rubber Package
    1 x Screw package for M.2 SSD
    Documentation
    1 x User guide

    Operating System: Windows® 11, Windows® 10 64-bit
    Warranty Information
    Warranty 3 Years Warranty

    ASUS PRIME B760M-A WIFI D4 DDR4 12TH AND 13TH GEN ATX MOTHERBOARD

    The ASUS PRIME B760M-A WIFI D4 DDR4 12TH AND 13TH GEN ATX MOTHERBOARD is a top-performing motherboard compatible with Intel Socket LGA1700 for 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold, and Celeron Processors. It supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0. The chipset used is the Intel B760 Chipset, and it has four DIMM slots that can support a maximum of 128GB of DDR4 memory with a speed of up to 5333MHz (OC). Additionally, it has dual-channel memory architecture and supports Intel Extreme Memory Profile (XMP) and OptiMem II for efficient memory performance. This motherboard has multiple expansion slots, including one PCIe 4.0 x16 slot and two PCIe 4.0 x16 slots with x4 and x1 mode, respectively. It has two M.2 slots and four SATA 6Gb/s ports, supporting Intel Rapid Storage Technology with SATA RAID 0/1/5/10. It also features Realtek 2.5Gb Ethernet, Wi-Fi 6, Bluetooth v5.2, and several USB ports, including USB 2.0 and USB 3.2 Gen 1 connectors.  The ASUS PRIME B760M-A WIFI D4 DDR4 12TH AND 13TH GEN ATX MOTHERBOARD offers excellent audio quality with its Realtek 7.1 Surround Sound High Definition Audio CODEC that supports up to 24-bit/192 kHz playback. Moreover, it has an Aura RGB header and Addressable Gen 2 headers that syncs with Aura Sync software, allowing users to customize their lighting preferences.

    Additionally, this motherboard comes with an array of ASUS proprietary software such as Armoury Crate, AI Suite 3, ASUS CPU-Z, MyAsus, and Norton Deluxe (60 Days Free Trial) that further enhances its performance and ease of use. The ASUS PRIME B760M-A WIFI D4 DDR4 12TH AND 13TH GEN ATX MOTHERBOARD is packaged with cables, an I/O shield, Wi-Fi moving antennas, and a user guide. It is compatible with Windows® 11 and Windows® 10 64-bit operating systems and has an mATX form factor measuring 9.6 inches by 9.6 inches (24.4 cm x 24.4 cm). Bangladesh's top retailer of computer hardware and applications is Techland BD. A hallmark of Techland BD is its top-notch client support. They have a helpful and knowledgeable crew that is always willing to help customers. The large selection of Asus Motherboard available at Techland BD is well recognized. The large selection of Motherboard available at Techland BD is well recognized.

    Review

    Get specific details about this product from customers who own it.

    What is the ASUS PRIME B760M-A WIFI D4 DDR4 12TH AND 13TH GEN ATX MOTHERBOARD Price in Bangladesh 2024?

    The Asus PRIME B760M-A WIFI D4 Price in BD is 22,700৳ in Today's 2024-04-27 Market. This ASUS PRIME B760M-A WIFI D4 DDR4 12TH AND 13TH GEN ATX MOTHERBOARD Manufacturing by Asus Comes With 3 Years Warranty & Based on 0 reviews. Tech Land BD Offers you Asus PRIME B760M-A WIFI D4 by 22,700৳ and its regular price is 25,000৳ Which is also Out Of Stock Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
    Tags: ASUS PRIME B760M-A WIFI D4 , DDR4 Motherboard , ATX Motherboard , 12th Gen Motherboard , 13th Gen Motherboard , Intel Processor Compatible , PCIe 4.0 Support , AI Noise Canceling Microphone , BIOS Flashback Button , Dual M.2 Slots
