ASUS PRIME H770-PLUS DDR5 14th to 12th Gen ATX Motherboard
ASUS PRIME H770-PLUS DDR5 14th to 12th Gen ATX Motherboard
ASUS PRIME H770-PLUS DDR5 14th to 12th Gen ATX Motherboard - 1
ASUS PRIME H770-PLUS DDR5 14th to 12th Gen ATX Motherboard - 2

ASUS PRIME H770-PLUS DDR5 14th to 12th Gen ATX Motherboard

0 Reviews
Stock : In Stock
PID : P0122506670
Brand : Asus
Model : PRIME H770-PLUS
Warranty : 3 years
  • Supported CPU: 14th, 13th Gen & 12th Gen Processors (LGA1700)
  • Supported Memory: 4 x DIMM, Max. 192GB, DDR5 7200+(OC)
  • Graphics Output: 1 x DisplayPort, 1 x HDMI
  • Features: 1 x Realtek 2.5Gb Ethernet
🎮 FREE LOGITECH F310 WITH PC BUILD

Product Pricing

Discount Price

৳26,800 ৳30,200
+ Available Payment Method

EMI Start From*

৳944

SPECIFICATIONS

Processor

Supported CPU Intel Socket LGA1700 for 14th, 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold and Celeron Processors*
Supports Intel Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0

Mainboard

Chipset Intel H770 Chipset
BIOS 192 (128+64) Mb Flash ROM, UEFI AMI BIOS

Memory

Memory Size Max. 192GB
Memory Specifications 7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 Non-ECC,
Un-buffered Memory*

Dual Channel Memory Architecture

Supports Intel Extreme Memory Profile (XMP)

OptiMem II
Memory Type DDR5

Storage

Storage Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*

Intel 13th & 12th Gen Processors

M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

Intel H770 Chipset

M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)

M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)

4 x SATA 6Gb/s ports

Graphics

Graphics x DisplayPort**

1 x HDMI® port***

** Supports max. 4K@60Hz as specified in DisplayPort 1.4.

*** Supports 4K@60Hz as specified in HDMI® 2.1.

Networking & Connectivity

LAN 1 x Realtek 2.5Gb Ethernet

Audio & Microphone

Audio Realtek 7.1 Surround Sound High Definition Audio CODEC*

- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

- Supports up to 24-Bit/192 kHz playback
Audio Features

- Audio Shielding

- Premium audio capacitors

- Dedicated audio PCB layers

Ports

PCI Card Slot Intel 13th & 12th Gen Processors

1 x PCIe 5.0 x16 slot

Intel H770 Chipset

2 x PCIe 4.0 x16 slots (support x4 mode)

2 x PCIe 3.0 x1 slots
Slots 4 x DIMM
Jack Audio: 3 x Audio jacks

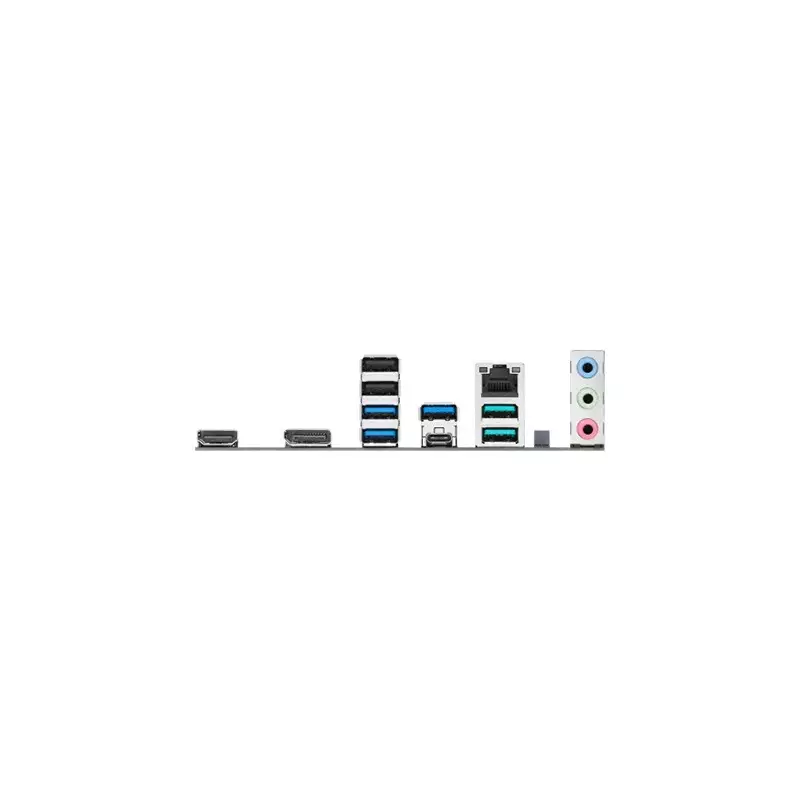

Internal I/O Ports Back Panel I/O Ports

3 x USB 3.2 Gen 2 (10G) ports (2 x Type-A + 1 x USB Type-C)

3 x USB 3.2 Gen 1 (5G) ports (3 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

1 x DisplayPort

1 x HDMI port

1 x Vertical M.2 slot (Key E)

1 x Realtek 2.5Gb Ethernet port

3 x Audio jacks
USB Rear USB (Total 8 ports)

3 x USB 3.2 Gen 2 (10G) ports (2 x Type-A + 1 x USB Type-C)

3 x USB 3.2 Gen 1 (5G) ports (3 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

Front USB (Total 7 ports)

2 x USB 3.2 Gen 1 (5G) headers support 4 additional USB 3.2 Gen 1 ports

2 x USB 2.0 headers support 3 additional USB 2.0 ports
HDMI 1 x HDMI

Software

Software Features ASUS Exclusive Software

Armoury Crate

- Aura Creator

- Aura Sync

- Fan Xpert 2+

- Power Saving

AI Suite 3

- DIGI+ VRM

- PC Cleaner

ASUS CPU-Z

Norton 360 Deluxe (60 Days Free Trial)

WinRAR

UEFI BIOS

ASUS EZ DIY

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

- ASUS UEFI BIOS EZ Mode

Others

Other Features M.2 Socket: 3 x M.2

Maximum Memory: Max. 192GB

Display Port (s):1 x DisplayPort

RAID:
Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10

TPM (Trusted Platform Module ):1 x SPI TPM header (14-1pin)

Physical Specification

Form Factor ATX Form Factor

12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Warranty Information

Warranty 3 years

DESCRIPTION

ASUS PRIME H770-PLUS DDR5 14th to 12th Gen ATX Motherboard in Bangladesh


Specifications


The ASUS PRIME H770-PLUS DDR5 ATX motherboard is engineered to support Intel Socket LGA1700 for 14th, 13th, and 12th Gen Intel Core processors, including Pentium Gold and Celeron processors. It features the Intel H770 chipset and comes with a robust 192 Mb (128+64) Flash ROM UEFI AMI BIOS. This ATX form factor board measures 12 inches by 9.6 inches and includes high-definition audio with Realtek 7.1 Surround Sound, enhanced by premium audio capacitors and audio shielding. For expansion, it provides 1 x PCIe 5.0 x16 slot, 2 x PCIe 4.0 x16 slots (supporting x4 mode), and 2 x PCIe 3.0 x1 slots. Storage solutions include 3 M.2 slots and 4 SATA 6Gb/s ports, supporting various RAID configurations. It also supports up to 192GB of DDR5 RAM with speeds of up to 7200+(OC) MHz. The board is equipped with multiple USB ports, including USB 3.2 Gen 2 and Gen 1, a Realtek 2.5Gb Ethernet port, and display outputs like HDMI and DisplayPort.


Availability and Usability

The ASUS PRIME H770-PLUS DDR5 motherboard is readily available at Tech Land BD, a trusted retailer in Bangladesh. This motherboard is ideal for enthusiasts and professionals looking to build a high-performance PC with the latest Intel processors. Its extensive connectivity options, including numerous USB ports and multiple M.2 slots, ensure flexibility and high-speed data transfer. The motherboard's support for DDR5 memory and advanced storage options like PCIe 4.0 enhances its future-proofing capabilities. Additionally, ASUS's exclusive software suite, including Armoury Crate and AI Suite 3, provides intuitive system management and customization. By purchasing from Tech Land BD, customers can benefit from competitive pricing and reliable after-sales service. For the best ASUS PRIME H770-PLUS DDR5 price in BD, visit Tech Land BD today.


Highlights

  • Supports Intel 14th, 13th, and 12th Gen processors
  • DDR5 memory with up to 192GB support
  • 1 x PCIe 5.0 x16 slot for high-speed expansion
  • Realtek 7.1 Surround Sound with premium audio features
  • Extensive connectivity with multiple USB and M.2 slots


Secure Your ASUS PRIME H770-PLUS DDR5 at Tech Land BD Today

Don't miss out on the opportunity to upgrade your PC with the ASUS PRIME H770-PLUS DDR5 14th to 12th Gen ATX Motherboard. Designed to handle the latest Intel processors and DDR5 memory, this motherboard delivers exceptional performance and versatility. Check the ASUS PRIME H770-PLUS DDR5 price in Bangladesh at Tech Land BD and ensure you get the best deal available. With its robust build, advanced features, and comprehensive connectivity options, this motherboard is a perfect choice for gamers and professionals alike. Visit Tech Land BD now to secure your ASUS PRIME H770-PLUS DDR5 motherboard and take your computing experience to the next level

REVIEWS

Login to write a review.

No reviews yet

Be the first to share your thoughts about this product.

What is the ASUS PRIME H770-PLUS DDR5 14th to 12th Gen ATX Motherboard Price in Bangladesh 2026 ?

The Asus PRIME H770-PLUS Price in BD is 26,800৳ . This ASUS PRIME H770-PLUS DDR5 14th to 12th Gen ATX Motherboard Manufacturing by Asus Comes With 3 years Warranty & Based on 0 reviews. Tech Land BD Offers you Asus PRIME H770-PLUS by 26,800৳ and its regular price is 30,200৳ Which is also In Stock Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
