|Supported CPU||Intel® Socket 1151 for 8th Generation Core™ Processors Supports Intel® 14 nm CPU Supports Intel® Turbo Boost Technology 2.0 * The Intel® Turbo Boost Technology 2.0 support depends on the CPU types.|
|BIOS||1 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 My Favorites, Last Modified log, F12 PrintScreen, ASUS DRAM SPD (Serial Presence Detect) memory information, F4 AURA ON/OFF and F9 Search, Secure Erase, User Profile.|
|Form Factor||Mini ITX Form Factor ||6.7 inch x 6.7 inch ( 17 cm x 17 cm )|
|Expansion Slots||1 x PCIe 3.0/2.0 x16 (x16 mode)|
|Memory||2 x DIMM, Max. 32GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-buffered Memory ||Dual Channel Memory Architecture ||Supports Intel® Extreme Memory Profile (XMP) * Hyper DIMM support is subject to the physical characteristics of individual CPUs.|
|Integrated Graphics||Integrated Graphics Processor- Intel® HD Graphics support ||Multi-VGA output support : HDMI/DisplayPort 1.2 ports - Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz ||- Supports DisplayPort 1.2 with max. resolution 4096 x 2304 @ 60 Hz Maximum shared memory of 1024 MB (for iGPU exclusively)|
|USB Port||Intel® B360 Chipset : *6 2 x USB 3.1 Gen 2 port(s) (2 at back panel, red) ||Intel® B360 Chipset : 4 x USB 3.1 Gen 1 port(s) (2 at back panel, , Type-A + USB Type-CTM, 2 at mid-board) ||Intel® B360 Chipset : 4 x USB 2.0 port(s) (2 at back panel, , 2 at mid-board)|
|LAN Port||Intel® I219V ||Anti-surge LANGuard ||ROG GameFirst Technology|
|Supported Storage||Intel® B360 Chipset : 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*1 ||1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)*1 ||4 x SATA 6Gb/s port(s) ||Intel® Optane™ Memory Ready *2|
|Audio Port||ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A ||- Dual OP Amplifiers ||- Impedance sense for front and rear headphone outputs ||- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking ||- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input ||- Supports up to 32-Bit/192kHz playback *5 Audio Feature : ||- SupremeFX Shielding™ Technology ||- Optical S/PDIF out port(s) at back panel ||- Sonic Radar III ||- Sonic Studio III + Sonic Studio Link|
|Internal I/O Ports||1 x Aura Addressable Strip Header(s) ||1 x AAFP connector ||1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s) ||1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) ||1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode) ||1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode) ||4 x SATA 6Gb/s connector(s) ||1 x CPU Fan connector(s) (1 x 4 -pin) ||1 x Chassis Fan connector(s) (2 x 4 -pin) ||1 x AIO_PUMP connector ||1 x 24-pin EATX Power connector(s) ||1 x 8-pin ATX 12V Power connector(s) ||1 x Internal speaker connector(s) ||1 x Clear CMOS jumper(s) ||1 x System panel connector ||1 x Thermal sensor connector|
|Manufacturing Warranty||3 years Warrraty|

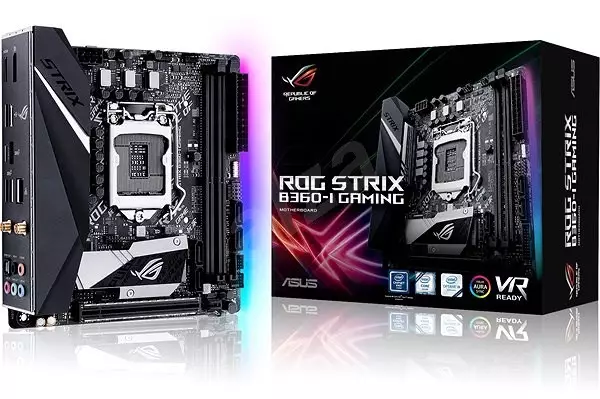

ASUS ROG STRIX B360-I
●︎ LGA1151 socket: Ready for 8th Gen Intel® Core™ desktop processors.
●︎ Aura Sync RGB: Synchronize LED lighting with a vast portfolio of compatible PC gear, including addressable RGB strips.
●︎ Easy DIY: Pre-mounted I/O shield, ASUS SafeSlot and premium components for ●︎ maximum endurance.
●︎ Double-decker PCH and M.2 heatsinks design for optimal heat dissipation and gaming performance.
●︎ Advanced cooling: Automated system-wide tuning and cooling profiles that are tailor-made for your rig.
●︎ Gaming audio: SupremeFX S1220A teamed with Sonic Studio III creates immersive aural landscapes.
●︎ Gaming connectivity: Dual M.2 and USB 3.1 Gen 2 Type-A connectors.
●︎ Gaming networking: Intel Gigabit Ethernet, LANGuard and GameFirst for smoother, safer, lag-free online play, plus integrated 2x2 802.11ac Wi-Fi with MU-MIMO support.
** 3 Years Warranty.
