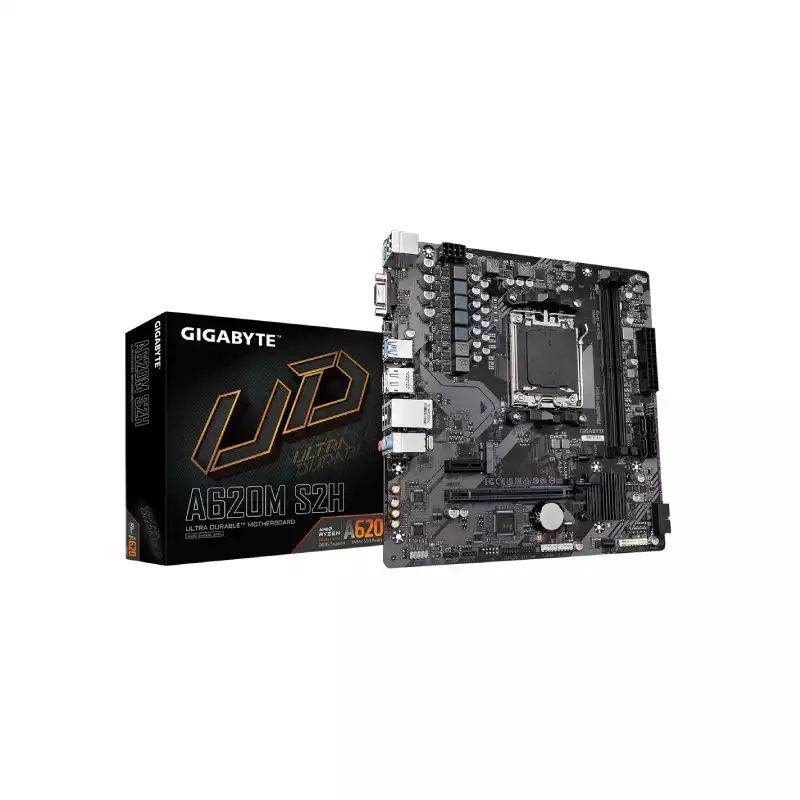

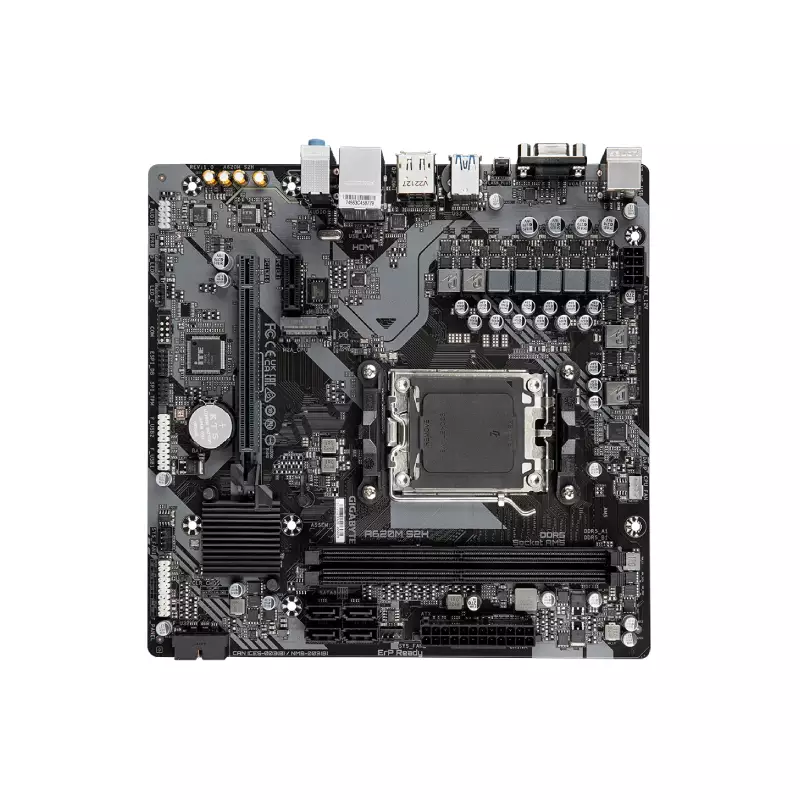

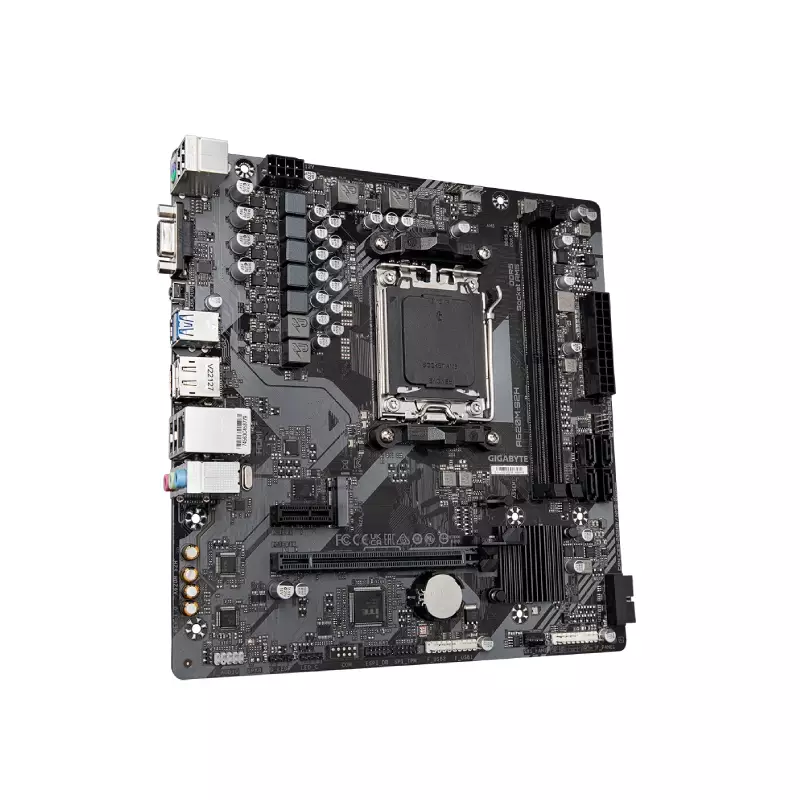

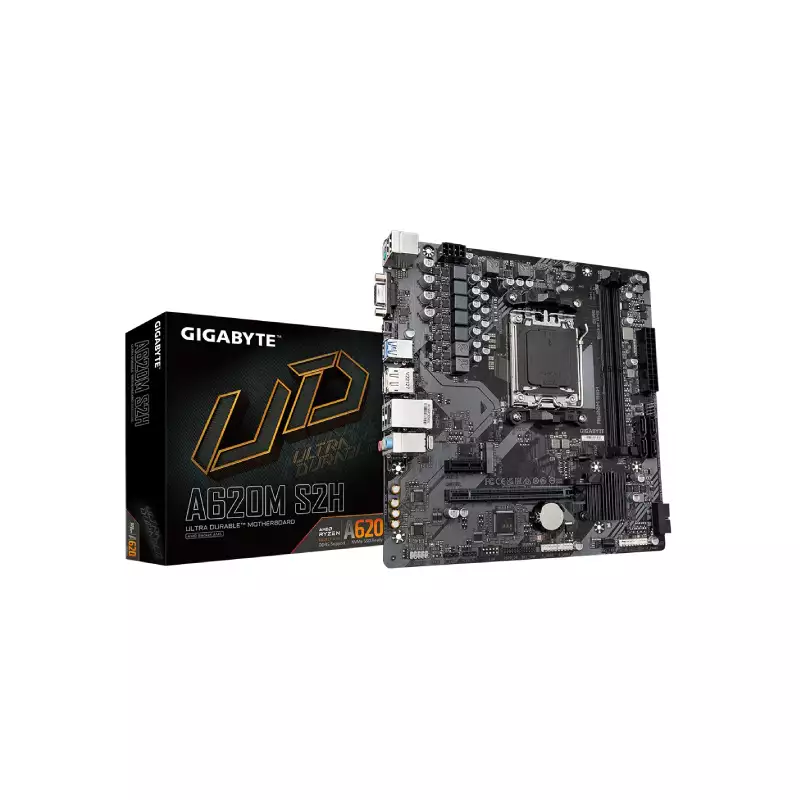

GIGABYTE A620M S2H AM5 MICRO-ATX AMD DDR5 MOTHERBOARD
Product Pricing
EMI Start From*
GIGABYTE A620M S2H AM5 MICRO-ATX AMD DDR5 MOTHERBOARD PRICE IN BD
The Gigabyte A20M S2H AM5 Micro-ATX AMD DDR5 Motherboard is a high-performance motherboard available at TechLand BD. It is designed for AMD Ryzen™ 7000 Series Processors. It features an AMD A620 chipset and supports DDR5 memory modules with speeds up to 6400 MT/s. The motherboard has 2 DDR5 DIMM sockets, supporting up to 96 GB of system memory. The motherboard comes with an integrated graphics processor, supporting a maximum resolution of 4096x2160@60 Hz on HDMI and 3840x2160@144 Hz on DisplayPort. It also supports up to 3 displays at the same time. For audio, it uses a Realtek® Audio CODEC and supports 2/4/5.1/7.1-channel high definition audio. It also features a Realtek® GbE LAN chip for network connectivity. The motherboard has multiple expansion slots, including a PCI Express x16 slot and a PCI Express x1 slot. It also has multiple storage interfaces, including an M.2 connector and 4 SATA 6Gb/s connectors. The motherboard supports USB 3.2 Gen 1 and USB 2.0/1.1 ports, both on the back panel and through internal USB headers. The motherboard uses an iTE I/O Controller Chip and features voltage detection, temperature detection, fan speed detection, and fan speed control. The motherboard supports Windows 11 and Windows 10 (64-bit) operating systems and comes in a Micro ATX form factor.
| Processor | |
| Supported CPU |
AMD Socket AM5, support for: AMD Ryzen™ 7000 Series Processors
|
| Mainboard | |
| Chipset |
AMD A620
|
| BIOS |
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Memory | |
| Memory |
Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
2 x DDR5 DIMM sockets supporting up to 96 GB (48 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.) |
| Storage | |
| Supported Storage |
CPU: 1 x M.2 connector (Socket 3, M key, type 2580 PCIe 4.0 x4/x2 SSD support)
Chipset: 4 x SATA 6Gb/s connectors RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| Graphics | |
| Graphics |
Integrated Graphics Processor:
- 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz - 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz |
| Networking & Connectivity | |
| LAN |
Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
|
| Audio & Microphone | |
| Audio |
Realtek® Audio CODEC
High Definition Audio 2/4/5.1/7.1-channel |
| Ports | |
| Slots |
CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 |
| Internal I/O Ports |
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector 1 x CPU fan header 2 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 1 x M.2 Socket 3 connector 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x Clear CMOS jumper |
| USB |
CPU:
- 2 x USB 3.2 Gen 1 ports on the back panel - 1 x USB 2.0/1.1 port on the back panel Chipset: - 2 x USB 3.2 Gen 1 ports available through the internal USB header - 7 x USB 2.0/1.1 ports (3 ports on the back panel, 4 ports available through the internal USB headers) |
| Software | |
| Software Features |
Norton® Internet Security (OEM version)
LAN bandwidth management software |
| Special Features | |
| Special Features |
Support for GIGABYTE Control Center (GCC)
Support for Q-Flash Support for Q-Flash Plus |
| Others | |
| Other Features |

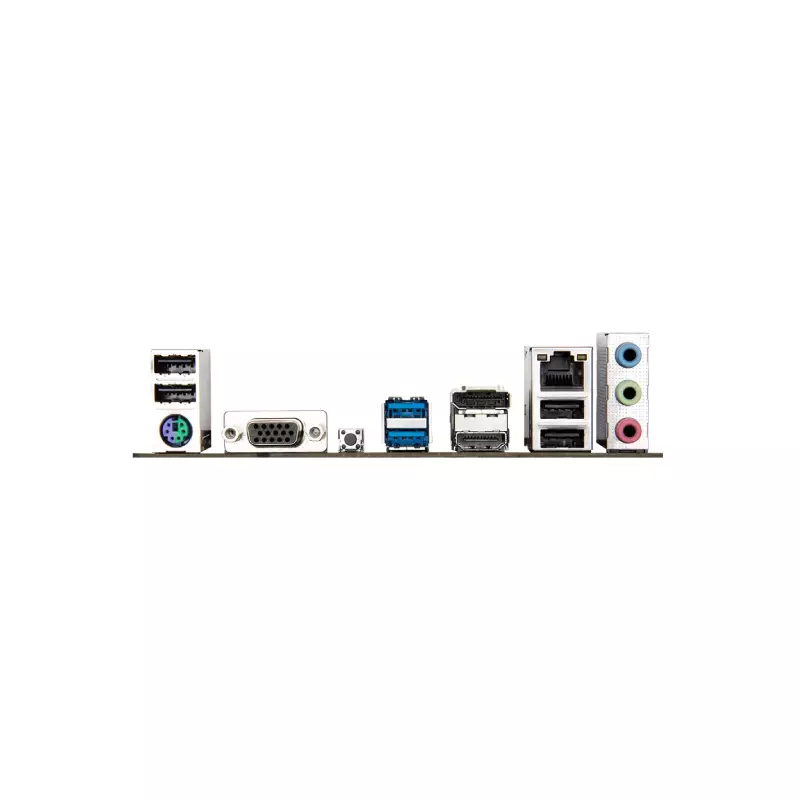

Back Panel Connectors:
- 4 x USB 2.0/1.1 ports - 1 x PS/2 keyboard/mouse port - 1 x D-Sub port - 1 x Q-Flash Plus button - 2 x USB 3.2 Gen 1 ports - 1 x DisplayPort - 1 x HDMI port - 1 x RJ-45 port - 3 x audio jacks I/O Controller: iTE® I/O Controller Chip H/W Monitoring: - Voltage detection - Temperature detection - Fan speed detection - Water cooling flow rate detection - Fan fail warning - Fan speed control Operating System: Support for Windows 11 64-bit Support for Windows 10 64-bit |
| Physical Specification | |
| Form Factor |
Micro ATX Form Factor; 23.0cm x 22.5cm
|
| Warranty Information | |
| Warranty |
3 Years
|
What is the GIGABYTE A620M S2H AM5 MICRO-ATX AMD DDR5 MOTHERBOARD Price in Bangladesh 2025 ?
The Gigabyte A620M S2H Price in BD is 13,000৳ . This GIGABYTE A620M S2H AM5 MICRO-ATX AMD DDR5 MOTHERBOARD Manufacturing by Gigabyte Comes With 3 Years Warranty & Based on 0 reviews. Tech Land BD Offers you Gigabyte A620M S2H by 13,000৳ and its regular price is 16,300৳ Which is also In Stock Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.EMI PRICE CALCULATOR
