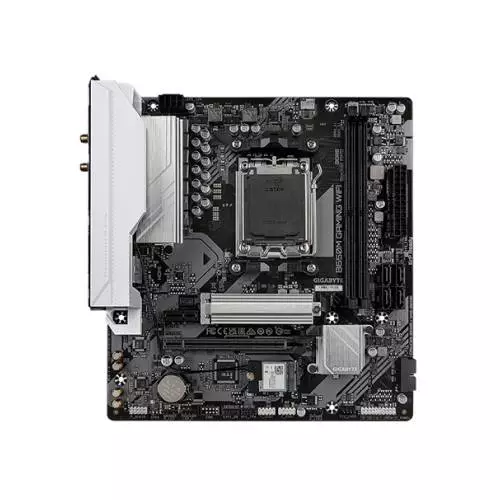

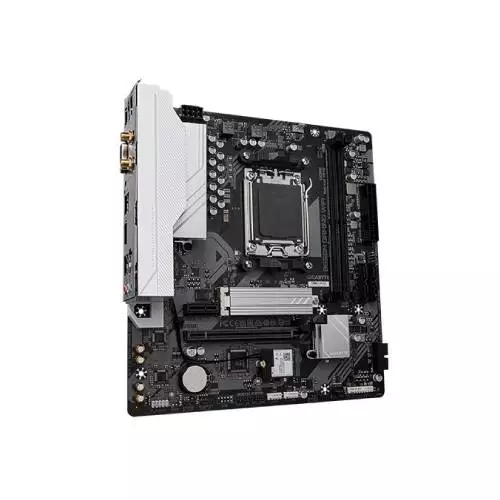

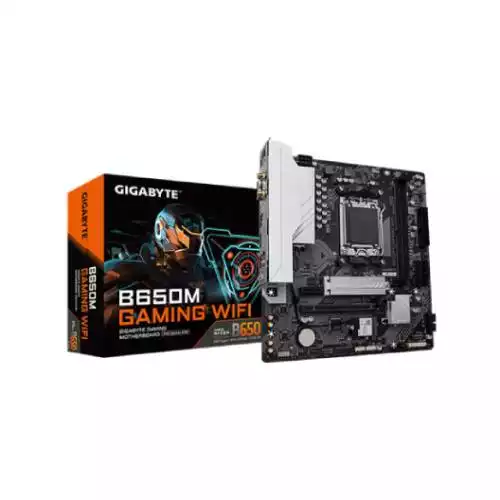

Gigabyte B650M GAMING WIFI Micro ATX Motherboard
Gigabyte B650M GAMING WIFI Micro ATX Motherboard
Gigabyte B650M GAMING WIFI Micro ATX Motherboard - 1
Gigabyte B650M GAMING WIFI Micro ATX Motherboard - 2
Gigabyte B650M GAMING WIFI Micro ATX Motherboard - 3

Gigabyte B650M GAMING WIFI Micro ATX Motherboard

0 Reviews
Stock : In Stock
PID : P0392506478
Brand : Gigabyte
Model : B650M GAMING WIFI
Warranty : 3 years
  • Supports AMD Ryzen 7000, 8000, 9000 Series
  • 5+2+2 Phases Digital VRM Solution
  • Dual Channel DDR5
  • PCIe 4.0 x4 M.2 Connector

Product Pricing

Discount Price

৳17,300 ৳18,800
+ Available Payment Method

EMI Start From*

৳609

SPECIFICATIONS

Processor

CPU Socket AMD Socket AM5, support for:
AMD Ryzen 7000 / Ryzen 8000 / Ryzen 9000 Series Processors

Mainboard

Chipset AMD B650
BIOS 1 x 256 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Memory

Memory Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules

2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory

Dual channel memory architecture

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme

Memory Profile (XMP) memory modules

Storage

Storage 1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs:

- AMD Ryzen 7000 Series Processors/ Ryzen 9000 Series Processors support PCIe 4.0 x4/x2 SSDs

- AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs

- AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
4 x SATA 6Gb/s connectors

RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices

RAID 0, RAID 1, and RAID 10 support for SATA storage device

Graphics

Graphics Integrated Graphics Processor with AMD Radeon Graphics support:

- 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz

- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

Networking & Connectivity

LAN Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless AzureWave Wi-Fi AW-CB304NF (Realtek RTL8821CE)

WIFI 802.11 a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band

BLUETOOTH 4.2

Support for 11ac wireless standard

Audio & Microphone

Audio Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel

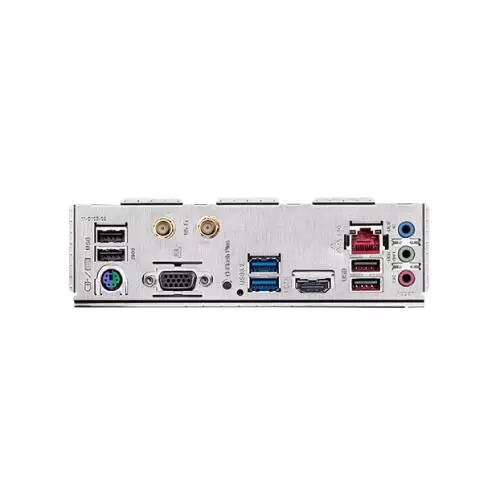

Ports

Rear I/O Port 4 x USB 2.0/1.1 ports

1 x PS/2 keyboard/mouse port

1 x D-Sub port

1 x Q-Flash Plus button

2 x USB 3.2 Gen 1 ports

1 x HDMI port

1 x RJ-45 port

3 x audio jacks
Internal I/O Ports 1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

2 x system fan headers

2 x addressable LED strip headers

1 x RGB LED strip header

2 x M.2 Socket 3 connectors

4 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x USB Type-C® header, with USB 3.2 Gen 1 support

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2
module only)

1 x Q-Flash Plus button

1 x reset jumper

1 x Clear CMOS jumper
USB 2 x USB 3.2 Gen 1 ports on the back panel

1 x USB 2.0/1.1 port on the back panel

Chipset:

2 x USB 3.2 Gen 1 ports available through the internal USB header

5 x USB 2.0/1.1 ports (3 ports on the back panel, 2 ports available through
the internal USB header)

Chipset+USB 2.0 Hub:

2 x USB 2.0/1.1 ports available through the internal USB header

Software

Operating System Support for Windows 11 64-bit

Support for Windows 10 64-bit

Physical Specification

Expansion Slots 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:

AMD Ryzen 7000 Series Processors/ Ryzen 9000 Series Processors support PCIe 4.0 x16 mode

AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode

AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode

For optimum performance, if only one PCI Express graphics card is to be
installed, be sure to install it in the PCIEX16 slot.

Chipset:

1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
Form Factor Micro ATX Form Factor; 24.0cm x 22.5cm

Warranty Information

Warranty 3 Years

DESCRIPTION

Gigabyte B650M GAMING WIFI Micro ATX Motherboard

The Gigabyte B650M GAMING WIFI Micro ATX Motherboard, a high-performance platform engineered for AMD’s latest Ryzen 7000, 8000, and 9000 Series processors. Built on the AMD B650 chipset, this board offers robust support for AMD Socket AM5 CPUs and DDR5 memory, enabling speeds of up to 6400 MT/s (OC) across two DIMM slots for a maximum of 128GB of high-speed system memory. The micro ATX form factor (24.0cm x 22.5cm) is ideal for compact builds without compromising on features. Key features include versatile storage options with one M.2 connector integrated into the CPU socket and an additional M.2 Socket 3 connector, alongside four SATA 6Gb/s ports supporting RAID 0, 1, and 10 configurations. For graphics, the board provides integrated AMD Radeon Graphics support via both D-Sub (up to 1920x1200@60Hz) and HDMI outputs (up to 4096x2160@60Hz), ensuring crisp visuals for casual gaming or multimedia tasks. Networking is enhanced with a Realtek 2.5GbE LAN chip for reliable wired connectivity, complemented by AzureWave Wi-Fi (Realtek RTL8821CE) supporting dual-band 2.4/5GHz 802.11 a/b/g/n/ac and Bluetooth 4.2 for seamless wireless communication. The onboard Realtek Audio CODEC delivers immersive multi-channel sound, whether you’re gaming or streaming. Connectivity options abound with a comprehensive rear I/O panel featuring multiple USB ports—including USB 3.2 Gen 1 and USB 2.0/1.1—as well as dedicated headers for USB Type-C, RGB LED strips, and front panel audio. Advanced BIOS features powered by licensed AMI UEFI ensure ease of system configuration and robust performance tuning. Ideal for gamers and power users alike, the Gigabyte B650M GAMING WIFI Micro ATX Motherboard marries cutting-edge technology with extensive connectivity and premium build quality, backed by a 3-year warranty for added peace of mind. Available now at Tech Land BD.

REVIEWS

Login to write a review.

No reviews yet

Be the first to share your thoughts about this product.

What is the Gigabyte B650M GAMING WIFI Micro ATX Motherboard Price in Bangladesh 2026 ?

The Gigabyte B650M GAMING WIFI Price in BD is 17,300৳ . This Gigabyte B650M GAMING WIFI Micro ATX Motherboard Manufacturing by Gigabyte Comes With 3 years Warranty & Based on 0 reviews. Tech Land BD Offers you Gigabyte B650M GAMING WIFI by 17,300৳ and its regular price is 18,800৳ Which is also In Stock Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
