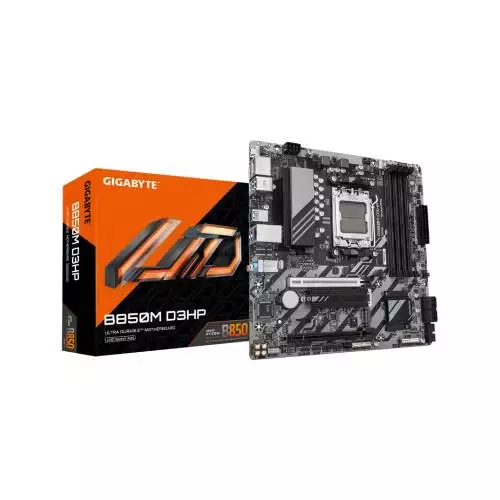

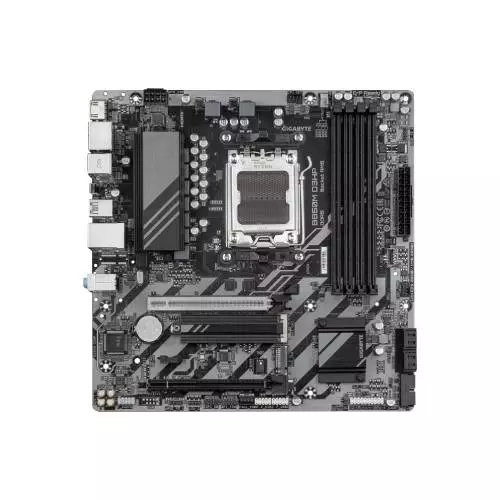

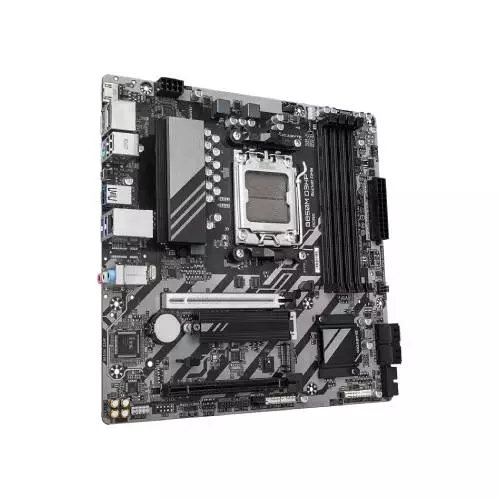

GIGABYTE B850M D3HP AM5 Micro ATX Motherboard
GIGABYTE B850M D3HP AM5 Micro ATX Motherboard
GIGABYTE B850M D3HP AM5 Micro ATX Motherboard - 1
GIGABYTE B850M D3HP AM5 Micro ATX Motherboard - 2
GIGABYTE B850M D3HP AM5 Micro ATX Motherboard - 3

GIGABYTE B850M D3HP AM5 Micro ATX Motherboard

1 Reviews
Stock : In Stock
PID : P0392506479
Brand : Gigabyte
Model : B850M D3HP
Warranty : 3 Year
  • Chipset: AMD B850
  • Form factor: Micro ATX
  • DDR5 DIMM Max. 256GB (Dual Channel)
  • CPU Socket: AM5
17800TK BUNDLE WITH FULL PC

Product Pricing

Night Offer Price 00:00:00

৳17,799 ৳23,500
+ Available Payment Method

EMI Start From*

৳627

SPECIFICATIONS

Processor

Supported CPU AMD Socket AM5, support for:

AMD Ryzen 9000 Series Processors/

AMD Ryzen 8000 Series Processors/

AMD Ryzen 7000 Series Processors

Mainboard

Chipset AMD B850
BIOS 1 x 256 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Memory

Memory Support for DDR5 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC)/6800(OC) / 6666(OC) /
6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules

4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity)of system memory

Dual channel memory architecture

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules

Storage

Storage 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs:

AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs

AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs

AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs


1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:

AMD Ryzen 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs

AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs

AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs


4 x SATA 6Gb/s connectors

RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices


RAID 0, RAID 1, and RAID 10 support for SATA storage devices

Graphics

Graphics Integrated Graphics Processor with AMD Radeon Graphics support:

1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

Support for HDMI 2.1 version, HDCP 2.3, and HDR.

Support for native HDMI 2.1 TMDS compatible ports.

2 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz

Support for DisplayPort 1.4 version.

Networking & Connectivity

LAN Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)

Ports

Slots 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:

AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode

AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode

AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode

* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be
installed, be sure to install it in the PCIEX16 slot.



Chipset:

- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
Internal I/O Ports 1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

1 x CPU fan/water cooling pump header

1 x system fan header

1 x system fan/water cooling pump header

2 x addressable RGB Gen2 LED strip headers

1 x RGB LED strip header

2 x M.2 Socket 3 connectors

4 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x USB Type-C header, with USB 3.2 Gen 1 support

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)

1 x reset jumper

1 x Clear CMOS jumper

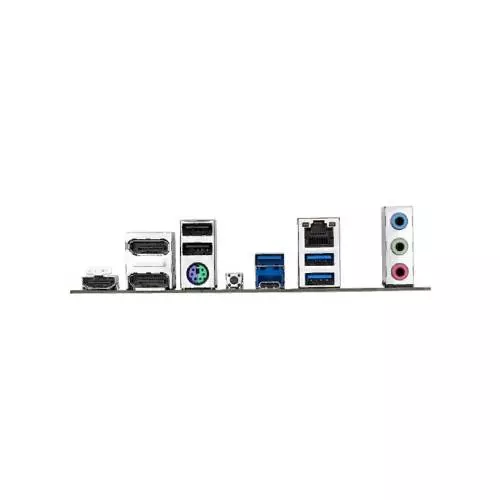

External I/O Ports 1 x HDMI port

2 x DisplayPorts

1 x PS/2 keyboard/mouse port

1 x Q-Flash Plus button

1 x USB Type-C port, with USB 3.2 Gen 1 support

3 x USB 3.2 Gen 1 ports

2 x USB 2.0/1.1 ports

1 x RJ-45 port

3 x audio jacks
USB CPU:

1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support

1 x USB 3.2 Gen 1 port on the back panel

1 x USB 2.0/1.1 port on the back panel

Chipset:

1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header

4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

5 x USB 2.0/1.1 ports

Software

Bundled Software Norton Internet Security (OEM version)

LAN bandwidth management software
Operating System Support for Windows 11 64-bit

Support for Windows 10 64-bit

Special Features

Speacial Features iTE I/O Controller Chip

Others

Other Features H/W Monitoring

Voltage detection

Temperature detection

Fan speed detection

Water cooling flow rate detection

Fan fail warning

Fan speed control

Physical Specification

Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm

Warranty Information

Warranty 3 Year

DESCRIPTION

GIGABYTE B850M D3HP AM5 Micro ATX Motherboard

The GIGABYTE B850M D3HP AM5 Micro ATX Motherboard is a high-performance and feature-rich motherboard designed for AMD Ryzen 9000, 8000, and 7000 series processors. Built on the AMD B850 chipset, it supports DDR5 memory up to 8200 MT/s (OC) with a maximum capacity of 256GB, ensuring fast and efficient multitasking. The board offers extensive storage options, including two M.2 slots (supporting PCIe 5.0 and 4.0 SSDs) and four SATA 6Gb/s ports with RAID configurations. For graphics, the motherboard features integrated AMD Radeon Graphics support (based on the installed CPU) and provides multiple display options, including one HDMI 2.1 port (4K@60Hz) and two DisplayPorts (4K@144Hz) for an immersive visual experience. Expandability is enhanced with one PCIe 5.0 x16 slot for high-end GPUs and an additional PCIe 3.0 x4 slot for other add-on cards. Connectivity is seamless with Realtek GbE LAN (1Gbps) and multiple USB ports, including USB 3.2 Gen 1 and USB Type-C for high-speed data transfer. The motherboard also features multiple fan and water cooling pump headers, along with RGB and addressable Gen2 LED headers, allowing users to optimize cooling and customize lighting effects. With a Micro ATX form factor (24.4cm x 24.4cm), the GIGABYTE B850M D3HP fits perfectly in compact builds without compromising on performance. It supports Windows 11 and Windows 10 (64-bit) and comes with a 3-year warranty, making it a reliable, future-proof, and high-performance choice for gamers, content creators, and professionals.

REVIEWS

Login to write a review.

Overall Rating

5 out of 5 stars
1
Total Reviews
5 star
1
4 star
0
3 star
0
2 star
0
1 star
0
Rumana

The GIGABYTE B850M D3HP motherboard feels solid and well-built. The Micro ATX design is a good fit for my compact PC case.

10 August, 2026

What is the GIGABYTE B850M D3HP AM5 Micro ATX Motherboard Price in Bangladesh 2026 ?

The Gigabyte B850M D3HP Price in BD is 21,300৳ . This GIGABYTE B850M D3HP AM5 Micro ATX Motherboard Manufacturing by Gigabyte Comes With 3 Year Warranty & Based on 0 reviews. Tech Land BD Offers you Gigabyte B850M D3HP by 21,300৳ and its regular price is 23,500৳ Which is also In Stock Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
