GIGABYTE B650M K AM5 AMD DDR5 MICRO-ATX MOTHERBOARD
GIGABYTE B650M K AM5 AMD DDR5 MICRO-ATX MOTHERBOARD
GIGABYTE B650M K AM5 AMD DDR5 MICRO-ATX MOTHERBOARD - 1
GIGABYTE B650M K AM5 AMD DDR5 MICRO-ATX MOTHERBOARD - 2
GIGABYTE B650M K AM5 AMD DDR5 MICRO-ATX MOTHERBOARD - 3

GIGABYTE B650M K AM5 AMD DDR5 MICRO-ATX MOTHERBOARD

15 Reviews
Stock : In Stock
PID : P0392506323
Brand : Gigabyte
Model : B650M K
Warranty : 3 Years
  • Supports Ryzen 7000 Series
  • Dual Channel DDR5
  • 2.5GbE LAN Fast Networks
  • PCIe x16 Slot

Product Pricing

Discount Price

৳15,200 ৳15,500
+ Available Payment Method

EMI Start From*

৳535

SPECIFICATIONS

Processor

Supported CPU AMD Socket AM5, support for: AMD Ryzen™ 7000 Series Processors

Mainboard

Chipset AMD B650
BIOS 1 x 256 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Memory

Memory Support for DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800 MT/s memory modules

4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory

Dual channel memory architecture

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules

Storage

Supported Storage CPU:

- 1 x M.2 connector (Socket 3, M key, type 2580 PCIe 4.0 x4/x2 SSD support)

- 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support)



Chipset:

- 4 x SATA 6Gb/s connectors



RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices

RAID 0, RAID 1, and RAID 10 support for SATA storage devices

Graphics

Graphics 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz

1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

Networking & Connectivity

LAN Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Audio & Microphone

Audio Realtek® Audio CODEC

High Definition Audio

2/4/5.1/7.1-channel

Ports

Internal I/O Ports 1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

2 x system fan headers

1 x addressable LED strip header

1 x RGB LED strip header

2 x M.2 Socket 3 connectors

4 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x USB Type-C® header, with USB 3.2 Gen 1 support

1 x USB 3.2 Gen 1 header

1 x USB 2.0/1.1 header

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

1 x reset jumper

1 x Clear CMOS jumper
USB CPU:

- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support

- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel

- 2 x USB 2.0/1.1 ports on the back panel



Chipset:

- 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header

- 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

- 4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

Software

Software Features Norton® Internet Security (OEM version)

LAN bandwidth management software

Special Features

Special Features Support for GIGABYTE Control Center (GCC)

Support for Q-Flash

Support for Q-Flash Plus

Others

Other Features Expansion Slots:

- CPU: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16

- Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1

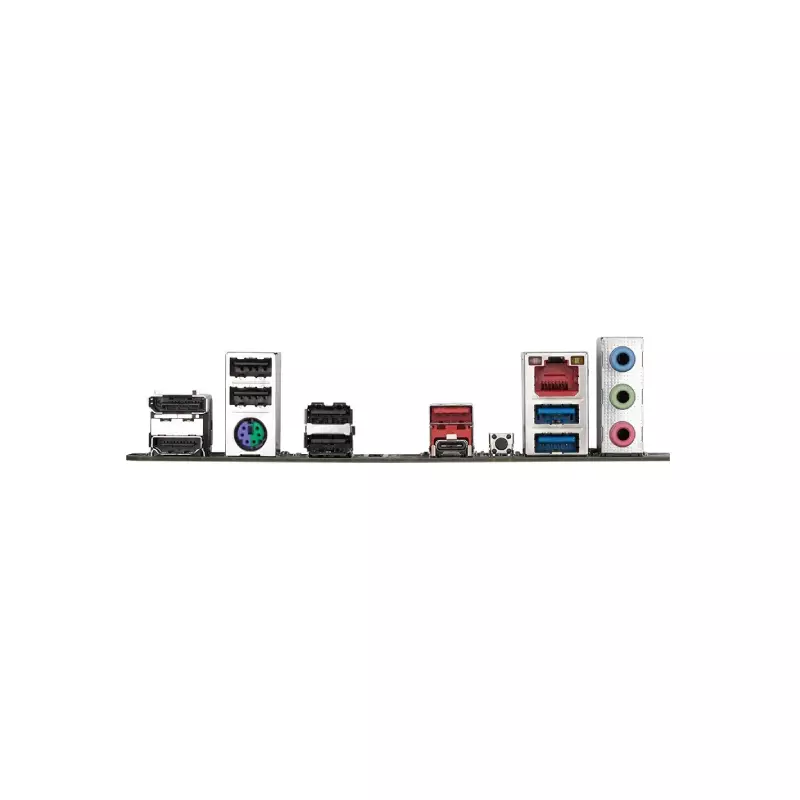

Back Panel Connectors:

- 1 x DisplayPort

- 1 x HDMI port

- 4 x USB 2.0/1.1 ports

- 1 x PS/2 keyboard/mouse port

- 1 x USB 3.2 Gen 2 Type-A port (red)

- 1 x USB Type-C® port, with USB 3.2 Gen 2 support

- 1 x Q-Flash Plus button

- 1 x RJ-45 port

- 2 x USB 3.2 Gen 1 ports

- 3 x audio jacks



I/O Controller: iTE® I/O Controller Chip



- H/W Monitoring

- Voltage detection

- Temperature detection

- Fan speed detection

- Water cooling flow rate detection

- Fan fail warning

- Fan speed control



Operating System

- Support for Windows 11 64-bit

- Support for Windows 10 64-bit

Physical Specification

Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm

Warranty Information

Warranty 3 Years

DESCRIPTION

GIGABYTE B650M K AM5 AMD DDR5 MICRO-ATX MOTHERBOARD PRICE IN BD

The Gigabyte B650M K AM5 AMD DDR5 Micro-ATX Motherboard is a high-performance motherboard now available at TechLand BD. It is designed to support the latest AMD Ryzen 7000 Series Processors. It features the AMD B650 chipset and supports DDR5 memory modules with speeds up to 8000 MT/s. The motherboard has 4 DDR5 DIMM sockets, supporting up to 192 GB of system memory. The motherboard comes with an integrated graphics processor, supporting a maximum resolution of 3840x2160@144 Hz via DisplayPort and 4096x2160@60 Hz via HDMI. It also features a Realtek® Audio CODEC for high-definition audio and a Realtek® 2.5GbE LAN chip for fast network connectivity. The motherboard provides multiple expansion slots, including a PCI Express x16 slot and a PCI Express x1 slot. It also offers multiple storage interfaces, including two M.2 connectors and four SATA 6Gb/s connectors, with RAID support for both NVMe SSD and SATA storage devices. The motherboard also features multiple USB ports, including a USB Type-C® port with USB 3.2 Gen 2 support on the back panel and additional USB ports available through internal headers. The motherboard is equipped with an iTE® I/O Controller Chip and supports voltage detection, temperature detection, fan speed detection, and fan speed control. It uses a licensed AMI UEFI BIOS and supports GIGABYTE Control Center (GCC).


Does the GIGABYTE B650M K support AMD Ryzen 7000 series processors?

Yes, this motherboard is based on the AMD B650 chipset and features the AM5 socket, which is fully compatible with AMD Ryzen 7000 series processors.


Can I use DDR4 RAM with this motherboard?

No, the GIGABYTE B650M K supports only DDR5 memory. DDR4 RAM is not compatible with the AM5 platform on this board.


How many M.2 slots does the B650M K have for SSDs?

This motherboard typically features 2 M.2 slots: one PCIe Gen5 x4 slot and one PCIe Gen4 x4 slot, allowing for high-speed NVMe SSDs.


Is BIOS update required for Ryzen 8000 series support?

If you're planning to use a newer Ryzen 8000 series APU (based on Zen 5 architecture), a BIOS update may be required. It's best to check the CPU support list on the manufacturer’s site or confirm if the motherboard comes with an updated BIOS.
