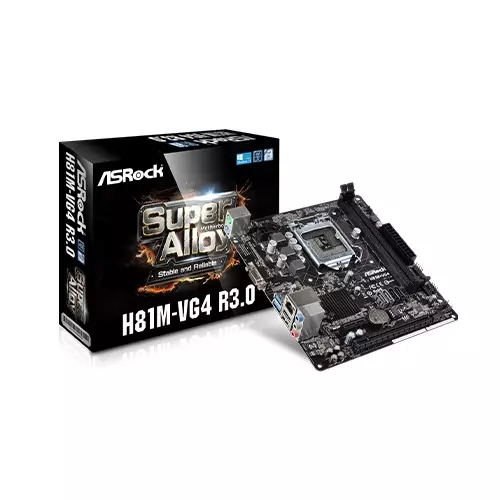

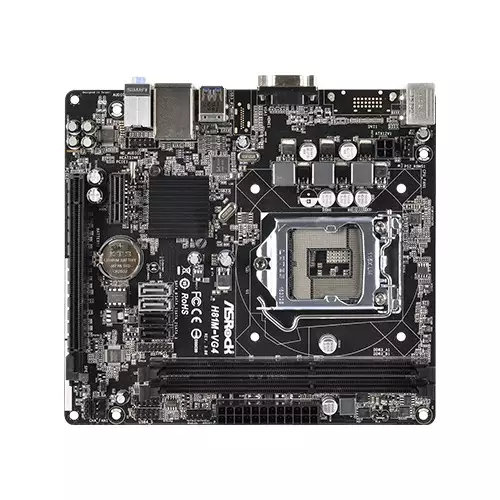

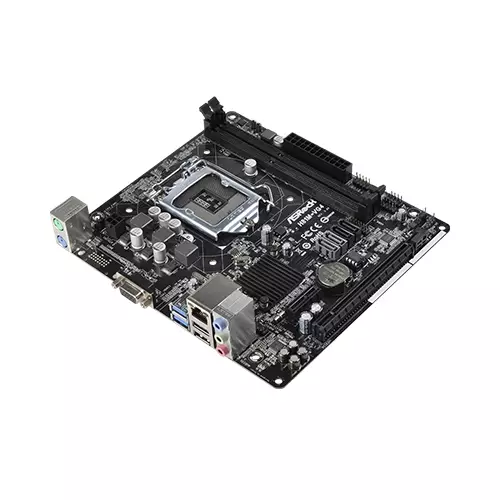

Asrock H81M-VG4 R3.0 Super Alloy Micro ATX Motherboard
- Supports 4th Generation Intel Processor
- Chipsets: Intel® H81
- Supports Dual Channel DDR3/DDR3L
- Max capacity 16GB
SPECIFICATIONS
Processor
Supported CPU
- Supports New 4th and 4th Generation Intel® Xeon® / Core™ i7 / i5 / i3 / Pentium® / Celeron® Processors (Socket 1150)
- Supports Intel® Turbo Boost 2.0 Technology
- Supports Intel® Turbo Boost 2.0 Technology
Mainboard
Chipset
Intel H81
BIOS
- 32Mb AMI UEFI Legal BIOS with multilingual GUI support
- ACPI 1.1 Compliant wake up events
- SMBIOS 2.3.1 support
- CPU, DRAM Voltage multi-adjustment
- ACPI 1.1 Compliant wake up events
- SMBIOS 2.3.1 support
- CPU, DRAM Voltage multi-adjustment
Memory
Memory
Dual-Channel DDR3/DDR3L Memory Technology
- 2 x DDR3/DDR3L DIMM Slots
- Supports DDR3/DDR3L 1600/1333/1066 non-ECC, un-buffered memory
- Max. the capacity of system memory: 16GB*
- Supports Intel® Extreme Memory Profile (XMP) 1.3 / 1.2
- 2 x DDR3/DDR3L DIMM Slots
- Supports DDR3/DDR3L 1600/1333/1066 non-ECC, un-buffered memory
- Max. the capacity of system memory: 16GB*
- Supports Intel® Extreme Memory Profile (XMP) 1.3 / 1.2
Storage
Supported Storage
2 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug
- 2 x SATA2 3.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug
- 2 x SATA2 3.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug
Graphics
Graphics
Supports Intel® HD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® HD Graphics 4400/4600
- Pixel Shader 5.0, DirectX 11.1
- Max. shared memory 1024MB*
- Supports D-Sub with max. resolution up to 1920x1200 @ 60H
- Pixel Shader 5.0, DirectX 11.1
- Max. shared memory 1024MB*
- Supports D-Sub with max. resolution up to 1920x1200 @ 60H
Networking & Connectivity
LAN
PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111C
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection (ASRock Full Spike Protection)
- Supports LAN Cable Detection
- Supports PXE
- Realtek RTL8111C
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection (ASRock Full Spike Protection)
- Supports LAN Cable Detection
- Supports PXE
Audio & Microphone
Audio
7.1 CH HD Audio (Realtek ALC887 Audio Codec)*
- Supports Surge Protection (ASRock Full Spike Protection)
- Supports Surge Protection (ASRock Full Spike Protection)
Ports
Slots
1 x PCI Express 2.0 x16 Slot (PCIE2: x16 mode)
- 1 x PCI Express 2.0 x1 Slot
- 1 x PCI Express 2.0 x1 Slot
Internal I/O Ports
1 x Chassis Intrusion Header
- 1 x TPM Header
- 1 x CPU Fan Connector (4-pin)
- 1 x Chassis Fan Connector (4-pin)
- 1 x 24 pin ATX Power Connector
- 1 x 4 pin 12V Power Connector
- 1 x Front Panel Audio Connector
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
- 1 x TPM Header
- 1 x CPU Fan Connector (4-pin)
- 1 x Chassis Fan Connector (4-pin)
- 1 x 24 pin ATX Power Connector
- 1 x 4 pin 12V Power Connector
- 1 x Front Panel Audio Connector
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))

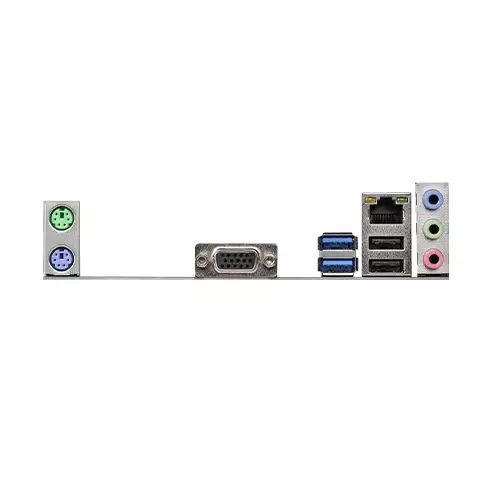

External I/O Ports
- 1 x PS/2 Mouse Port
- 1 x PS/2 Keyboard Port
- 1 x D-Sub Port
- 2 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
- 2 x USB 3.1 Gen1 Ports (Supports ESD Protection (ASRock Full Spike Protection))
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jack: Line in / Front Speaker / Microphone
- 1 x PS/2 Keyboard Port
- 1 x D-Sub Port
- 2 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
- 2 x USB 3.1 Gen1 Ports (Supports ESD Protection (ASRock Full Spike Protection))
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jack: Line in / Front Speaker / Microphone
Physical Specification
Form Factor
Micro ATX Form Factor
- Solid Capacitor for CPU power
- Solid Capacitor for CPU power
Warranty Information
Warranty
3 years
DESCRIPTION
Asrock H81M-VG4 R3.0 Motherboard in Bangladesh
Supports New 4th Generation Intel® CoreTM Processors ASRock H81M-VG4 R3.0 Super Alloy (Socket 1150). Dual Channel DDR3 1600 is supported. One PCIe 2.0 x16 slot and one PCIe 2.0 x1 slot D-Sub.7.1 CH HD Audio Graphic Output (Realtek ALC887 Audio Codec). There are two SATA3 ports and two SATA2 ports. 2 USB 3.1 Gen1 Adapters (Rear). Full Spike Protection, ASRock Live Update, and APP Shop are all supported.
[product_table id="34" limit="10" type="filter" filter_category="6079"]
REVIEWS
Login to write a review.
No reviews yet
Be the first to share your thoughts about this product.
What is the Asrock H81M-VG4 R3.0 Super Alloy Micro ATX Motherboard Price in Bangladesh 2026 ?
The ASRock H81M-VG4 R3.0 Price in BD is 7,500৳ . This Asrock H81M-VG4 R3.0 Super Alloy Micro ATX Motherboard Manufacturing by ASRock Comes With 3 years Warranty & Based on 0 reviews. Tech Land BD Offers you ASRock H81M-VG4 R3.0 by 7,500৳ and its regular price is 8,000৳ Which is also Discontinued Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
