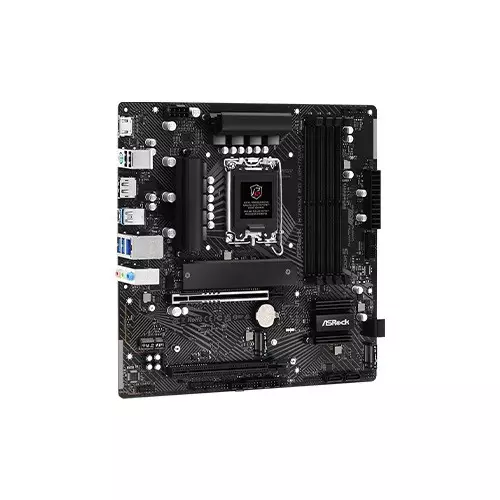

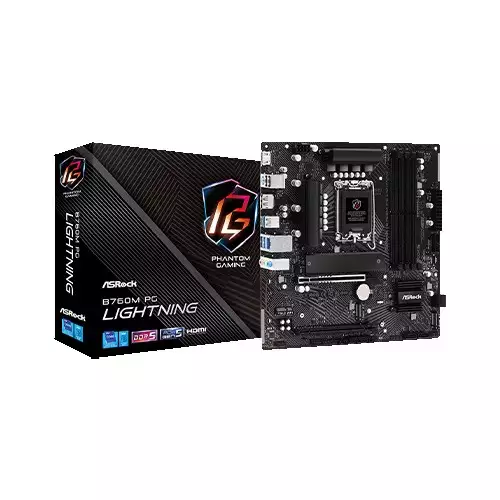

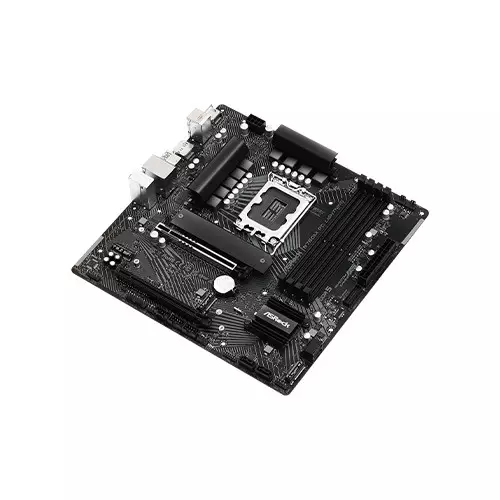

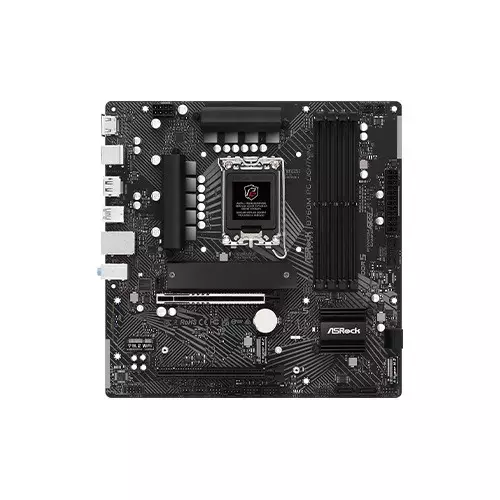

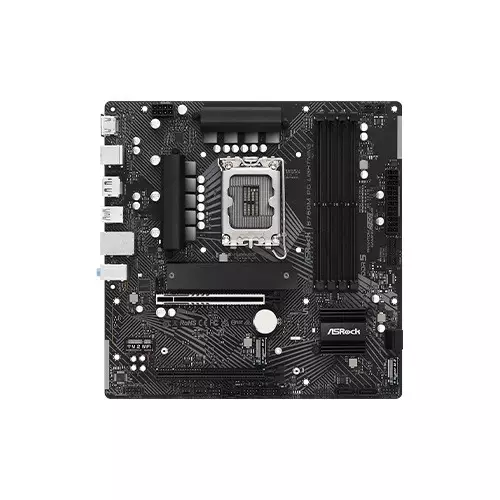

ASRock B760M PG Lightning DDR5 14th/13th/12th Gen Micro ATX Motherboard
- CPU Socket Type: LGA 1700
- Chipset: Intel B760
- Supported RAM: 4x DDR5
- Form Factor: Micro ATX
Product Pricing
EMI Start From*
SPECIFICATIONS
Processor
Supports Intel Hybrid Technology
Supports Intel Turbo Boost Max 3.0 Technology
Supports Intel Thermal Velocity Boost (TVB)
Supports Intel Adaptive Boost Technology (ABT)
Mainboard
Memory
Supported Memory
Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)
Supports Intel Extreme Memory Profile (XMP) 3.0
Storage
1 x Hyper M.2 Socket (M2_1, Key M),
supports type 2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode
Chipset:
1 x Hyper M.2 Socket (M2_2, Key M),
supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
1 x Hyper M.2 Socket (M2_3, Key M),
supports type 2280 PCIe Gen4x4 (64 Gb/s) mode
4 x SATA3 6.0 Gb/s Connectors
*Supports Intel Volume Management Device (VMD)
Supports NVMe SSD as boot disks
Graphics
Intel Xe Graphics Architecture (Gen 12)
1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max.
resolution up to 4K 60Hz
1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max.
resolution up to 8K 60Hz / 5K 120Hz
Networking & Connectivity
Dragon RTL8125BG
Supports Phantom Gaming LAN Software
Smart Auto Adjust Bandwidth Control
Visual User Friendly UI
Visual Network Usage Statistics
Optimized Default Setting for Game, Browser, and Streaming Modes
User Customized Priority Control
Audio & Microphone
Nahimic Audio
Ports
1 x Chassis Intrusion and Speaker Header
1 x CPU Fan Connector (4-pin)*
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**
4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***
1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
1 x Front Panel Audio Connector
1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card)
2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
2 x Antenna Mounting Points

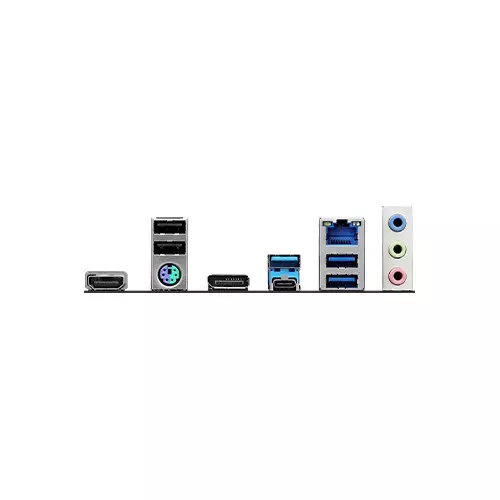

1 x PS/2 Mouse/Keyboard Port
1 x HDMI Port
1 x DisplayPort 1.4
1 x USB 3.2 Gen1 Type-C Port
3 x USB 3.2 Gen1 Type-A Ports
2 x USB 2.0 Ports
1 x RJ-45 LAN Port
HD Audio Jacks: Line in / Front Speaker / Microphone
5 x USB 3.2 Gen1 Type-A (3 Rear, 2 Front)
6 x USB 2.0 (2 Rear, 4 Front)
Software
ASRock Motherboard Utility (Phantom Gaming Tuning)
ASRock Phantom Gaming LAN Software*
UEFI
ASRock EZ Mode
ASRock Full HD UEFI
ASRock My Favorites in UEFI
ASRock Auto Driver Installer
ASRock Instant Flash
ASRock Easy RAID Installer
Special Features
PCIe Gen5 (Graphics)
Dual Channel DDR5
Rock-Solid Durability
7+1+1 Power Phase, 50A Dr.MOS for VCore+GT
Ultrafast Connectivity
2.5G LAN EZ Update
ASRock Auto Driver Installer
Others
RAID: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
TPM (Trusted Platform Module ): 1 x SPI TPM Header
Physical Specification
CPU:
1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
Chipset:
1 x PCIe 3.0 x16 Slot (PCIE2), supports x4 mode*
1 x M.2 Socket (Key E),
supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVio/CNVio2 (Integrated WiFi/BT)
Supports AMD CrossFire
1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode
Technical Info
Warranty Information
DESCRIPTION
ASRock B760M PG Lightning DDR5 Motherboard in Bangladesh
The ASRock B760M PG Lightning DDR5 is a high-performance Micro ATX motherboard tailored for users who demand top-tier performance and reliability. Designed to support 14th, 13th, and 12th Gen Intel Core processors, it incorporates cutting-edge technologies like DDR5 memory and PCIe 5.0 for unparalleled speed and efficiency, making it an ideal choice for gaming and professional computing setups.
Technical Details
The ASRock B760M PG Lightning DDR5 motherboard is powered by the Intel B760 chipset and supports Intel Hybrid Technology, Turbo Boost Max 3.0, and Adaptive Boost Technology for advanced processing capabilities. It features a compact Micro ATX form factor (24.4 cm x 24.4 cm) with four DDR5 DIMM slots supporting up to 256GB of RAM with speeds up to 7200+(OC). This motherboard is equipped with a PCIe 5.0 x16 slot for graphics and multiple PCIe 4.0 M.2 sockets for ultra-fast NVMe storage. It delivers crystal-clear visuals via HDMI 2.1 and DisplayPort 1.4 with support for resolutions up to 8K. The Realtek ALC897 audio codec with Nahimic Audio ensures immersive sound quality, while the integrated 2.5G LAN with Phantom Gaming software optimizes network performance for gaming, streaming, and productivity. Its robust 7+1+1 power phase design and Smart Fan Speed Control ensure reliable and efficient operation under load.
Availability and Usability
The ASRock B760M PG Lightning DDR5 motherboard is available at Tech Land BD, one of the most reliable retailers for premium computer components in Bangladesh. Offering a seamless blend of performance and versatility, this motherboard is perfect for gamers, content creators, and professionals. Its compatibility with the latest Intel processors and DDR5 memory ensures top-notch performance in demanding applications. The ASRock B760M PG Lightning price in BD makes it a cost-effective yet premium choice for building a powerful and future-proof PC. Whether you’re upgrading or assembling a new system, this motherboard offers the reliability and performance you need.
Highlights
- Supports 14th, 13th, and 12th Gen Intel Core processors.
- Next-gen DDR5 memory up to 7200+ MHz.
- PCIe 5.0 graphics slot and ultrafast PCIe Gen4 M.2 storage.
- Immersive Nahimic audio and 7.1 channel HD sound.
- 2.5G LAN with Phantom Gaming optimization.
Get the ASRock B760M PG Lightning DDR5 Today from Tech Land BD
Don’t wait to elevate your computing experience with the ASRock B760M PG Lightning DDR5 motherboard, now available at Tech Land BD. This motherboard combines powerful specifications, including DDR5 memory support, PCIe 5.0, and ultrafast storage options, with durable construction and optimized connectivity. The ASRock B760M PG Lightning price in Bangladesh ensures exceptional value for your investment. Visit Tech Land BD today and secure this high-performance motherboard to build the PC of your dreams!
