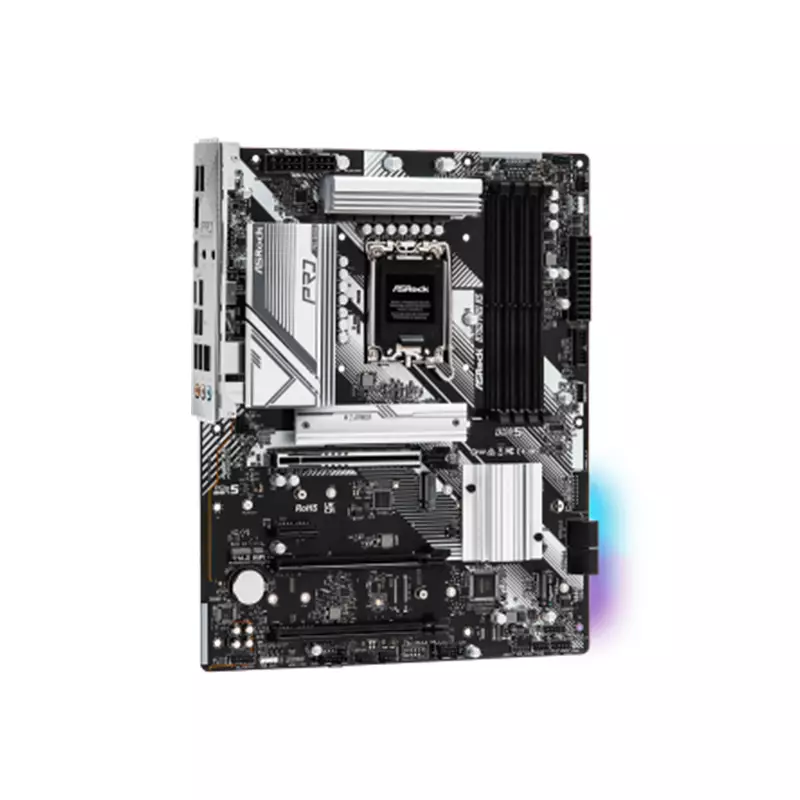

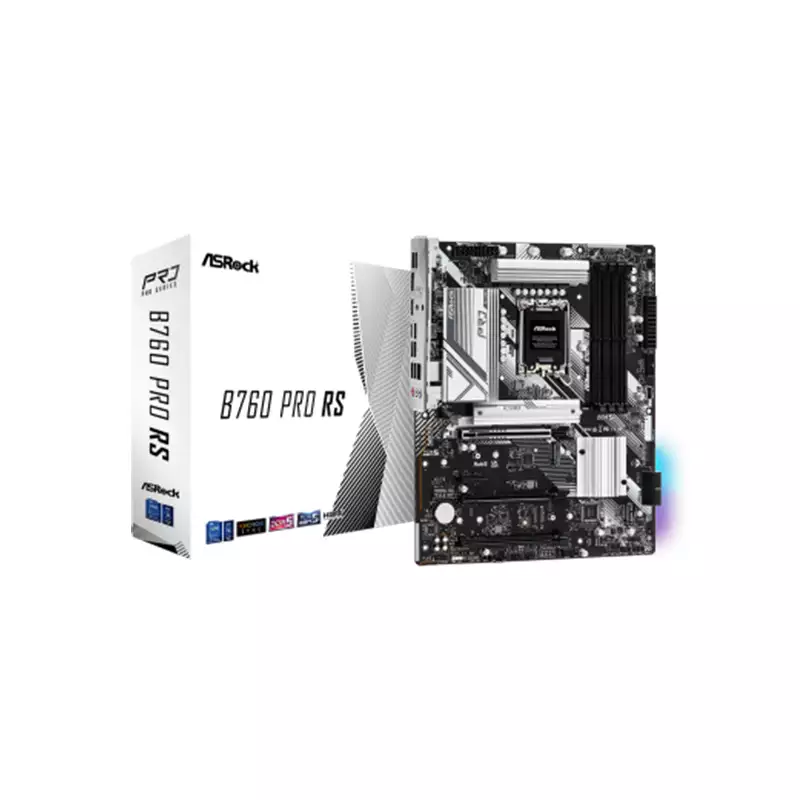

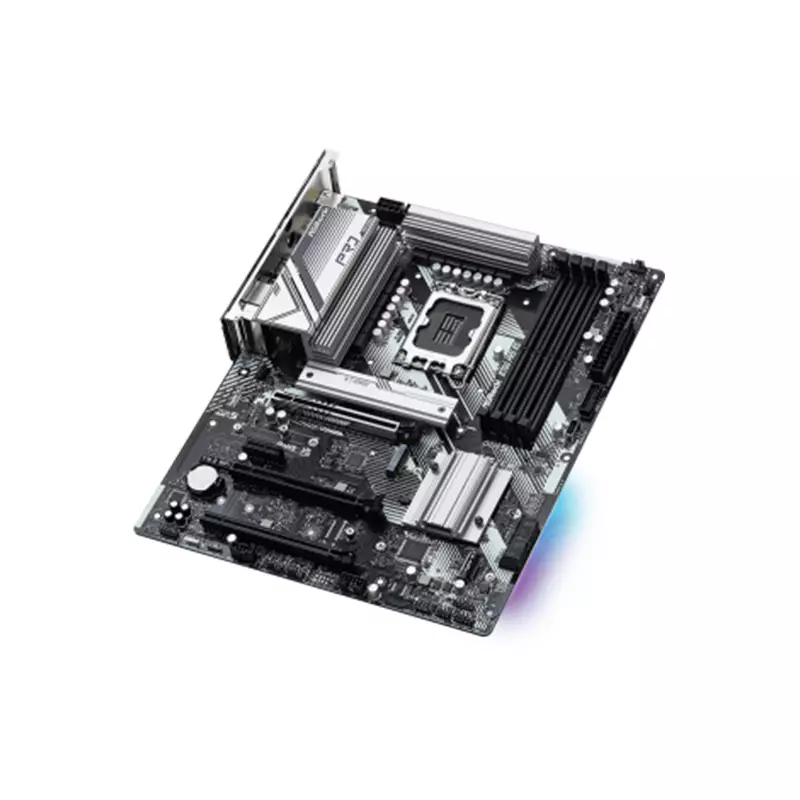

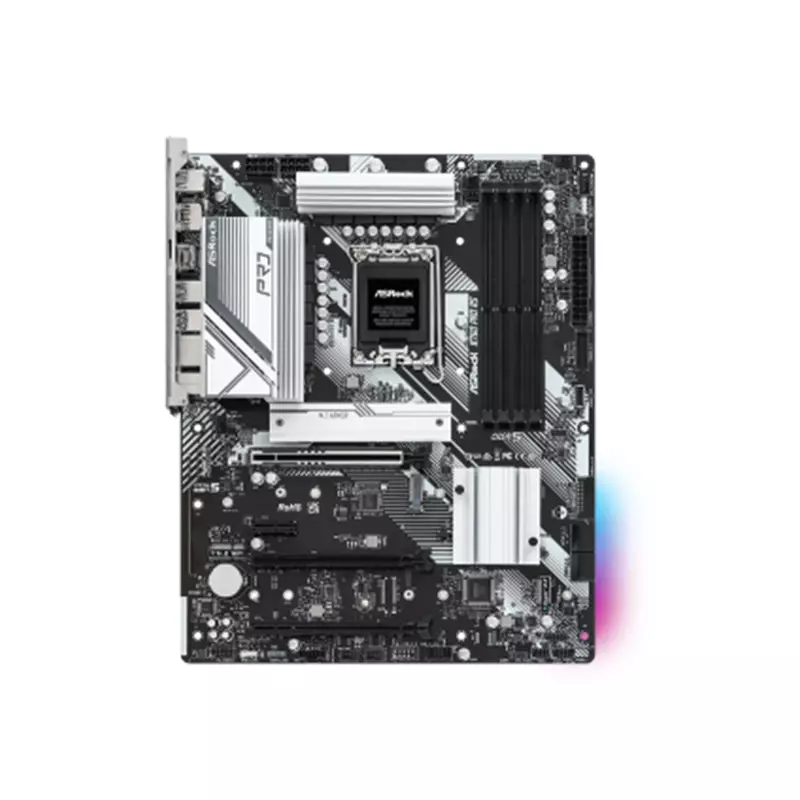

ASROCK B760 PRO RS DDR5 12TH & 13TH GEN ATX MOTHERBOARD
- 14th ,13th & 12th Gen Intel Core Processors (LGA1700)
- 10+1+1 Power Phase, Dr.MOS for VCore+GT
- Supports DDR5 7200MHz (OC)
- Graphics Output Options: HDMI, DisplayPort, eDP
Product Pricing
EMI Start From*
SPECIFICATIONS
Processor
Supports Intel Hybrid Technology
Supports Intel Turbo Boost Max 3.0 Technology
Supports Intel Thermal Velocity Boost (TVB)
Supports Intel Adaptive Boost Technology (ABT)
Mainboard
Memory
un-buffered memory up to 7200+(OC)
Storage
1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode
Chipset:
1 x M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x2 (32 Gb/s) mode
1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode
4 x SATA3 6.0 Gb/s Connectors
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Graphics
1 x eDP 1.4, supports max. resolution up to Full HD 60Hz
1 x HDMI 2.1 TMDS Compatible, supports HDCP 2.3 and max. resolution up to 4K 60Hz
1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 8K 60Hz / 5K 120Hz
Networking & Connectivity
Dragon RTL8125BG
Supports Dragon 2.5G LAN Software
Smart Auto Adjust Bandwidth Control
Visual User Friendly UI
Visual Network Usage Statistics
Optimized Default Setting for Game, Browser, and Streaming Modes
User Customized Priority Control
Audio & Microphone
Nahimic Audio
Ports
1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode
Chipset:
1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode
1 x PCIe 3.0 x16 Slot (PCIE4), supports x1 mode
1 x PCIe 3.0 x1 Slot (PCIE2)
1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVio/CNVio2 (Integrated WiFi/BT)
Supports AMD CrossFire

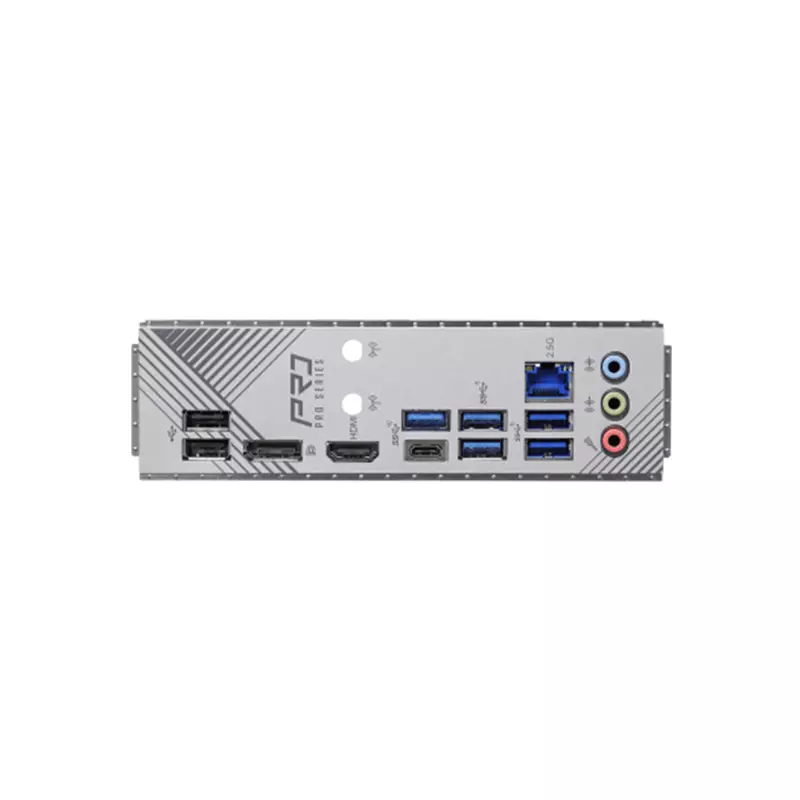

1 x HDMI Port
1 x DisplayPort 1.4
1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)
1 x USB 3.2 Gen2 Type-C Port (10 Gb/s)
4 x USB 3.2 Gen1 Ports
2 x USB 2.0 Ports
1 x RJ-45 LAN Port
HD Audio Jacks: Line in / Front Speaker / Microphone
1 x USB 3.2 Gen2 Type-A (Rear)
6 x USB 3.2 Gen1 (4 Rear, 2 Front)
4 x USB 2.0 (2 Rear, 2 Front)
All USB ports support ESD Protection
Special Features
PCIe Gen5 (Graphics)
Dual Channel DDR5
Rock-Solid Durability
10+1+1 Power Phase, 50A Dr.MOS for VCore+GT
Pre-Installed I/O Shield
Ultrafast Connectivity
2.5G LAN
EZ Update
ASRock Auto Driver Installer
EZ Troubleshooter
Physical Specification
Warranty Information
DESCRIPTION
ASROCK B760 PRO RS DDR5 12TH & 13TH GEN ATX MOTHERBOARD
The ASRock B760 Pro RS DDR5 Motherboard is a powerful and versatile motherboard designed to support 13th Gen and 12th Gen Intel Core Processors on the LGA1700 socket. This motherboard boasts impressive features, including support for DDR5 non-ECC, un-buffered memory with a maximum capacity of 192GB. It also comes equipped with Intel Xe Graphics Architecture, offering excellent visual capabilities with multiple display options, including HDMI 2.1 and DisplayPort 1.4 with DSC support. The board features an array of expansion slots, including PCIe 5.0 and PCIe 4.0, along with multiple M.2 sockets for high-speed storage. With 2.5 Gigabit LAN, RAID support, and a comprehensive set of USB ports, this motherboard provides a solid foundation for a high-performance PC build. Its 3-year warranty ensures long-term reliability and peace of mind for users. Bangladesh's top retailer of computer hardware and applications is Techland BD. A hallmark of Techland BD is its top-notch client support. They have a helpful and knowledgeable crew that is always willing to help customers. The large selection of Asrock Motherboard available at Techland BD is well recognized. The large selection of Motherboard available at Techland BD is well recognized.
REVIEWS
Login to write a review.
Overall Rating
This is the most popular MB in BD
01 July, 2024
