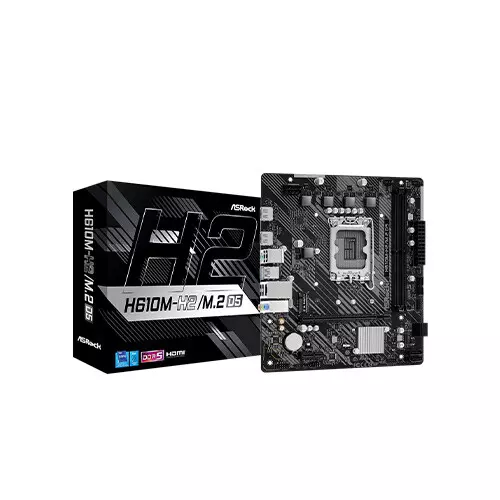

ASROCK H610M-H2/M.2 D5 Intel mATX DDR5 Motherboard
- Chipset - Intel H610
- Form Factor - Micro ATX
- Memory - DDR5, 64GB
- Audio - 7.1 CH HD Audio
Product Pricing
EMI Start From*
SPECIFICATIONS
Processor
- Supports 14th, 13th & 12th Gen Intel Core Processors (LGA1700)
- Supports Intel Hybrid Technology
- Supports Intel Turbo Boost Max 3.0 Technology
Intel H610
Mainboard
- 128Mb AMI UEFI Legal BIOS with GUI support
Memory
- Dual Channel DDR5 Memory Technology
- 2 x DDR5 DIMM Slots
- 13th Gen Intel Core Processors support DDR5 non-ECC, un-buffered memory up to 5600
- 12th Gen Intel Core Processors support DDR5 non-ECC, un-buffered memory up to 4800*
- Max. capacity of system memory: 96GB
- Supports Intel Extreme Memory Profile (XMP) 3.0
Storage
Chipset:
- 1 x Ultra M.2 Socket (M2_1, Key M),
supports type 2242/2260/2280
PCIe Gen3x4 (32 Gb/s) mode*
- 4 x SATA3 6.0 Gb/s Connectors
Graphics
Intel Xe Graphics Architecture (Gen 12)
- 2 x HDMI 2.1 TMDS Compatible,
support HDCP 2.3 and max.
resolution up to 4K 60Hz
Networking & Connectivity
- Gigabit LAN 10/100/1000 Mb/s
- Realtek 8111H
Audio & Microphone
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Ports
CPU:
- 1 x PCIe 4.0 x16 Slot (PCIE1),
supports x16 mode*
Chipset:
- 1 x PCIe 3.0 x1 Slot (PCIE2)
- 1 x SPI TPM Header
- 1 x Chassis Intrusion and Speaker Header
- 1 x CPU Fan Connector (4-pin)*
- 1 x Chassis/Water Pump Fan Connector
(4-pin) (Smart Fan Speed Control)**
- 1 x 24-pin ATX Power Connector
- 1 x 8 pin 12V Power Connector
- 1 x Front Panel Audio Connector
- 1 x USB 2.0 Header (Supports 2 USB 2.0 ports)
- 1 x USB 3.2 Gen1 Header
(Supports 2 USB 3.2 Gen1 ports).
- 1 x PS/2 Mouse/Keyboard Port
- 2 x HDMI Ports
- 2 x USB 3.2 Gen1 Type-A Ports
- 4 x USB 2.0 Ports
- 1 x RJ-45 LAN Port
- HD Audio Jacks: Line in /
Front Speaker / Microphone
- 4 x USB 3.2 Gen1 Type-A (2 Rear, 2 Front)
- 6 x USB 2.0 (4 Rear, 2 Front)
Software
Software
- ASRock Motherboard Utility (A-Tuning)
UEFI
- ASRock EZ Mode
- ASRock Full HD UEFI
- ASRock My Favorites in UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash
Others
- 1 x User Manual
- 1 x I/O Shield
- 2 x SATA Data Cables
- 1 x Screw for M.2 Socket
- FCC, CE
- ErP/EuP ready (ErP/EuP ready
power supply is required)
Physical Specification
- Micro ATX Form Factor: 8.66-in x 7.6-in, 22.0 cm x 19.3 cm
Technical Info
- Microsoft Windows 10 64-bit / 11 64-bit
Warranty Information
3 years
DESCRIPTION
ASROCK H610M-H2/M.2 D5 Intel mATX DDR5 Motherboard in Bangladesh
ASROCK H610M-H2/M.2 D5 Intel mATX DDR5 Motherboard in Bangladesh from Tech Land BD:
1. Which Intel processors are compatible with this motherboard?
2. How much RAM can the motherboard support?
3. Does it have an M.2 slot for SSDs?
REVIEWS
Login to write a review.
Overall Rating
I used this board with an Intel Core i3 12100 and DDR5 RAM. System booted without issues and works very stable for daily use. Good option if you want DDR5 on a tight budget.
15 August, 2025
