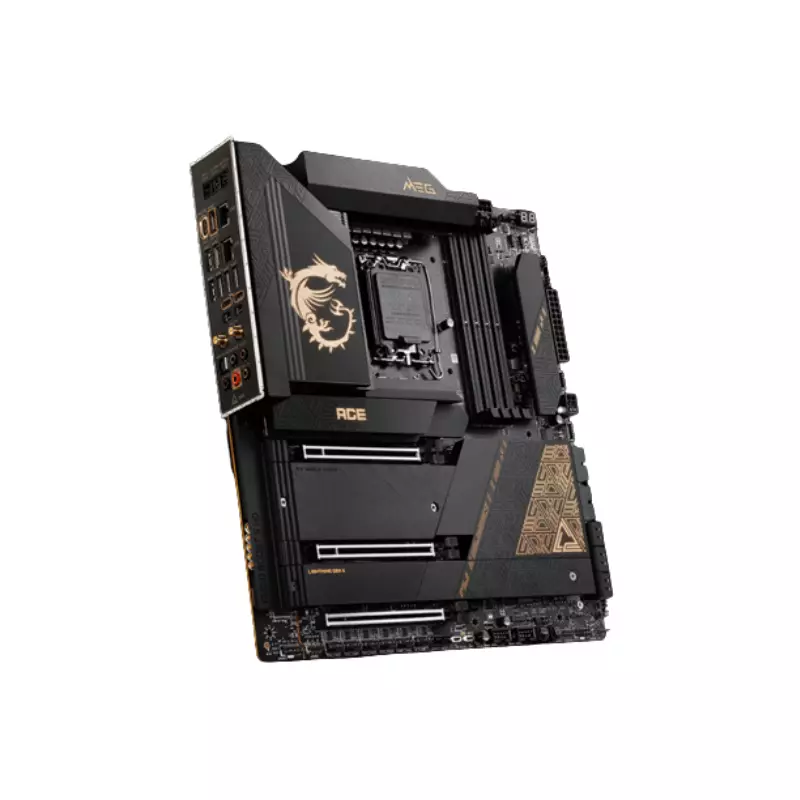

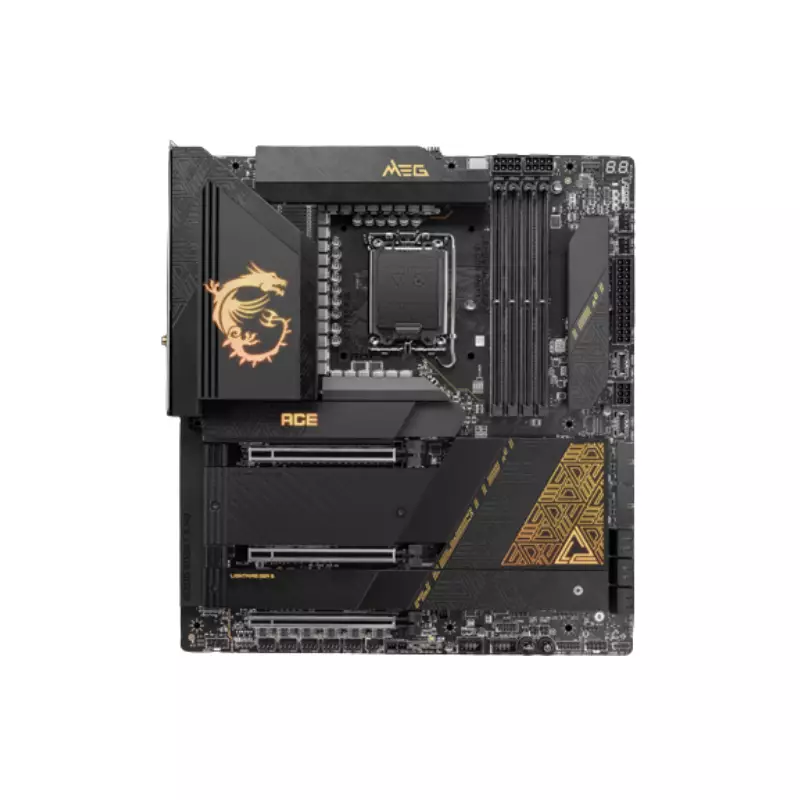

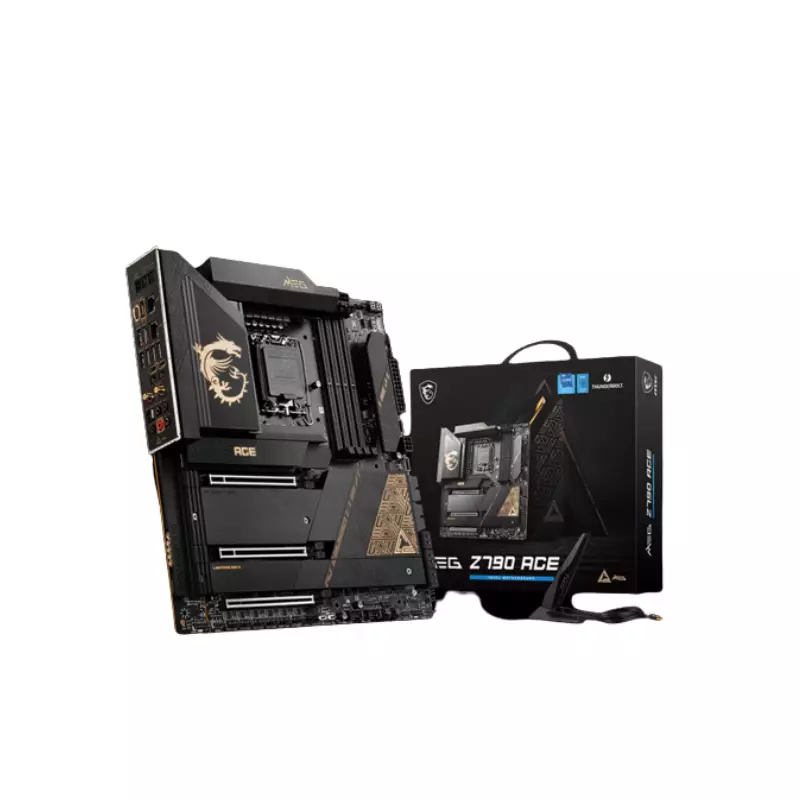

MSI MEG Z790 ACE 13TH & 12TH GEN E-ATX MOTHERBOARD
MSI MEG Z790 ACE 13TH & 12TH GEN E-ATX MOTHERBOARD
MSI MEG Z790 ACE 13TH & 12TH GEN E-ATX MOTHERBOARD - 1
MSI MEG Z790 ACE 13TH & 12TH GEN E-ATX MOTHERBOARD - 2
MSI MEG Z790 ACE 13TH & 12TH GEN E-ATX MOTHERBOARD - 3

MSI MEG Z790 ACE 13TH & 12TH GEN E-ATX MOTHERBOARD

0 Reviews
Stock : Out of Stock
PID : P0402506266
Brand : MSI
Model : MEG Z790 ACE
Warranty : 3 Years
  • Intel Z790 Chipset
  • E-ATX Form Factor
  • AMD Multi-GPU Support
  • 2x Intel 2.5Gbps LAN

Product Pricing

Discount Price

৳74,500 ৳75,500
+ Available Payment Method

EMI Start From*

৳2,623

SPECIFICATIONS

Processor

Supported CPU Supports 12th/13th Gen Intel Core Processors, Pentium® Gold and Celeron® Processors
LGA 1700

Mainboard

Chipset INTEL Z790

Memory

Memory 4x DDR5 UDIMM, Maximum Memory Capacity 192GB

Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz



Max. overclocking frequency:

1DPC 1R Max speed up to 7800+ MHz

1DPC 2R Max speed up to 6600+ MHz

2DPC 1R Max speed up to 6400+ MHz

2DPC 2R Max speed up to 5600+ MHz

Storage

Supported Storage 5x M.2

M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices

M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260 devices

M.2_4 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280 devices

M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 22110/2280/2260 devices

6x SATA 6G

Graphics

Multi-GPU AMD MULTI-GPU Support
Graphics 1x Type-C DisplayPort

Supports a maximum resolution of 4K 60Hz

Networking & Connectivity

LAN 2x Intel 2.5Gbps LAN
WiFi Intel Wi-Fi 6E

The Wireless module is pre-installed in the M.2 (Key-E) slot

Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (160MHz) up to 2.4Gbps

Supports 802.11 a/ b/ g/ n/ ac/ ax
Bluetooth Supports Bluetooth 5.3

Audio & Microphone

Audio Realtek ALC4082 Codec + ESS ES9280AQ Combo DAC/HPA

7.1-Channel USB High Performance Audio

Supports S/PDIF output

Supports up to 32-Bit/384 kHz playback on front panel

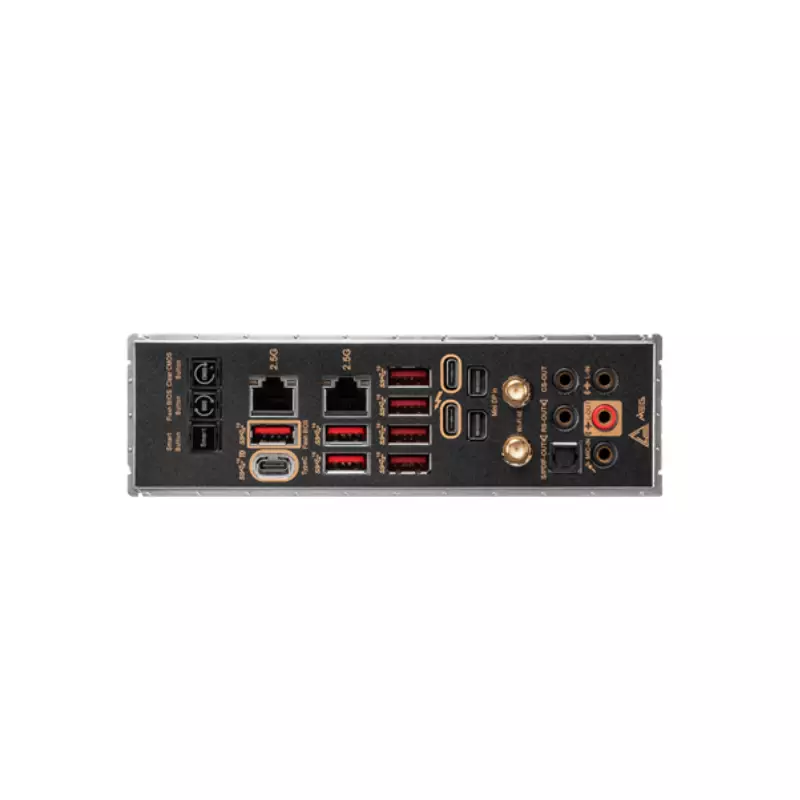

Ports

Slots 3x PCI-E x16 slot

PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)

PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU)

PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Internal I/O Ports 1x Power Connector(ATX_PWR)

2x Power Connector(CPU_PWR)

1x Front Type-C Quick Charge Connector(PD_PWR1)

1x CPU Fan

2x Pump Fan

5x System Fan

2x Front Panel (JFP)

1x Chassis Intrusion (JCI)

1x Water Flow connector

1x Slow Mode Booting Jumper(JSLOW)

1x Front Audio (JAUD)

2x Thermal Sensor connectors(T_SEN)

1x Tuning Controller connector(JDASH)

3x Addressable V2 RGB LED connector (JARGB_V2)

1x RGB LED connector(JRGB)

1x TPM pin header(Support TPM 2.0)

4x USB 2.0 ports

2x USB 3.2 Gen1 Type A ports

2x USB 3.2 Gen 2x2 Type C ports

V-check point
USB 4x USB 2.0 (Front)

4x USB 3.2 Gen1 Type A (Front)

7x USB 3.2 Gen2 Type A (Rear)

1x USB 3.2 Gen2 Type C (Rear)

2x USB 3.2 Gen2x2 Type C (Front)

Physical Specification

Form Factor E-ATX
Dimension 277mmx304.8mm (E-ATX)

Warranty Information

Warranty 3 Years

DESCRIPTION

MSI MEG Z790 ACE 13TH & 12TH GEN E-ATX MOTHERBOARD PRICE IN BD

The MSI MEG Z790 ACE 13th and 12th Gen E-ATX Motherboard available at TechLand BD is a high-performance motherboard tailored for gamers and power users seeking unparalleled performance and reliability. With its cutting-edge technology and robust construction, this motherboard is designed to handle the demanding needs of modern gaming and beyond. Featuring support for both 13th and 12th generation Intel processors, this motherboard delivers exceptional processing power and seamless multitasking capabilities. The extended ATX (E-ATX) form factor allows for more expansion slots and connectors, enabling users to customize their systems to their exact specifications. The motherboard boasts an advanced thermal design with high-quality heat sinks and heat pipes, ensuring efficient heat dissipation even during intense gaming sessions. Equipped with a wide array of connectivity options, the MSI MEG Z790 ACE offers lightning-fast data transfer speeds through USB 3.2 Gen2 and USB Type-C ports. It also features M.2 slots for ultra-fast storage devices, enabling users to take full advantage of the latest storage technologies for quicker system boot times and reduced loading times in games. The motherboard supports high-speed DDR4 memory, allowing for smooth multitasking and speedy performance. With premium audio components and advanced sound technologies, this motherboard delivers an immersive gaming audio experience with crystal-clear fidelity. The MSI MEG Z790 ACE 13th and 12th Gen E-ATX Motherboard is a top-of-the-line solution for gamers and power users who demand the best performance and reliability from their system. It combines cutting-edge technology, robust construction, and extensive connectivity options, making it an ideal choice for those seeking unmatched power and versatility.

REVIEWS

Login to write a review.

No reviews yet

Be the first to share your thoughts about this product.

What is the MSI MEG Z790 ACE 13TH & 12TH GEN E-ATX MOTHERBOARD Price in Bangladesh 2026 ?

The MSI MEG Z790 ACE Price in BD is 74,500৳ . This MSI MEG Z790 ACE 13TH & 12TH GEN E-ATX MOTHERBOARD Manufacturing by MSI Comes With 3 Years Warranty & Based on 0 reviews. Tech Land BD Offers you MSI MEG Z790 ACE by 74,500৳ and its regular price is 75,500৳ Which is also Out of Stock Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
