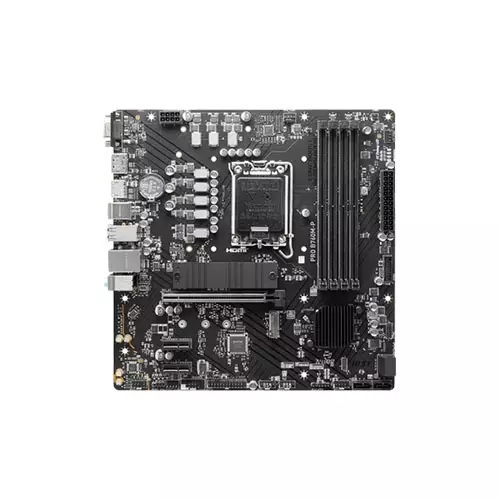

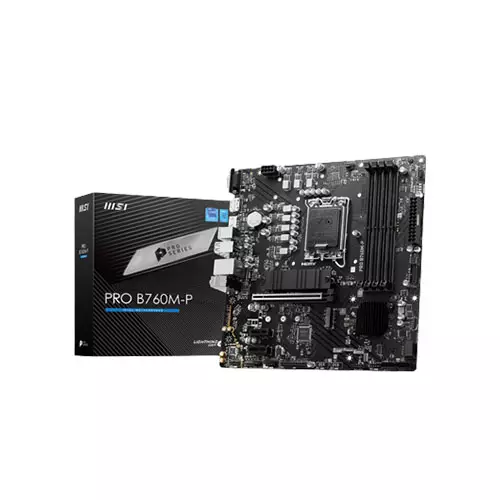

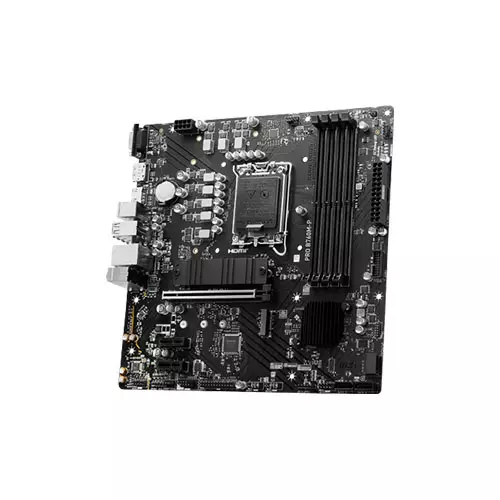

MSI PRO B760M-P DDR5 mATX Motherboard
MSI PRO B760M-P DDR5 mATX Motherboard
MSI PRO B760M-P DDR5 mATX Motherboard - 1
MSI PRO B760M-P DDR5 mATX Motherboard - 2
MSI PRO B760M-P DDR5 mATX Motherboard - 3

MSI PRO B760M-P DDR5 mATX Motherboard

0 Reviews
Stock : In Stock
PID : P0402506218
Brand : MSI
Model : PRO B760M-P DDR5
Warranty : 3 Years
  • Supported CPU: 14th/13th/12th Gen Intel Processors (LGA1700)
  • Supported RAM: 4x DDR5, Max 192GB 6800(OC)
  • Graphics Output: 1x HDMI, 1x DisplayPort, 1x VGA
  • Features: 2x M.2 slot, Realtek RTL8111H Gigabit LAN

Product Pricing

Discount Price

৳15,000 ৳15,900
+ Available Payment Method

EMI Start From*

৳528

SPECIFICATIONS

Processor

Supported CPU Supports 12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors

LGA 1700

Mainboard

Chipset INTEL B760

Memory

Memory 4x DDR5, Maximum Memory Capacity 192GB

Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz

Max. overclocking frequency:
• 1DPC 1R Max speed up to 6800+ MHz
• 1DPC 2R Max speed up to 6400+ MHz
• 2DPC 1R Max speed up to 6000+ MHz
• 2DPC 2R Max speed up to 5600+ MHz

Supports Intel® XMP 3.0 OC

Supports Dual-Controller Dual-Channel mode

Supports non-ECC, un-buffered memory

Storage

Supported Storage 2x M.2 slot

M.2_1 (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices

M.2_2 (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242
devices

4x SATA 6G port

Graphics

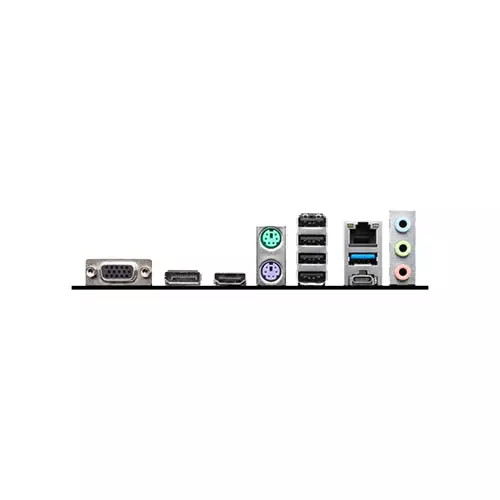

Graphics 1x HDMI™

Support HDMI™ 1.4, maximum resolution of 4K 30Hz*

1x DisplayPort

Support DP 1.4, maximum resolution of 4K 60Hz*

1x VGA

Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz

Networking & Connectivity

LAN Realtek® RTL8111H Gigabit LAN

Audio & Microphone

Audio Realtek® ALC897 Codec

7.1-Channel High Definition Audio

Ports

Slots 1x PCI-E x16 slot (Qty)

2x PCI-E x1 slot (Qty)

PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)

PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)

PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset)
Internal I/O Ports 1x Power Connector(ATX_PWR)

1x Power Connector(CPU_PWR)r>
1x CPU Fan

2x System Fan

2x Front Panel (JFP)

1x Chassis Intrusion (JCI)

1x Front Audio (JAUD)

1x Printer Port (JLPT)

1x Com Port (JCOM)

1x RGB LED connector(JRGB)

4x USB 2.0

2x USB 3.2 Gen1 Type A
HDMI 1x HDMI

Physical Specification

Form Factor mATX

243.84mmx243.84mm

Warranty Information

Warranty 03 Years

DESCRIPTION

MSI PRO B760M-P Intel LGA 1700 DDR5 mATX Motherboard

The MSI PRO B760M-P motherboard is a versatile Intel LGA 1700 motherboard built to support 12th and 13th Gen Intel Core processors, as well as Pentium Gold and Celeron CPUs. Designed with the Intel B760 chipset, this micro-ATX motherboard delivers reliable performance, modern connectivity, and upgrade flexibility, making it an excellent choice for home, office, and entry-level gaming PCs.

CPU and Memory Support

This motherboard offers powerful CPU and memory support, compatible with Intel’s latest processors. It features four DDR5 slots with a maximum capacity of 192GB, supporting speeds up to 6800+ MHz (OC) using Intel XMP 3.0. The dual-channel architecture ensures smooth multitasking and system responsiveness, while support for non-ECC, un-buffered memory and advanced memory overclocking allows users to maximize performance for demanding workloads and gaming.

Storage and Expansion Options

The MSI PRO B760M-P provides flexible storage options with two M.2 slots and four SATA 6G ports, supporting both high-speed NVMe SSDs and traditional SATA drives. The M.2_1 slot runs at PCIe 4.0 x4 from the CPU, while the M.2_2 slot supports PCIe 4.0 x4 or SATA, allowing for fast boot times, rapid file transfers, and versatile storage configurations.

Graphics and Display

The motherboard offers multiple display outputs including HDMI 1.4, DisplayPort 1.4, and VGA, supporting up to 4K resolution with smooth visuals. This makes it suitable for dual-monitor setups, 4K media playback, and everyday graphics needs, especially when paired with processors that include integrated graphics.

Connectivity and Networking

For networking, the MSI PRO B760M-P is equipped with Realtek RTL8111H Gigabit LAN for stable wired connections. A variety of USB ports, including USB 3.2 Gen1 Type-A and USB 2.0, ensures compatibility with modern peripherals, external storage, and front-panel device connections, making it a well-rounded motherboard for connectivity.

Audio and Multimedia

The motherboard features Realtek ALC897 high-definition audio with support for 7.1-channel sound, delivering clear and immersive audio for gaming, media, and professional applications. It also includes front-panel audio support and S/PDIF output, ensuring high-quality sound reproduction for any setup.

Build Quality and Reliability

With its micro-ATX form factor (243.84mm x 243.84mm), the MSI PRO B760M-P fits a wide range of cases while offering strong build quality and long-term reliability. Its comprehensive internal and external I/O options, including fan connectors and RGB headers, allow for custom cooling and aesthetic setups. With a 3-year warranty, it offers peace of mind for stable and durable performance.

The MSI PRO B760M-P motherboard is an ideal choice for users seeking a reliable, future-ready Intel B760 motherboard with DDR5 memory support, modern connectivity, and flexible expansion options. It balances performance, affordability, and stability, making it one of the best options for 12th and 13th Gen Intel Core PC builds.
