MSI MAG B760M MORTAR WIFI II DDR5 MOTHERBOARD

MSI  MAG B760M MORTAR WIFI II DDR5 MOTHERBOARD
MSI  MAG B760M MORTAR WIFI II DDR5 MOTHERBOARD
MSI  MAG B760M MORTAR WIFI II DDR5 MOTHERBOARD
MSI  MAG B760M MORTAR WIFI II DDR5 MOTHERBOARD
MSI  MAG B760M MORTAR WIFI II DDR5 MOTHERBOARD
MSI  MAG B760M MORTAR WIFI II DDR5 MOTHERBOARD
MSI  MAG B760M MORTAR WIFI II DDR5 MOTHERBOARD
MSI  MAG B760M MORTAR WIFI II DDR5 MOTHERBOARD
MSI  MAG B760M MORTAR WIFI II DDR5 MOTHERBOARD
MSI  MAG B760M MORTAR WIFI II DDR5 MOTHERBOARD
MSI MAG B760M MORTAR WIFI II DDR5 MOTHERBOARD
product price26,000৳
Stock Status
In Stock
Product ID
33231
Brand
MSI
Product model MAG B760M MORTAR WIFI II
Warranty 3 Years
Total Reviews
26,000৳

Cash Discount Price

Check available payment method
Contact for bulk quantity: 09613828201
27,352৳

EMI Price*

Starting from 9,117৳/month. For Discount Price
Click here to view 27 banks EMI Plans
Short Description
  • INTEL B760
  • Supports 12th/13th Gen Intel
  • Support DDR5
  • Realtek 2.5Gbps LAN
    • Stock availability is subject to change. Please confirm availability before shopping by calling us.
    • The product image is for illustration purposes only. The actual product may vary in size, color, and layout. No claim will be accepted for an image mismatch.
    • Tech Land BD can change the price of any product at any moment due to the volatile price of the technology.
    • We cannot guarantee that the information on this page is 100% correct. Tech Land BD is not responsible for the results obtained from the use of this information.
    Processor
    Supported CPU Supports 12th/13th Gen Intel Core
    Processors, Pentium Gold and Celeron Processors
    LGA1700
    Mainboard
    Chipset INTEL B760
    Memory
    Memory 4x DDR5, Maximum Memory Capacity 192GB
    Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
    Max. overclocking frequency:
    • 1DPC 1R Max speed up to 7800+ MHz
    • 1DPC 2R Max speed up to 6600+ MHz
    • 2DPC 1R Max speed up to 6400+ MHz
    • 2DPC 2R Max speed up to 5600+ MHz
    Supports Dual-Channel mode
    Supports non-ECC, un-buffered memory
    Supports Intel® Extreme Memory Profile
    Storage
    Supported Storage 3x M.2
    M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
    M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
    M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280 devices
    4x SATA 6G
    Graphics
    Graphics 1x HDMI
    Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz*
    1x DisplayPort
    Support DP 1.4, maximum resolution of 4K 60Hz*
    Audio & Microphone
    Audio Realtek ALC897 Codec
    7.1-Channel USB High Performance Audio
    Supports S/PDIF output
    Networking & Connectivity
    LAN Realtek 2.5Gbps LAN
    WiFi Intel Wi-Fi 6E
    The Wireless module is pre-installed in the M.2 (Key-E) slot
    Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
    Supports 802.11 a/ b/ g/ n/ ac/ ax
    Bluetooth Supports Bluetooth® 5.3, FIPS, FISMA
    Ports
    Slots 1x PCI-E x16 slot
    Supports x16/x4
    PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
    PCI_E2 Gen PCIe 3.0 supports up to x4 (From Chipset)
    Internal I/O Ports 1x Power Connector(ATX_PWR)
    2x Power Connector(CPU_PWR)
    1x CPU Fan
    1x Pump Fan
    4x System Fan
    2x Front Panel (JFP)
    1x Chassis Intrusion (JCI)
    1x Front Audio (JAUD)
    1x Tuning Controller connector(JDASH)
    2x Addressable V2 RGB LED connector (JARGB_V2)
    1x RGB LED connector(JRGB)
    1x TPM pin header(Support TPM 2.0)
    4x USB 2.0 ports
    2x USB 3.2 Gen1 Type A ports
    1x USB 3.2 Gen2 Type C ports
    1x USB4 card connector (JTBT_U4_1, supports RTD3)

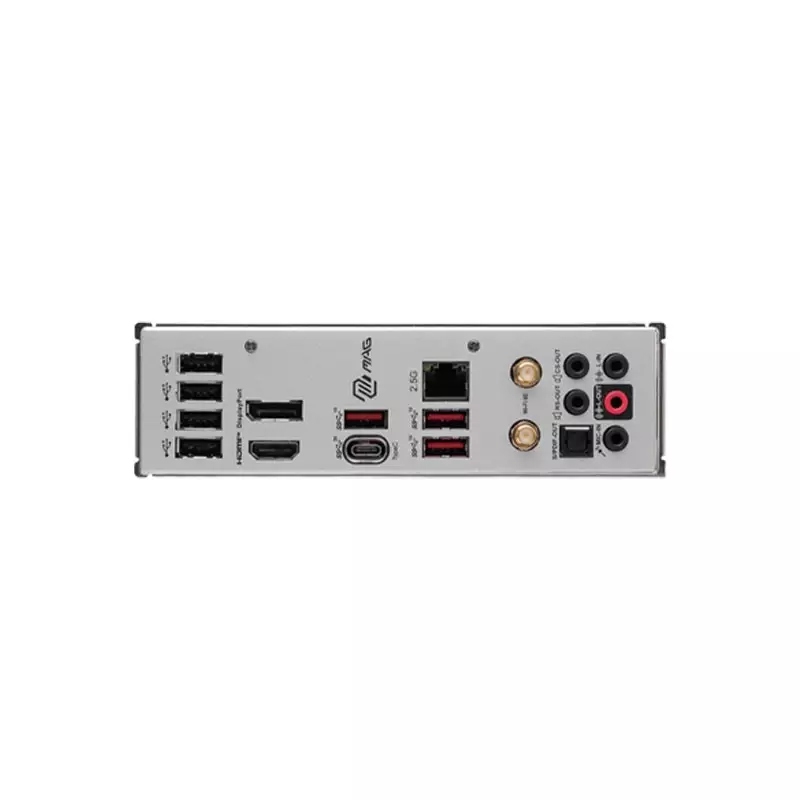

    External I/O Ports DisplayPort 1.4
    USB 3.2 Gen 2 10Gbps Type-A
    2.5G LAN Port
    Wi-Fi / Bluetooth
    HD Audio Connectors
    USB 2.0
    HDMI 2.1 Port
    USB 3.2 Gen 2x2 20Gbps Type-C
    USB 3.2 Gen 2 10Gbps Type-A
    USB 4x USB 2.0 (Rear)
    4x USB 2.0 (Front)
    2x USB 3.2 Gen1 Type A (Front)
    3x USB 3.2 Gen2 Type A (Rear)
    1x USB 3.2 Gen2 Type C (Front)
    1x USB 3.2 Gen2x2 Type C (Rear)
    Physical Specification
    Form Factor mATX
    Dimension mATX
    243.84mmx243.84mm
    Others
    Other Features Support for Windows 11 64-bit, Windows 10 64-bit
    Warranty Information
    Warranty 3 Years

    MSI MAG B760M MORTAR WIFI II MOTHERBOARD PRICE IN BD

    The MSI MAG B760M Mortar Max WiFi II DDR5 Motherboard: Unleash the Power of 12th and 13th Gen Intel CoreTM Processors! Discover a new realm of computing performance with the MSI MAG B760M Mortar Max WiFi II DDR5 Motherboard, powered by the advanced Intel B760 chipset. This motherboard is built to support the latest 12th and 13th Gen Intel CoreTM Processors, Pentium Gold, and Celeron Processors, utilizing the LGA1700 socket for optimal compatibility and power. With 4 DDR5 memory slots, the MSI MAG B760M Mortar Max WiFi II Motherboard offers an astonishing maximum memory capacity of 192GB. Push your system to its limits with memory support ranging from 4800 MHz to an overclocked 7000 MHz. Benefit from enhanced data transfer rates, smoother multitasking, and an overall seamless computing experience. Immerse yourself in stunning visuals with onboard graphics capabilities, including 1 HDMITM port supporting 4K 60Hz and 1 DisplayPort with a maximum resolution of 8K 60Hz*. Note that graphics specifications may vary based on your installed CPU, especially processors featuring integrated graphics. The motherboard boasts 2 PCI-E x16 slots supporting x16/x4 configurations, along with 1 PCI-E x1 slot. Enjoy cutting-edge PCIe technologies, including Gen PCIe 5.0 and Gen PCIe 4.0, to ensure lightning-fast data transfer rates and future-proof expansion capabilities. Experience high-speed storage options with 2 M.2 slots and 6 SATA 6G ports. M.2_1 supports PCIe 4.0 x4 devices, while M.2_2 supports both PCIe 4.0 x4 and SATA mode devices, accommodating various storage needs. Stay connected at blazing speeds with the Realtek 2.5Gbps LAN and Intel Wi-Fi 6E module pre-installed in the M.2 (Key-E) slot. Embrace ultra-fast wireless connections with support for MU-MIMO TX/RX and 2.4GHz, 5GHz, and 6GHz* (160MHz) up to 2.4 GHz. Seamlessly connect peripherals using a variety of USB ports, including USB 2.0, USB 3.2 Gen1, and USB 3.2 Gen2 Type A and Type C ports. Enjoy an immersive audio experience with the Realtek ALC897 Codec, offering 7.1-channel USB High-Performance Audio and S/PDIF output. Immerse yourself in your favorite games, movies, and music like never before. The motherboard features an array of internal I/O connectors, including power connectors, fan headers, front panel connectors, and more, enabling you to fine-tune and optimize your system effortlessly. Benefit from 4 EZ Debug LED indicators for quick and easy troubleshooting, ensuring a smooth and hassle-free experience. Upgrade your system with the MSI MAG B760M Mortar Max WiFi II DDR5 Motherboard and elevate your computing journey to new heights. Enjoy lightning-fast performance, exceptional graphics, and a host of features designed to meet your every need. Get ready to conquer the digital world with MSI's cutting-edge technology!Visit TechLand BD today to get your hands on the MSI MAG B760M Mortar Max WiFi II DDR5 Motherboard and unlock unparalleled performance for your PC!
