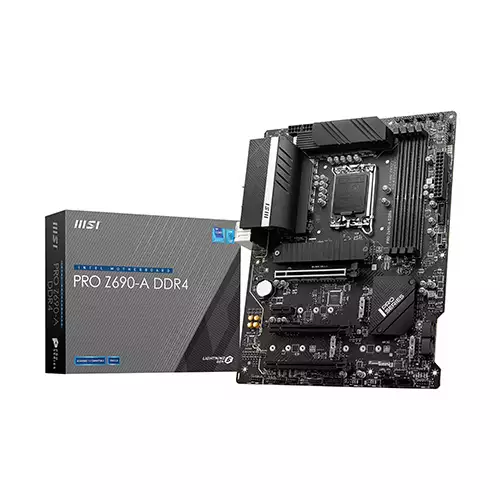

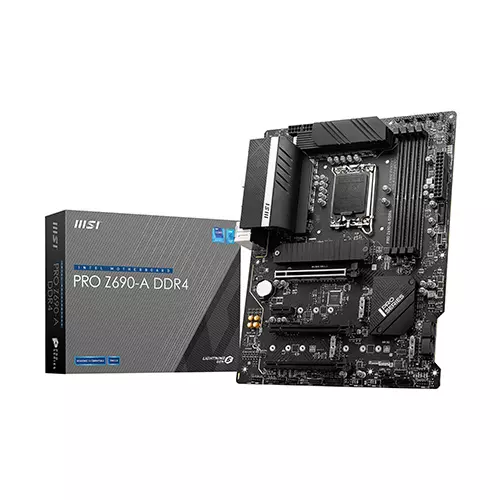

MSI PRO Z690-A DDR4 12TH GEN LGA 1700 Intel ATX Motherboard
MSI PRO Z690-A DDR4 12TH GEN LGA 1700 Intel ATX Motherboard

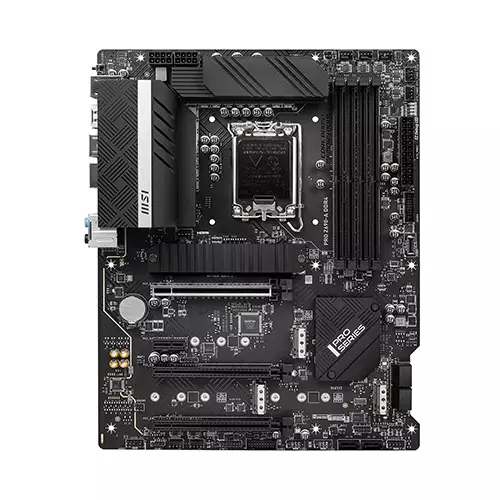

MSI PRO Z690-A DDR4 12TH GEN LGA 1700 Intel ATX Motherboard - 1

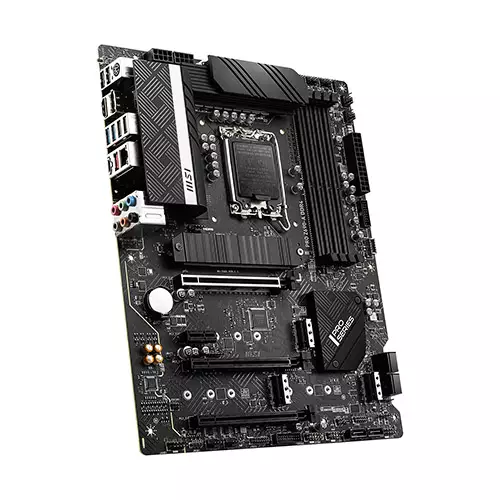

MSI PRO Z690-A DDR4 12TH GEN LGA 1700 Intel ATX Motherboard - 2
MSI PRO Z690-A DDR4 12TH GEN LGA 1700 Intel ATX Motherboard - 3

MSI PRO Z690-A DDR4 12TH GEN LGA 1700 Intel ATX Motherboard

1 Reviews
Stock : Discontinued
PID : P00025063750
Brand : MSI
Model : PRO Z690-A DDR4
Warranty : 3 Years
  • ATX Form Factor
  • Intel Z690 Chipset
  • LGA 1700 Socket
  • 4 x Dual-Channel DDR4-5200 (OC)

SPECIFICATIONS

Processor

Supported CPU CPU Socket Type LGA 1700

* Dedicated LGA1700 mounting bracket is required.

CPU Type Supports 12th Gen Intel Core / Pentium Gold / Celeron Processors

Mainboard

Chipset Intel Z690

Memory

Memory Number of Memory Slots 4×288pin (DDR5)

Memory Standard DDR4 5200+ (OC)

Maximum Memory Supported 128GB

Channel Supported Dual Channel

Storage

Supported Storage SATA 6Gb/s 6 x SATA 6Gb/s

M.2

3 x M.2 Gen 4 x4 64Gbps slots

1 x M.2 Gen 3 x4 32Gbps slot

Graphics

Graphics Supported only by CPU with integrated graphic

Networking & Connectivity

LAN LAN Chipset Intel I225-V

Max LAN Speed 10/100/1000/2500Mbps

Audio & Microphone

Audio Audio Chipset Realtek ALC897

Audio Channels 7.1 Channels

Ports

Slots PCI Express 5.0 x16 1 x PCI Express 5.0 x16

PCI Express 3.0 x16 2 x PCI Express 3.0 x16

PCI Express x1 1 x PCI Express 3.0 x1

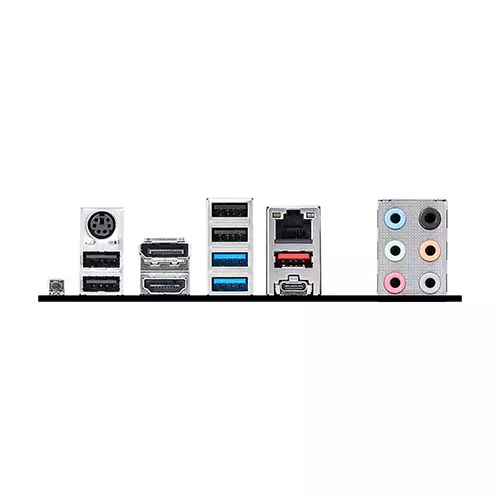

External I/O Ports 1 x DisplayPort

1 x HDMI

1 x Flash BIOS Button

1 x LAN (RJ45)

6 x Audio Jacks

1 x PS/2 Keyboard/Mouse Comb
o
1 x USB 3.2 Gen 2x2 Type-C

1 x USB 3.2 Gen 2 Type-A

2 x USB 3.2 Gen 1 Type-A

4 x USB 2.0/1.1

Physical Specification

Form Factor ATX

Warranty Information

Warranty 03 Years

DESCRIPTION


MSI PRO Z690-A DDR4 Motherboard in Bangladesh

The MSI PRO  DDR4 Motherboard from MSI. Featuring an LGA 1700 socket and Z690 chipset, this MSI PRO DDR4 Motherboard is compatible with Intel 12th Gen Core, Pentium Gold, and Celeron processors. Install up to 128GB of dual-channel RAM across four DDR4 memory slots, with speeds up to 5200 MHz supported via overclocking. Four M.2 and six SATA III connectors accommodate storage drives,

PRO Z690-A DDR4
while a PCIe 5.0 x16 slot, two PCIe 3.0 x16 slots, and a PCIe 3.0 x1 slot can be used to install various adapter cards. This MSI PRO DDR4 Motherboard also supports AMD CrossFireX for multi-GPU setups.Connect accessories via a USB 3.2 Gen 2x2 Type-C port, plus one USB 3.2 Gen 2, two USB 3.2 Gen 1, and four USB 2.0 Type-A ports on the rear I/O panel. An RJ45 port is also present, supporting wired 2.5 Gigabit Ethernet connections. Connect to monitors via the HDMI or DisplayPort outputs. Internal headers provide connections for liquid or air cooling, dual CPU power, a TPM module, chassis intrusion alarm, and more. Relying on the Realtek ALC897 Audio Codec, the MSI PRO DDR4 Motherboard supports 8-channel audio.Buy Now MSI PRO Z690-A DDR4 Motherboard with the best price in Bangladesh.rice is 25900tk in Bangladesh .
