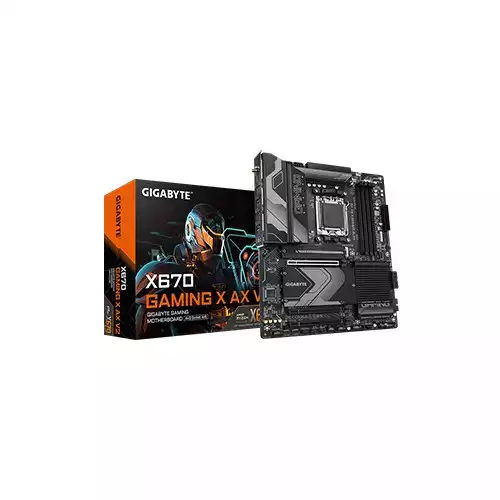

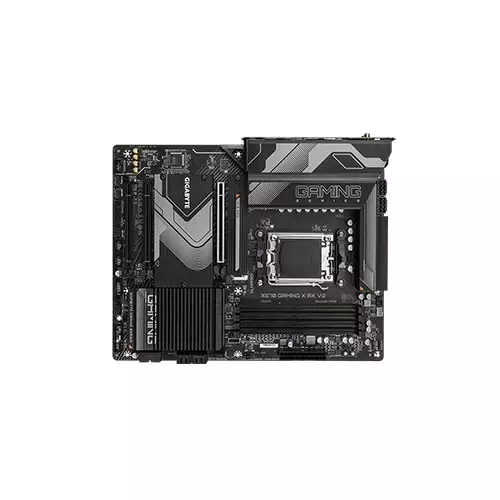

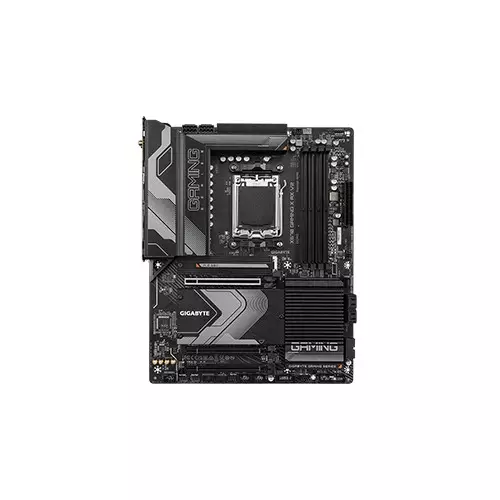

Gigabyte X670 GAMING X AX V2 DDR5 ATX AMD Gaming Motherboard
- AMD Socket AM5
- Chipset AMD X670
- ATX Form Factor
- iTE I/O Controller Chip
Product Pricing
EMI Start From*
৳1,338
SPECIFICATIONS
Processor
CPU
AMD Socket AM5, support for: AMD Ryzen 7000 / Ryzen 8000 Series Processors
Mainboard
Chipset
AMD X670
BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2
z.7, ACPI 5.0
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2
z.7, ACPI 5.0
Memory
Memory
Support for DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/
7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/
6400(OC)/6200(OC)/6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules
4 x DDR5 DIMM sockets supporting up to 192 GB
(48 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM
1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking
(AMD EXPO™) and Extreme Memory Profile (XMP)
memory modules
7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/
6400(OC)/6200(OC)/6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules
4 x DDR5 DIMM sockets supporting up to 192 GB
(48 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM
1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking
(AMD EXPO™) and Extreme Memory Profile (XMP)
memory modules
Storage
Storage
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/2580 SSDs:
AMD Ryzen™ 7000 Series Processors support PCIe 5.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 1/Phoenix 2
Processors support PCIe 4.0 x4/x2 SSDs
1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs
Chipset:
2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB, M2D_SB)
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
AMD Ryzen™ 7000 Series Processors support PCIe 5.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 1/Phoenix 2
Processors support PCIe 4.0 x4/x2 SSDs
1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs
Chipset:
2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB, M2D_SB)
4 x SATA 6Gb/s connectors
RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Graphics
Graphics
Integrated Graphics Processor:
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support native HDMI 2.1 TMDS compatible ports.
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support native HDMI 2.1 TMDS compatible ports.
Networking & Connectivity
LAN
Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless
Realtek Wi-Fi 6E RTL8852CE
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier
frequency bands
BLUETOOTH 5.3
Support for 11ax 160MHz wireless standard
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier
frequency bands
BLUETOOTH 5.3
Support for 11ax 160MHz wireless standard
Audio & Microphone
Audio
Realtek® Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
High Definition Audio
2/4/5.1/7.1-channel
Ports

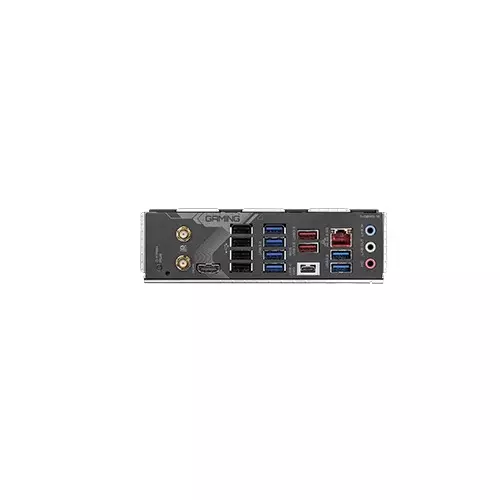

Rear I/O Port
1 x Q-Flash Plus button
2 x SMA antenna connectors (2T2R)
1 x HDMI port
6 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
2 x USB 3.2 Gen 2 Type-A ports (red)
1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
1 x RJ-45 port
3 x audio jacks
2 x SMA antenna connectors (2T2R)
1 x HDMI port
6 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
2 x USB 3.2 Gen 2 Type-A ports (red)
1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
1 x RJ-45 port
3 x audio jacks
Internal I/O Ports
1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x CPU fan/water cooling pump header
3 x system fan headers
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
4 x SATA 6Gb/s connectors
4 x M.2 Socket 3 connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
2 x USB 3.2 Gen 1 headers
2 x USB 2.0/1.1 headers
1 x THB_U4 add-in card connector
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only)
1 x power button
1 x reset button
1 x Clear CMOS button
1 x reset jumper
1 x Clear CMOS jumper
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x CPU fan/water cooling pump header
3 x system fan headers
3 x addressable RGB Gen2 LED strip headers
1 x RGB LED strip header
4 x SATA 6Gb/s connectors
4 x M.2 Socket 3 connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
2 x USB 3.2 Gen 1 headers
2 x USB 2.0/1.1 headers
1 x THB_U4 add-in card connector
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only)
1 x power button
1 x reset button
1 x Clear CMOS button
1 x reset jumper
1 x Clear CMOS jumper
USB
2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
2 x USB 3.2 Gen 1 ports on the back panel
CPU + USB 2.0 Hub:
4 x USB 2.0/1.1 ports on the back panel
Chipset:
2 x USB Type-C® ports, with USB 3.2 Gen 2x2 support (1 port on the back panel, 1 port available through the
internal USB header)
8 x USB 3.2 Gen 1 ports (4 ports on the back panel, 4
ports available through the internal USB headers)
4 x USB 2.0/1.1 ports available through the internal USB headers
2 x USB 3.2 Gen 1 ports on the back panel
CPU + USB 2.0 Hub:
4 x USB 2.0/1.1 ports on the back panel
Chipset:
2 x USB Type-C® ports, with USB 3.2 Gen 2x2 support (1 port on the back panel, 1 port available through the
internal USB header)
8 x USB 3.2 Gen 1 ports (4 ports on the back panel, 4
ports available through the internal USB headers)
4 x USB 2.0/1.1 ports available through the internal USB headers
Others
Controller
iTE I/O Controller Chip
Physical Specification
Expansion Slots
1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x16 mode
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2)
AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x16 mode
AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
Chipset:
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2)
Form Factor
ATX Form Factor; 30.5cm x 24.4cm
Warranty Information
Warranty
3 years
DESCRIPTION
Gigabyte X670 GAMING X AX V2 Motherboard in Bangladesh
The Gigabyte X670 GAMING X AX V2 DDR5 ATX AMD Gaming Motherboard, available at TechLand BD, is a high-performance motherboard designed for gaming enthusiasts. This motherboard supports AMD Socket AM5 and is compatible with AMD Ryzen™ 7000 / Ryzen™ 8000 Series Processors. It features the AMD X670 chipset and supports DDR5 memory up to 8000(OC) MT/s with a maximum capacity of 192 GB across 4 DDR5 DIMM sockets. The motherboard also supports AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules. The onboard graphics include an integrated graphics processor with 1 HDMI port supporting a maximum resolution of 4096x2160@60 Hz. The audio features include a Realtek® Audio CODEC and support for 2/4/5.1/7.1-channel audio. The motherboard also includes a Realtek® 2.5GbE LAN chip and a Realtek® Wi-Fi 6E RTL8852CE wireless communication module with support for WIFI a, b, g, n, ac, ax, and BLUETOOTH 5.3. The motherboard has multiple expansion slots, including 1 x PCI Express x16 slot integrated in the CPU and additional slots provided by the chipset. The storage interface includes multiple M.2 connectors and SATA 6Gb/s connectors with RAID support. The motherboard also features multiple USB ports, including USB 3.2 Gen 2 Type-A ports, USB 3.2 Gen 1 ports, and USB Type-C® ports with USB 3.2 Gen 2x2 support. The internal I/O connectors include ATX power connectors, fan headers, RGB LED strip headers, SATA connectors, M.2 Socket connectors, and USB headers.REVIEWS
Login to write a review.
No reviews yet
Be the first to share your thoughts about this product.
What is the Gigabyte X670 GAMING X AX V2 DDR5 ATX AMD Gaming Motherboard Price in Bangladesh 2026 ?
The Gigabyte X670 GAMING X AX V2 Price in BD is 38,000৳ . This Gigabyte X670 GAMING X AX V2 DDR5 ATX AMD Gaming Motherboard Manufacturing by Gigabyte Comes With 3 Years Warranty & Based on 0 reviews. Tech Land BD Offers you Gigabyte X670 GAMING X AX V2 by 38,000৳ and its regular price is 43,500৳ Which is also Out of Stock Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
