Gigabyte X570S AORUS MASTER AM4 ATX Motherboard
Gigabyte X570S AORUS MASTER AM4 ATX Motherboard

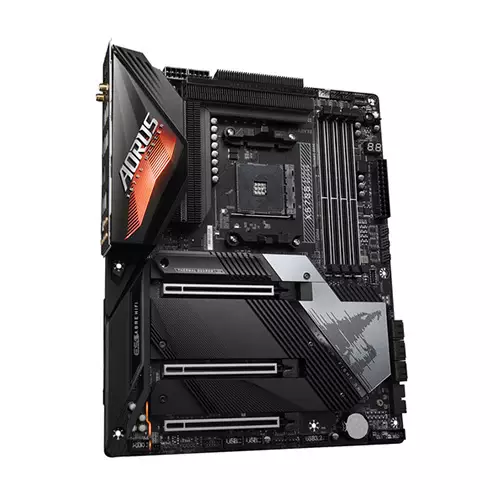

Gigabyte X570S AORUS MASTER AM4 ATX Motherboard - 1

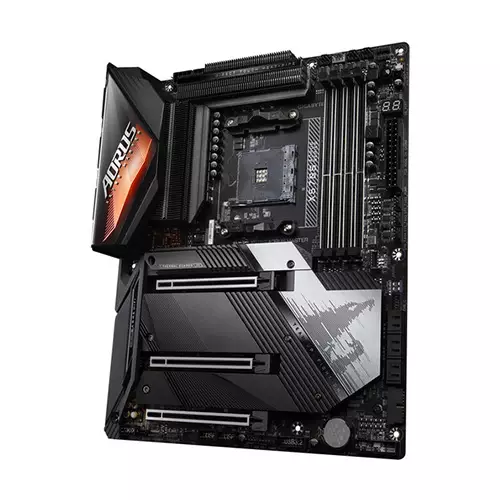

Gigabyte X570S AORUS MASTER AM4 ATX Motherboard - 2
Gigabyte X570S AORUS MASTER AM4 ATX Motherboard - 3

Gigabyte X570S AORUS MASTER AM4 ATX Motherboard

0 Reviews
Stock : Out of Stock
PID : P0392506155
Brand : Gigabyte
Model : X570S AORUS MASTER
Warranty : 3 years
  • ATX Form Factor
  • AMD X570 Chipset
  • AM4 Socket
  • 4 x Dual-Channel DDR4

Product Pricing

Discount Price

৳40,999 ৳42,000
+ Available Payment Method

EMI Start From*

৳1,444

SPECIFICATIONS

Processor

Supported CPU AMD Socket AM4, support for: AMD Ryzen™ 5000 Series Processors/ Ryzen 5000 G-Series/ AMD Ryzen™ 4000 G-Series Processors/ AMD Ryzen™ 3000 Series Processors/ AMD Ryzen™ 3000 G-Series Processors/ AMD Ryzen™ 2000 Series Processors/ AMD Ryzen™ 2000 G-Series Processors

Mainboard

Chipset AMD X570
BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Memory

Memory Number of Memory Slots 4×288pin
Memory Standard DDR4 5400(OC)/ 5200(OC) / 5000(OC) / 4866(OC) / 4600(OC)/ 4400(OC) / 4300(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3300(OC) / 3200 / 2933 / 2667 / 2400 / 2133 (AMD Ryzen 4000 G-Series processors)
DDR4 5200(OC) / 5000(OC) / 4866(OC) / 4600(OC)/ 4400(OC) / 4300(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3300(OC) / 3200 / 2933 / 2667 / 2400 / 2133 (AMD Ryzen 3000 Series processors)
DDR4 5100(OC) / 5000(OC) / 4866(OC) / 4600(OC)/ 4400(OC) / 4300(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3300(OC) / 3200 / 2933 / 2667 / 2400 / 2133 (AMD Ryzen 5000 Series processors)
DDR4 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3300(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 (AMD Ryzen 3000 G-Series Processors / AMD Ryzen 2000 Series Processors / AMD Ryzen 2000 G-Series Processors)
Maximum Memory Supported 128GB
Channel Supported Dual Channel
ECC Supported Yes
Buffer Supported Un-buffered

Storage

Supported Storage 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2280/22110 SSDs:
AMD Ryzen™ 5000 Series Processors/AMD Ryzen™ 3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ 4000 G-Series Processors/AMD Ryzen™ 3000 G-Series Processors/AMDRyzen™ 2000SeriesProcessors/AMDRyzen™ 2000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs
1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2280/22110 SSDs:
Supporting PCIe 4.0* /3.0 x4/x2 SSDs
* For AMD Ryzen™ 5000 Series Processors/AMD Ryzen™ 3000 Series Processors only.
2 x M.2 connectors (M2C_SB/M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2280/22110 SSDs:
Supporting SATA and PCIe 4.0* /3.0 x4/x2 SSDs
* For AMD Ryzen™ 5000 Series Processors/AMD Ryzen™ 3000 Series Processors only.
6 x SATA 6Gb/s connectors, integrated in the Chipset:
Support for RAID 0, RAID 1, and RAID 10
* Refer to "1-9 Internal Connectors," for the installation notices for the M.2 and SATA connectors.

Graphics

Graphics Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
For AMD Ryzen™ 5000 Series Processors/AMD Ryzen™ 4000 G-Series Processors/AMD Ryzen™ 3000 Series Processors/AMD Ryzen™ 2000 Series Processors only.

Networking & Connectivity

LAN Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Audio & Microphone

Audio Realtek® ALC1220-VB audio CODEC
* The front panel line out jack supports DSD audio.
ESS SABRE9118 DAC chip
Support for DTS:X® Ultra
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out

Ports

Slots 3 x PCI Express 4.0 x16*

* Actual support may vary by CPU.
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
* The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
* The PCIEX4 slot shares bandwidth with the M2C_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2C_SB connector.
Internal I/O Ports 1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x water cooling CPU fan header
4 x system fan headers
4 x system fan/water cooling pump headers
2 x addressable LED strip headers
2 x RGB LED strip headers
1 x CPU cooler LED strip/RGB LED strip header
4 x M.2 Socket 3 connectors
6 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2 support
2 x USB 3.2 Gen 1 headers
2 x USB 2.0/1.1 headers
1 x noise detection header
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1 x Thunderbolt™ add-in card connector
2 x temperature sensor headers
1 x power button
1 x reset button
1 x Clear CMOS jumper
Voltage Measurement Points
External I/O Ports 1 x Q-Flash Plus button
1 x Clear CMOS button
2 x SMA antenna connectors (2T2R)
1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
5 x USB 3.2 Gen 2 Type-A ports (red)
2 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
1 x optical S/PDIF Out connector
5 x audio jacks
USB CPU:
2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
2 x USB 3.2 Gen 1 ports on the back panel
Chipset+ASMedia® USB 3.2 Gen 2x2 Controller:
1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support
Chipset:
1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
4 x USB 3.2 Gen 1 ports, available through the internal USB headers
Chipset+2 USB 2.0 Hubs:
8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

Physical Specification

Form Factor ATX Form Factor; 30.5cm x 24.4cm

Warranty Information

Warranty 03 Years

DESCRIPTION

Gigabyte X570s Aorus Master Motherboard

The Gigabyte X570S AORUS MASTER Motherboard from GIGABYTE. Designed to provide gamers with robust connectivity options, high-end thermal solutions, and energy efficiency, the XGigabyte X570S AORUS MASTER Motherboardlays the groundwork for your next powerful build. Built on the AMD X570 chipset, you gain access to an AM4 socket, four dual-channel RAM slots, six SATA III ports, and four M.2 interfaces, all working together to provide you with enhanced system speeds essential for fast-paced gaming. Three PCIe 4.0 x16 expansion slots are available for graphics and utility cards, allowing you to also use AMD's Quad- and 2-Way CrossFire capabilities for enhanced gaming performance. Connect audio interfaces, external drives, hubs, and more with USB 3.2 Gen 1, Gen 2, and Gen 2x2 ports. Bluetooth technology enables you to use wireless controllers and peripherals for a cable-free gameplay experience. Wi-Fi 6E (802.11ax) allows quick upload and download speeds for wireless networks or use the 2.5 Gigabit Ethernet port if you prefer a wired connection. The X570S AORUS MASTER uses various thermal solutions to enhance cooling capabilities while running high-speed games and overclocking protocols. Direct-Touch Heatpipe II, Fins-Array II, 9 W/mK Thermal Conductivity Pad, M.2 Thermal Guard III, and 2X Copper PCB all work together to dissipate heat efficiently, keeping your components cool under heavy loads. Smart Fan 6 uses seven internal temperature sensors and 10 PWM/DC fan headers to calculate heat build-up and act accordingly to minimize thermal impact.

Next-Gen Connectivity
The X570S AORUS MASTER is equipped with various ports designed to enhance your external device performance. A single USB 3.2 Gen 2x2 Type-C port provides transfer speeds up to 20 Gb/s, suitable for high-end audio and visual equipment. Wi-Fi 6E (802.11ax) technology allows you to connect to various wireless networks with a 6 GHz band, giving you a smooth video streaming and gaming experience. A 2.5 Gigabit Ethernet port is available if you prefer a wired connection. Bluetooth 5.2 is available for wireless peripherals such as mice and headphones, giving you cable-free enjoyment.
Hi-Res Audio
Immerse yourself deep into your favorite virtual environments with Hi-Res Audio certified sound, ensuring your system is capable of reproducing frequencies up to 40 kHz. ESS SABRE reference DAC and Realtek ALC1220-VB audio codec reduce distortion and prevent low-volume issues. TXC OSCILLATOR provides precision time triggers to digital-analog converters while maintaining high resistance to corrosion and oxidation. WIMA and Nichicon Fine Gold capacitors are used to provide power to the audio system, creating audiophile-grade sound.
Customization Options
Customize various aspects of your system from the RGB lighting to the performance with an array of options. BIOS and EasyTune work together to access various parameters of your system and allow you to make various adjustments as you see fit. A MultiKey button can be mapped to various BIOS functions including RGB switch, Safe Mode, or booting directly to BIOS. An RGB Fusion 2.0 application gives you manual control over your system lighting and effects to produce a style unique to you.
Ultra-Durable Design
Employing additional features that makes installation easier for newcomers and seasoned builders. GIGABYTE's PCIe Armor uses a piece of stainless-steel shielding and additional anchor points to provide additional support for heavier graphics cards. A similar concept is implemented for memory with 4X Memory Armor, which prevents plate bending and ESD interference. Solid-pin power connectors have a larger contact area that can sustain conductivity, higher power, and generated heat. Upgrade your BIOS without installing the CPU, memory, and graphics card with Q-Flash Plus.

[product_table id="34" limit="10" type="filter" filter_category="7271"]

REVIEWS

Login to write a review.

No reviews yet

Be the first to share your thoughts about this product.

What is the Gigabyte X570S AORUS MASTER AM4 ATX Motherboard Price in Bangladesh 2026 ?

The Gigabyte X570S AORUS MASTER Price in BD is 40,999৳ . This Gigabyte X570S AORUS MASTER AM4 ATX Motherboard Manufacturing by Gigabyte Comes With 3 years Warranty & Based on 0 reviews. Tech Land BD Offers you Gigabyte X570S AORUS MASTER by 40,999৳ and its regular price is 42,000৳ Which is also Out of Stock Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
