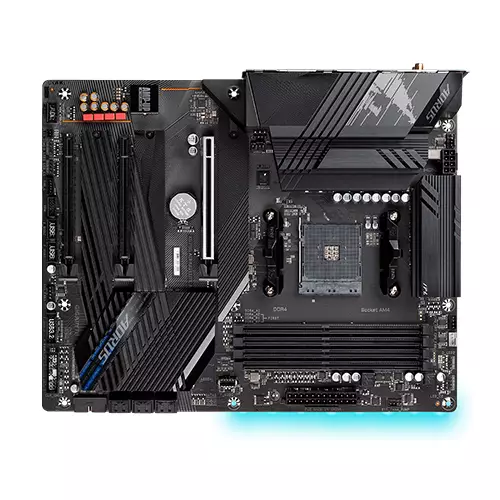

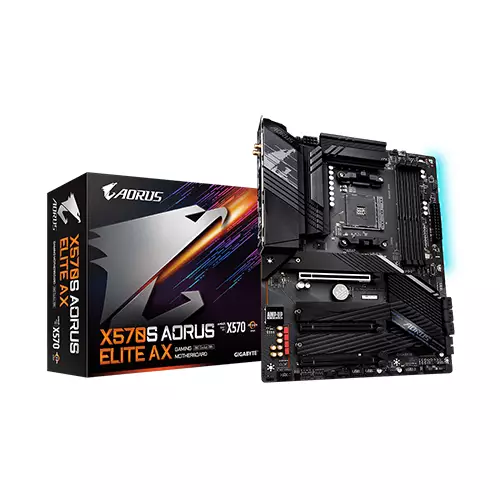

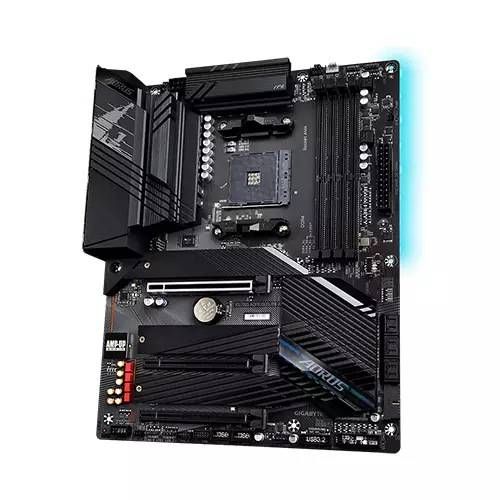

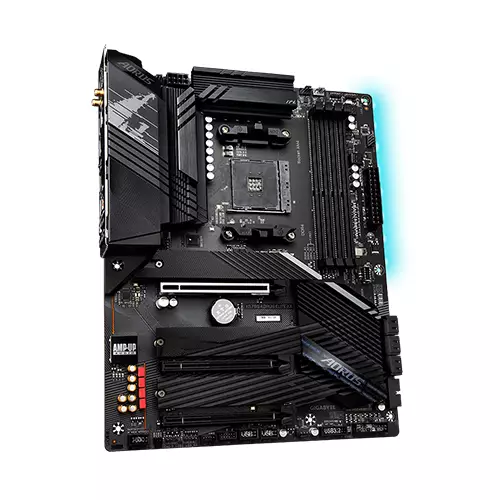

Gigabyte X570S AORUS ELITE AX AM4 ATX Motherboard
- ATX Form Factor
- AMD X570 Chipset
- AM4 Socket
- 4 x Dual-Channel DDR4
Product Pricing
EMI Start From*
৳880
SPECIFICATIONS
Processor
Supported CPU
AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/
AMD Ryzen™ 4000 G-Series/ AMD Ryzen™ 3000 Series/ AMD Ryzen™ 3000 G-Series/
AMD Ryzen™ 2000 Series/ AMD Ryzen™ 2000 G-Series Processors
(Please refer "CPU Support List" for more information.)
AMD Ryzen™ 4000 G-Series/ AMD Ryzen™ 3000 Series/ AMD Ryzen™ 3000 G-Series/
AMD Ryzen™ 2000 Series/ AMD Ryzen™ 2000 G-Series Processors
(Please refer "CPU Support List" for more information.)
Mainboard
Chipset
AMD X570
BIOS
1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Memory
Memory
4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for DDR4 5400(O.C.) / 5300(O.C.) / 5200(O.C.) / 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules*
* ECC memory (ECC mode) support varies by CPU
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Dual channel memory architecture
Support for DDR4 5400(O.C.) / 5300(O.C.) / 5200(O.C.) / 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules*
* ECC memory (ECC mode) support varies by CPU
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Storage
Supported Storage
1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2260/2280/22110 SSDs:
AMD Ryzen™ 5000 Series/3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ 5000 G-Series/4000 G-Series/3000 G-Series/2000 Series/2000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs
x M.2 connectors (M2B_SB/M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 2260/2280/22110 SSDs:
Supporting SATA and PCIe 4.0(Note)/3.0 x4/x2 SSDs
1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2280/22110 SSDs:
Supporting SATA and PCIe 4.0(Note)/3.0 x4/x2 SSDs
6 x SATA 6Gb/s connectors, integrated in the Chipset:
Support for RAID 0, RAID 1, and RAID 10
* Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
(Note) For AMD Ryzen™ 5000 Series Processors/AMD Ryzen™ 3000 Series Processors only.
AMD Ryzen™ 5000 Series/3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs
AMD Ryzen™ 5000 G-Series/4000 G-Series/3000 G-Series/2000 Series/2000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs
x M.2 connectors (M2B_SB/M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 2260/2280/22110 SSDs:
Supporting SATA and PCIe 4.0(Note)/3.0 x4/x2 SSDs
1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2280/22110 SSDs:
Supporting SATA and PCIe 4.0(Note)/3.0 x4/x2 SSDs
6 x SATA 6Gb/s connectors, integrated in the Chipset:
Support for RAID 0, RAID 1, and RAID 10
* Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.
(Note) For AMD Ryzen™ 5000 Series Processors/AMD Ryzen™ 3000 Series Processors only.
Graphics
Multi-GPU
Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
(Note) For AMD Ryzen™ 5000 Series/5000 G-Series/4000 G-Series/3000 Series/2000 Series Processors only
(Note) For AMD Ryzen™ 5000 Series/5000 G-Series/4000 G-Series/3000 Series/2000 Series Processors only
Graphics
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version, HDCP 2.3, and HDR.
Maximum shared memory of 16 GB
* Support for HDMI 2.1 version, HDCP 2.3, and HDR.
Maximum shared memory of 16 GB
Networking & Connectivity
LAN
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
WiFi
AMD Wi-Fi 6E RZ608 (MT7921K)
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
Support for 11ax 80MHz wireless standard and up to 1.2 Gbps data rate
(Actual data rate may vary depending on environment and equipment.)
WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
Support for 11ax 80MHz wireless standard and up to 1.2 Gbps data rate
(Actual data rate may vary depending on environment and equipment.)
Bluetooth
BLUETOOTH 5.2
Audio & Microphone
Audio
Realtek® ALC1220-VB codec
* The back panel line out jack supports DSD audio..
High Definition Audio.
Support for S/PDIF Out
2/4/5.1/7.1-channel.
Support for S/PDIF Out
* The back panel line out jack supports DSD audio..
High Definition Audio.
Support for S/PDIF Out
2/4/5.1/7.1-channel.
Support for S/PDIF Out
Ports
Slots
x PCI Express x16 slot (PCIEX16), integrated in the CPU:
AMD Ryzen™ 5000 Series/3000 Series Processors support PCIe 4.0 x16 mode
AMD Ryzen™ 5000 G-Series/4000 G-Series/2000 Series Processors support PCIe 3.0 x16 mode
AMD Ryzen™ 3000 G-Series/2000 G-Series Processors support PCIe 3.0 x8 mode
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset:.
Supporting PCIe 4.0(Note)/3.0 x4 mode.
1 x PCI Express x16 slot (PCIEX2), integrated in the Chipset:.
Supporting PCIe 4.0(Note)/3.0 x2 mode
* The PCIEX4 slot shares bandwidth with the PCIEX2 slot. When the PCIEX2 slot is populated, the PCIEX4 slot operates at up to x2 mode..
(Note) For AMD Ryzen™ 5000 Series Processors/AMD Ryzen™ 3000 Series Processors only.
AMD Ryzen™ 5000 Series/3000 Series Processors support PCIe 4.0 x16 mode
AMD Ryzen™ 5000 G-Series/4000 G-Series/2000 Series Processors support PCIe 3.0 x16 mode
AMD Ryzen™ 3000 G-Series/2000 G-Series Processors support PCIe 3.0 x8 mode
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset:.
Supporting PCIe 4.0(Note)/3.0 x4 mode.
1 x PCI Express x16 slot (PCIEX2), integrated in the Chipset:.
Supporting PCIe 4.0(Note)/3.0 x2 mode
* The PCIEX4 slot shares bandwidth with the PCIEX2 slot. When the PCIEX2 slot is populated, the PCIEX4 slot operates at up to x2 mode..
(Note) For AMD Ryzen™ 5000 Series Processors/AMD Ryzen™ 3000 Series Processors only.
Internal I/O Ports
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x water cooling CPU fan header
3 x system fan headers
1 x system fan/water cooling pump header
2 x addressable LED strip headers
2 x RGB LED strip headers
1 x CPU cooler LED strip/RGB LED strip header
3 x M.2 Socket 3 connectors
6 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2 support
2 x USB 3.2 Gen 1 headers
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1 x Thunderbolt™ add-in card connector
1 x Clear CMOS jumper
＊All fan headers are subject to support AIO_Pump,
Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x water cooling CPU fan header
3 x system fan headers
1 x system fan/water cooling pump header
2 x addressable LED strip headers
2 x RGB LED strip headers
1 x CPU cooler LED strip/RGB LED strip header
3 x M.2 Socket 3 connectors
6 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C® header, with USB 3.2 Gen 2 support
2 x USB 3.2 Gen 1 headers
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1 x Thunderbolt™ add-in card connector
1 x Clear CMOS jumper
＊All fan headers are subject to support AIO_Pump,
Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.
External I/O Ports
4 x USB 2.0/1.1 ports
2 x SMA antenna connectors (2T2R)
1 x HDMI port
1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
4 x USB 3.2 Gen 2 Type-A ports (red)
3 x USB 3.2 Gen 1 ports
1 x RJ-45 port
1 x optical S/PDIF Out connector
5 x audio jacks
2 x SMA antenna connectors (2T2R)
1 x HDMI port
1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
4 x USB 3.2 Gen 2 Type-A ports (red)
3 x USB 3.2 Gen 1 ports
1 x RJ-45 port
1 x optical S/PDIF Out connector
5 x audio jacks
USB
4 x USB 3.2 Gen 1 ports on the back panel
Chipset+ASMedia® USB 3.2 Gen 2x2 Controller:
1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support
Chipset:
1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
4 x USB 3.2 Gen 1 ports available through the internal USB headers
Chipset+2 USB 2.0 Hubs:
8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Chipset+ASMedia® USB 3.2 Gen 2x2 Controller:
1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support
Chipset:
1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
3 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
4 x USB 3.2 Gen 1 ports available through the internal USB headers
Chipset+2 USB 2.0 Hubs:
8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
HDMI
1 x HDMI port
Software
Software Features
Norton® Internet Security (OEM version)
Realtek® 8125 Gaming LAN Bandwidth Control Utility
Realtek® 8125 Gaming LAN Bandwidth Control Utility
Special Features
Special Features
Support for APP Center
* Available applications in APP Center may vary by motherboard model. Supported functions of each applicationmay also vary depending onmotherboard specifications.
@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
Support for Q-Flash Plus
Support for Q-Flash
Support for Xpress Install
* Available applications in APP Center may vary by motherboard model. Supported functions of each applicationmay also vary depending onmotherboard specifications.
@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
Support for Q-Flash Plus
Support for Q-Flash
Support for Xpress Install
Others
Other Features
I/O Controller
iTE® I/O Controller Chip
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Overheating warning
Fan fail warning
Fan speed control
* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
iTE® I/O Controller Chip
H/W Monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Overheating warning
Fan fail warning
Fan speed control
* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
Physical Specification
Form Factor
ATX
Dimension
30.5cm x 24.4cm
Warranty Information
Warranty
3 Years
DESCRIPTION
Gigabyte X570S AORUS ELITE AX AM4 ATX Motherboard
GIGABYTE X570S motherboards feature upgraded power solution, passive and silent thermal design, and PCIe 4.0 components to keep your gaming system up to fast and powerful, even under heavy workloads.
UNPARALLELED PERFORMANCE
To unleash the full potential of the latest AMD Ryzen™ 5000 series processors, the motherboard requires the best CPU power, memory and IO design. With the best quality components and GIGABYTE R&D design capability, X570S AORUS Elite is a true beast among motherboards.
1. Fully Covered Thermal Design
To unleash the full potential of the latest AMD Ryzen™ 5000 series processors, the motherboard requires the best CPU power, memory and IO design. With the best quality components and GIGABYTE R&D design capability, X570S AORUS Elite is a true beast among motherboards.
2. 5 W/mK Thermal Conductivity Pad
By using 1.5mm thicker 5 W/mK thermal conductivity pads, it can transfer 2.7x more heat compared to traditional thermal pads in the same time.
3. 3X M.2 Thermal Guards
Built-in M.2 heatsinks prevent high-speed, large capacity PCIe 4.0/3.0 SSDs from throttling due to overheating.
ADVANCED THERMAL SOLUTION
X570S AORUS ELITE AX uses high performance Full Covered thermal design with high coverage MOSFET Heatsinks and thick thermal pad, providing ultimate MOSFET cooling performance for enthusiasts, overclockers and gamers.
NEXT GENERATION CONNECTIVITY
A high-end product needs to be future-proof so your system stays up-to-date with the latest technology. X570S AORUS ELITE AX provides all next generation network, storage, and connectivity to keep you up to speed.
DEFINITIVE AESTHETICS
X570S AORUS ELITE AX features RGB FUSION 2.0 to offer lighting effected options and customized settings with outstanding aesthetics, and able to let enthusiasts building a stylish and unique gaming PC.
[product_table id="34" limit="10" type="filter" filter_category="7271"]
REVIEWS
Login to write a review.
No reviews yet
Be the first to share your thoughts about this product.
What is the Gigabyte X570S AORUS ELITE AX AM4 ATX Motherboard Price in Bangladesh 2026 ?
The Gigabyte X570S AORUS ELITE AX Price in BD is 24,999৳ . This Gigabyte X570S AORUS ELITE AX AM4 ATX Motherboard Manufacturing by Gigabyte Comes With 3 years Warranty & Based on 0 reviews. Tech Land BD Offers you Gigabyte X570S AORUS ELITE AX by 24,999৳ and its regular price is 26,000৳ Which is also Out of Stock Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
Related Products
Save: ৳300
GIGABYTE B650M K AM5 AMD DDR5 MICRO-ATX MOTHERBOARD
৳15,200
৳15,500
Save: ৳1,500
GIGABYTE B550M K AMD AM4 ULTRA DURABLE MICRO ATX MOTHERBOARD
৳12,000
৳13,500
Save: ৳2,000
GIGABYTE AMD B550M DS3H AC R2 DDR4 Micro ATX Motherboard
৳13,500
৳15,500
Save: ৳700
Gigabyte B450M DS3H WIFI AM4 AMD Micro ATX Motherboard
৳12,300
৳13,000
Save: ৳700
GIGABYTE B450M K AMD AM4 ULTRA DURABLE DDR4 MICRO ATX MOTHERBOARD
৳8,800
৳9,500
Save: ৳2,700
Gigabyte B550M Aorus Elite AMD 3rd Gen Micro ATX Motherboard
৳15,800
৳18,500
Save: ৳1,500
Gigabyte B650M GAMING WIFI Micro ATX Motherboard
৳17,300
৳18,800
Save: ৳4,600
Gigabyte B450M DS3H V3 DDR4 AMD Micro-ATX Motherboard
৳10,700
৳15,300
Save: ৳2,200
GIGABYTE B850M D3HP AM5 Micro ATX Motherboard
৳21,300
৳23,500
Save: ৳2,700
Gigabyte B650M GAMING PLUS WIFI DDR5 AM5 Motherboard
৳21,300
৳24,000
