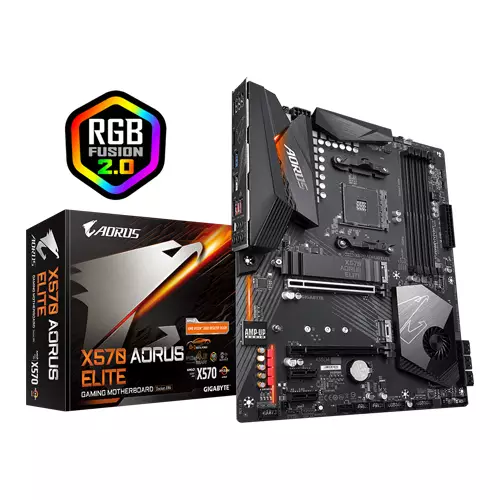

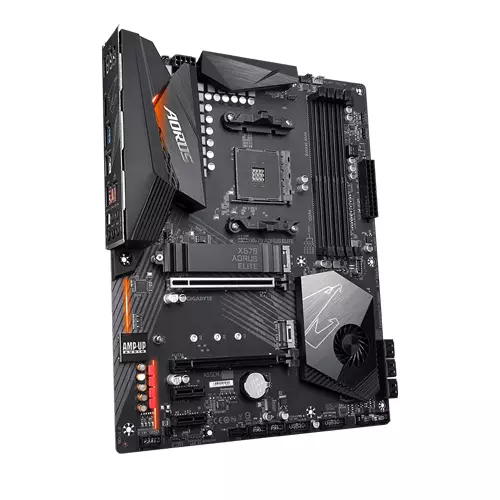

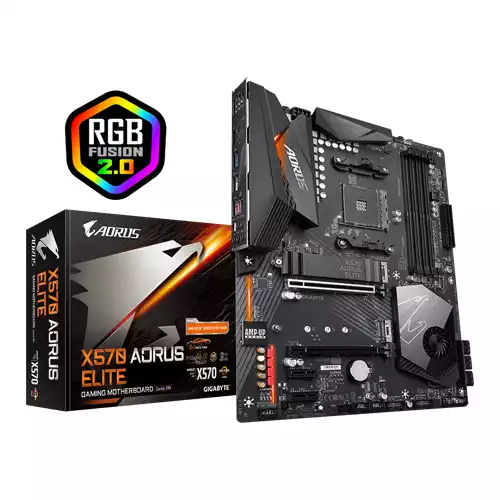

GIGABYTE X570 AORUS ELITE AMD MOTHERBOARD
GIGABYTE X570 AORUS ELITE AMD MOTHERBOARD
GIGABYTE X570 AORUS ELITE AMD MOTHERBOARD - 1
GIGABYTE X570 AORUS ELITE AMD MOTHERBOARD - 2

GIGABYTE X570 AORUS ELITE AMD MOTHERBOARD

0 Reviews
Stock : Out of Stock
PID : P0392506045
Brand : Gigabyte
Model : X570 AORUS ELITE
Warranty : 3 years
  • Supported CPU: AMD Socket AM4, support for: 3rd Generation AMD Ryzen™ processors/ 2nd Generation AMD Ryze...
  • Memory: 3rd Generation AMD Ryzen™ processors: Support for DDR4 4000(O.C.) / 3866(O.C.) / 3800(O.C....
  • Supported Storage: 3rd Generation AMD Ryzen™ processors: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2...
  • LAN: Intel® GbE LAN chip (10/100/1000 Mbit)

Product Pricing

Discount Price

৳21,600 ৳22,000
+ Available Payment Method

EMI Start From*

৳761

SPECIFICATIONS

Processor

Supported CPU AMD Socket AM4, support for: 3rd Generation AMD Ryzen™ processors/ 2nd Generation AMD Ryzen™ processors/ 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/ AMD Ryzen™ with Radeon™ Vega Graphics processors

Mainboard

Chipset AMD X570
BIOS 1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Memory

Memory 3rd Generation AMD Ryzen™ processors:
Support for DDR4 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
2nd Generation AMD Ryzen™ processors/AMD Ryzen™ with Radeon™ Vega Graphics processors:
Support for DDR4 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules
4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules*
* ECC mode supported by 3rd Gen AMD Ryzen™/ 2nd Gen AMD Ryzen™ and only PRO sku of 2nd Gen AMD Ryzen™ with Radeon™ Vega Graphics processors/ AMD Ryzen™ with Radeon™ Vega Graphics processors.
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules

Storage

Supported Storage 3rd Generation AMD Ryzen™ processors:
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support)
2nd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors:
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support)
Integrated in the Chipset (M2B_SOCKET/M2C_SOCKET):
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0*/3.0 x4/x2 SSD support) (M2B_SOCKET)
* For 3rd Generation AMD Ryzen™ processors only.
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 4.0*/3.0 x4/x2 SSD support) (M2C_SOCKET)
* For 3rd Generation AMD Ryzen™ processors only.
6 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, and RAID 10

Graphics

Graphics Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
Note: For 3rd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ processors only.

Networking & Connectivity

LAN Intel® GbE LAN chip (10/100/1000 Mbit)

Audio & Microphone

Audio Realtek® ALC1200 codec
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out

Ports

Slots
Integrated in the CPU (PCIEX16):
· 3rd Generation AMD Ryzen™ processors:
1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
· 2nd Generation AMD Ryzen™ processors:
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
· 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors:
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8
Integrated in the Chipset (PCIEX4/PCIEX1):
1 x PCI Express x16 slot, supporting PCIe 4.0*/3.0 and running at x4 (PCIEX4)
* For 3rd Generation AMD Ryzen™ processors only.
2 x PCI Express x1 slots, supporting PCIe 4.0*/3.0
* For 3rd Generation AMD Ryzen™ processors only.
Internal I/O Ports 1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
1 x CPU fan header
1 x water cooling CPU fan header
3 x system fan headers
2 x system fan/water cooling pump headers
2 x addressable LED strip headers
2 x RGB LED strip headers
3 x M.2 Socket 3 connectors
6 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB Type-C™ port, with USB 3.2 Gen 2 support
2 x USB 3.2 Gen 1 headers
2 x USB 2.0/1.1 headers
1 x noise detection header
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
2 x temperature sensor headers
1 x power button
1 x reset button
2 x BIOS switches
1 x Clear CMOS jumper
Voltage Measurement Points

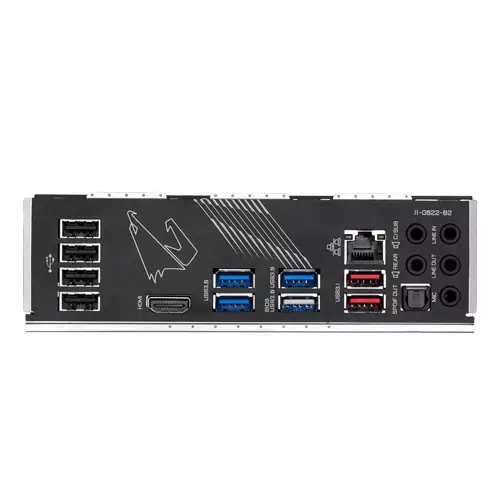

USB
Integrated in the CPU:
4 x USB 3.2 Gen 1 ports on the back panel
Chipset:
1 x USB Type-C™ port with USB 3.2 Gen 2 support, available through the internal USB header
2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
4 x USB 3.2 Gen 1 ports available through the internal USB headers
Chipset+2 USB 2.0 Hubs:
8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

Physical Specification

Form Factor ATX Form Factor; 30.5cm x 24.4cm

Warranty Information

Warranty 03 Years

DESCRIPTION

GIGABYTE X570 AORUS ELITE AMD MOTHERBOARD

Specifications :

●︎ Supports AMD 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ Ryzen™ with Radeon™ Vega Graphics Processors

●︎ Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs

●︎ Direct 14 Phases Infineon Digital VRM Solution with PowIRstage

●︎ Advanced Thermal Design with Fins-Array Heatsink and Direct Touch Heatpipe

●︎ Triple Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Triple Thermal Guards

●︎ Intel® WiFi 6 802.11ax 2T2R & BT 5

●︎ Rear 125dB SNR AMP-UP Audio with ALC1220-VB & ESS SABRE 9118 DAC with WIMA Audio Capacitors

●︎ Realtek® 2.5GbE + Intel® Gigabit LAN with cFosSpeed

●︎ USB TurboCharger for Mobile Device Fast Charge Support

●︎ RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Supports Addressable LED & RGB LED Strips

●︎ Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP and Noise Detection

●︎ Front & Rear USB 3.2 Gen2 Type-C™ Headers

●︎ Integrated Base Plate & I/O Shield Armor

●︎ Q-Flash Plus Update BIOS Without Installing CPU, Memory and Graphics Card

**03 Year Warranty

The X570 AORUS ELITE AMD AM4 ATX Motherboard from GIGABYTE is built on the AMD X570 chipset, supporting AMD Ryzen series processors with an AM4 socket. It has four RAM slots that can hold up to 128GB of dual-channel DDR4 memory at speeds of up to 3466 MHz when overclocked. For storage, there are six SATA III ports and two M.2 slots, one of which can operate at up to 32 Gb/s when used with a compatible NVMe drive. While this motherboard is equipped with DisplayPort and HDMI ports for onboard graphics, it also has a PCIe 3.0 x16 slot for a dedicated GPU as well as a PCIe 2.0 x16 and three PCIe 2.0 x1 slots for additional PCIe-based hardware. Other notable features include Realtek® 2.5GbE LAN chip 7.1-channel HD audio, Intel I211AT Gigabit LAN, 802.11ac Wi-Fi, Bluetooth 4.2, and MSI Mystic Light RGB LEDs.GIGABYTE AORUS ELITE AMD MOTHERBOARD

[product_table id="34" limit="10" type="filter" filter_category="7271"]

REVIEWS

Login to write a review.

No reviews yet

Be the first to share your thoughts about this product.

What is the GIGABYTE X570 AORUS ELITE AMD MOTHERBOARD Price in Bangladesh 2026 ?

The Gigabyte X570 AORUS ELITE Price in BD is 21,600৳ . This GIGABYTE X570 AORUS ELITE AMD MOTHERBOARD Manufacturing by Gigabyte Comes With 3 years Warranty & Based on 0 reviews. Tech Land BD Offers you Gigabyte X570 AORUS ELITE by 21,600৳ and its regular price is 22,000৳ Which is also Out of Stock Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
