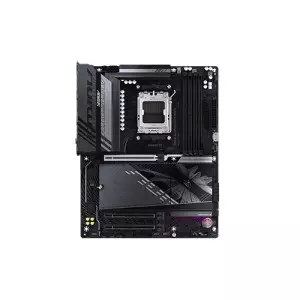

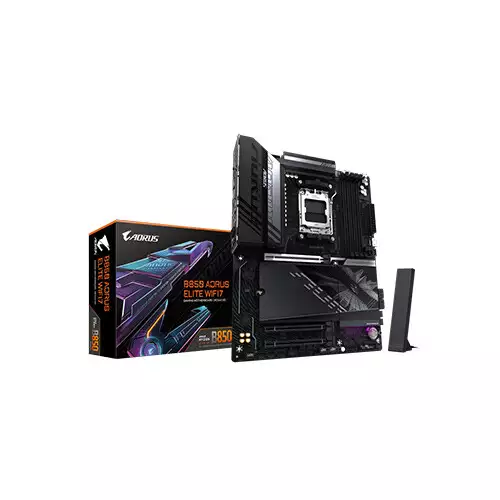

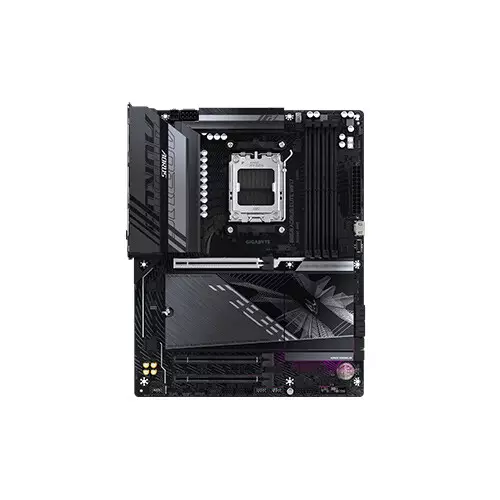

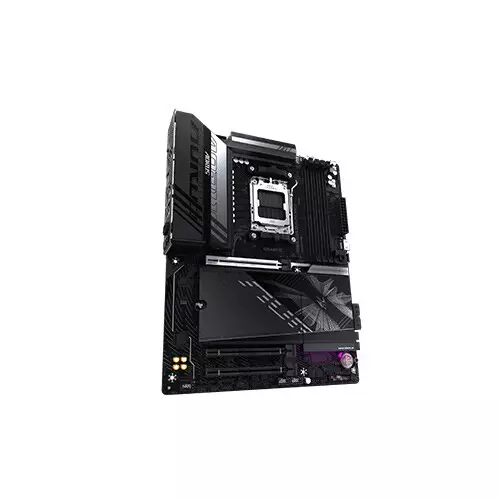

Gigabyte B850 AORUS ELITE WIFI7 AMD DDR5 ATX Motherboard

AMD Socket AM5, support for:

AMD Ryzen 9000 Series Processors/

AMD Ryzen 8000 Series Processors/

AMD Ryzen 7000 Series Processors

AMD B850

1 x 256 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0,
SM BIOS 2.7, ACPI 5.0

Support for DDR5 8200(O.C) / 8000(O.C)
/ 7950(O.C) / 7900(O.C) / 7800(O.C) /
7600(O.C.) / 7400(O.C.) / 7200(O.C.) /
7000(O.C.) / 6800(O.C.) / 6600(O.C.) /
 6400(O.C) / 6200(O.C) / 6000(O.C) /
5800(O.C) / 5600(O.C) / 5200 / 4800 /
4400 MT/s memory modules.

4 x DDR5 DIMM sockets supporting
up to 256 GB (64 GB single DIMM
capacity)of system memory

Dual channel memory architecture

Support for non-ECC Un-buffered
DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for AMD EXtended Profiles
for Overclocking (AMD EXPO™) and
Extreme Memory Profile (XMP)
memory modules

(The CPU and memory configuration
may affect the supported memory
types, data rate (speed), and number
of DRAM modules, please refer to
"Memory Support List" on GIGABYTE's
website for more information.)

Onboard Graphics

Integrated Graphics Processor
with AMD Radeon™ Graphics support:

- 1 x DisplayPort, supporting a
maximum resolution of 3840x2160@144 Hz

* Support for DisplayPort 1.4 version and HDR.

- 1 x Front HDMI port, supporting a
maximum resolution of 1920x1080@30 Hz

* Support for HDMI 1.4 version

(Graphics specifications may vary
depending on CPU support.)

1 x M.2 connector (M2A_CPU),
integrated in the CPU, supporting S
ocket 3, M key, type
25110/22110/2580/2280 SSDs:

AMD Ryzen 9000/7000 Series
Processors support PCIe 5.0 x4/x2 SSDs

AMD Ryzen 8000 Series-Phoenix 1
Processors support PCIe 4.0 x4/x2 SSDs

AMD Ryzen 8000 Series-Phoenix 2
Processors support PCIe 4.0 x4/x2 SSDs

1 x M.2 connector (M2B_CPU),
integrated in the CPU, supporting
Socket 3, M key, type
25110/22110/2580/2280 SSDs:

AMD Ryzen™ 9000/7000 Series
Processors support PCIe 4.0 x4/x2 SSDs

AMD Ryzen™ 8000 Series-Phoenix 1
Processors support PCIe 4.0 x4/x2 SSDs

AMD Ryzen™ 8000 Series-Phoenix 2
Processors support PCIe 4.0 x2 SSDs

1 x M.2 connector (M2C_SB),
integrated in the Chipset, supporting
Socket 3, M key, type 25110/22110/2580/2280
PCIe 4.0 x4/x2 SSDs

4 x SATA 6Gb/s connectors

RAID 0, RAID 1, RAID 5, and RAID 10
support for NVMe SSD storage devices

* RAID 5 is only available on AMD Ryzen
9000 Series Processors.

RAID 0, RAID 1, and RAID 10 support for
SATA storage devices

Realtek 2.5GbE LAN chip
(2.5 Gbps/1 Gbps/100 Mbps)

Realtek® Wi-Fi 7 RTL8922AE

- 802.11a, b, g, n, ac, ax, be,
supporting 2.4/5/6 GHz
carrier frequency bands

- BLUETOOTH 5.4

- Support for 11be 160MHz
wireless standard(Actual
data rate may vary depending
on environment and equipment.)

Realtek® Audio CODEC (Only for rev. 1.0)

High Definition Audio

2/4/5.1/7.1-channel

* You can change the functionality
of an audio jack using the
audio software. To configure
7.1-channel audio, access the
audio software for audio settings.

Support for S/PDIF Out

Realtek® ALC1220 CODEC
(Only for rev. 1.1)

* The back panel line out jack
supports DSD audio.

High Definition Audio

2/4/5.1/7.1-channel

1 x PCI Express x16 slot (PCIEX16),
integrated in the CPU:

AMD Ryzen 9000/7000 Series
Processors support PCIe 5.0 x16 mode

AMD Ryzen 8000 Series-Phoenix
1 Processors support PCIe 4.0 x8 mode

AMD Ryzen 8000 Series-Phoenix 2
Processors support PCIe 4.0 x4 mode

* The PCIEX16 slot can only support a
graphics card or an NVMe SSD. If only
one graphics card is to be installed,
be sure to install it in the PCIEX16 slot.

Chipset:

- 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1(PCIEX1_1, PCIEX1_2)

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x 4-pin ATX 12V power connector

1 x CPU fan header

1 x CPU fan/water cooling pump header

3 x system fan headers

1 x system fan/water cooling pump header

3 x addressable RGB Gen2 LED strip headers

1 x RGB LED strip header

3 x M.2 Socket 3 connectors

4 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x USB Type-C header, with
USB 3.2 Gen 2x2 support

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

1 x Trusted Platform Module
header (For the GC-TPM2.0 S
PI/GC-TPM2.0 SPI 2.0/GC-TPM2.0
SPI V2 module only)

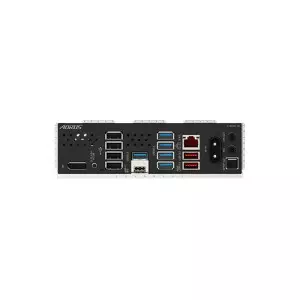

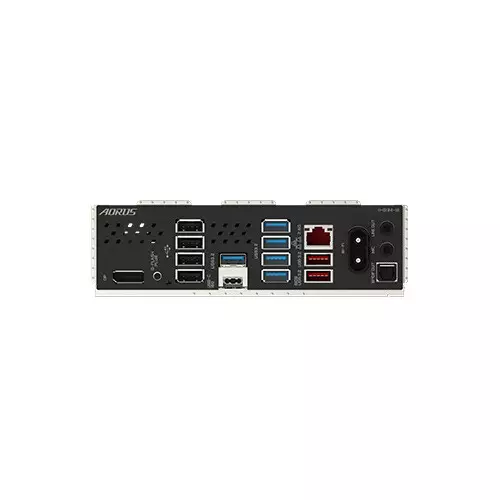

1 x HDMI port*

1 x power button

1 x reset button

1 x reset jumper

1 x Clear CMOS jumper

1 x DisplayPort*

1 x Q-Flash Plus button

4 x USB 2.0/1.1 ports

1 x USB Type-C port, with
USB 3.2 Gen 2 support

5 x USB 3.2 Gen 1 ports

1 x RJ-45 port

2 x USB 3.2 Gen 2 Type-A ports (red)

2 x antenna connectors (2T2R)

2 x audio jacks

1 x optical S/PDIF Out connector

CPU:

- 1 x USB Type-C® port on the
back panel, with USB 3.2 Gen 2 support

- 2 x USB 3.2 Gen 2 Type-A ports
(red) on the back panel

CPU+USB 2.0 Hub:

- 4 x USB 2.0/1.1 ports on the back panel

Chipset:

- 1 x USB Type-C port with USB
3.2 Gen 2x2 support, available
through the internal USB header

- 3 x USB 3.2 Gen 1 ports (1 port
on the back panel, 2 ports available
through the internal USB header)

- 4 x USB 2.0/1.1 ports available
through the internal USB headers

Chipset+USB 3.2 Gen 1 Hub:

- 4 x USB 3.2 Gen 1 ports on the back panel

Norton Internet Security (OEM version)

LAN bandwidth management software

Support for Windows 11 64-bit

iTE I/O Controller Chip

H/W Monitoring

Voltage detection

Temperature detection

Fan speed detection

Water cooling flow rate detection

Fan fail warning

Fan speed control

ATX Form Factor; 30.5cm x 24.4cm
