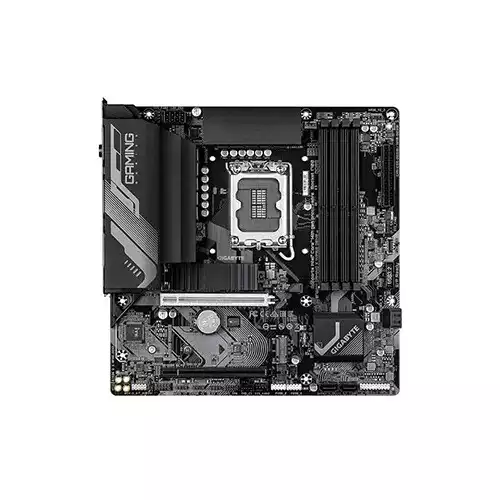

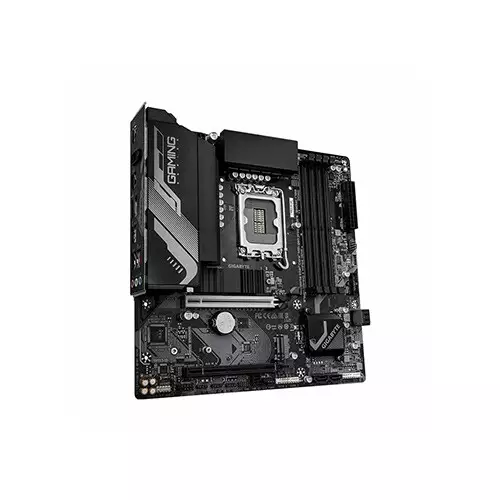

Gigabyte B760M GAMING X GEN5 Wi-Fi 6E DDR5 Gaming Motherboard

LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors

(Go to GIGABYTE's website for the latest CPU support list.)

L3 cache varies with CPU

Intel B760 Express Chipset

1 x 256 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0,
SM BIOS 2.7, ACPI 5.0

14th and 13th Generation Intel Core
i9/i7 Processors:

- Support for DDR5 5600/5200/4800/4400
MT/s memory modules

13th Generation Intel Core i5/i3
and 12th Generation Intel Core,
Pentium Gold and Celeron Processors:

- Support for DDR5 4800/4400 MT/s
memory modules

4 x DDR5 DIMM sockets supporting
up to 256 GB (64 GB single DIMM capacity)
of system memory

Dual channel memory architecture

Support for ECC Un-buffered DIMM
1Rx8/2Rx8 memory modules
(operate in non-ECC mode)

Support for non-ECC Un-buffered
DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile
(XMP) memory modules

(The CPU and memory configuration
may affect the supported memory types,
data rate (speed), and number of DRAM
modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)

CPU:

- 1 x M.2 connector
(Socket 3, M key, type
2280 PCIe 4.0 x4/x2 SSD support)
(M2A_CPU)

Chipset:

- 1 x M.2 connector
(Socket 3, M key, type
22110/2280 PCIe 4.0 x4/x2
SSD support) (M2P_SB)

- 4 x SATA 6Gb/s connectors

RAID 0, RAID 1, RAID 5, and RAID
10 support for SATA storage devices

Integrated Graphics Processor-Intel
HD Graphics support:

- 1 x HDMI port, supporting
a maximum resolution of
4096x2160@60 Hz

* Support for HDMI 2.1 version
and HDCP 2.3.

** Support native HDMI 2.1
TMDS compatible ports.

- 1 x DisplayPort, supporting
a maximum resolution of
4096x2304@60 Hz

* Support for DisplayPort 1.2
version and HDCP 2.3

Realtek 2.5GbE LAN chip
(2.5 Gbps/1 Gbps/100 Mbps)

Intel® Wi-Fi 6E AX210

- WIFI a, b, g, n, ac, ax,
supporting 2.4/5/6 GHz
carrier frequency bands

- BLUETOOTH 5.3

- Support for 11ax 160MHz
wireless standard

(Actual data rate may vary
depending on environment
and equipment.)

Realtek Audio CODEC

High Definition Audio

2/4/5.1/7.1-channel

CPU:

- 1 x PCI Express x16 slot,
supporting PCIe 5.0 and
running at x16 (PCIEX16)

* The PCIEX16 slot can only
support a graphics card or an
NVMe SSD. If only one graphics
card is to be installed, be sure to
install it in the PCIEX16 slot.

Chipset:

- 1 x PCI Express x16 slot,
supporting PCIe 3.0 and running at x4 (PCIEX4)

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

3 x system fan headers

3 x addressable LED strip headers

1 x RGB LED strip header

2 x M.2 Socket 3 connectors

4 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x S/PDIF Out header

1 x USB Type-C header,
with USB 3.2 Gen 2 support

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

2 x Thunderbolt add-in
card connectors

1 x Trusted Platform Module
header (For the GC-TPM2.0
SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0
SPI V2 module only)

1 x serial port header

1 x Q-Flash Plus button

1 x reset jumper

1 x Clear CMOS jumper

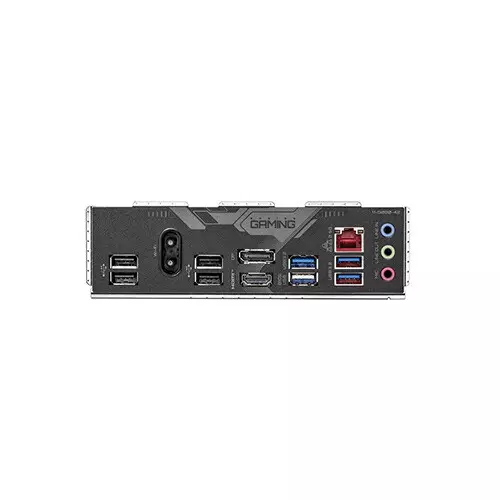

3 x USB 3.2 Gen 1 ports

5 x USB 2.0/1.1 ports

2 x antenna connectors (2T2R)

1 x HDMI port (Note)

1 x DisplayPort (Note)

1 x RJ-45 port

3 x audio jacks

Chipset:

- 1 x USB Type-C port with
USB 3.2 Gen 2 support, available
through the internal USB header

- 5 x USB 3.2 Gen 1 ports
(3 ports on the back panel,
2 ports available through the
internal USB header)

- 1 x USB 2.0/1.1 port on the back panel

Chipset+2 USB 2.0 Hubs:

- 8 x USB 2.0/1.1 ports
(4 ports on the back panel,
4 ports available through the
internal USB headers)

Norton Internet Security (OEM version)

LAN bandwidth management software

Support for Windows 11 64-bit

Support for Windows 10 64-bit

iTE I/O Controller Chip

Voltage detection

Temperature detection

Fan speed detection

Water cooling flow rate detection

Fan fail warning

Fan speed control

Micro ATX Form Factor;
24.4cm x 24.4cm

3 years
