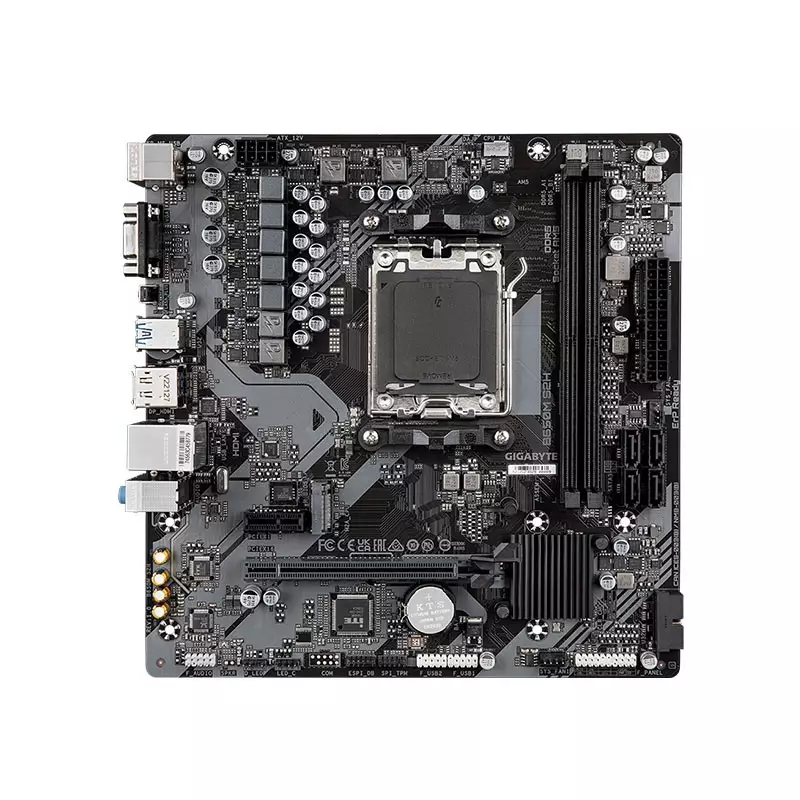

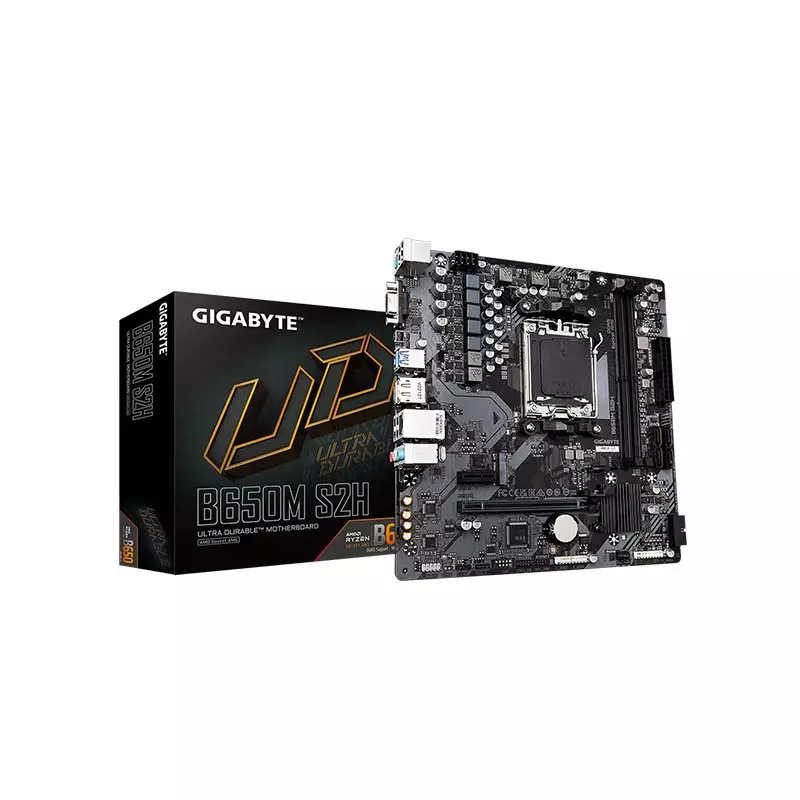

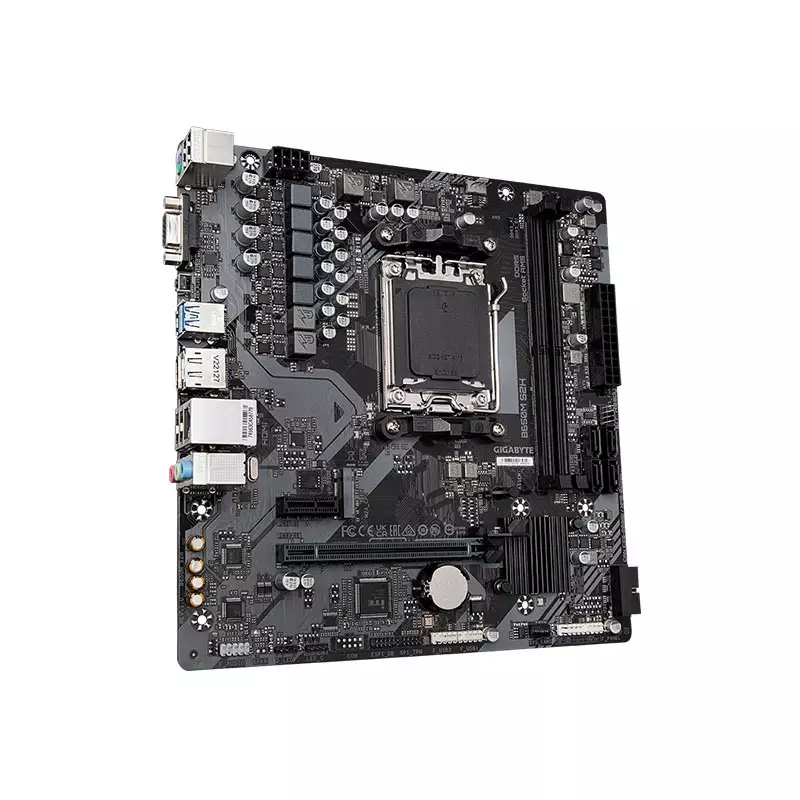

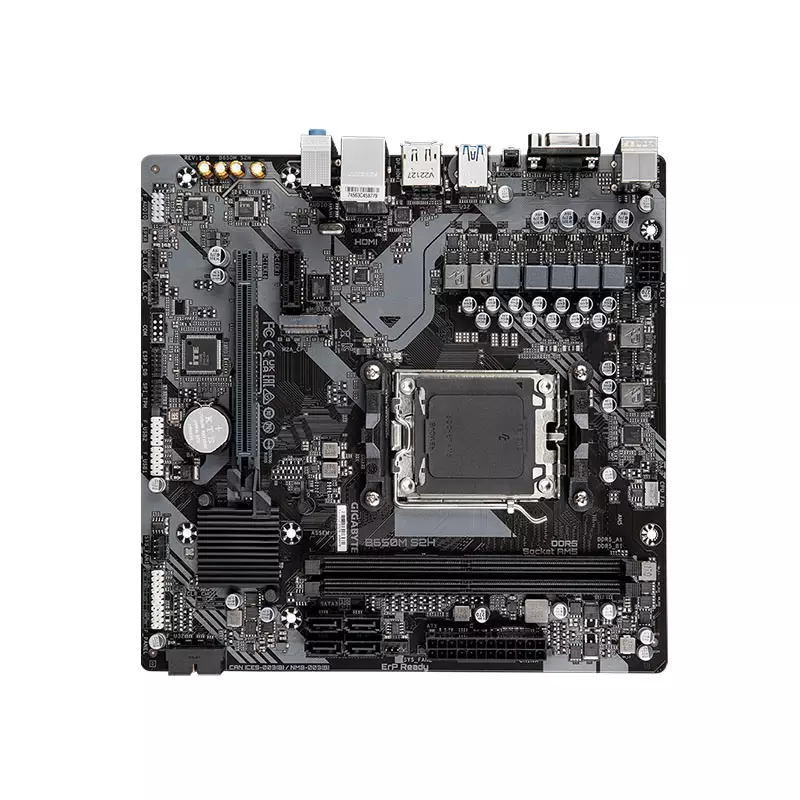

GIGABYTE B650M S2H AMD AM5 DDR5 MICRO ATX MOTHERBOARD
- Chipset: AMD B650
- Memory: 2 x DDR5 DIMM sockets
- CPU: AMD Socket AM5
- BIOS: 1 x 256 Mbit flash
Product Pricing
EMI Start From*
PRODUCT SPECIFICATIONS
Processor
AMD Ryzen 7000 Series Processors
Mainboard
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Memory
2 x DDR5 DIMM sockets supporting up to 96 GB (48 GB single DIMM capacity) of system memory
Dual channel memory architecture
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and
Extreme Memory Profile (XMP) memory modules
Storage
- 1 x M.2 connector (Socket 3, M key, type 2580 PCIe 4.0 x4/x2 SSD support)
Chipset:
- 4 x SATA 6Gb/s connectors
RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Graphics
- 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
- 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
* Support for DisplayPort 1.4 version.
- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support for native HDMI 2.1 TMDS compatible ports.
Networking & Connectivity
Audio & Microphone
High Definition Audio
2/4/5.1/7.1-channel
Ports
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16
Chipset:
- 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only)
1 x Clear CMOS jumper
iTE® I/O Controller Chip

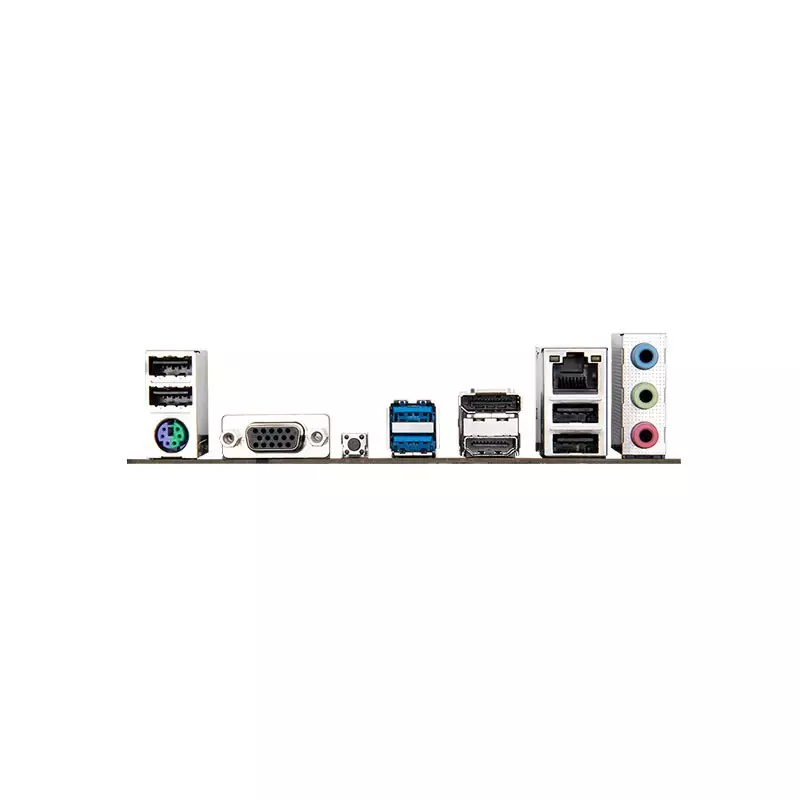

1 x PS/2 keyboard/mouse port
1 x D-Sub port
1 x Q-Flash Plus button
2 x USB 3.2 Gen 1 ports
1 x DisplayPort
1 x HDMI port
1 x RJ-45 port
3 x audio jacks
- 2 x USB 3.2 Gen 1 ports on the back panel
- 1 x USB 2.0/1.1 port on the back panel
Chipset:
- 2 x USB 3.2 Gen 1 ports available through the internal USB header
- 7 x USB 2.0/1.1 ports (3 ports on the back panel, 4 ports available through the internal USB headers)
Software
LAN bandwidth management software
Support for Windows 11 64-bit
Support for Windows 10 64-bit
Special Features
Support for Q-Flash
Support for Q-Flash Plus
Others
Voltage detection
Temperature detection
Fan speed detection
Water cooling flow rate detection
Fan fail warning
Fan speed control
Physical Specification
Warranty Information
PRODUCT DESCRIPTION
GIGABYTE B650M S2H AMD AM5 DDR5 MICRO ATX MOTHERBOARD
Introducing the GIGABYTE B650M S2H AMD AM5 DDR5 Micro ATX Motherboard, a powerhouse designed to elevate your computing experience. This motherboard supports AMD Socket AM5 and the AMD Ryzen™ 7000 Series Processors, offering stellar performance for a wide range of tasks. Its AMD B650 chipset ensures seamless operation. Equipped with two DDR5 DIMM sockets, this motherboard can accommodate up to 96GB of DDR5 memory, providing speed and efficiency to your system. The integrated graphics processor offers multiple display options, including D-Sub, DisplayPort, and HDMI ports, allowing support for up to three displays simultaneously. High-definition audio is delivered through the Realtek Audio CODEC, configurable to your audio preferences. The Realtek GbE LAN chip ensures a stable and swift network connection. In terms of expansion slots, it features a PCIe 4.0 x16 slot for high-speed graphics cards. Storage options include M.2 and SATA connectors, supporting RAID setups. Connectivity is seamless with USB 3.2 Gen 1 and USB 2.0 ports, and the motherboard also boasts GIGABYTE's Control Center (GCC) support. Backed by a 3-year warranty, this Micro ATX form factor motherboard, measuring 23.0cm x 22.5cm, is an excellent choice for a reliable and high-performance computing solution, compatible with Windows 10 and Windows 11. Bangladesh's top retailer of computer hardware and applications is Techland BD. A hallmark of Techland BD is its top-notch client support. They have a helpful and knowledgeable crew that is always willing to help customers. The large selection of Gigabyte Motherboard available at Techland BD is well recognized. The large selection of Motherboard available at Techland BD is well recognized.
