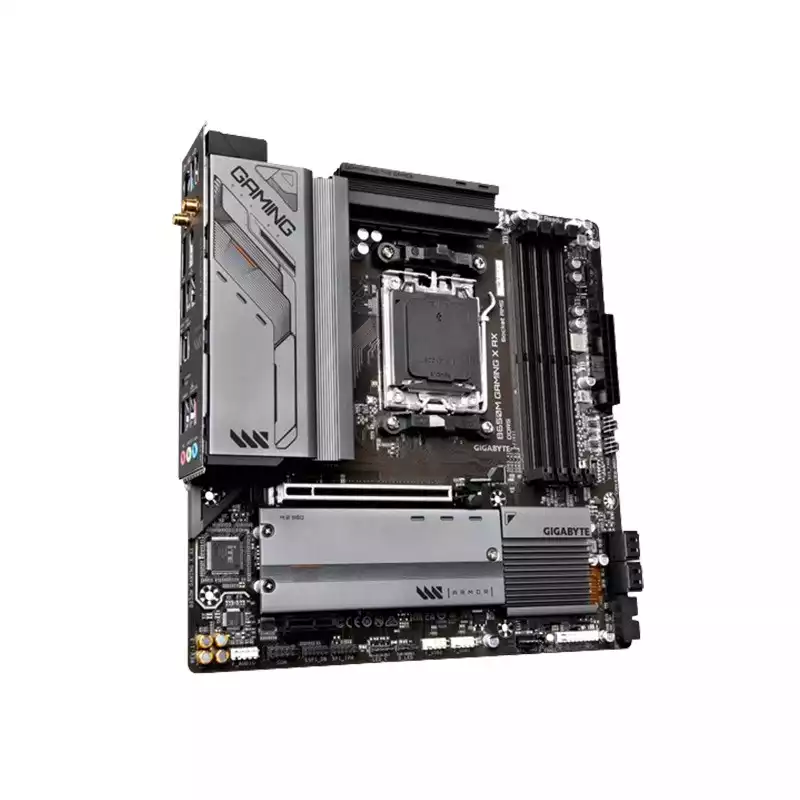

Gigabyte B650M Gaming X AX DDR5 M-ATX AMD Motherboard
Gigabyte B650M Gaming X AX DDR5 M-ATX AMD Motherboard
Gigabyte B650M Gaming X AX DDR5 M-ATX AMD Motherboard - 1
Gigabyte B650M Gaming X AX DDR5 M-ATX AMD Motherboard - 2

Gigabyte B650M Gaming X AX DDR5 M-ATX AMD Motherboard

1 Reviews
Stock : In Stock
PID : P0392506362
Brand : Gigabyte
Model : B650M
Warranty : 3 years
  • CPU - AMD Socket AM5
  • Chipset - AMD B650
  • Form Factor - Micro ATX Form Factor
  • LAN - Realtek 2.5GbE
🎮 FREE LOGITECH F310 WITH PC BUILD

Product Pricing

Discount Price

৳25,200 ৳30,500
+ Available Payment Method

EMI Start From*

৳887

SPECIFICATIONS

Processor

CPU AMD Socket AM5, support for:

AMD Ryzen 7000 / Ryzen 8000 Series Processors

(Go to GIGABYTE's website for the latest CPU support list.)

Mainboard

Chipset AMD B650
BIOS 1 x 256 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Memory

Memory
Support for DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/
5600(OC)/ 5200/ 4800 MT/s memory modules

4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory

Dual channel memory architecture

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme

Memory Profile (XMP) memory module

(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules,
please refer to "Memory Support List" on GIGABYTE's website for more information.)

Graphics

Graphics Integrated Graphics Processor with AMD Radeon Graphics support:

- 2 x DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz

* Support for DisplayPort 1.4 version





- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

* Support for HDMI 2.1 version and HDCP 2.3.

** Support for native HDMI 2.1 TMDS compatible ports





(Graphics specifications may vary depending on CPU support.)

Support for up to 3 displays at the same time

Networking & Connectivity

Wireless Connectivity Realtek Wi-Fi 6E RTL8852CE

- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands

- BLUETOOTH 5.3

- Support for 11ax 160MHz wireless standard

(Actual data rate may vary depending on environment and equipment.)
LAN Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Audio & Microphone

Audio Realtek Audio CODEC

High Definition Audio

2/4/5.1/7.1-channel

* You can change the functionality of an audio jack using the audio software.

To configure 7.1-channel audio, access the audio software for audio settings.

Ports

Connector Back Panel Connectors

4 x USB 2.0/1.1 ports

1 x PS/2 keyboard/mouse port

2 x SMA antenna connectors (2T2R)

2 x DisplayPorts

1 x HDMI port

1 x USB 3.2 Gen 2 Type-A port (red)

1 x USB Type-C port, with USB 3.2 Gen 2 support

1 x Q-Flash Plus button

1 x RJ-45 port

2 x USB 3.2 Gen 1 ports

3 x audio jacks
Interface Interface

1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/2580 SSDs:

- AMD Ryzen 7000 Series Processors support PCIe 4.0 x4/x2 SSDs

- AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs

- AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs

1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/2580 SSDs:

- AMD Ryzen 7000 Series Processors support PCIe 4.0 x4/x2 SSDs

- AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs

- AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs

4 x SATA 6Gb/s connectors

RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices

RAID 0, RAID 1, and RAID 10 support for SATA storage devices
Internal I/O Ports 1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

3 x system fan headers

1 x addressable LED strip header (D_LED1)

1 x addressable LED strip header (D_LED2)

1 x RGB LED strip header

2 x M.2 Socket 3 connectors

4 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x USB Type-C header, with USB 3.2 Gen 2 support

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only)

1 x serial port header

1 x reset button

1 x reset jumper

1 x Clear CMOS jumper
USB CPU:

- 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support

- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel



CPU + USB 2.0 Hub:

- 4 x USB 2.0/1.1 ports on the back pane



Chipset:

- 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header

- 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

- 4 x USB 2.0/1.1 ports available through the internal USB headers

Software

Bundled Software Norton Internet Security (OEM version)

LAN bandwidth management software
Operating System Support for Windows 11 64-bit

Support for Windows 10 64-bit

Special Features

Features Support for GIGABYTE Control Center (GCC)

* Available applications in GCC may vary by motherboard model.

Supported functions of each application may also vary depending on motherboard specifications.





Support for Q-Flash

Support for Q-Flash Plus

Others

Controller iTE I/O Controller Chip
Other Features H/W Monitoring

Voltage detection

Temperature detection

Fan speed detection

Fan fail warning

Fan speed control

* Whether the fan speed control function is supported will depend on the fan you install.

Physical Specification

Expansion Slots 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:

- AMD Ryzen 7000 Series Processors support PCIe 4.0 x16 mode

- AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode

- AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode

* The PCIEX16 slot can only support a graphics card or an NVMe SSD.



Chipset:

- 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)
Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm

Warranty Information

Warranty 3 Years

DESCRIPTION

Gigabyte B650M Gaming X AX DDR5 M-ATX AMD Motherboard in Bangladesh

The Gigabyte B650M Gaming X AX DDR5 M-ATX AMD Motherboard, a powerhouse of performance and versatility now available at TechLand BD. Engineered by Gigabyte, this motherboard supports AMD Socket AM5, accommodating the latest AMD Ryzen 7000 and Ryzen 8000 Series Processors, ensuring top-tier performance for gaming and productivity tasks alike. With a robust AMD B650 chipset and support for DDR5 memory modules up to 192 GB, this motherboard delivers exceptional speed and efficiency. Featuring integrated graphics with AMD Radeon Graphics support, offering stunning visuals with up to 3 displays simultaneously. Expand your storage options with multiple M.2 and SATA connectors, while USB connectivity ensures seamless peripheral integration. With its Micro ATX form factor and unique features like GIGABYTE Control Center (GCC) and Q-Flash support, this motherboard provides an ideal foundation for your next PC build. Elevate your gaming experience with the Gigabyte B650M GAMING X AX DDR5 motherboard, available now at TechLand BD.
