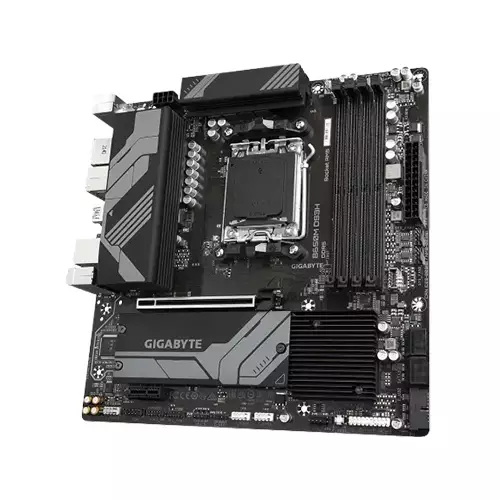

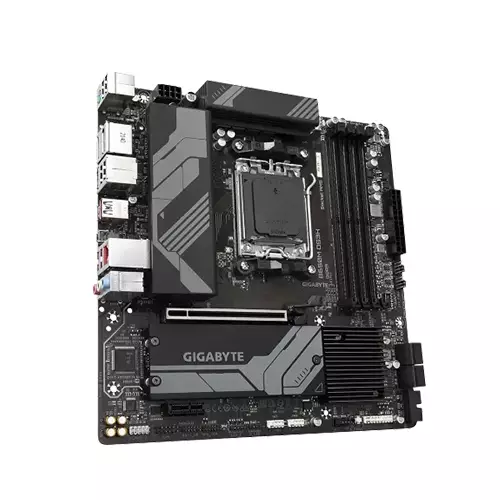

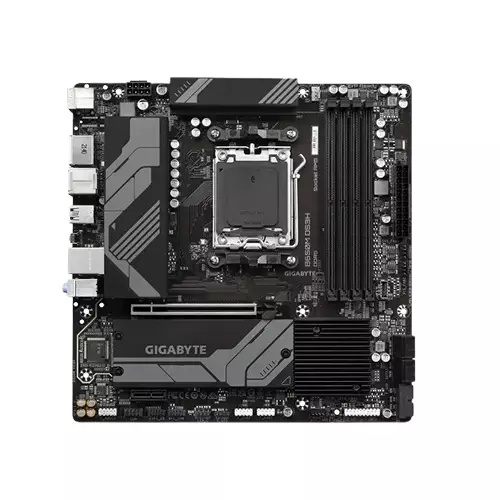

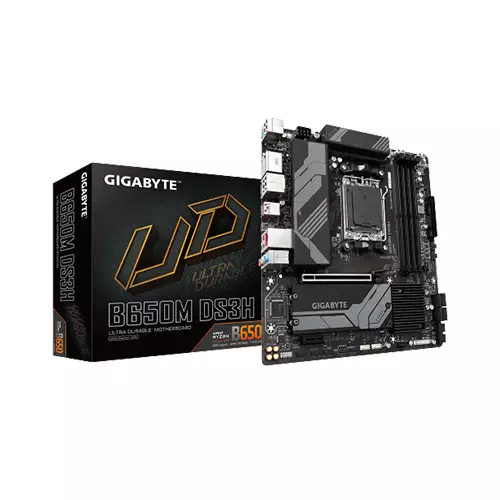

GIGABYTE B650M DS3H ULTRA DDR5 AMD AM5 MICRO-ATX MOTHERBOARD
GIGABYTE B650M DS3H ULTRA DDR5 AMD AM5 MICRO-ATX MOTHERBOARD
GIGABYTE B650M DS3H ULTRA DDR5 AMD AM5 MICRO-ATX MOTHERBOARD - 1
GIGABYTE B650M DS3H ULTRA DDR5 AMD AM5 MICRO-ATX MOTHERBOARD - 2
GIGABYTE B650M DS3H ULTRA DDR5 AMD AM5 MICRO-ATX MOTHERBOARD - 3

GIGABYTE B650M DS3H ULTRA DDR5 AMD AM5 MICRO-ATX MOTHERBOARD

1 Reviews
Stock : In Stock
PID : P0392506270
Brand : Gigabyte
Model : B650M DS3H
Warranty : 3 Years
  • Supported CPU: Ryzen 7000 Series Processors for Socket AM5
  • Supported RAM: 4x DDR5, up to 128GB, 6400(OC)
  • Graphics Output: 2x Display Port, 1 x HDMI
  • Features: 2.5GbE LAN
🎮 FREE LOGITECH F310 WITH PC BUILD

Product Pricing

Discount Price

৳21,000 ৳22,900
+ Available Payment Method

EMI Start From*

৳739

SPECIFICATIONS

Processor

Supported CPU AMD Socket AM5, support for: AMD Ryzen 7000 Series Processors

Mainboard

Chipset AMD B650
BIOS 1 x 256 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Memory

Memory Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / MT/s memory modules

Dual channel memory architecture

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules

Storage

Supported Storage CPU:

2 x M.2 connectors (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support)

Chipset:

4 x SATA 6Gb/s connectors

Graphics

Graphics ntegrated Graphics Processor:

2 x DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz

* Support for DisplayPort 1.4 version and HDR.

1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

* Support for HDMI 2.1 version and HDCP 2.3.

** Support native HDMI 2.1 TMDS compatible ports.

Support for up to 3 displays at the same time

Networking & Connectivity

LAN Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Audio & Microphone

Audio Realtek® Audio CODEC

High Definition Audio

2/4/5.1/7.1-channel

You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

Ports

Slots 4 DIMMs
Internal I/O Ports 1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

3 x system fan headers

1 x addressable LED strip header

1 x RGB LED strip header

2 x M.2 Socket 3 connectors

4 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x USB Type-C header, with USB 3.2 Gen 2 support

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

1 x serial port header

1 x reset button

1 x reset jumper

1 x Clear CMOS jumper
External I/O Ports 4 x USB 2.0/1.1 ports

1 x PS/2 keyboard/mouse port

2 x DisplayPorts

1 x HDMI port

1 x USB 3.2 Gen 2 Type-A port (red)

1 x USB Type-C® port, with USB 3.2 Gen 2 support

1 x Q-Flash Plus button

1 x RJ-45 port

2 x USB 3.2 Gen 1 ports

3 x audio jacks
USB CPU:.

1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support.

1 x USB 3.2 Gen 2 Type-A port (red) on the back panel.

CPU + USB 2.0 Hub:.

4 x USB 2.0/1.1 ports on the back panel.

Chipset:.
.

1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header.

4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB .
header).
.

4 x USB 2.0/1.1 ports available through the internal USB headers
HDMI 1x HDMI

Special Features

Special Features Support for GIGABYTE Control Center (GCC)

* Available applications in GCC may vary by motherboard model. Supported functions of each
application may also vary depending on motherboard specifications.

Support for Q-Flash

Support for Q-Flash Plus

Physical Specification

Form Factor Micro ATX

Warranty Information

Warranty 3 Years

DESCRIPTION

BEST GIGABYTE B650M DS3H DDR5 AMD AM5 MICRO-ATX MOTHERBOARD BD

The GIGABYTE B650M DS3H Motherboard upholds AMD Ryzen 7000-series processors for attachment AM5. It prepares the best VRM configuration at any point worked with the greatest parts and accompanies direct 6+2+1 Stages Computerized VRM Arrangement. It offers progressed warm heatsinks to work on warm proficiency with better wind stream and intensity trade. It accompanies 2x PCIe 4.0 x4 M.2 Connectors. The M.2 Warm Watchman keeps choking and bottlenecks from high velocity M.2 SSDs as it assists with scattering heat before it turns into an issue. This motherboard highlights 2X copper PCBs configuration actually bringing down the part temperature through its high warm conductivity and low impedance. The Brilliant Fan 6 contains a few one of a kind cooling highlights that guarantee the gaming PC keeps up with its presentation while remaining cool and calm. Each fan headers support PWM and DC fan and Water Cooling Siphon, and up to 24W (12V x 2A) with Over-Momentum Assurance. The GIGABYTE B650M DS3H accompanies 2.5G LAN which gives up to 2.5 GbE network availability, with no less than twice quicker move speeds contrasted with general 1GbE systems administration. It additionally upholds Multi-Gig(10/100/1000/2500Mbps) RJ-45 Ethernet. The USB 3.2 Gen 2 ports give speeds up to 10Gbps.

REVIEWS

Login to write a review.

Overall Rating

5 out of 5 stars
1
Total Reviews
5 star
1
4 star
0
3 star
0
2 star
0
1 star
0
Layla

I really like the DDR5 support on this AMD AM5 Micro-ATX motherboard. It gives my build a modern platform with good upgrade potential. Techland BD provided excellent service.

09 June, 2026

What is the GIGABYTE B650M DS3H ULTRA DDR5 AMD AM5 MICRO-ATX MOTHERBOARD Price in Bangladesh 2026 ?

The Gigabyte B650M DS3H Price in BD is 21,000৳ . This GIGABYTE B650M DS3H ULTRA DDR5 AMD AM5 MICRO-ATX MOTHERBOARD Manufacturing by Gigabyte Comes With 3 Years Warranty & Based on 0 reviews. Tech Land BD Offers you Gigabyte B650M DS3H by 21,000৳ and its regular price is 22,900৳ Which is also In Stock Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
