Gigabyte B550M S2H AM4 AMD Micro ATX Motherboard
Gigabyte B550M S2H AM4 AMD Micro ATX Motherboard
Gigabyte B550M S2H AM4 AMD Micro ATX Motherboard - 0
Gigabyte B550M S2H AM4 AMD Micro ATX Motherboard - 0
Gigabyte B550M S2H AM4 AMD Micro ATX Motherboard - 0

Gigabyte B550M S2H AM4 AMD Micro ATX Motherboard

0 Reviews
Stock : Out of Stock
PID : P0392506080
Brand : Gigabyte
Model : B550M S2H
Warranty : 3 years
  • Chipset: AMD B550
  • Realtek LAN
  • NVMe PCIe 4.0/3.0 M.2 Connector
  • PCIe 4.0 Bandwidth

Product Pricing

Discount Price

৳10,000 ৳10,500
+ Available Payment Method

EMI Start From*

৳352

SPECIFICATIONS

Processor

Supported CPU AMD Socket AM4, support for: AMD Ryzen 5000 Series/ 3rd Gen Ryzen and 3rd Gen Ryzen with Radeon Graphics Processors

Mainboard

Chipset AMD B550
BIOS 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Memory

Memory 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
AMD Ryzen 5000 series processors:
Support for DDR4 4266(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
3rd Gen AMD Ryzen Processors:
Support for DDR4 5100(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules
3rd Gen AMD Ryzen with Radeon Graphics processors:
Support for DDR4 5100(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules
Dual-channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules

Storage

Supported Storage M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280 SSDs:
3rd Generation AMD Ryzen processors support SATA and PCIe 4.0 x4/x2 SSDs
3rd Generation AMD Ryzen with Radeon Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs
4 x SATA 6Gb/s connectors, integrated in the Chipset:
Support for RAID 0, RAID 1, and RAID 10

Graphics

Graphics Integrated in the 3rd Generation AMD Ryzen with Radeon Graphics processors:
1 x D-Sub port, supporting a maximum resolution of 1920x1200 60 Hz
1 x DVI-D port, supporting a maximum resolution of 1920x1200 60 Hz
* The DVI-D port does not support D-Sub connection by adapter.
1 x HDMI port, supporting a maximum resolution of 4096x2160 60 Hz

Networking & Connectivity

LAN Realtek GbE LAN chip (1000 Mbit/100 Mbit)

Audio & Microphone

Audio Realtek ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel

Ports

Slots 2 x DDR4 DIMM
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x speaker header
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1 x serial port header
1 x chassis intrusion header
1 x Clear CMOS jumper

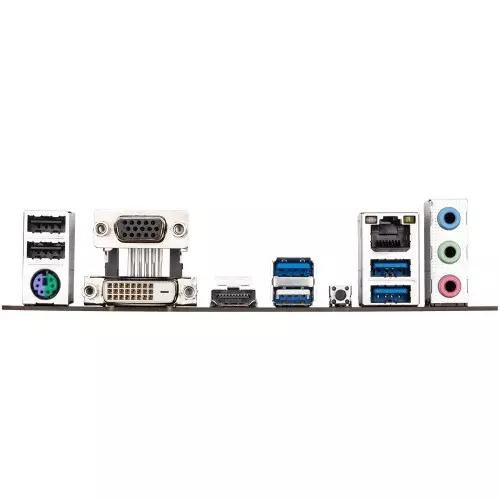

External I/O Ports PS/2 keyboard/mouse port
1 x D-Sub port
1 x DVI-D port
1 x HDMI port
4 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
USB Integrated in the CPU:
4 x USB 3.2 Gen 1 ports on the back panel
Chipset:
2 x USB 3.2 Gen 1 ports available through the internal USB headers
4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB headers)
HDMI HDMI port, supporting a maximum resolution of 4096x2160 60 Hz

Others

Other Features Support for APP Center
BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
Support for Q-Flash Plus
Support for Q-Flash
Support for Xpress Install

Physical Specification

Form Factor Micro ATX Form Factor
Dimension 24.4cm x 20.5cm

Warranty Information

Warranty 03 years

DESCRIPTION

Gigabyte B550M S2H Motherboard

The Gigabyte B550M S2H  AM4 Micro-ATX Motherboard is designed around the AMD B550 chipset, supporting 3rd Gen AMD Ryzen processors with an AM4 socket. It has two memory slots, supporting up to 64GB of dual-channel RAM, which can run at up to 5100 MHz (O.C.). This motherboard features a micro-ATX form factor, which fits in smaller tower cases. Other integrated features include Realtek Gigabit Ethernet, Realtek 7.1-channel audio support, Smart Fan 5, RGB Fusion 2.0 support, and Gigabyte Q-Flash Plus.
PCIe 4.0 Bandwidth
This motherboard pairs third-generation AMD Ryzen processors with high PCIe 4.0 memory bandwidth through the B550 chipset for maximum performance.
NVMe PCIe 4.0/3.0 M.2 Connector
With NVMe PCIe 4.0/3.0 x4 and PCIe 3.0 x4 M.2 connectors, this motherboard allows you to experience NVMe mode or SATA mode connectivity, delivering up to 64 Gb/s data transfer speed.
Realtek LAN
Realtek LAN provides high performance for gamers and features automatic bandwidth allocation to ensure the highest network priority.
