Gigabyte B550M K WIFI6E AM4 WiFi 6E Motherboard
- AMD B550 Chipset
- AM4 Socket Support
- Wi-Fi 6E & Bluetooth 5.3
- 4× DDR4 DIMM Slots
Product Pricing
EMI Start From*
SPECIFICATIONS
Processor
AMD Socket AM4, support for AMD Ryzen™ 5000 Series / 5000 G-Series / 4000 G-Series / 3000 Series / 3000 G-Series Processors
AMD B550
Mainboard
1 x 128 Mbit flash, Use of licensed AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Memory
4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity), Dual Channel Architecture, Support for up to DDR4 4733(O.C.) MHz, ECC/Non-ECC Un-buffered, XMP Support
Storage
Supports RAID 0, RAID 1, and RAID 10
1 x M.2 (CPU) supporting PCIe 4.0/3.0 x4/x2 or SATA, 1 x M.2 (Chipset) supporting PCIe 3.0 x2, 4 x SATA 6Gb/s
Graphics
Integrated AMD Radeon Graphics (CPU dependent), 1 x DisplayPort (5120x2880@60Hz), 1 x HDMI (4096x2160@60Hz), Maximum Shared Memory of 16 GB
Networking & Connectivity
Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
MediaTek Wi-Fi 6E MT7902 (802.11a/b/g/n/ac/ax, 2.4/5/6 GHz bands)
Bluetooth 5.3
Audio & Microphone
2/4/5.1/7.1-channel audio
High Definition Audio
Realtek Audio CODEC
Ports
1 x PCIe 4.0/3.0 x16 slot, 1 x PCIe 3.0 x1 slot
1 x 24-pin ATX, 1 x 8-pin ATX 12V, 1 x CPU fan, 1 x System fan, 2 x M.2, 4 x SATA 6Gb/s, 1 x Front panel, 1 x Front panel audio, 1 x USB 3.2 Gen 1, 1 x USB 2.0/1.1, 1 x TPM header, 1 x Clear CMOS jumper

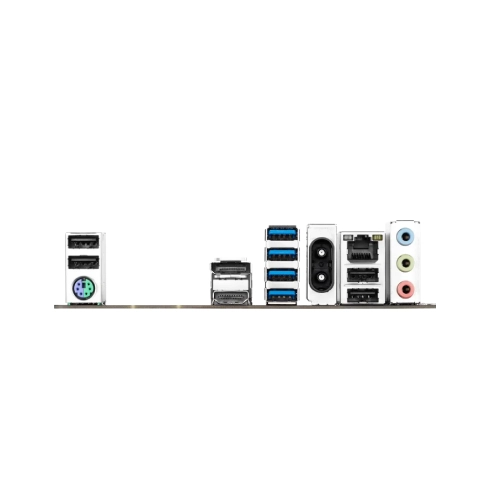

1 x PS/2 keyboard/mouse port, 1 x DisplayPort, 1 x HDMI, 4 x USB 3.2 Gen 1, 4 x USB 2.0/1.1, 1 x RJ-45 LAN, 2 x Antenna connectors (WIFI EZ-Plug), 3 x Audio jacks
Rear: 4 x USB 3.2 Gen 1, 4 x USB 2.0/1.1; Internal: 2 x USB 3.2 Gen 1 (via header), 2 x USB 2.0/1.1 (via header)
1 x HDMI 2.1 (supports 4096x2160@60 Hz)
Software
Norton Internet Security (OEM version), LAN bandwidth management software
Windows 11 64-bit, Windows 10 64-bit
APP Center Support, @BIOS, EasyTune, Smart Backup, System Information Viewer, Q-Flash Support
Special Features
No
Others
Hardware Monitoring (Voltage, Temperature, Fan speed, Fan fail warning, Fan speed control)
Physical Specification
Micro-ATX (24.4 cm x 24.4 cm)
1kg
24.4 cm x 24.4 cm
Technical Info
Windows 11 64-bit, Windows 10 64-bit
Warranty Information
3 Years
DESCRIPTION
Gigabyte B550M K WIFI6E AMD B550 Motherboard in Bangladesh

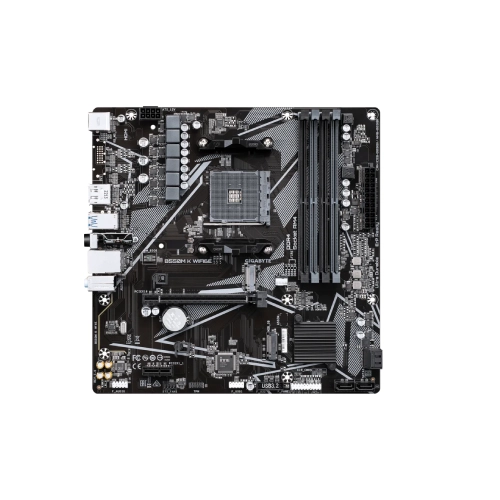

The Gigabyte B550M K WIFI6E is an AMD B550-based Micro-ATX motherboard designed for Ryzen-powered gaming PCs, productivity systems, and compact performance builds. It supports AMD Ryzen 5000, 5000 G-Series, 4000 G-Series, and Ryzen 3000/3000 G-Series processors, giving users a flexible AM4 platform for building or upgrading a desktop PC. For memory, the motherboard features four DDR4 DIMM slots with support for dual-channel ECC and non-ECC unbuffered memory. Its PCIe 4.0 x16 slot provides high-bandwidth connectivity for compatible graphics cards, while the two M.2 connectors allow users to install fast NVMe storage. The primary M.2 slot supports PCIe 4.0 x4, while the secondary slot operates at PCIe 3.0 x2. One of the key highlights is its built-in Wi-Fi 6E connectivity using the MediaTek MT7902 wireless module, supporting the 2.4GHz, 5GHz, and 6GHz bands.
It also includes Bluetooth 5.3 and a Gigabit Ethernet LAN connection for fast and reliable wired networking. The motherboard also features WIFI EZ-Plug, making Wi-Fi antenna installation easier. The Gigabyte B550M K WIFI6E also focuses on cooling and system stability with Digital VRM Solution and Smart Fan 6 with FAN STOP. Multiple temperature sensors and hybrid fan headers help manage system temperatures, while the audio design includes high-quality audio capacitors and an audio noise guard for cleaner sound.
Why Buy Gigabyte B550M K WIFI6E from Tech Land BD?
Buy the Gigabyte B550M K WIFI6E AMD B550 Motherboard from Tech Land BD for a genuine product at a competitive price. Enjoy fast nationwide delivery, secure online shopping, and dependable after-sales support.
FAQ
Which processors are compatible with the Gigabyte B550M K WIFI6E?
It supports AMD Ryzen 5000, 5000 G-Series, 4000 G-Series, and 3000/3000 G-Series processors.
Does the motherboard have built-in Wi-Fi?
Yes. The B550M K WIFI6E features Wi-Fi 6E 802.11ax with support for 2.4GHz, 5GHz, and 6GHz bands.
How many M.2 slots are available?
It has two M.2 connectors. The primary slot supports PCIe 4.0 x4, while the secondary slot supports PCIe 3.0 x2.
