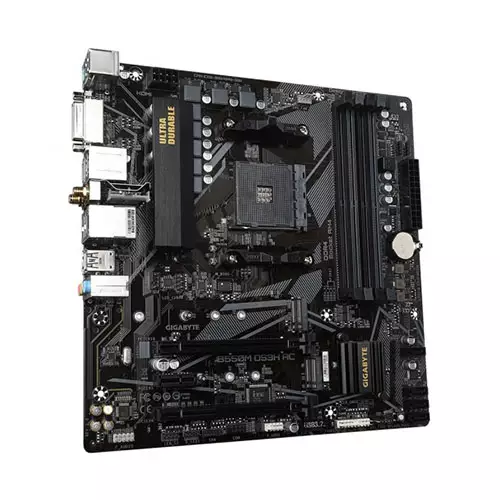

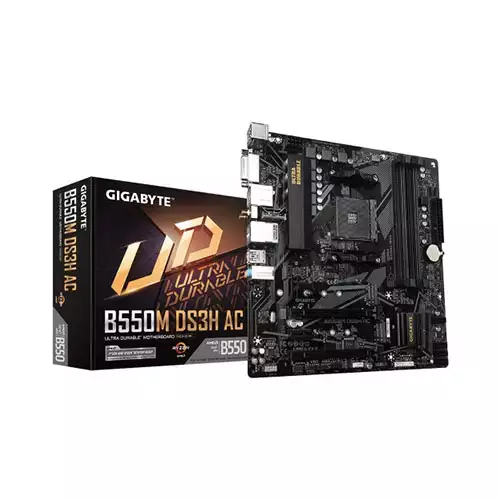

Gigabyte B550M DS3H AC Ultra Durable MATX AMD Motherboard
Gigabyte B550M DS3H AC Ultra Durable MATX AMD Motherboard
Gigabyte B550M DS3H AC Ultra Durable MATX AMD Motherboard - 1
Gigabyte B550M DS3H AC Ultra Durable MATX AMD Motherboard - 2

Gigabyte B550M DS3H AC Ultra Durable MATX AMD Motherboard

0 Reviews
Stock : Out of Stock
PID : P0392506135
Brand : Gigabyte
Model : B550M DS3H AC
Warranty : 3 years
  • Chipset AMD B550
  • 3rd Generation AMD Ryzen processors
  • Realtek ALC887 codec High Definition Audio
  • Realtek GbE LAN chip

Product Pricing

Discount Price

৳13,500 ৳16,500
+ Available Payment Method

EMI Start From*

৳475

SPECIFICATIONS

Processor

Supported CPU AMD Socket AM4, support for 3rd Generation AMD Ryzen processors/ 3rd Generation AMD Ryzen with Radeon™ Graphics processors
Supporting SATA and PCIe 3.0 x2 SSDs

Mainboard

Chipset AMD B550
BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Memory

Memory Type Dual Channel DDR4 Memory Technology
Slots 4 x DIMM
Supported Memory AMD Ryzen™ 5000 series processors:
Support for DDR4 4266(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
3rd Gen AMD Ryzen™ Processors:
Support for DDR4 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/ 2933/ 2667/ 2400/ 2133 MHz memory modules
3rd Gen AMD Ryzen with Radeon Graphics processors:
Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/ 2933/ 2667/ 2400/ 2133 MHz memory modules
Support for ECC Un-buffered DIMM 1Rx8/ 2Rx8 memory modules
Support for non-ECC Un-buffered DIMM 1Rx8/ 2Rx8/ 1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Maximum Mamory 128 GB

Storage

Supported Storage 1‎ x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
3rd Generation AMD Ryzen processors support SATA and PCIe 4.0 x4/x2 SSDs
3rd Generation AMD Ryzen with Radeon Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs
1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280 SSDs:
Supporting SATA and PCIe 3.0 x2 SSDs
4 x SATA 6Gb/s connectors, integrated in the Chipset:
Support for RAID 0, RAID 1, and RAID 10

Graphics

Graphics Graphics Integrated in the 3rd Generation AMD Ryzen with Radeon Graphics processors:
1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
The DVI-D port does not support D-Sub connection by adapter.
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Support for HDMI 2.1 version, HDCP 2.3, and HDR.
Max Shared Memory 16 GB

Networking & Connectivity

LAN Realtek GbE LAN chip (1000 Mbit/100 Mbit)
Wireless Communication module:
Intel Wi-Fi AC 3168
WIFI 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
BLUETOOTH 4.2
Support for 11ac wireless standard and up to 433 Mbps data rate

Audio & Microphone

Audio Realtek ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel

Ports

Slots PCI 1‎ x PCI Express x16 slot (PCIEX16), integrated in the CPU:
3rd Generation AMD Ryzen processors support PCIe 4.0 x16 mode
3rd Generation AMD Ryzen with Radeon Graphics processors support PCIe 3.0 x16 mode
1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset:
Supporting PCIe 3.0 x4 mode
1 x PCI Express x1 slot (PCIEX1), integrated in the Chipset:
Supporting PCIe 3.0 x1 mode
M.2 Socket 1‎ x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
2 x addressable LED strip headers
2 x RGB LED strip headers
1 x CPU cooler LED strip/RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1 x serial port header
1 x Clear CMOS jumper
1 x Q-Flash Plus button

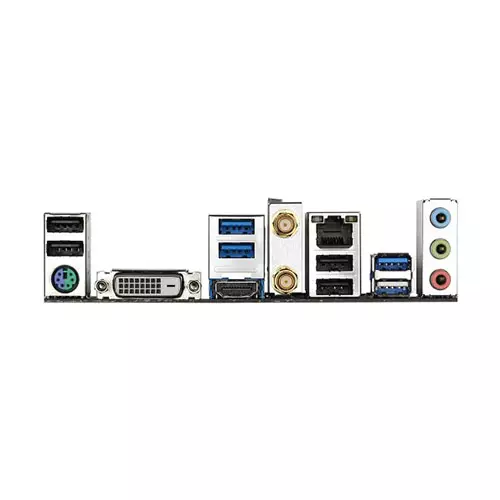

External I/O Ports 1 x PS/2 keyboard/mouse port
1 x DVI-D port
2 x SMA antenna connectors (1T1R)
1 x HDMI port
4 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
USB CPU:
4 x USB 3.2 Gen 1 ports on the back panel
Chipset:
2 x USB 3.2 Gen 1 ports available through the internal USB header
6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

Physical Specification

Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm

Warranty Information

Warranty 03 Years

DESCRIPTION

Gigabyte B550M DS3H AC Motherboard

Features:
  • Supports AMD Ryzen™ 5000 Series/ 3rd Gen Ryzen™ and 3rd Gen Ryzen™ with Radeon™ Graphics Processors
  • Dual Channel ECC/ Non-ECC Unbuffered DDR4, 4 DIMMs
  • 5+3 Phases Pure Digital VRM Solution with Low RDS(on) MOSFETs
  • Ultra Durable™ PCIe 4.0 Ready x16 Slot
  • Dual Ultra-Fast NVMe PCIe 4.0/3.0 M.2 Connectors
  • Onboard Intel® Dual Band 802.11ac Wireless & BT 4.2 with WIFI Antenna
  • High Quality Audio Capacitors and Audio Noise Guard for Ultimate Audio Quality
  • GIGABYTE Exclusive 8118 Gaming GbE LAN with Bandwidth Management
  • Rear HDMI & DVI Support
  • RGB FUSION 2.0 Supports Addressable LED & RGB LED Strips
  • Smart Fan 5 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
  • Anti-Sulfur Resistors Design
**03 Years Warranty.

AMD StoreMI Technology

GIGABYTE B550 motherboards maximize your PC's potential with AMD StoreMI technology. StoreMI accelerates traditional storage devices to reduce boot times and enhance the overall user experience. This easy-to-use utility combines the speed of SSDs with the high capacity of HDDs into a single drive, enhances the read/write speeds of the device to match that of SSDs, bolsters data performance for incredible value, and transforms the everyday PC to a performance driven system.

PERFORMANCE

GIGABYTE UD series motherboards use a 5+3 phases pure digital PWM + Low RDS(on) MOSFETs design to support the 3rd Gen AMD Ryzen™ CPUs by offering incredible precision in delivering power to the motherboard's most power-hungry and energy-sensitive components as well as delivering enhanced system performance and ultimate hardware scalability.

CONNECTIVITY

Faster and Better Coverage with Intel Dual Band 802.11ac WIFI + BT 4.2 Module, The onboard 802.11ac WIFI module from Intel® supports Dual Band and up to 433 Mbps, 3x faster WIFI speed than 802.11n and also support BLUETOOTH 4.2.

Dual NVMe PCIe 4.0*/3.0 M.2 Connectors

With NVMe PCIe 4.0*/3.0 x4 and PCIe 3.0 x2 M.2 connectors onboard, GIGABYTE Motherboards bring users to experience NVMe mode or SATA mode connectivity for M.2 SSD devices. Delivering up to 64 Gb/s data transfer speed, the dual M.2 connectors design provides an ideal storage solution while also supporting in RAID modes.

Exclusive Realtek 8118 Gaming LAN

High Speed Gigabit LAN with Automatic Bandwidth Allocation, Realtek 8118 LAN is a high performance and friendly network chip for gaming players with automatic bandwidth allocation to ensure the highest network priority of the game or application. It can provide users the most comprehensive features and the fastest and smoothest Internet experience.
