Gigabyte B550M Aorus Pro AMD 3rd Gen Micro ATX Motherboard
Gigabyte B550M Aorus Pro AMD 3rd Gen Micro ATX Motherboard
Gigabyte B550M Aorus Pro AMD 3rd Gen Micro ATX Motherboard - 0
Gigabyte B550M Aorus Pro AMD 3rd Gen Micro ATX Motherboard - 0
Gigabyte B550M Aorus Pro AMD 3rd Gen Micro ATX Motherboard - 0

Gigabyte B550M Aorus Pro AMD 3rd Gen Micro ATX Motherboard

0 Reviews
Stock : Out of Stock
PID : P0392506079
Brand : Gigabyte
Model : Aorus B550M Pro
Warranty : 3 years
  • Chipset: AMD B550
  • Supported CPU: AMD Socket AM4
  • Slots: 4 x DDR4 memory slots
  • Audio: Realtek ALC1200

Product Pricing

Discount Price

৳15,500 ৳16,000
+ Available Payment Method

EMI Start From*

৳546

SPECIFICATIONS

Processor

Supported CPU AMD Socket AM4, support for: AMD Ryzen 5000 Series/ 3rd Gen Ryzen and 3rd Gen Ryzen with Radeon Graphics Processors

Mainboard

Chipset AMD B550
BIOS 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Memory

Memory 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
AMD Ryzen 5000 series processors:
Support for DDR4 4266(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
3rd Gen AMD Ryzen Processors:
Support for DDR4 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules
3rd Gen AMD Ryzen with Radeon Graphics processors:
Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules

Storage

Supported Storage M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
3rd Generation AMD Ryzen processors support SATA and PCIe 4.0 x4/x2 SSDs
New Generation AMD Ryzen with Radeon Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs
1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280 SSDs:
Supporting SATA and PCIe 3.0 x4/x2 SSDs
4 x SATA 6Gb/s connectors, integrated in the Chipset:
Support for RAID 0, RAID 1, and RAID 10

Graphics

Graphics Integrated in the New Generation AMD Ryzen with Radeon Graphics processors:
HDMI port, supporting a maximum resolution of 4096x2160 60 Hz
Support for HDMI 2.1 version, HDCP 2.3, and HDR.
DisplayPort, supporting a maximum resolution of 5120x2880 60 Hz
Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.

Networking & Connectivity

LAN Realtek GbE LAN chip (1000 Mbit/100 Mbit)

Audio & Microphone

Audio Realtek ALC1200 codec
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out

Ports

Slots 4 x DDR4 memory slots
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x water cooling CPU fan header
3 x system fan headers
2 x addressable LED strip headers
2 x RGB LED strip headers
1 x CPU cooler LED strip/RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x serial port header
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1 x Clear CMOS jumper
1 x Thunderbolt header

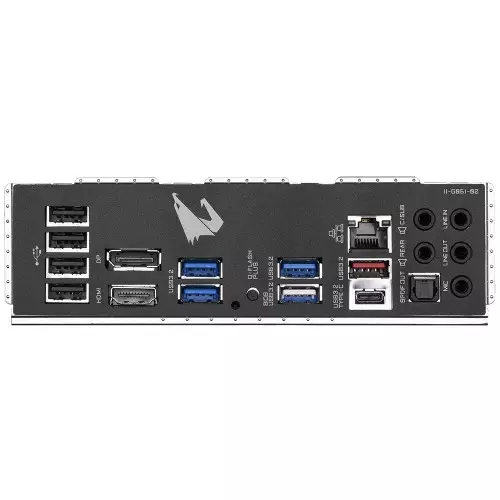

External I/O Ports 4 x USB 2.0/1.1 ports
DisplayPort
HDMI port
USB 3.2 Gen 1 ports
USB 3.2 Gen 2 Type-A port (red)
USB Type-C port, with USB 3.2 Gen 2 support
Q-Flash Plus button
RJ-45 port
optical S/PDIF Out connector
audio jacks
USB CPU:
4 x USB 3.2 Gen 1 ports on the back panel
Chipset:
1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
2 x USB 3.2 Gen 1 ports available through the internal USB header
4 x USB 2.0/1.1 ports available through the internal USB headers
Chipset+1 USB 2.0 Hub:
4 x USB 2.0/1.1 ports on the back panel
HDMI HDMI port, supporting a maximum resolution of 4096x2160

Others

Other Features Support for APP Center
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
Support for Q-Flash Plus
Support for Q-Flash
Support for Xpress Install

Physical Specification

Form Factor Micro ATX Form
Dimension 24.4cm x 24.4cm

Warranty Information

Warranty 03 years

DESCRIPTION

Gigabyte Aorus B550M Pro Motherboard

With an advanced thermal design with a fins-array heatsink and a direct touch Heatpipe, the Gigabyte B550M AORUS PRO AM4 Micro-ATX Motherboard is designed around the AMD B550 chipset, supporting 3rd Gen AMD Ryzen processors with an AM4 socket. It has four memory slots, supporting up to 128GB of dual-channel RAM, which can run at up to 4733 MHz (O.C.). This motherboard features a micro-ATX form factor, which fits in smaller tower cases. Other integrated features include Realtek Gigabit Ethernet, Realtek 7.1-channel audio support, RGB Fusion 2.0 support, and Gigabyte Q-Flash Plus.
PCIe 4.0 Bandwidth
This motherboard pairs third-generation AMD Ryzen processors with high PCIe 4.0 memory bandwidth through the B550 chipset for maximum performance.
Dual NVMe PCIe 4.0/3.0 M.2 Connectors
With NVMe PCIe 4.0/3.0 x4 and PCIe 3.0 x4 M.2 connectors, this motherboard allows you to experience NVMe mode or SATA mode connectivity. Delivering up to 64 Gb/s data transfer speed, the dual M.2 connectors support RAID 0/1/10 modes.
Realtek LAN
Realtek LAN provides high performance for gamers and features automatic bandwidth allocation to ensure highest network priority.
Smart Fan 5
Smart Fan 5 keeps your system cool, allowing you to interchange the fan headers to reflect different thermal sensors at different locations on the motherboard. Smart Fan 5 supports both PWM and Voltage mode fans, making this motherboard more liquid-cooling friendly.
RGB Fusion 2.0
RGB Fusion 2.0 gives you full control of onboard RGB and external RGB devices and lights. Already feature filled with customizable colors and patterns, RGB Fusion 2.0 also has addressable LED support.

[product_table id="34" limit="10" type="filter" filter_category="7271"]

REVIEWS

Login to write a review.

No reviews yet

Be the first to share your thoughts about this product.

What is the Gigabyte B550M Aorus Pro AMD 3rd Gen Micro ATX Motherboard Price in Bangladesh 2026 ?

The Gigabyte Aorus B550M Pro Price in BD is 15,500৳ . This Gigabyte B550M Aorus Pro AMD 3rd Gen Micro ATX Motherboard Manufacturing by Gigabyte Comes With 3 years Warranty & Based on 0 reviews. Tech Land BD Offers you Gigabyte Aorus B550M Pro by 15,500৳ and its regular price is 16,000৳ Which is also Out of Stock Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
