Product Information

Save : ৳ 400
Gigabyte B550 Vision D AMD 3rd Gen Wi-Fi Motherboard
Gigabyte B550 Vision D AMD 3rd Gen Wi-Fi Motherboard Gigabyte B550 Vision D AMD 3rd Gen Wi-Fi Motherboard - 0 Gigabyte B550 Vision D AMD 3rd Gen Wi-Fi Motherboard - 0 Gigabyte B550 Vision D AMD 3rd Gen Wi-Fi Motherboard - 0

Gigabyte B550 Vision D AMD 3rd Gen Wi-Fi Motherboard

Stock : Out of Stock
PID : P0392506077
Brand : Gigabyte
Model : B550 Vision D
★ ★ ★ ★ ★
0 Reviews

Product Pricing

Discount Price

৳ 26,800 ৳ 27,200
Available Payment Method

EMI Start From*

৳ 944
Gigabyte B550 Vision D Motherboard Specification
Performance
  • Supported CPU:
  • AMD Socket AM4, support for: 3rd Generation AMD Ryzen processors/ New Generation AMD Ryzen with Radeon Graphics processors
  • Chipset: AMD B550
  • BIOS:
    1 x 256 Mbit flash
    Use of licensed AMI UEFI BIOS
    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Form Factor: ATX Form Factor; 30.5cm x 24.4cm
PCI
  • 1‎ x PCI Express x16 slot (PCIEX16), integrated into the CPU:
  • 3rd Generation AMD Ryzen processors support PCIe 4.0 x16 mode
  • 3rd Generation AMD Ryzen with Radeon Graphics processors support PCIe 3.0 x16 mode
  • 1 x PCI Express x16 slot (PCIEX8), integrated in the CPU:
  • 3rd Generation AMD Ryzen processors support PCIe 4.0 x8 mode
  • 3rd Generation AMD Ryzen with Radeon Graphics processors support PCIe 3.0 x8 mode
  • 1 x PCI Express x16 slot (PCIEX4), integrated into the Chipset:
  • Supporting PCIe 3.0 x4 mode
M.2 Socket
  • 1‎ x M.2 connector (M2A_CPU), integrated into the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
  • 3rd Generation AMD Ryzen processors support SATA and PCIe 4.0 x4/x2 SSDs
  • 3rd Generation AMD Ryzen with Radeon Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs
  • 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
  • Supporting SATA and PCIe 3.0 x4/x2 SSDs
Memory
  • Type: Dual-Channel Architecture
  • Slots: 4 x DDR4 memory slots
  • Supported Memory:
    3rd Gen AMD Ryzen Processors: Support for DDR4 5200(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules
  • New Generation AMD Ryzen with Radeon Graphics processors: Support for DDR4 5400(O.C.) / 5200(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200 /2933 /2667 /2400 /2133 MHz memory modules
  • Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
  • Support for non-ECC Un-buffered DIMM 1Rx8/ 2Rx8/ 1Rx16 memory modules
  • Support for Extreme Memory Profile (XMP) memory modules
  • Maximum Mamory: support up to 128GB
Graphics
  • Integrated into the 3rd Generation AMD Ryzen with Radeon Graphics processors+Intel Titan Ridge Controller:
  • 2 x USB Type-C ports with Titan Ridge, supporting DisplayPort video outputs and a maximum resolution of 5120x2880@60 Hz with 24 bpp
  • Integrated into the 3rd Generation AMD Ryzen with Radeon Graphics processors:
  • 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
  • Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies
  • Max Shared Memory: 16 GB
Supported Storage
  • 1‎ x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
  • 3rd Generation AMD Ryzen™ processors support SATA and PCIe 4.0 x4/x2 SSDs
  • 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs
  • 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
  • Supporting SATA and PCIe 3.0 x4/x2 SSDs
  • 4 x SATA 6Gb/s connectors, integrated in the Chipset:
  • Support for RAID 0, RAID 1, and RAID 10

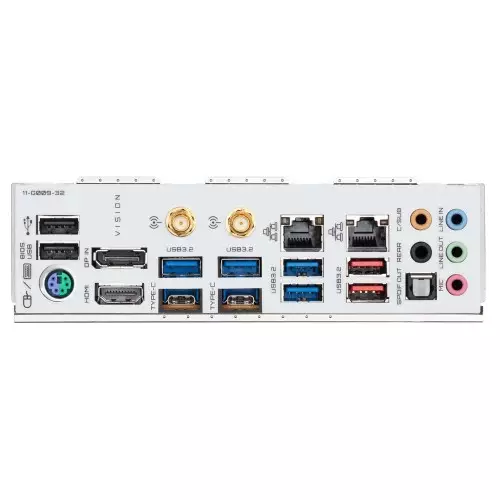

External Port
  • HDMI:
  • 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
  • USB (s):
    Integrated into the CPU:
    4 x USB 3.2 Gen 1 ports on the back panel
  • Chipset+Intel Titan Ridge Controller:
    2 x USB Type-C ports on the back panel, with USB 3.2 Gen 2 support
  • Chipset:
    2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
    2 x USB 3.2 Gen 1 ports available through the internal USB header
    1 x USB 2.0/1.1 port on the back panel
  • Chipset+2 USB 2.0 Hubs:
    5 x USB 2.0/1.1 ports (1 port on the back panel, 4 ports available through the internal USB headers)
  • LAN Port (s):
    2 x Intel GbE LAN chips (1000 Mbit/100 Mbit).
  • Intel Wi-Fi 6 AX200:
    WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-Band
  • BLUETOOTH 5:
    Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Audio
  • Realtek ALC1220-VB codec
  • Support for DTS: X Ultra
  • High Definition Audio
  • 2/4/5.1/7.1-channel
  • Support for S/PDIF Out
Internal I/O Ports
  • 1 x 24-pin ATX main power connector
  • 1 x 8-pin ATX 12V power connector
  • 1 x CPU fan header
  • 1 x water cooling CPU fan header
  • 4 x system fan headers
  • 2 x system fan/water cooling pump headers
  • 2 x addressable LED strip headers
  • 2 x RGB LED strip headers
  • 1 x CPU cooler LED strip/RGB LED strip header
  • 2 x M.2 Socket 3 connectors
  • 4 x SATA 6Gb/s connectors
  • 1 x SATA DOM power connector
  • 1 x front panel header
  • 1 x front panel audio header
  • 1 x USB 3.2 Gen 1 header
  • 2 x USB 2.0/1.1 headers
  • 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
  • 1 x serial port header
  • 1 x Clear CMOS jumper
  • 2 x temperature sensor headers
  • 1 x Q-Flash Plus button
Special Features
  • Support for APP Center
  • BIOS
  • EasyTune
  • Fast Boot
  • Game Boost
  • ON/OFF Charge
  • RGB Fusion
  • Smart Backup
  • System Information Viewer
  • Support for Q-Flash Plus
  • Support for Q-Flash
  • Support for Xpress Install
Gigabyte Aorus B550 Vision D Motherboard Comes with 03 Years Warranty

Gigabyte Aorus B550 Vision D Motherboard in Bangladesh

Bring your creative designs to life by including the Gigabyte AMD B550 Creators Motherboard in your desktop computer system build. Designed for creative professionals, this ATX motherboard is powered by the Intel AMD B550 chipset and Supports 3rd Gen AMD Ryzen Processors with the AM4 socket. It takes full advantage of the Intel Thunderbolt 3 certification, effective cooling solution, DDR4 ECC & Non-ECC memory, Intel Wi-Fi 6 802.11ax and dual Intel® LAN with cFosSpeed, Triple PCIe 4.0/3.0 x16 slots, Dual PCIe 4.0/3.0 M.2 Connectors
Gigabyte VISION Series
Aorus B550 Vision D Motherboard is built for creator pc. It featured with reliable performance, impressive connectivity, expandable on graphics, and ultra-fast storage for creators to deal with heavy design workloads such as video editing and 3D rendering. It's the perfect fit for DIY creators to build their own ideal machine.
More Speed More Pixels More Possibilities.
Thunderbolt 3 is the single most advanced port available. It uses USB Type-C connectors and cables but as a single cable solution, creating one compact port that delivers the fastest connection to any dock display or data device. The only cable you need brings the limitless connectivity with you.

What is The Gigabyte B550 Vision D Motherboard Price in BD?

Tech Land BD offers you Gigabyte B550 Vision D Motherboard with the best price in Bangladesh Which, is your budget-friendly. We also offers you free gift or free installation with this Gigabyte B550 Vision D Motherboard Order Online for nationwide cash on delivery or visit our Shop. Follow us on Facebook for regular updates and offers. Subscribe our Youtube channel for reviews of gadget Products.

[product_table id="34" limit="10" type="filter" filter_category="7271"]

What is the Gigabyte B550 Vision D AMD 3rd Gen Wi-Fi Motherboard Price in Bangladesh 2026 ?

The Gigabyte B550 Vision D Price in BD is 26,800৳ . This Gigabyte B550 Vision D AMD 3rd Gen Wi-Fi Motherboard Manufacturing by Gigabyte Comes With Warranty & Based on 0 reviews. Tech Land BD Offers you Gigabyte B550 Vision D by 26,800৳ and its regular price is 27,200৳ Which is also Out of Stock Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
