Product Information

Save: ৳2,600

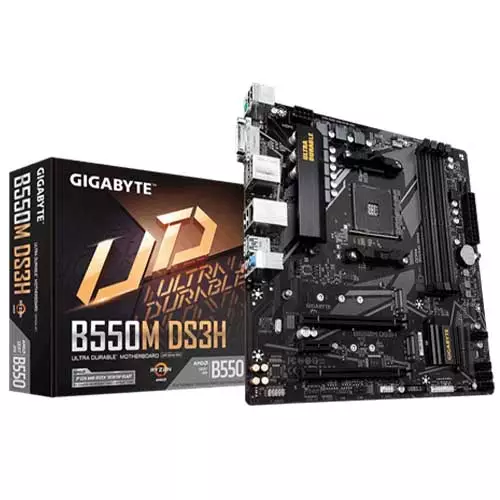

GIGABYTE B550M DS3H AMD Motherboard
GIGABYTE B550M DS3H AMD Motherboard

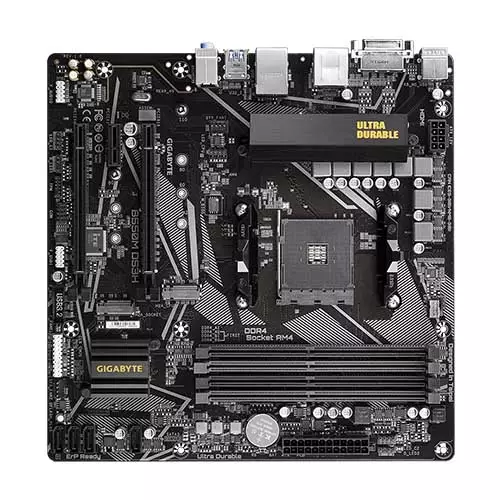

GIGABYTE B550M DS3H AMD Motherboard - 1
GIGABYTE B550M DS3H AMD Motherboard - 2

GIGABYTE B550M DS3H AMD Motherboard

0 Reviews
Stock : Out of Stock
PID : P0392506069
Brand : Gigabyte
Model : B550M DS3H
Warranty : 3 years
  • Chipset: AMD B550
  • Micro ATX Form Factor: 24.4cm x 24.4cm
  • Realtek GbE LAN chip
  • Max. the shared memory of 16 GB

Product Pricing

Discount Price

৳12,200 ৳14,800
+ Available Payment Method

EMI Start From*

৳430

PRODUCT SPECIFICATIONS

Processor

Supported CPU AMD Socket AM4, support for: 3rd Generation AMD Ryzen™ processors/ 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors
(Please refer "CPU Support List" for more information.)

Mainboard

Chipset AMD B550
BIOS 1 x 256 Mbit flash;
Use of licensed AMI UEFI BIOS;
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0;

Memory

Memory 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory;
Support for DDR4; 4000(O.C.)/3600(O.C.)/3333(O.C.)/3200/2933/2667/2400/2133 MHz memory modules;
Dual channel memory architecture;
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules;
Support for Extreme Memory Profile (XMP) memory modules;
(Please refer "Memory Support List" for more information.)

Storage

Supported Storage 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
3rd Generation AMD Ryzen™ processors support SATA and PCIe 4.0 x4/x2 SSDs
3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs
1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280 SSDs:
Supporting SATA and PCIe 3.0 x2 SSDs
4 x SATA 6Gb/s connectors, integrated in the Chipset:
Support for RAID 0, RAID 1, and RAID 10

Graphics

Graphics Integrated in the 3rd Generation AMD Ryzen™ with Radeon™ Graphics processors:;
1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz;
* The DVI-D port does not support D-Sub connection by adapter.
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz;
* Support for HDMI 2.1 version, HDCP 2.3, and HDR.;
Maximum shared memory of 16 GB;

Networking & Connectivity

LAN Realtek GbE LAN chip (1000 Mbit/100 Mbit)

Audio & Microphone

Audio Realtek ALC887 codec;
High Definition Audio;
2/4/5.1/7.1-channel;
* To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.;

Ports

Slots 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
3rd Generation AMD Ryzen™ processors support PCIe 4.0 x16 mode
3rd Generation AMD Ryzen™ with Radeon™ Graphics processors support PCIe 3.0 x16 mode
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset:
Supporting PCIe 3.0 x4 mode
1 x PCI Express x1 slot (PCIEX1), integrated in the Chipset:
Supporting PCIe 3.0 x1 mode
Internal I/O Ports 1 x 24-pin ATX main power connector;
1 x 8-pin ATX 12V power connector;
1 x CPU fan header;
2 x system fan headers;
2 x addressable LED strip headers;
2 x RGB LED strip headers;
1 x CPU cooler LED strip/RGB LED strip header;
2 x M.2 Socket 3 connectors;
4 x SATA 6Gb/s connectors;
1 x front panel header;
1 x front panel audio header;
1 x USB 3.2 Gen 1 header;
1 x USB 2.0/1.1 header;
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only);
1 x serial port header;
1 x Clear CMOS jumper;
1 x Q-Flash Plus button;

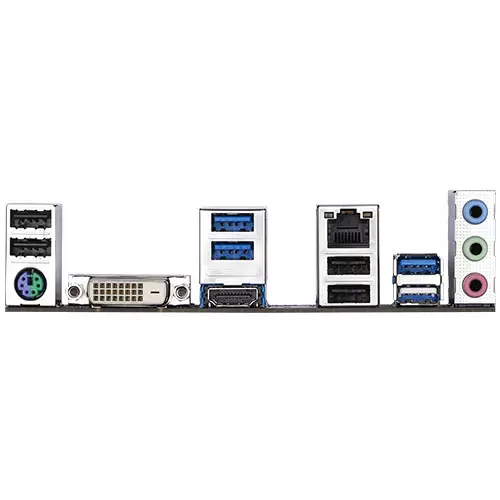

External I/O Ports 1 x PS/2 keyboard/mouse port;
1 x DVI-D port;
1 x HDMI port;
4 x USB 3.2 Gen 1 ports;
4 x USB 2.0/1.1 ports;
1 x RJ-45 port;
3 x audio jacks;
USB CPU:
4 x USB 3.2 Gen 1 ports on the back panel;
Chipset:
2 x USB 3.2 Gen 1 ports available through the internal USB header;
6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

Physical Specification

Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm

Warranty Information

Warranty 03 Years

PRODUCT DESCRIPTION

GIGABYTE B550M DS3H AMD Motherboard in Bangladesh

AMD RyzenTM 5000 Series/ RyzenTM 5000 G-Series/ RyzenTM 4000 G-Series/ RyzenTM 3000 Series Processors are supported. 4 DIMMs Dual Channel ECC/Non-ECC Unbuffered DDR4, Dual Channel ECC/Non-ECC

Phases 5+3 Low RDS(on) MOSFETs in a pure digital VRM solution. PCIe 4.0 Ready x16 Slot Ultra DurableTM Dual PCIe 4.0/3.0 M.2 Ultra-Fast NVMe Connectors For the best audio quality, use high-quality audio capacitors and an audio noise guard. Exclusive 8118 Gaming GbE LAN with Bandwidth Management from GIGABYTE.

Support for rear HDMI and DVI.

RGB FUSION 2.0 is compatible with Strips of addressable and RGB LEDs. 5 Benefits of a Smart Fan Hybrid Fan Headers with FAN STOP, Multiple Temperature Sensors

Q-Flash Plus is an enhanced version of Q-Flash. Without installing the CPU, memory, or graphics card, you can update the BIOS. Design of Anti-Sulfur Resistors.

[product_table id="34" limit="10" type="filter" filter_category="7271"]

CUSTOMER REVIEWS

Login to write a review.

No reviews yet

Be the first to share your thoughts about this product.

What is the GIGABYTE B550M DS3H AMD Motherboard Price in Bangladesh 2026 ?

The Gigabyte B550M DS3H Price in BD is 12,200৳ . This GIGABYTE B550M DS3H AMD Motherboard Manufacturing by Gigabyte Comes With 3 years Warranty & Based on 0 reviews. Tech Land BD Offers you Gigabyte B550M DS3H by 12,200৳ and its regular price is 14,800৳ Which is also Out of Stock Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
