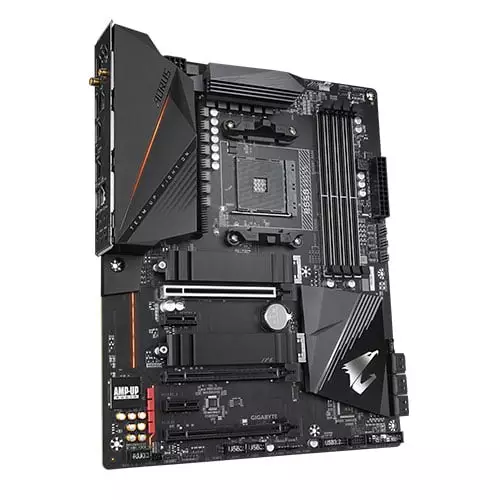

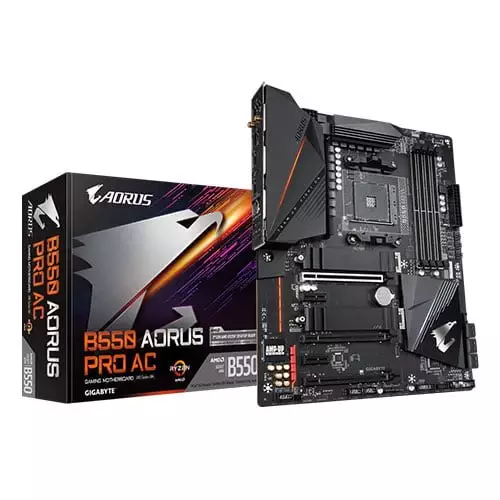

GIGABYTE B550 AORUS PRO AC AMD Motherboard

AMD Socket AM4, support for: 3rd Generation AMD Ryzen processors/ New Generation AMD Ryzen with Radeon Graphics processors

AMD B550

1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
3rd Gen AMD Ryzen™ Processors: Support for DDR4 5200(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules
New Generation AMD Ryzen™ with Radeon™ Graphics processors: Support for DDR4 5400(O.C.) / 5200(O.C.) / 5000(O.C.) / 4866(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules

1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
3rd Generation AMD Ryzen™ processors support SATA and PCIe 4.0 x4/x2 SSDs
New Generation AMD Ryzen™ with Radeon™ Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs
1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:
Support PCIe 3.0 x4/x2 SSDs
6 x SATA 6Gb/s connectors, integrated in the Chipset:
Support for RAID 0, RAID 1, and RAID 10

Integrated Graphics Processor:
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Maximum shared memory of 16 GB

Realtek 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)

Realtek® ALC1220-VB codec
Support for DTS:X® Ultra
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out

1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
3rd Generation AMD Ryzen™ processors support PCIe 4.0 x16 mode
New Generation AMD Ryzen™ with Radeon™ Graphics processors support PCIe 3.0 x16 mode
1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset:
Supporting PCIe 3.0 x4 mode
1 x PCI Express x16 slot (PCIEX2), integrated in the Chipset:
Supporting PCIe 3.0 x2 mode
2 x PCI Express x1 slots

1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
2 x M.2 Socket 3 connectors
6 x SATA 6Gb/s connectors
1 x CPU fan header
1 x water cooling CPU fan header
4 x system fan headers
2 x system fan/water cooling pump headers
1 x CPU cooler LED strip/RGB LED strip header
2 x addressable LED strip headers
2 x RGB LED strip headers
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
2 x temperature sensor headers
1 x Clear CMOS jumper

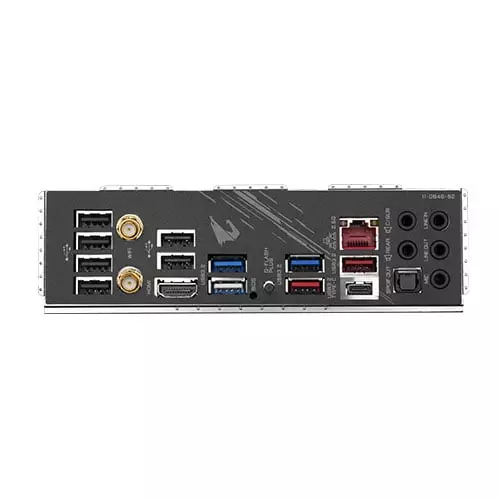

1 x HDMI port
2 x SMA antenna connectors (1T1R)
3 x USB 3.2 Gen 1 ports
1 x USB Type-C™ port, with USB 3.2 Gen 2 support
2 x USB 3.2 Gen 2 Type-A ports (red)
6 x USB 2.0/1.1 ports
1 x Q-Flash Plus button
1 x RJ-45 port
1 x optical S/PDIF Out connector
5 x audio jacks

CPU:
3 x USB 3.2 Gen 1 ports on the back panel
1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
Chipset:
1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support
1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
2 x USB 3.2 Gen 1 ports available through the internal USB header
2 x USB 2.0/1.1 ports on the back panel
Chipset+2 USB 2.0 Hubs:
8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

ATX Form Factor; 30.5cm x 24.4cm

03 Years
