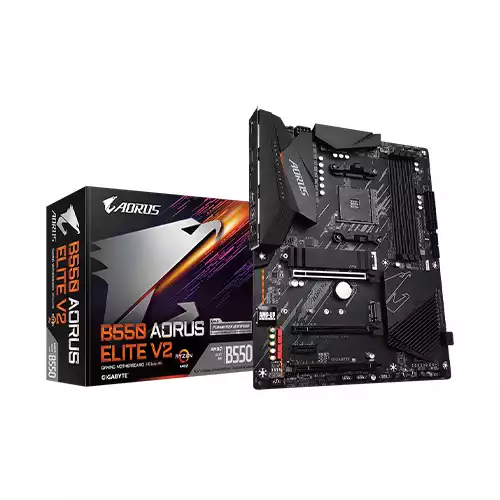

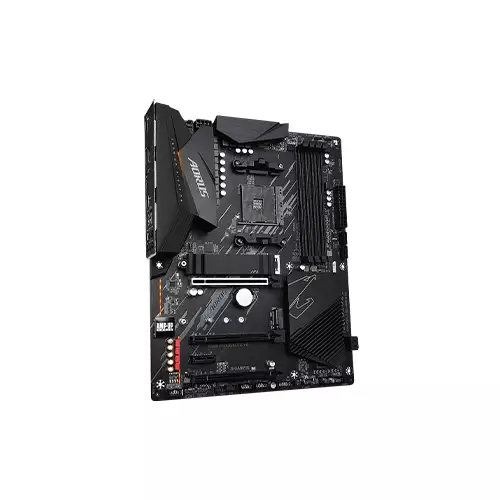

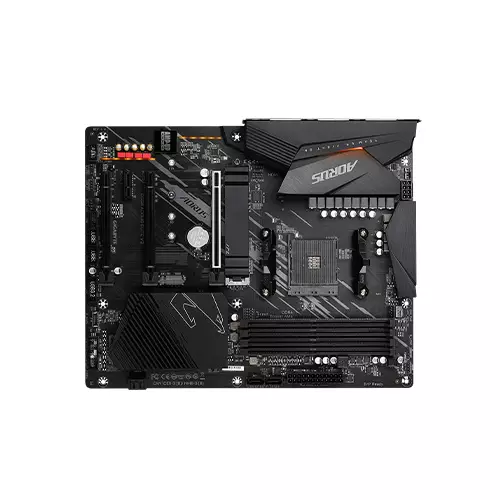

GIGABYTE B550 AORUS ELITE V2 AM4 ATX AMD MOTHERBOARD
GIGABYTE B550 AORUS ELITE V2 AM4 ATX AMD MOTHERBOARD
GIGABYTE B550 AORUS ELITE V2 AM4 ATX AMD MOTHERBOARD - 1
GIGABYTE B550 AORUS ELITE V2 AM4 ATX AMD MOTHERBOARD - 2
GIGABYTE B550 AORUS ELITE V2 AM4 ATX AMD MOTHERBOARD - 3

GIGABYTE B550 AORUS ELITE V2 AM4 ATX AMD MOTHERBOARD

0 Reviews
Stock : Out of Stock
PID : P0392506225
Brand : Gigabyte
Model : B550 AORUS Elite V2
Warranty : 3 years
  • Supported CPU: AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-S...
  • Memory: 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memor...
  • Supported Storage: 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/...
  • LAN: Realtek® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)

Product Pricing

Discount Price

৳16,800 ৳25,000
+ Available Payment Method

EMI Start From*

৳592

SPECIFICATIONS

Processor

Supported CPU AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/
Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 Series Processors

Mainboard

Chipset AMD B550
BIOS 1 x 256 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Memory

Memory 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory

Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) /
3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules*

* ECC memory (ECC mode) support varies by CPU

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

Storage

Supported Storage 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type
2242/2260/2280/22110 SSDs:

- AMD Ryzen™ 5000 Series and Ryzen™ 3000 Series
Processors support SATA and PCIe 4.0 x4/x2 SSDs

- AMD Ryzen™ Ryzen™ 5000 G-Series and Ryzen™
4000 G-Series Processors support SATA and PCIe 3.0 x4/x2 SSDs

1 x M.2 connector (M2B_SB), integrated in the
Chipset, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:

- Supporting SATA and PCIe 3.0 x4/x2 SSDs

4 x SATA 6Gb/s connectors, integrated in the Chipset:

- Support for RAID 0, RAID 1, and RAID 10

Graphics

Graphics
Integrated Graphics Processor:

1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz

* Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.

1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

* Support for HDMI 2.1 version, HDCP 2.3, and HDR.

Networking & Connectivity

LAN Realtek® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)

Audio & Microphone

Audio Realtek® ALC1200 codec

High Definition Audio

2/4/5.1/7.1-channel

Support for S/PDIF Out

Ports

Slots 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:

- AMD Ryzen™ 5000 Series and Ryzen™ 3000 Series Processors support PCIe 4.0 x16 mode

- AMD Ryzen™ Ryzen™ 5000 G-Series and Ryzen™ 4000 G-Series Processors support PCIe 3.0 x16 mode

* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to
install it in the PCIEX16 slot.

1 x PCI Express x16 slot (PCIEX2), integrated in the Chipset:

- Supporting PCIe 3.0 x2 mode

1 x PCI Express x16 slot (PCIEX1_2), integrated in the Chipset:

- Supporting PCIe 3.0 x1 mode

1 x PCI Express x1 slot (PCIEX1_1), integrated in the Chipset:

- Supporting PCIe 3.0 x1 mode
Internal I/O Ports 1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

2 x M.2 Socket 3 connectors

4 x SATA 6Gb/s connectors

1 x CPU fan header

1 x water cooling CPU fan header

3 x system fan headers

1 x CPU cooler LED strip/RGB LED strip header

2 x addressable LED strip headers

2 x RGB LED strip headers

1 x front panel header

1 x front panel audio header

1 x USB Type-C™ port, with USB 3.2 Gen 1 support

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)

1 x Clear CMOS jumper

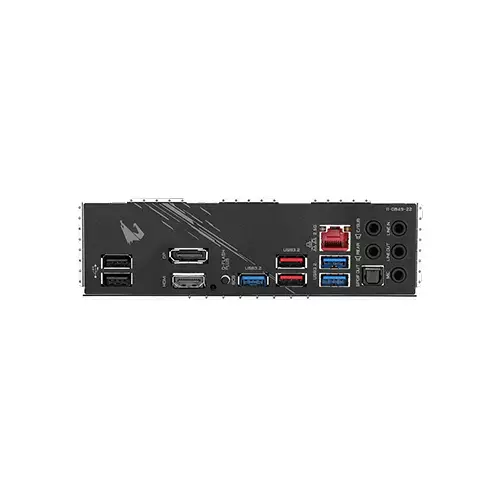

External I/O Ports 1 x DisplayPort

1 x HDMI port

2 x USB 3.2 Gen 2 Type-A ports (red)

3 x USB 3.2 Gen 1 ports

2 x USB 2.0/1.1 ports

1 x Q-Flash Plus button

1 x RJ-45 port

1 x optical S/PDIF Out connector

5 x audio jacks
USB CPU:

2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

2 x USB 3.2 Gen 1 ports on the back panel

Chipset:

1 x USB Type-C™ port with USB 3.2 Gen 1 support, available through the internal USB header

1 x USB 3.2 Gen 1 port on the back panel

2 x USB 3.2 Gen 1 ports available through the internal USB header

2 x USB 2.0/1.1 ports on the back panel

Chipset+USB 2.0 Hub:

4 x USB 2.0/1.1 ports available through the internal USB headers

Physical Specification

Form Factor ATX Form Factor
Dimension 30.5cm x 24.4cm

Warranty Information

Warranty 3 years

DESCRIPTION

Gigabyte B550 AORUS Elite V2 Motherboard in Bangladesh

Bring boosted speed and performance to your gaming build with the B550 AORUS Elite V2 AM4 ATX Motherboard from Gigabyte. Designed to provide boosted performance for streamers and gamers, this motherboard supports up to 128GB of DDR4 RAM, with speeds up to 4733 MHz supported when overclocking. In addition to four SATA III drive interfaces, this motherboard also incorporates two M.2 slots compatible with RAID 0, 1, or 10, allowing for boosted sequential read speeds or data redundancy. Multiple PCIe slots provide room for graphics cards and more, while onboard 2.5 Gigabit Ethernet ensures smooth online performance.

The B550 AORUS Elite V2 AM4 ATX Motherboard utilizes the AMD B550 chipset and is compatible with CPUs conforming to the AM4 socket. A rear I/O panel boasts two USB 3.2 Gen 2, three Gen 1, and two USB 2.0 Type-A ports. In addition to an RJ45 port, this rear panel also sports HDMI and DisplayPort outputs. A Q-Flash Plus button enables BIOS flashback, while a S/PDIF and five 3.5mmm ports provide connections for audio equipment. Internal headers provide support for a CPU pump or fan, as well as three 4-pin case fans. Three RGB and two addressable headers provide lighting options for your build, while a 2x6 pin TPM header can be used with the GC-TPM2.0_S module, available separately. A USB 3.2 Gen 1 Type-C and two Type-A ports, along with four USB 2.0 Type-A ports, are supported on the front panel via internal headers. Audio is handled by the Realtek ALC1200 codec, which supports 7.1 Surround Sound. The Gigabyte B550 AORUS Elite V2 AM4 ATX Motherboard is compatible with the Windows 10 64-bit operating system.
