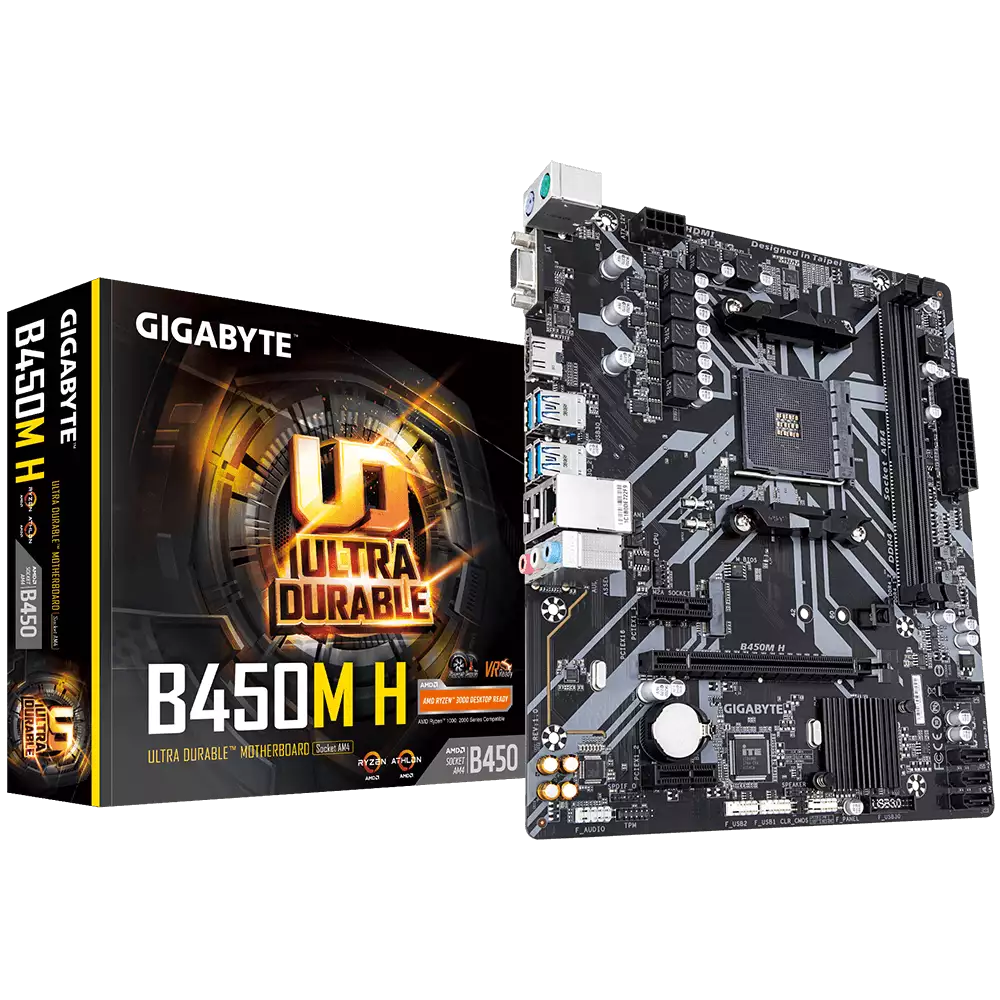

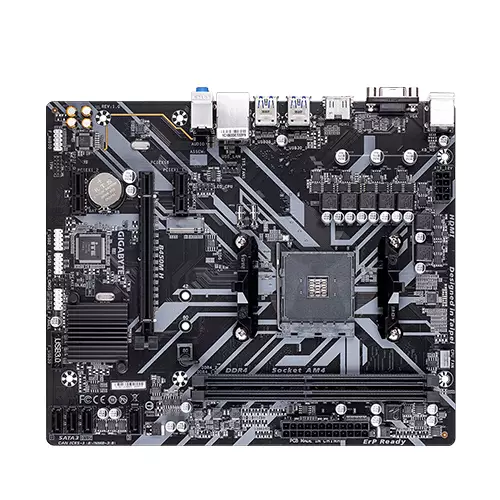

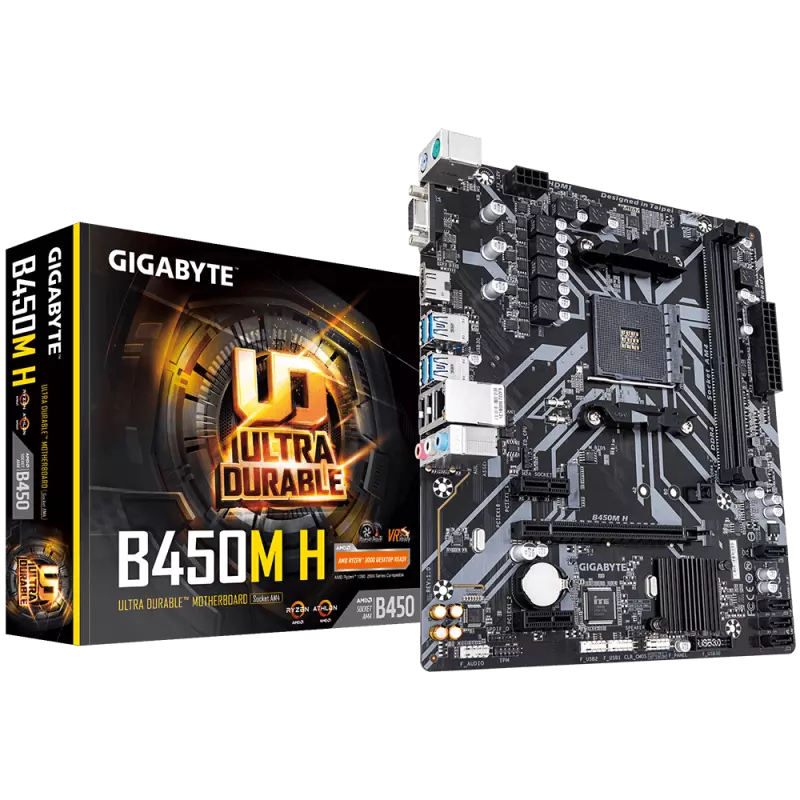

Gigabyte B450M H Ultra Durable Motherboard Specification
|
| CPU | - Chipset: AMD B450
- CPU Socket: AM4
- AMD Socket AM4, support for 3rd Generation AMD Ryzen processors/ 2nd Generation AMD Ryzen processors/ 1st Generation AMD Ryzen processors/ 2nd Generation AMD Ryzen with Radeon Vega Graphics processors/ 1st Generation AMD Ryzen with Radeon Vega Graphics processors/ AMD Ryzen with Radeon Vega Graphics processors
|

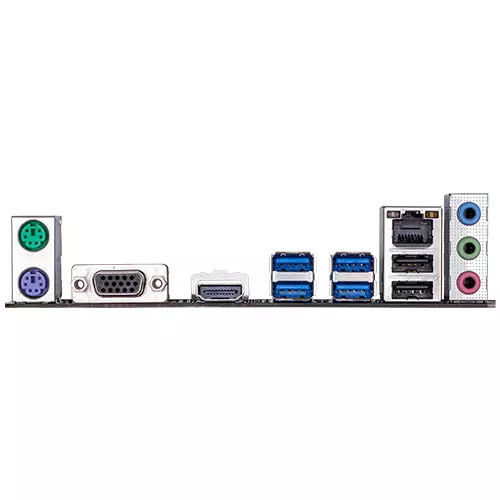

Back Panel I/O
| - Chipset:
- 2 x USB 3.1 Gen 1 ports available through the internal USB header
6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) - CPU:
4 x USB 3.1 Gen 1 ports on the back panel - Display:
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
- Audio:
Realtek ALC887 codec
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out - Ethernet / Controller: Realtek GbE LAN chip (1000 Mbit/100 Mbit)
|
Memory
| - Memory Slots: 2 x DDR4 DIMM
- Memory Support:
Support for DDR4 3600(O.C.)/3466(O.C.)/2933/2667/2400/2133 MHz memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules - Maximum Capacity: 32 GB
- Channel Architecture: Dual Channel
|
Storage Expansion
| - SATA: 4 x SATA 6Gb/s connectors
- M.2:
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support)
- RAID 0, RAID 1, and RAID 10
|
Internal I/O
| - 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 1 x CPU fan header
- 1 x system fan header
- 1 x M.2 Socket 3 connector
- 4 x SATA 6Gb/s connectors
- 1 x front panel header
- 1 x front panel audio header
- 1 x S/PDIF Out header
- 1 x CPU cooler LED strip/RGB LED strip header
- 1 x USB 3.1 Gen 1 header
- 2 x USB 2.0/1.1 headers
- 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
- 1 x speaker header
- 1 x Clear CMOS jumper
- 1 x chassis intrusion header
|
Special Features
| - Support for APP Center
- AutoGreen
- Cloud Station
- EasyTune
- Fast Boot
- Game Boost
- ON/OFF Charge
- RGB Fusion
- Smart Backup
- Smart Keyboard
- Smart Survey
- System Information Viewer
- USB Blocker
- Support for Q-Flash
- Support for Xpress Install
|
Audio
| - Realtek ALC887 codec
- High Definition Audio
- 2/4/5.1/7.1-channel
- Support for S/PDIF Out
|
Software
| - Supported Operating Systems:
- Windows 10 (64-Bit)
Windows 7 (64-Bit)
|
Physical
| - Form Factor: Micro ATX Form Factor
- Dimensions: 24.4cm x 20.5cm
|
GIGABYTE B450M H Motherboard in Bangladesh
- Supports AMD 3rd Gen Ryzen™/ 2nd Gen Ryzen™/ 1st Gen Ryzen™/ 2nd Gen Ryzen™ with Radeon™ Vega Graphics/ 1st Gen Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors
- Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
- HDMI, D-sub Ports for Multiple Display
- Ultra-Fast PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support
- GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
- RGB Fusion supports RGB LED Strips in 7-Colors
- High Quality Audio Capacitors and Audio Noise Guard Design
- Smart Fan 5 features 5 Temperature Sensors and 2 Hybrid Fan Headers
- APP Center Including EasyTune™ and Cloud Station™ Utilities
Power up your gaming experience with first-, second-, and third-generation AMD Ryzen processors with the AM4 socket using the B450M H AM4 Micro-ATX Motherboard from Gigabyte. Designed for small form factor systems, this Micro-ATX motherboard takes advantage of the B450 chipset to run demanding games and applications. Up to 32GB of dual-channel DDR4 RAM at 3600 MHz when overlocking can be installed across four memory slots for efficient multitasking and to run high-end games. The durable motherboard also features an M.2 SSD slot and supports up to four SATA III storage drives, which can be put into RAID 0, 1, or 10 configuration. Peripherals such as keyboards and mice can be plugged into the rear panel's USB 2.0 Type-A ports while the USB 3.1 ports support speeds up to 5 Gb/s with compatible storage drives
