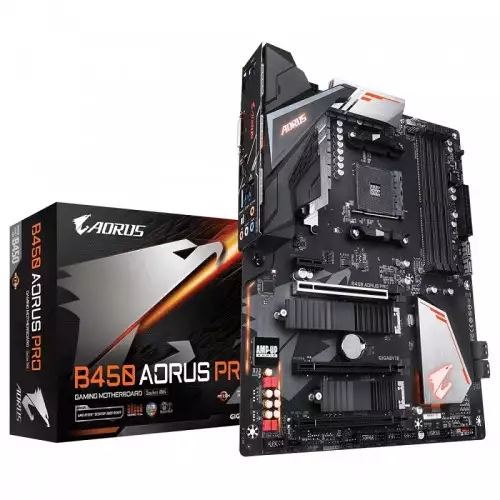

Gigabyte AMD B450 AORUS PRO AM4 ATX Motherboard

Gigabyte AMD B450 AORUS PRO AM4 ATX Motherboard

0 Reviews
Stock : Up Coming
PID : P0392506011
Brand : Gigabyte
Model : Gigabyte B450
Warranty : 3 years
  • Supported CPU: AMD Ryzen™ 2nd Generation processors AMD Ryzen™ with Radeon™ Vega Graphics processors AMD...
  • Memory: Support for DDR4 3200(O.C.)/2933/2667/2400/2133 MHz memory modules Support for ECC Un-buff...
  • Supported Storage: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD...
  • LAN: Intel® GbE LAN chip (10/100/1000 Mbit)

SPECIFICATIONS

Processor

Supported CPU AMD Ryzen™ 2nd Generation processors
AMD Ryzen™ with Radeon™ Vega Graphics processors
AMD Ryzen™ 1st Generation processors

Mainboard

Chipset AMD B450
BIOS 2 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
Support for DualBIOS™
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Memory

Memory Support for DDR4 3200(O.C.)/2933/2667/2400/2133 MHz memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Maximum Mamory: 64 GB

Storage

Supported Storage 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2A_SOCKET)
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe 3.0 x2 SSD support)(M2B_SOCKET)
6 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, and RAID 10

Networking & Connectivity

LAN Intel® GbE LAN chip (10/100/1000 Mbit)

Audio & Microphone

Audio Realtek® ALC1220-VB codec
High Definition Audio
2/4/5.1/7.1-channel
Support for S/PDIF Out

Ports

Slots 4 x DDR4 DIMM
Internal I/O Ports 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
2 x M.2 Socket 3 connectors
6 x SATA 6Gb/s connectors
1 x CPU fan header
1 x water cooling CPU fan header
2 x system fan headers
1 x system fan/water cooling pump header
1 x CPU cooler LED strip/RGB LED strip header
2 x digital LED strip headers
2 x digital LED strip power select jumpers
1 x RGB (RGBW) LED strip header
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x USB 3.1 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module (TPM) header (2x10 pin, for the GC-TPM2.0 module only)
1 x Clear CMOS jumper
USB Chipset:
1 x USB Type-C™ port on the back panel, with USB 3.1 Gen 2 support
1 x USB 3.1 Gen 2 Type-A port (red) on the back panel
2 x USB 3.1 Gen 1 ports available through the internal USB header
4 x USB 2.0/1.1 ports available through the internal USB headers
CPU:
4 x USB 3.1 Gen 1 ports on the back panel

Others

Other Features Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies

Physical Specification

Form Factor ATX Form Factor; 30.5cm x 24.4cm

Warranty Information

Warranty 03 years

DESCRIPTION

Gigabyte AMD B450 AORUS PRO

●︎ Supports AMD 2nd Generation Ryzen™/ Ryzen™ with Radeon™ Vega Graphics/ ●︎ 1st Generation Ryzen™ Processors

●︎ Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs

●︎ HDMI, DVI-D Ports for Multiple Display

●︎ Integrated I/O Shield of Ultra Durable™ Design

●︎ Dual Ultra-Fast NVMe PCIe Gen3 M.2 (x4, x2) with Dual Thermal Guards

●︎ ALC1220-VB Enhanced 114dB(Rear) / 110dB(Front) SNR in Microphone with WIMA Audio Capacitors

●︎ RGB FUSION with Multi-Zone LED Light Show Design, Supports Digital LED & RGB LED Strips

●︎ Intel® GbE LAN with cFosSpeed Internet Accelerator Software

●︎ Smart Fan 5 Features 6 Temperature Sensors and 5 Hybrid Fan Headers with FAN STOP

●︎ APP Center Including EasyTune™ and Cloud Station™ Utilities

●︎ CEC 2019 Ready, Save Power with a Simple Click



[product_table id="34" limit="10" type="filter" filter_category="7271"]

REVIEWS

Login to write a review.

No reviews yet

Be the first to share your thoughts about this product.

What is the Gigabyte AMD B450 AORUS PRO AM4 ATX Motherboard Price in Bangladesh 2026 ?

The Gigabyte Gigabyte B450 Price in BD is 14,200৳ . This Gigabyte AMD B450 AORUS PRO AM4 ATX Motherboard Manufacturing by Gigabyte Comes With 3 years Warranty & Based on 0 reviews. Tech Land BD Offers you Gigabyte Gigabyte B450 by 14,200৳ and its regular price is 19,500৳ Which is also Up Coming Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
