| Stock Status | Out Of Stock |
| Product ID | 27591 |
| Brand | Gigabyte |
| Product model | X670E AORUS MASTER |
| Warranty | 3 Years |
| Total Reviews | Based on 0 reviews. - Write a review |
| Processor | |
| Supported CPU | AMD Socket AM5, support for : AMD Ryzen™ 7000 Series Processors |
| Mainboard | |
| Chipset | AMD X670 |
| Memory | |
| Memory | Support for DDR5 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory module |
| Storage | |
| Supported Storage | 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0* x4/x2 SSD support) (M2A_CPU) * Actual support may vary by CPU. 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 5.0* x4/x2 SSD support) (M2B_CPU) * Actual support may vary by CPU. 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2C_SB, M2D_SB) 6 x SATA 6Gb/s connectors |
| Graphics | |
| Graphics | Integrated Graphics Processor: 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 1.4 version and HDR. 1 x USB Type-C® port, supporting USB 3.2 Gen 2 and DisplayPort video outputs and a maximum resolution of 3840x2160@144 Hz * Support for DisplayPort 1.4 version and HDR. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz * Support for HDMI 2.1 version and HDCP 2.3. |
| Audio & Microphone | |
| Audio | Realtek® ALC1220-VB CODEC * The back panel line out jack supports DSD audio. Support for DTS:X® Ultra High Definition Audio 2/4/5.1/7.1-channel output * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out |
| Networking & Connectivity | |
| LAN | Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| WiFi | WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands Intel Wi-Fi 6E AX210 |
| Bluetooth | BLUETOOTH 5.3 |
| Ports | |
| Slots | 1 x PCI Express x16 slot, supporting PCIe 5.0* and running at x16 (PCIEX16) * Actual support may vary by CPU. * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2) * The PCIEX2 slot shares bandwidth with the SATA3 4/5 connectors. The SATA3 4/5 connectors will become unavailable when a device is installed in the PCIEX2 slot. |
| Internal I/O Ports | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 4 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 4 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers 1 x noise detection header 1 x THB_U4 add-in card connector 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x power button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper 2 x temperature sensor headers Voltage Measurement Points |

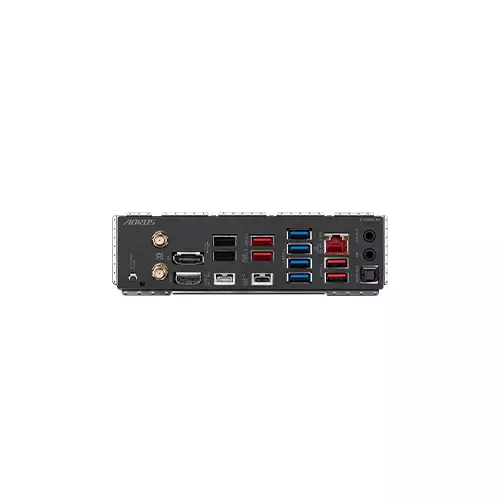

| External I/O Ports | 1 x Q-Flash Plus button 2 x SMA antenna connectors (2T2R) 1 x DisplayPort 1 x HDMI port 1 x USB Type-C® port (DisplayPort), with USB 3.2 Gen 2 support 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support 4 x USB 3.2 Gen 2 Type-A ports (red) 4 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks |
| USB | 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 2 x USB 2.0/1.1 ports on the back panel 2 x USB Type-C® ports, with USB 3.2 Gen 2x2 support (1 port on the back panel, 1 port available through the internal USB header) 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel 4 x USB 3.2 Gen 1 ports available through the internal USB headers 4 x USB 2.0/1.1 ports available through the internal USB headers 4 x USB 3.2 Gen 1 ports on the back panel |
| Technical Info | |
| BIOS | 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Physical Specification | |
| Form Factor | E-ATX Form Factor |
| Dimension | 30.5cm x 26.9cm |
| Warranty Information | |
| Warranty | 2 years |

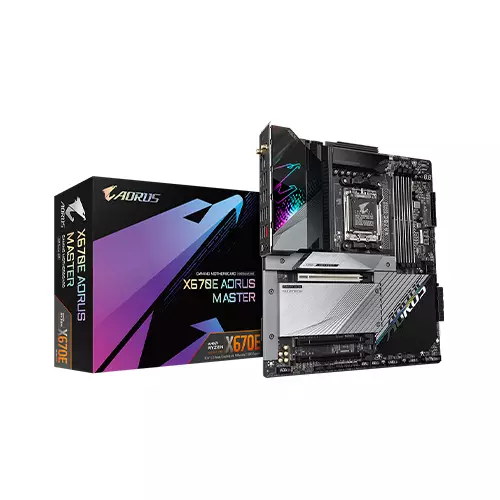

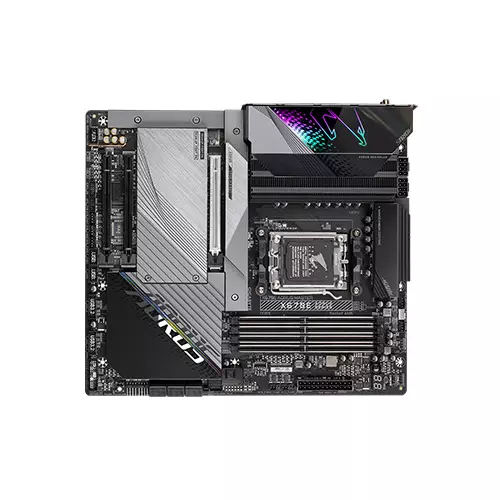

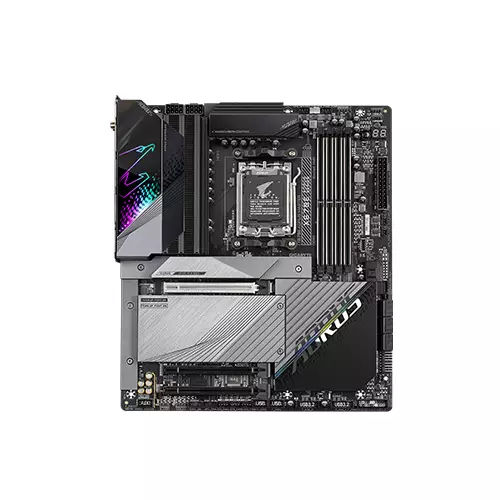

Meet the X670E AORUS MASTER E-ATX motherboards, built to squeeze every ounce of performance from your latest Ryzen 7000 Series CPUs. Boasting an upgraded power solution, passive and silent thermal design, PCIe 5.0 components, 2x ultra-fast NVMe PCIe 5.0 x4 M.2, Wi-Fi 6E AX210 with Bluetooth 5.3, and an incredible fully specced I/O panel with USB 3.2 Gen2x2, you can truly adapt your motherboard to represent you. With the RGB Fusion application, the user has complete control over the LEDs which surround the motherboard. This is the next generation of performance, immersion and super-fast experiences. Can you handle it?
GIGABYTE X670E Motherboards are equipped with best in class power solution to release the full potential of the latest AMD Ryzen™ 7000 Series CPUs. The twin digital VRM power design unleashes full potential of GPU and CPU performance with Vcore and SOC phases. Premium chokes and high quality capacitors offer extraordinary stability and precision to the high performance CPU. In addition, 8-Layer 2X Copper PCB along with the comprehensive thermal solution allows enthusiasts to enjoy the extreme overclocking performance without compromise.
