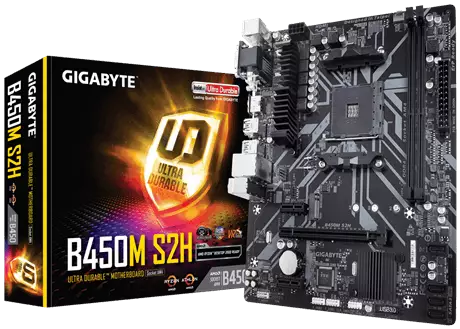

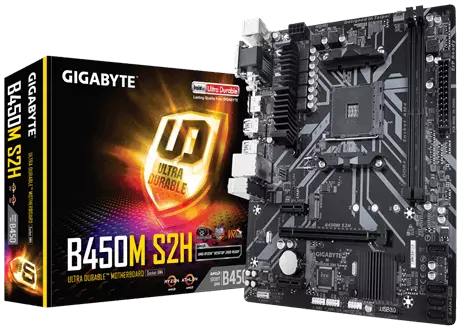

GIGABYTE AMD B450M S2H Ultra Durable Motherboard

GIGABYTE AMD B450M S2H Ultra Durable Motherboard

0 Reviews
Stock : Discontinued
PID : P0002506886
Brand : Gigabyte
Model : AMD B450 Ultra Durable
Warranty : 3 Years
  • Chipset AMD B450
  • LAN: Realtek GbE LAN chip
  • Audio: ealtek® ALC887 codec
  • Micro ATX Form Factor; 24.4cm x 21.5cm

SPECIFICATIONS

Processor

Supported CPU AM4 Socket: Support for AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors

Mainboard

Chipset AMD B450
BIOS 1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Memory

Memory 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory
Dual channel memory architecture
Support for DDR4 3200(O.C.)/2933/2667/2400/2133 MHz memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules

Storage

Supported Storage
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support)
* Supports only M.2 SATA SSDs when using an AMD Athlon™ 200-series/ 7th Generation A-series or Athlon™ APU.
4 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, and RAID 10
* Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA connectors.

Networking & Connectivity

LAN Realtek® GbE LAN chip (10/100/1000 Mbit)

Audio & Microphone

Audio Realtek® ALC887 codec|
High Definition Audio|
2/4/5.1/7.1-channel|

Support for S/PDIF Out

Ports

Slots
1 x PCI Express x16 slot, running at x16 (PCIEX16)(Note)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
(The PCIEX16 slot conforms to PCI Express 3.0 standard.)
1 x PCI Express x16 slot, running at x4 (PCIEX4)
1 x PCI Express x1 slot
(The PCIEX4 and PCI Express x1 slots conform to PCI Express 2.0 standard.)
Internal I/O Ports s
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x system fan header
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x CPU cooler LED strip/RGB LED strip header
1 x USB 3.1 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module (TPM) header (2x10 pin, for the GC-TPM2.0 module only)
1 x serial port header
1 x Clear CMOS jumper
USB 2 x USB 3.1 Gen 1 ports available through the internal USB header
8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
CPU:
4 x USB 3.1 Gen 1 ports on the back panel

Physical Specification

Form Factor
Micro ATX Form Factor; 24.4cm x 21.5cm

Warranty Information

Warranty 03 years warranty

DESCRIPTION

GIGABYTE AMD B450-S2H Ultra

●︎ Supports AMD Ryzen™ 2nd Generation/ Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ Ryzen™ 1st Generation Processors

●︎ Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs

●︎ HDMI, DVI-D Ports for Multiple Display

●︎ Ultra-Fast PCIe Gen3 x4 M.2 with PCIe NVMe & SATA mode support

●︎ High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting

●︎ RGB Fusion supports RGB LED Strips in 7-Colors

●︎ Realtek® Gigabit LAN with cFosSpeed Internet Accelerator Software

●︎ Smart Fan 5 Features 5 Temperature Sensors and 2 Hybrid Fan Headers with FAN STOP

●︎ APP Center Including EasyTune™ and Cloud Station™ Utilities

●︎ CEC 2019 Ready, Save Power with a Simple Click

**03 years warranty.

AMD introduces the latest Ryzen™ 2000 series processors to provide the computing power for gaming need. GIGABYTE's 400 series motherboards perfectly fit the latest AMD Ryzen™ 2000 series processors' computing performance with more features and more control. Users can enjoy the benefits brought by AMD Ryzen™ 2000 series processors. Click here for more Motherboard..

AMD StoreMI technology

GIGABYTE 400-series motherboards maximize your PC's potential with AMD StoreMI technology. StoreMI accelerates traditional storage devices to reduce boot times and enhance the overall user experience. This easy-to-use utility combines the speed of SSDs with the high capacity of HDDs into a single drive, enhances the read/write speeds of the device to match that of SSDs, bolsters data performance for incredible value, and transforms the everyday PC to a performance driven system.

The benefits of AMD StoreMI:

●︎ Making the PC experience fast, smooth and easy

●︎ Optimizing computer responsiveness from system boot to application launch

●︎ Offering SSD performance with HDD capacity at an affordable cost

●︎ Quickly accessing key files by automatically learning users' computing behaviors



[product_table id="34" limit="10" type="filter" filter_category="7271"]

REVIEWS

Login to write a review.

No reviews yet

Be the first to share your thoughts about this product.

What is the GIGABYTE AMD B450M S2H Ultra Durable Motherboard Price in Bangladesh 2026 ?

The Gigabyte AMD B450 Ultra Durable Price in BD is 8,600৳ . This GIGABYTE AMD B450M S2H Ultra Durable Motherboard Manufacturing by Gigabyte Comes With 3 Years Warranty & Based on 0 reviews. Tech Land BD Offers you Gigabyte AMD B450 Ultra Durable by 8,600৳ and its regular price is 10,500৳ Which is also Discontinued Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
