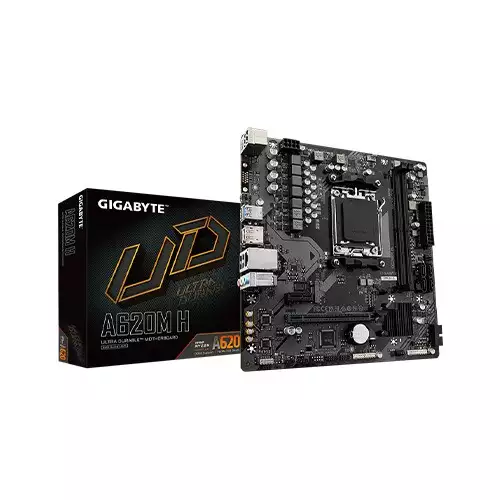

GIGABYTE A620M H AM5 Micro-ATX Motherboard
GIGABYTE A620M H AM5 Micro-ATX Motherboard

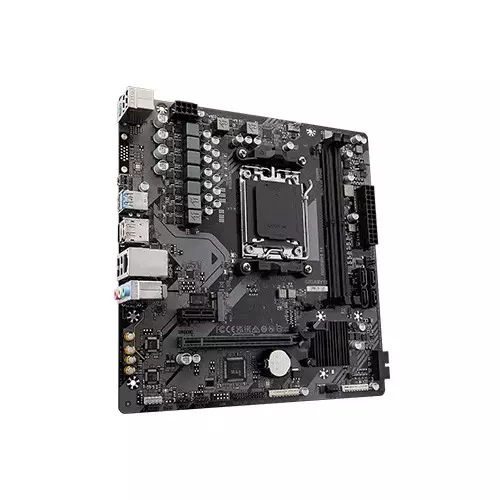

GIGABYTE A620M H AM5 Micro-ATX Motherboard - 1

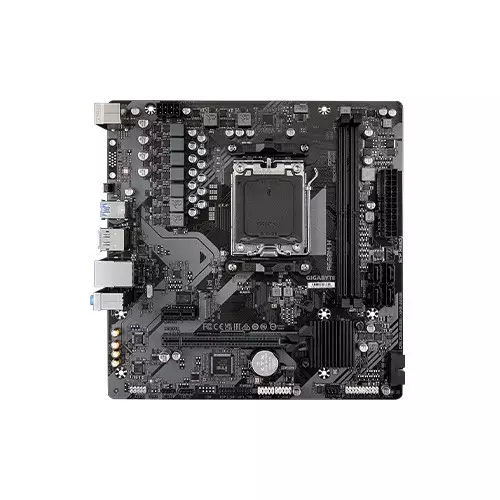

GIGABYTE A620M H AM5 Micro-ATX Motherboard - 2

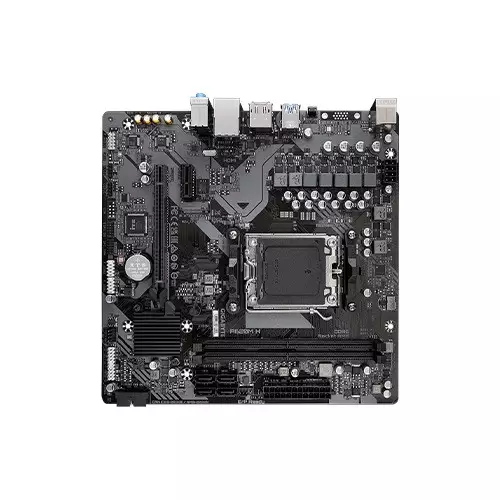

GIGABYTE A620M H AM5 Micro-ATX Motherboard - 3

GIGABYTE A620M H AM5 Micro-ATX Motherboard

0 Reviews
Stock : In Stock
PID : P0392506432
Brand : Gigabyte
Model : A620M H
Warranty : 3-Years
  • CPU Socket: AMD AM5
  • Graphics Output: 2 x DisplayPort, 1 x HDMI port
  • Features: 1 x DisplayPort, 1 x HDMI
  • Connectivity: 1 x Realtek 2.5Gb Ethernet

Product Pricing

Discount Price

৳11,400 ৳12,000
+ Available Payment Method

EMI Start From*

৳401

SPECIFICATIONS

Processor

Supported CPU AMD Ryzen 7000 / Ryzen 8000 / Ryzen 9000 Series Processors
CPU Socket AMD AM5

Mainboard

BIOS 1 x 256 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Memory

Memory Type DDR5
Expansion RAM Slot 2 x DIMM
Memory supporting up to 96 GB (48 GB single DIMM capacity) of system memory

Storage

Supported Storage 1 x M.2 connector,

integrated in the CPU,

supporting Socket 3,

M key,


type 2580 SSDs:

AMD Ryzen 7000 Series Processors support PCIe 4.0 x4/x2 SSDs

AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs

AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs

4 x SATA 6Gb/s connectors

Graphics

Graphics supporting a maximum resolution of 3840x2160@144 Hz

* Support for DisplayPort 1.4 version.


supporting a maximum resolution of 4096x2160@60 Hz

* Support for HDMI 2.1 version and HDCP 2.3.

** Support for native HDMI 2.1 TMDS compatible ports.

Networking & Connectivity

LAN Realtek GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)

Audio & Microphone

Audio Pin 3 x audio Pin
Audio Realtek Audio CODEC

High Definition Audio

2/4/5.1/7.1-channel

Ports

I/O Port Internal :

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

2 x system fan headers

1 x addressable LED strip header

1 x RGB LED strip header

1 x M.2 Socket 3 connector

4 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

1 x Clear CMOS jumper



Back Panel Connectors

4 x USB 2.0/1.1 ports

1 x PS/2 keyboard/mouse port

1 x Q-Flash Plus button

2 x USB 3.2 Gen 1 ports

1 x DisplayPort

1 x HDMI port

1 x RJ-45 port

3 x audio jacks
PCI Card Slot 1 x PCI Express x16 slot, integrated in the CPU:

AMD Ryzen 7000 Series Processors support PCIe 4.0 x16 mode

AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode

AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode

* The PCIEX16 slot can only support a graphics card or an NVMe SSD.


Chipset:

1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
USB CPU:

2 x USB 3.2 Gen 1 ports on the back panel

1 x USB 2.0/1.1 port on the back panel


Chipset:

2 x USB 3.2 Gen 1 ports available through the internal USB header

7 x USB 2.0/1.1 ports (3 ports on the back panel, 4 ports available through the internal USB headers)
HDMI 1

Special Features

Special Features Support for GIGABYTE Control Center (GCC)

Support for Q-Flash

Support for Q-Flash Plus
Software Norton Internet Security (OEM version)

LAN bandwidth management software

Others

Other Features Supported Memory

6400(OC)/6200(OC)/6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules

Dual channel memory architecture

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and

Extreme Memory Profile (XMP) memory modules





Display Port (s)

1 x DisplayPort






RAID

RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices

RAID 0, RAID 1, and RAID 10 support for SATA storage devices





TPM (Trusted Platform Module )

1 x Trusted Platform Module header

(For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)

Physical Specification

Color Black
Form Factor Micro ATX Form Factor; 23.0cm x 22.5cm

Technical Info

Model A620M H

Warranty Information

Warranty 3 Years

DESCRIPTION

GIGABYTE A620M H AM5 Micro-ATX Motherboard in Bangladesh

GIGABYTE A620M H AM5 Micro-ATX Motherboard is a reliable, feature-rich motherboard designed for high compatibility with AMD Ryzen 7000, 8000, and 9000 Series Processors. This motherboard is perfect for users seeking an affordable yet powerful platform for gaming, multimedia, or everyday computing, offering impressive support for high-performance DDR5 memory, versatile connectivity, and advanced audio capabilities in a compact Micro-ATX form.


Technical Details

GIGABYTE A620M H AM5 Micro-ATX Motherboard is built on the AMD A620 chipset, supporting AMD Ryzen 7000, 8000, and 9000 Series processors via an AM5 socket. This motherboard offers robust memory support, including dual-channel DDR5 with speeds up to 6400MHz (OC) and a maximum capacity of 96GB across two DIMM slots. For video output, it features both HDMI 2.1 and DisplayPort 1.4 ports, supporting up to 4K resolutions, ideal for high-definition displays. Expansion options include a PCI Express x16 slot (PCIe 4.0) for graphics cards or NVMe SSDs, plus an additional PCIe x1 slot. With support for M.2 and four SATA 6Gb/s connectors, the motherboard also offers RAID configurations for enhanced data protection. The Realtek® Audio CODEC provides high-definition sound for an immersive audio experience. Additionally, this motherboard includes multiple USB ports, Realtek GbE LAN for stable connectivity, RGB support, and advanced power features, making it a comprehensive choice for a wide range of computing needs.


Availability and Usability

GIGABYTE A620M H AM5 Micro-ATX Motherboard is available at Tech Land BD, providing Bangladeshi customers with an affordable yet feature-packed solution for building or upgrading their AMD-based desktop systems. This motherboard offers practical benefits such as support for AMD EXPO and XMP profiles for easy memory overclocking, versatile connectivity options, and flexible storage support with M.2 and SATA connectors. Its compact Micro-ATX form factor is ideal for space-saving builds, and it offers great compatibility with the latest AMD processors. With a competitive GIGABYTE A620M H AM5 Micro-ATX Motherboard Price in BD, this motherboard is an excellent choice for those seeking performance, compatibility, and value.


Highlights

  • Supports AMD Ryzen 7000, 8000, and 9000 Series Processors
  • High-speed DDR5 memory support up to 6400MHz (OC)
  • Dual-channel audio with Realtek® Audio CODEC
  • Compact Micro-ATX form factor, ideal for versatile builds
  • HDMI 2.1 and DisplayPort 1.4 for high-definition displays


Upgrade Your System with the GIGABYTE A620M H AM5 Micro-ATX Motherboard from Tech Land BD Today!

Unlock the full potential of your AMD Ryzen processor with GIGABYTE A620M H AM5 Micro-ATX Motherboard, available now at Tech Land BD. This motherboard is perfect for gamers, professionals, and anyone looking to build a reliable, high-performance desktop system. Featuring support for DDR5 memory, advanced storage options, and high-definition display outputs, it offers everything you need for a fast, responsive, and visually immersive experience. Given GIGABYTE A620M H AM5 Micro-ATX Motherboard Price in Bangladesh, this is the ideal time to make a powerful upgrade to your PC. Visit Tech Land BD and experience a new level of performance today!
