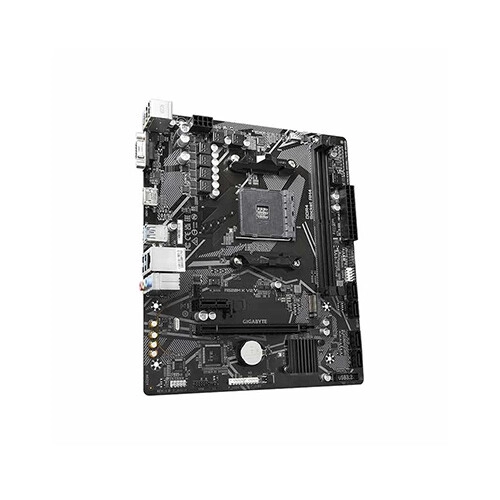

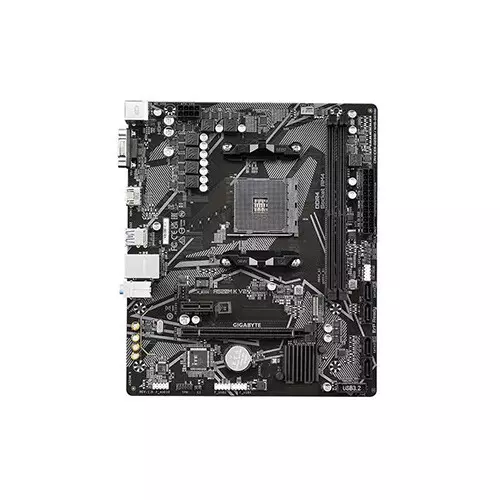

Gigabyte A520M K V2 DDR4 AM4 Socket AMD Motherboard
- Chipset - AMD A520
- Sockets Supported - AM4
- Memory Slot - 2
- Memory Max. - 64GB
Product Pricing
EMI Start From*
SPECIFICATIONS
Processor
AMD Socket AM4, support for: AMD Ryzen 5000
G-Series Processors/ AMD Ryzen 5000 Series Processors/ AMD Ryzen 4000 G-Series
Processors/ AMD Ryzen 3000 and Ryzen
3000 G-Series Processors
AMD A520
Mainboard
1 x 128 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Memory
Up to 64GB
Supported Memory
Support for DDR4 5100(O.C.) / 4800(O.C.) /
4600(O.C.) / 4400(O.C.) / 4266(O.C.) /
4133(O.C.) / 4000(O.C.) / 3866(O.C.) /
3733(O.C.) / 3600(O.C.) / 3466(O.C) /
3400(O.C.) / 3200 / 2933 / 2667 / 2400 /
2133 MHz memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM
1Rx8/2Rx8 memory modules
(operate in non-ECC mode)
Support for non-ECC Un-buffered
DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile
(XMP) memory modules
Storage
Support for RAID 0, RAID 1, and RAID 10
CPU:
1 x M.2 connector
(Socket 3, M key, type 2280 SATA
and PCIe 3.0 x4/x2 SSD support)
Chipset:
4 x SATA 6Gb/s connectors
Graphics
Integrated Graphics Processor:
1 x HDMI port, supporting a
maximum resolution of 4096x2160@60 Hz
Support for HDMI 2.0 version and HDCP 2.2.
Max Shared Memory
16 GB
Networking & Connectivity
Realtek GbE LAN chip (1 Gbps/ 100 Mbps)
Audio & Microphone
Realtek Audio CODEC
High Definition Audio
2/4/5.1/7.1-channel
Ports
PCI
CPU: 1 x PCI Express x16 slot,
supporting PCIe 3.0 and running at x16
Chipset: 1 x PCI Express x1 slot,
supporting PCIe 3.0 and running at x1
M.2 Socket
1 x M.2 connector
1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x system fan header
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module
(TPM) header (2x6 pin, for the
GC-TPM2.0_S module only)
1 x speaker header
1 x Clear CMOS jumper
1 x chassis intrusion header
CPU:

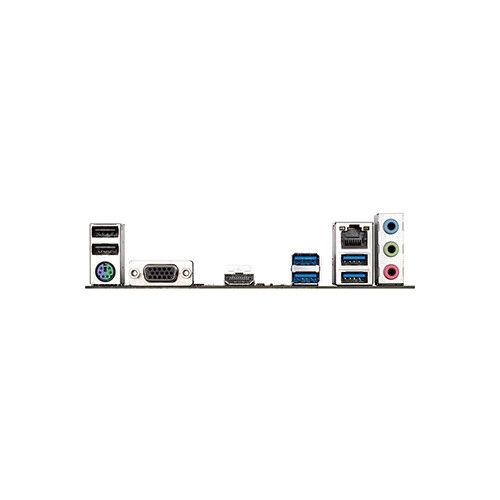

4 x USB 3.2 Gen 1 ports on the back panel
Chipset:
2 x USB 3.2 Gen 1 ports available
through the internal USB header
6 x USB 2.0/1.1 ports
(2 ports on the back panel,
4 ports available through
the internal USB headers)
Software
Norton Internet Security (OEM version)
LAN bandwidth management software
Special Features
Support for APP Center
* Available applications in APP Center
may vary by motherboard model.
Supported functions of each
application may also vary
depending on motherboard
specifications.
@BIOS
EasyTune
Smart Backup
System Information Viewer
Support for Q-Flash
Support for Xpress Install
Others
TPM (Trusted Platform Module )
1 x Trusted Platform Module (TPM) header
(2x6 pin, for the GC-TPM2.0_S module only)
Physical Specification
Micro ATX Form Factor; 23.3cm x 19.8cm
Warranty Information
3-Years
DESCRIPTION
Gigabyte A520M K V2 DDR4 AM4 Socket AMD Motherboard in Bangladesh
The Gigabyte A520M K V2 DDR4 AM4 motherboard delivers stable performance for AMD Ryzen builds in Bangladesh. It supports AMD Ryzen 5000, 4000 G-Series, 3000, and 3000 G-Series processors. The AMD A520 chipset ensures reliable connectivity and system stability. Memory support reaches up to 64GB DDR4 with dual-channel architecture. It supports high-speed memory overclocking up to DDR4 5100 (O.C.) and XMP profiles for enhanced performance. Storage options include one M.2 socket for PCIe 3.0/SATA SSDs and four SATA 6Gb/s connectors. RAID 0, 1, and 10 configurations are supported for better storage management. Integrated graphics support includes one HDMI port with 4K resolution at 60Hz. Networking comes with Realtek GbE LAN for fast wired connections.
Audio features include Realtek High Definition Audio supporting up to 7.1 channels. Expansion options include one PCIe x16 slot and one PCIe x1 slot for additional components. Internal headers cover USB 3.2 Gen 1, USB 2.0, fan headers, TPM header, front panel audio, and chassis intrusion detection. External USB ports provide convenient device connectivity. System management tools include @BIOS, EasyTune, Smart Backup, Q-Flash, and System Information Viewer. App Center offers software customization options depending on the motherboard model.
Trusted Platform Module (TPM) support ensures secure hardware encryption. The Micro ATX form factor measures 23.3cm x 19.8cm, fitting compact cases. This motherboard provides an ideal balance of affordability, performance, and expandability for gamers, professionals, and PC builders. Its 3-year warranty guarantees long-term reliability. Buyers in Bangladesh can build powerful and cost-effective AMD systems with this board. Tech Land BD offers the best price and genuine warranty support, ensuring a safe and hassle-free purchase experience.
Buy the Gigabyte A520M K V2 DDR4 AM4 Socket AMD Motherboard Price in Bangladesh
TechLand BD is the top shop for Gigabyte motherboards in Bangladesh. It offers authentic products with official warranty coverage. Competitive pricing ensures value for money. Knowledgeable staff provide accurate guidance for building PCs. After-sales support is fast and reliable. Customers can purchase online or visit physical stores for hands-on checking. Payment options remain secure and convenient. Tech Land BD guarantees genuine products only. Delivery is prompt across Bangladesh. Trusted service and genuine stock make Tech Land BD the preferred choice for AMD motherboards and PC components.
Which CPUs are compatible with the A520M K V2?
It supports AMD Ryzen 5000, 4000 G-Series, 3000, and 3000 G-Series processors.
What is the maximum memory capacity?
The motherboard supports up to 64GB DDR4 memory in dual-channel configuration.
Does it support M.2 SSDs?
Yes, one M.2 socket supports PCIe 3.0 and SATA SSDs.
