GIGABYTE A520M K AMD AM4 ULTRA DURABLE MOTHERBOARD
- AMD Socket AM4
- 2 x DDR4 DIMM sockets
- 4 x SATA 6Gb/s
- 4 x USB 3.2 Gen 1
Product Pricing
EMI Start From*
SPECIFICATIONS
Processor
AMD Ryzen™ 5000 Series Processors/
AMD Ryzen™ 4000 G-Series Processors/
AMD Ryzen™ 3000 Series Processors
Mainboard
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Memory
Support for DDR4 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) /
3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Storage
Chipset: 4 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, and RAID 10
Graphics
* Support for HDMI 2.1 version, HDCP 2.3, and HDR.
Maximum shared memory of 16 GB
Networking & Connectivity
Audio & Microphone
High Definition Audio
2/4/5.1/7.1-channel
Ports
Chipset: 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
1 x 8-pin ATX 12V power connector
1 x CPU fan header
1 x system fan header
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1 x speaker header
1 x Clear CMOS jumper
1 x chassis intrusion header

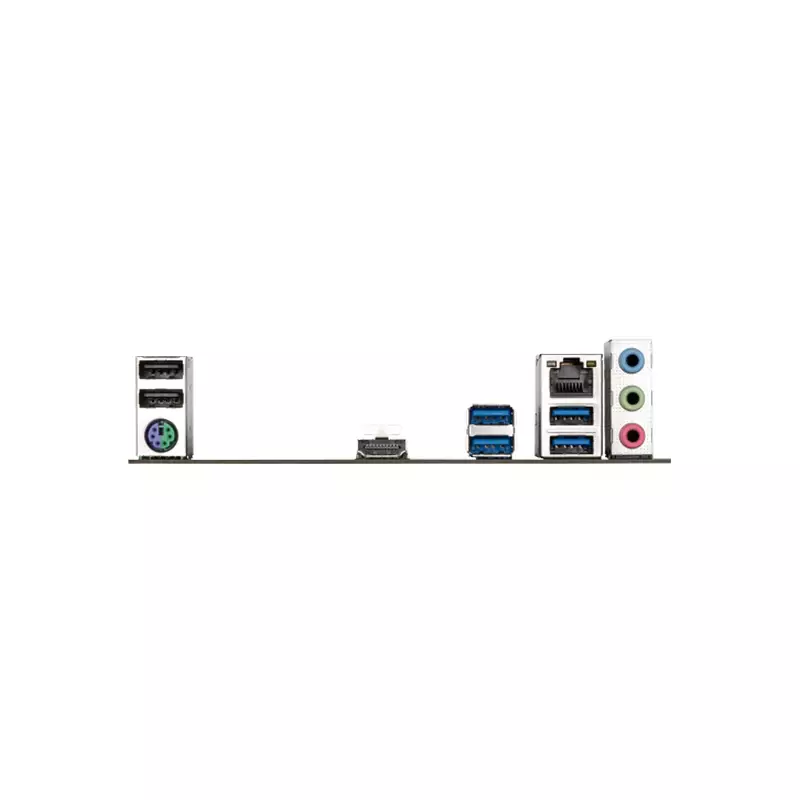

1 x HDMI port
4 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
Chipset: 2 x USB 3.2 Gen 1 ports available through the internal USB header
6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Software
LAN bandwidth management software
Special Features
@BIOS
EasyTune
Smart Backup
System Information Viewer
Support for Q-Flash
Support for Xpress Install
Others
H/W Monitoring:
Voltage detection
Temperature detection
Fan speed detection
Fan fail warning
Fan speed control
Operating System:
Support for Windows 11 64-bit
Support for Windows 10 64-bit
Physical Specification
Warranty Information
DESCRIPTION
GIGABYTE A520M K AMD AM4 ULTRA DURABLE MOTHERBOARD

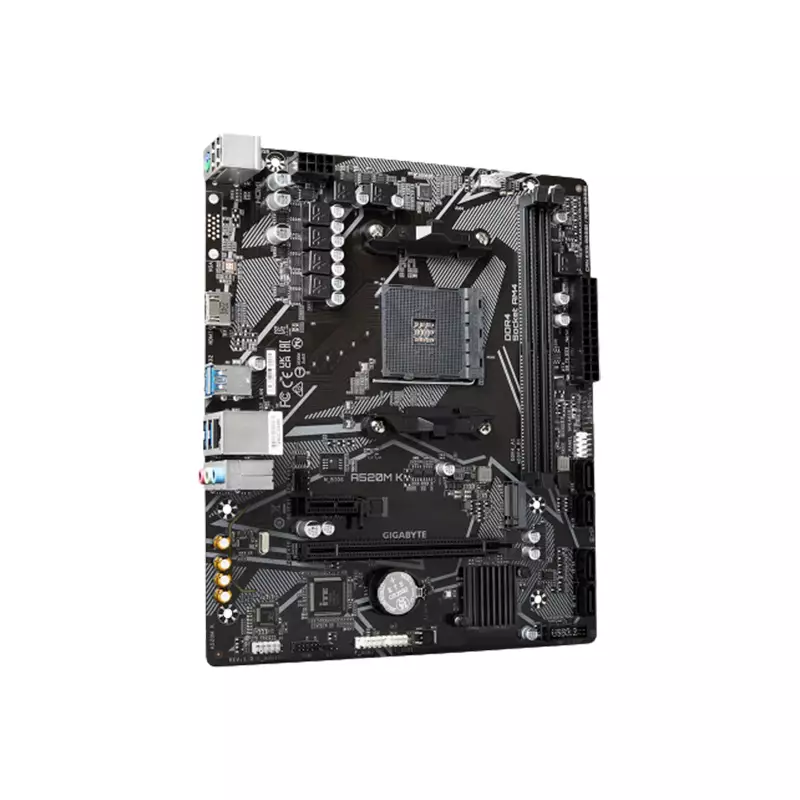

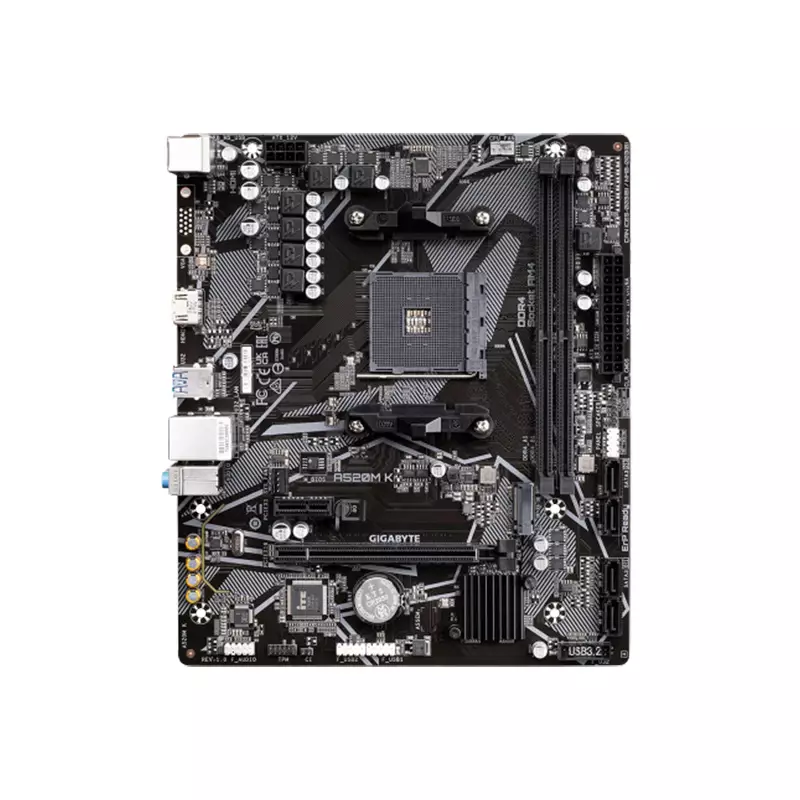

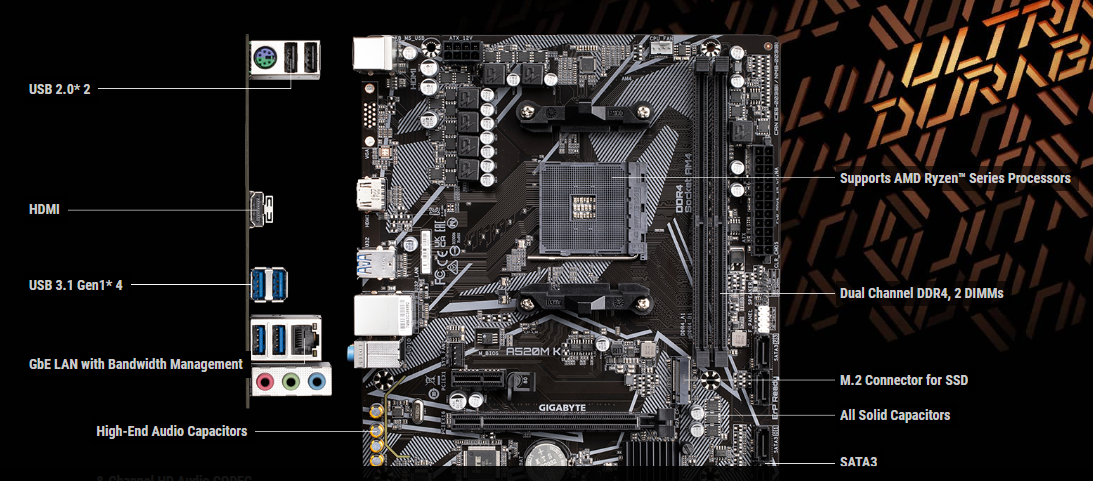

The GIGABYTE A520M K AMD AM4 Ultra Durable Motherboard is a micro ATX form factor motherboard with support for a range of CPUs, including the AMD Ryzen 5000 and 4000 series processors. It features an AMD A520 chipset, dual-channel memory architecture, and support for up to 64 GB of system memory across two DDR4 DIMM sockets. The onboard graphics include one HDMI port supporting up to 4096x2160 at 60 Hz resolution, with a maximum shared memory of 16 GB. The Realtek Audio CODEC provides high definition audio with 2/4/5.1/7.1 channel output, configurable through the audio software. There are multiple expansion slots available, including one PCI Express x16 slot supporting PCIe 3.0 and running at x16, as well as four SATA 6Gb/s connectors supporting RAID 0, RAID 1, and RAID 10. The back panel includes several ports and jacks, including PS/2 keyboard/mouse port, HDMI port, USB 3.2 Gen 1 ports, RJ-45 port, and three audio jacks. The motherboard also supports various unique features such as APP Center, @BIOS, EasyTune, Smart Backup, System Information Viewer, Support for Q-Flash, Support for Xpress Install, bundled Norton Internet Security software, and LAN bandwidth management software. This motherboard comes with a 3-year warranty and supports Windows 11 64-bit and Windows 10 64-bit operating systems. Bangladesh's top retailer of computer hardware and applications is Techland BD. A hallmark of Techland BD is its top-notch client support. They have a helpful and knowledgeable crew that is always willing to help customers. The large selection of Gigabyte Motherboard available at Techland BD is well recognized. The large selection of Motherboard available at Techland BD is well recognized.
