Product Information

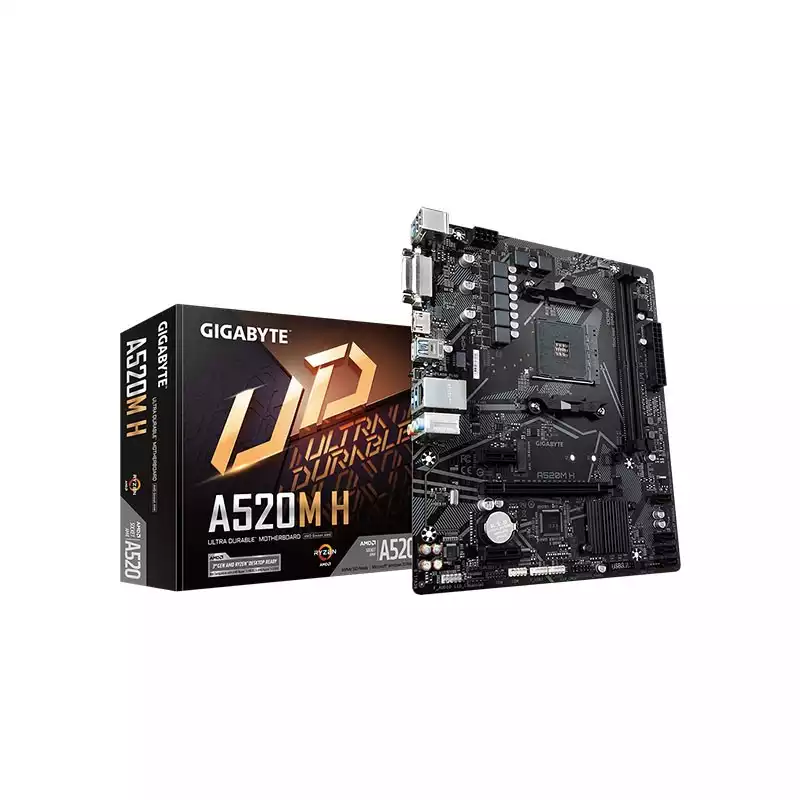

GIGABYTE A520M H AMD AM4 DDR4 MICRO ATX MOTHERBOARD
- Chipset: AMD A520
- Memory: 2 x DDR4 DIMM sockets
- CPU: AMD Socket AM4
- BIOS: 1 x 256 Mbit flash
Product Pricing
EMI Start From*
PRODUCT SPECIFICATIONS
Processor
Ryzen 5000 G-Series
Ryzen 4000 G-Series and Ryzen 3000 and Ryzen 3000 G-Series Processors
Mainboard
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Memory
Support for DDR4 5100(O.C.) / 4800(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) /
3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules*
* ECC memory (ECC mode) support varies by CPU
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Storage
1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support)
Chipset:
4 x SATA 6Gb/s connectors
Support for RAID 0, RAID 1, and RAID 10
Graphics
1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
* The DVI-D port does not support D-Sub connection by adapter.
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version, HDCP 2.3, and HDR.
Maximum shared memory of 16 GB
Networking & Connectivity
Audio & Microphone
High Definition Audio
2/4/5.1/7.1-channel
Ports
1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16
Chipset:
2 x PCI Express x1 slots, supporting PCIe 3.0
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
1 x addressable LED strip header
1 x RGB LED strip header
1 x M.2 Socket 3 connector
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x speaker header
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1 x serial port header
1 x chassis intrusion header
1 x Clear CMOS jumper
iTE I/O Controller Chip

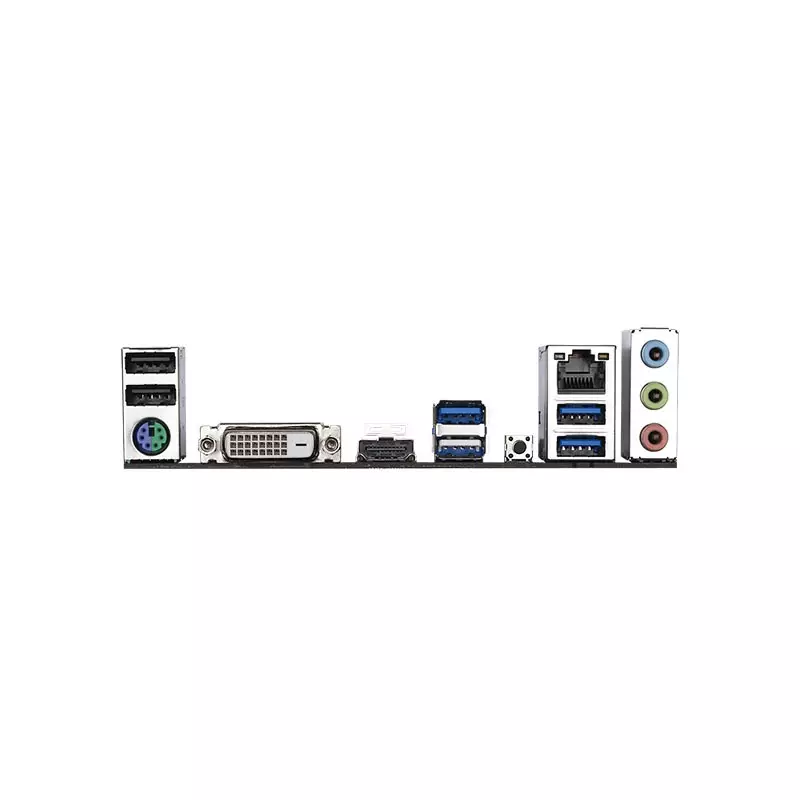

1 x DVI-D port
1 x HDMI port
4 x USB 3.2 Gen 1 ports
2 x USB 2.0/1.1 ports
1 x Q-Flash Plus button
1 x RJ-45 port
3 x audio jacks
4 x USB 3.2 Gen 1 ports on the back panel
Chipset:
2 x USB 3.2 Gen 1 ports available through the internal USB header
6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Software
Realtek 8118 Gaming LAN Bandwidth Control Utility
Support for Windows 11 64-bit
Support for Windows 10 64-bit
Special Features
@BIOS
EasyTune
Fast Boot
Game Boost
ON/OFF Charge
RGB Fusion
Smart Backup
System Information Viewer
Support for Q-Flash Plus
Support for Q-Flash
Support for Xpress Install
Others
Voltage detection
Temperature detection
Fan speed detection
Overheating warning
Fan fail warning
Fan speed control
Physical Specification
Warranty Information
PRODUCT DESCRIPTION

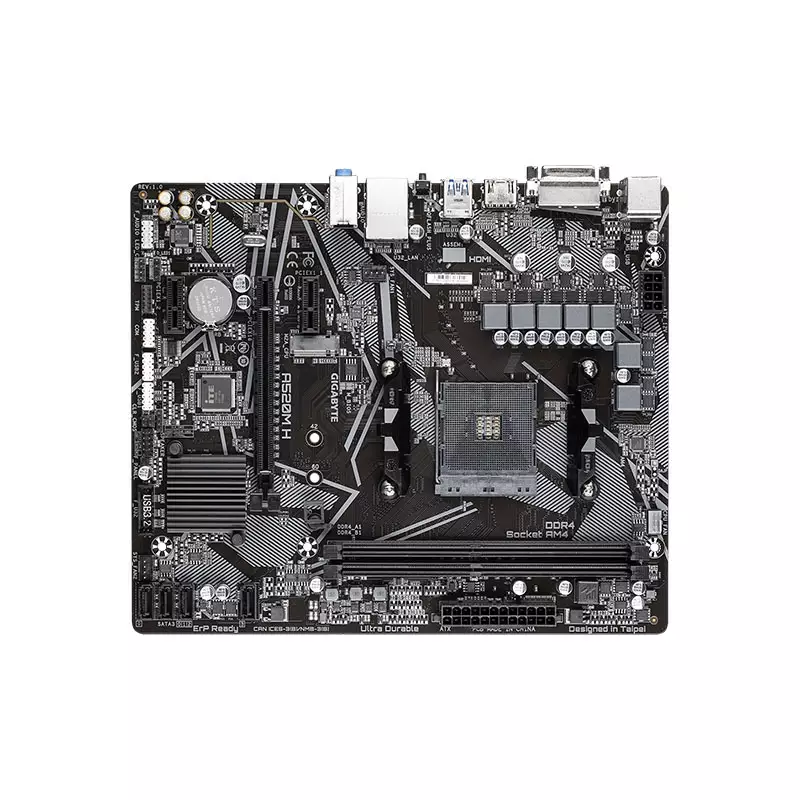

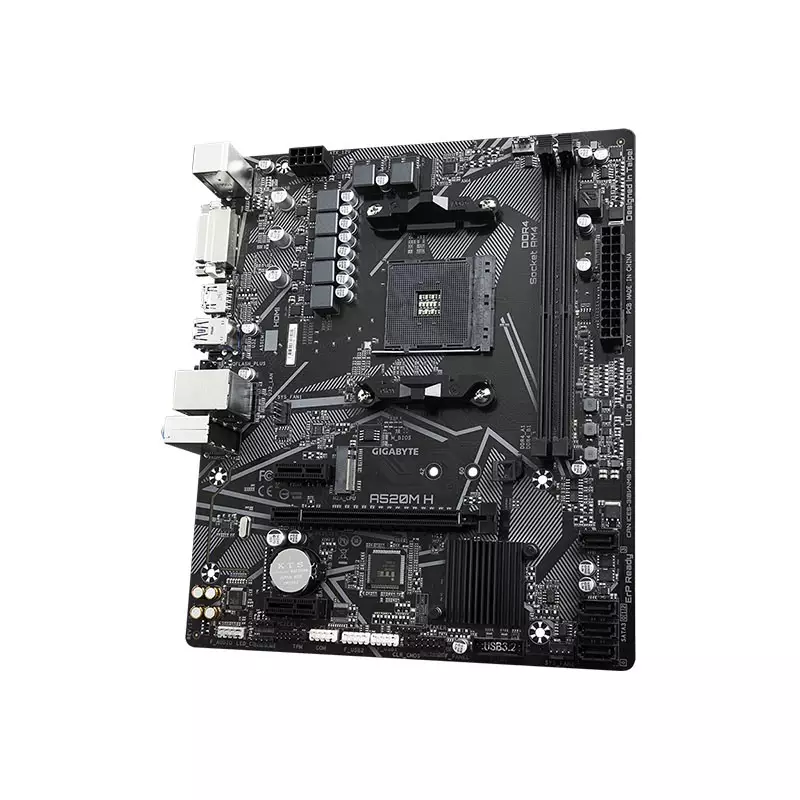

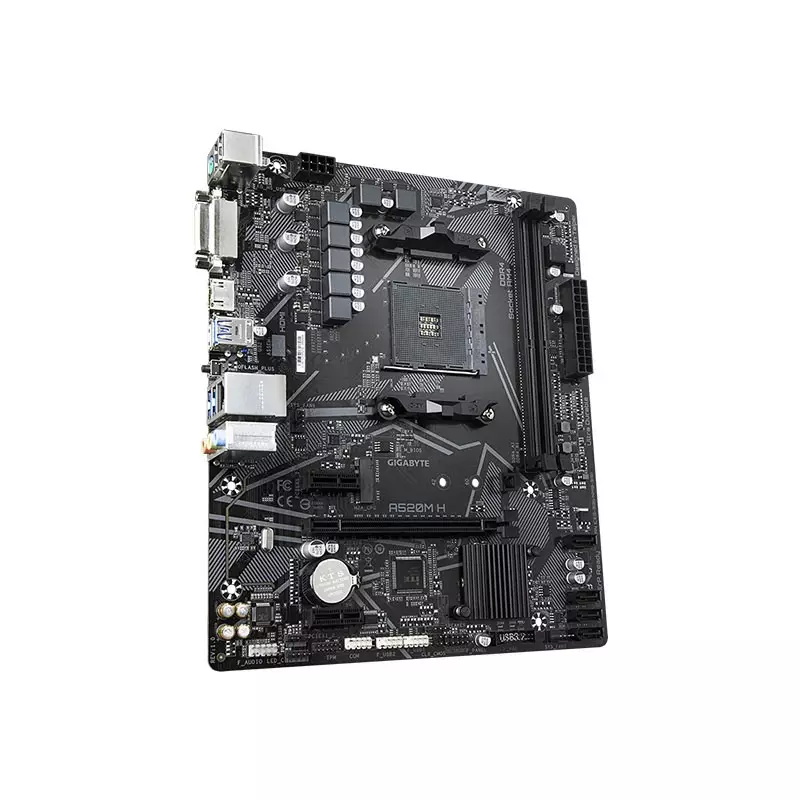

GIGABYTE A520M H AMD AM4 DDR4 MICRO ATX MOTHERBOARD
Introducing the GIGABYTE A520M H AMD AM4 DDR4 Micro ATX Motherboard, your gateway to a powerful and flexible computing experience. Designed to support a wide range of AMD processors, including Ryzen™ 5000 Series, Ryzen™ 4000 G-Series, Ryzen™ 3000, and Ryzen™ 3000 G-Series, this motherboard accommodates diverse computing needs. The AMD A520 chipset ensures smooth performance, with two DDR4 DIMM slots capable of handling up to 64GB of memory, offering speeds up to DDR4 5100MHz. The motherboard also boasts integrated graphics support with DVI-D and HDMI ports, featuring HDMI 2.1 for top-notch resolution and visual quality. Realtek® Audio CODEC delivers high-definition audio, configurable to your preferences. For connectivity, there's a Realtek® GbE LAN chip, providing reliable networking. Expansion slots include a PCIe 3.0 x16 slot and two PCIe 3.0 x1 slots, with storage options ranging from M.2 to SATA connectors. The rear panel offers USB 3.2 Gen 1 and USB 2.0 ports, ensuring a versatile array of connections. With a compact Micro ATX form factor measuring 24.4cm x 20.5cm, this motherboard fits neatly into various PC cases. Plus, it comes with a 3-year warranty, supports Windows 10 and Windows 11, and features a range of unique functions through the GIGABYTE APP Center, including @BIOS, Fast Boot, and more. Bangladesh's top retailer of computer hardware and applications is Techland BD. A hallmark of Techland BD is its top-notch client support. They have a helpful and knowledgeable crew that is always willing to help customers. The large selection of Gigabyte Motherboard available at Techland BD is well recognized. The large selection of Motherboard available at Techland BD is well recognized.
