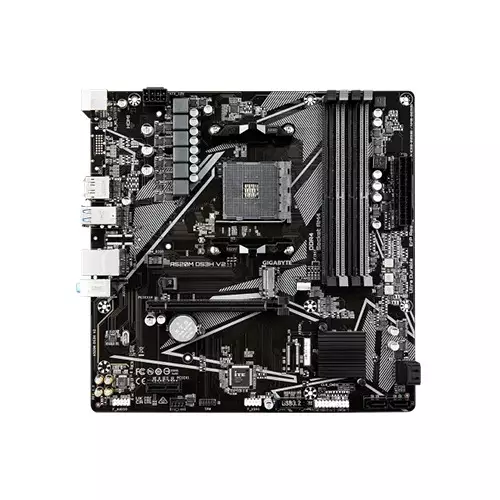

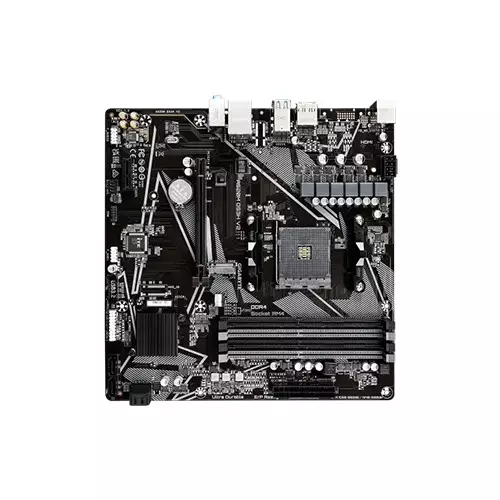

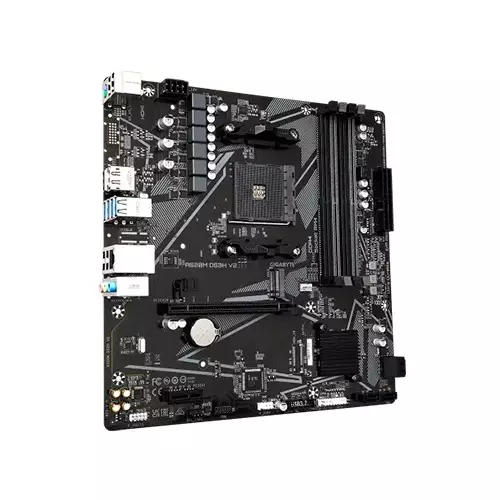

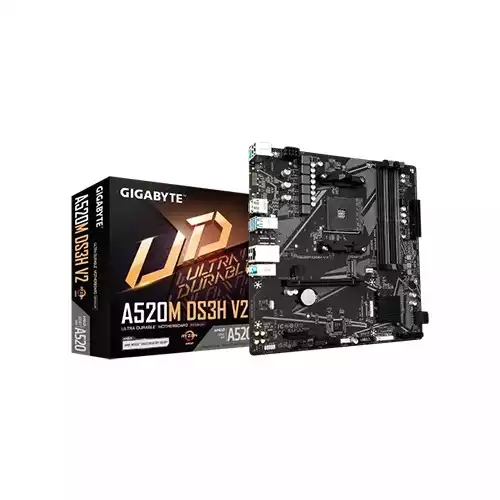

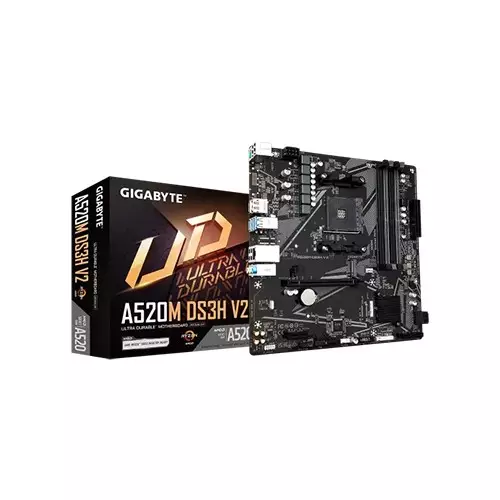

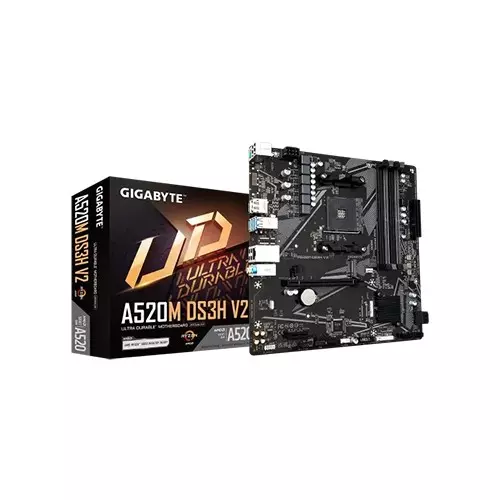

Gigabyte A520M DS3H V2 Micro-ATX DDR4 AMD AM4 Motherboard
Gigabyte A520M DS3H V2 Micro-ATX DDR4 AMD AM4 Motherboard
Gigabyte A520M DS3H V2 Micro-ATX DDR4 AMD AM4 Motherboard - 1
Gigabyte A520M DS3H V2 Micro-ATX DDR4 AMD AM4 Motherboard - 2
Gigabyte A520M DS3H V2 Micro-ATX DDR4 AMD AM4 Motherboard - 3
Gigabyte A520M DS3H V2 Micro-ATX DDR4 AMD AM4 Motherboard - 4

Gigabyte A520M DS3H V2 Micro-ATX DDR4 AMD AM4 Motherboard

0 Reviews
Stock : Out of Stock
PID : P0392506516
Brand : Gigabyte
Model : A520M DS3H V2
Warranty : 3 years
  • Chipset AMD A520
  • BIOS 1 x 128 Mbit flash
  • Micro ATX Form Factor
  • Realtek Audio CODEC

Product Pricing

Discount Price

৳9,500 ৳10,300
+ Available Payment Method

EMI Start From*

৳335

SPECIFICATIONS

Processor

Supported CPU AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/
Ryzen 4000 G-Series and Ryzen 3000 and Ryzen 3000 G-Series Processors

Mainboard

Chipset AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series and Ryzen 3000 and Ryzen 3000 G-Series Processors
BIOS 1 x 128 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Memory

Memory Type Dual-Channel Memory Architecture

DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) /
4266(O.C.) / 4133(O.C.) / 4000(O.C.) /
3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C)
/ 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules

Support for non-ECC Un-buffered DIMM
1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP)
memory modules

Storage

Storage 1 x M.2 connector, integrated in the CPU, supporting
Socket 3, M key, type 2280 SSDs:

Supporting SATA and PCIe 3.0 x4/x2 SSDs

4 x SATA 6Gb/s connectors, integrated in the Chipset:

Supporting for RAID 0, RAID 1, and RAID 10

Graphics

Graphics 1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz

Supports DisplayPort 1.4 version, HDCP 2.3, and HDR.

1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

Supports HDMI 2.1 version, HDCP 2.3, and HDR.

Networking & Connectivity

LAN Realtek GbE LAN chip (1 Gbps/100 Mbps)

Audio & Microphone

Audio Realtek ALC887 codec

High Definition Audio

2/4/5.1/7.1-channel

Ports

Slots 4 x DDR4 DIMM
Internal I/O Ports 1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

1 x system fan header

1 x M.2 Socket 3 connector

4 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x USB 3.2 Gen 1 header

1 x USB 2.0/1.1 header

1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)

1 x Clear CMOS jumper

Back Panel Connectors:

1 x PS/2 keyboard/mouse port

1 x DisplayPort

1 x HDMI port

4 x USB 3.2 Gen 1 ports

2 x USB 2.0/1.1 ports

1 x RJ-45 port

3 x audio jacks
USB CPU:
4 x USB 3.2 Gen 1 ports on the back panel

Chipset:
2 x USB 3.2 Gen 1 ports available through the internal USB header

6 x USB 2.0/1.1 ports (4 ports on the back panel,
2 ports available through the internal USB header)
HDMI 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

Software

Bundled Software Norton Internet Security (OEM version)

LAN bandwidth management software

Others

Other Features Support for APP Center

Available applications in APP Center may vary by
motherboard model. Supported functions of each application may also vary depending on
motherboard specifications.

@BIOS

EasyTune

Smart Backup

System Information Viewer

Support for Q-Flash

Support for Xpress Install

Support for Windows 11 64-bit

Support for Windows 10 64-bit

Physical Specification

Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm

Warranty Information

Warranty 3 Years

DESCRIPTION

Gigabyte A520M DS3H V2 Micro-ATX DDR4 AMD AM4 Motherboard in Bangladesh

Gigabyte A520M DS3H V2 is a budget-friendly yet powerful Micro-ATX motherboard designed for AMD Ryzen processors. Supporting up to Ryzen 5000 series CPUs, this board offers excellent performance for gaming, productivity, and everyday computing with DDR4 memory support, PCIe 3.0 slots, and high-speed storage options.


Technical Details

The Gigabyte A520M DS3H V2 features an AMD A520 chipset and supports Ryzen 5000, 4000 G-Series, 3000, and 3000 G-Series processors. It has 4x DDR4 DIMM slots supporting up to 128GB RAM with speeds up to 4733MHz (OC). Storage options include 1x M.2 PCIe 3.0 x4 slot (supports NVMe/SATA SSDs) and 4x SATA 6Gb/s ports with RAID 0/1/10 support.For graphics, it includes HDMI 2.1 (4K@60Hz) and DisplayPort 1.4 (5K@60Hz). Connectivity features 6x USB 3.2 Gen 1 ports (4 rear, 2 via header), 6x USB 2.0 ports, and Realtek Gigabit LAN. Audio is handled by Realtek ALC887 (7.1-channel HD Audio). Additional features include Q-Flash BIOS update, XMP support, and a TPM header for enhanced security.


Availability and Usability

This motherboard is available at Tech Land BD, a trusted retailer for PC components in Bangladesh. The Gigabyte A520M DS3H V2 is ideal for budget gaming PCs, home/office builds, and multimedia setups, offering solid performance, future-proof connectivity, and easy upgradability. Check the latest Gigabyte A520M DS3H V2 Price in BD at Tech Land BD for competitive deals.


Key Features

  • Supports AMD Ryzen 5000/4000/3000 CPUs – Future-ready AM4 socket
  • Dual-Channel DDR4 (Up to 4733MHz OC) – High-speed memory support
  • PCIe 3.0 x16 & M.2 NVMe Slot – Fast storage and GPU performance
  • HDMI 2.1 + DisplayPort 1.4 – 4K/5K display support
  • Gigabit LAN & USB 3.2 Gen 1 – Smooth networking and fast data transfers


Upgrade Your PC Today – Buy from Tech Land BD!

Looking for a reliable, budget-friendly motherboard for your AMD Ryzen build? The Gigabyte A520M DS3H V2 delivers great performance, expandability, and durability at an affordable price. Whether you're a gamer, content creator, or office user, this motherboard has everything you need.Don’t wait! Check the Gigabyte A520M DS3H V2 Price in Bangladesh at Tech Land BD and grab yours before stocks run out. Enjoy fast shipping, genuine warranty, and expert support—shop now and build your dream PC!
