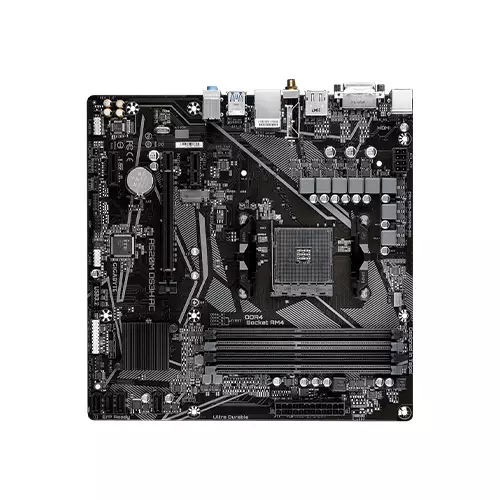

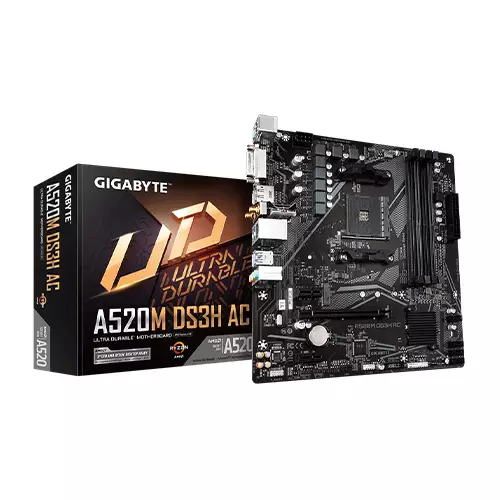

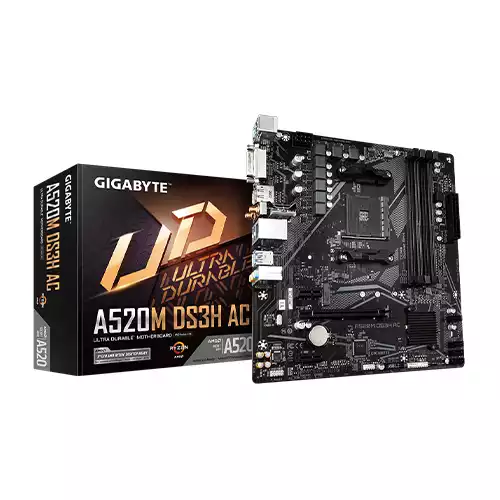

GIGABYTE A520M DS3H AC AM4 AMD 520 ATX Motherboard

AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 Series Processors

AMD A520

1 x 128 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory

AMD Ryzen™ 5000 G-series / Ryzen™ 5000 Series/ 3rd Generation AMD Ryzen™ processors:

Support for DDR4 4400(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) /
3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules

3rd Gen AMD Ryzen™ with Radeon™ Graphics processors:

Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) / 3200 / 2933 / 2667 / 2400 /
2133 MHz memory modules

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 3.0 x4/x2 SSD support)

4 x SATA 6Gb/s connectors

Support for RAID 0, RAID 1, and RAID 10

Integrated in the 3rd Generation AMD Ryzen with Radeon Graphics processors

1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz

* The DVI-D port does not support D-Sub connection by adapter.

1 x DisplayPort, supporting a maximum resolution of 5120x2880@60 Hz

* Support for DisplayPort 1.4 version, HDCP 2.3, and HDR.

1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version, HDCP 2.3, and HDR.

Realtek GbE LAN chip (1000 Mbit/100 Mbit)

WIFI 802.11a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band

BLUETOOTH 4.2

Realtek® Audio CODEC

High Definition Audio

2/4/5.1/7.1-channel

CPU:

1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16

Chipset:

2 x PCI Express x1 slots, supporting PCIe 3.0 (PCIEX1_1, PCIEX1_2)

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

2 x system fan headers

1 x addressable LED strip header

1 x RGB LED strip header

1 x M.2 Socket 3 connector

4 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x USB 3.2 Gen 1 header

1 x USB 2.0/1.1 header

1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)

1 x serial port header

1 x Clear CMOS jumper

1 x Q-Flash Plus button

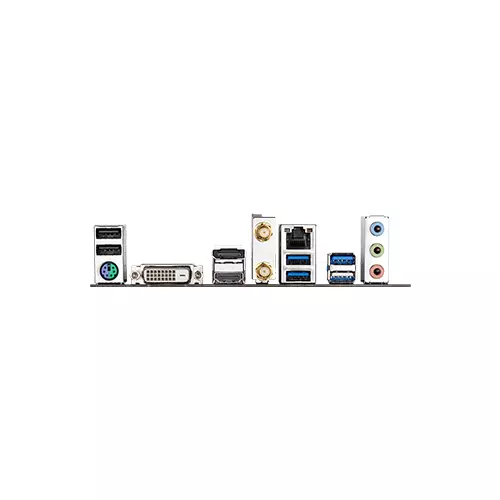

1 x PS/2 keyboard/mouse port

1 x DVI-D port

1 x DisplayPort

1 x HDMI port

2 x SMA antenna connectors (1T1R)

4 x USB 3.2 Gen 1 ports

2 x USB 2.0/1.1 ports

1 x RJ-45 port

3 x audio jacks

4 x USB 3.2 Gen 1 ports on the back panel

2 x USB 3.2 Gen 1 ports available through the internal USB header

4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB

Micro ATX Form Factor

24.4cm x 24.4cm

3 years
