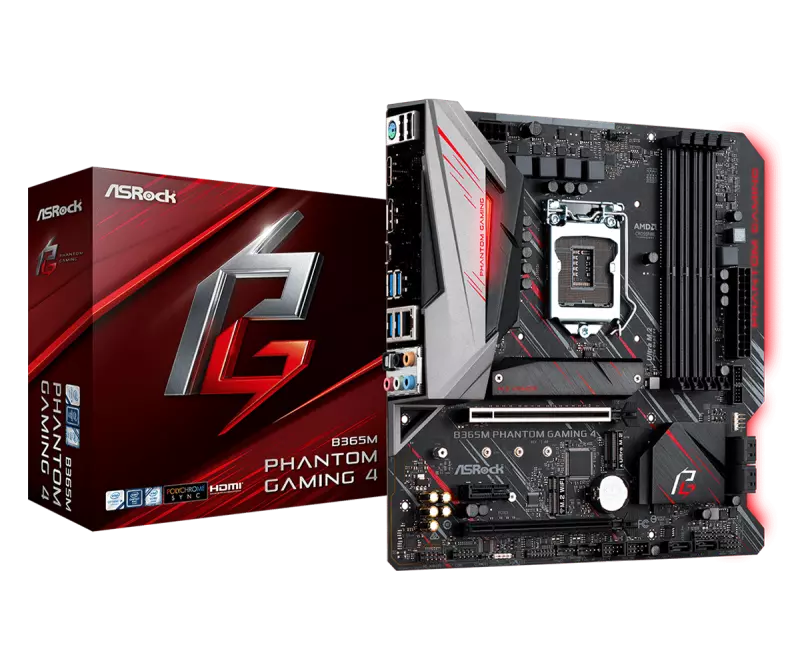

ASROCK B365M PHANTOM GAMING 4 Gaming Motherboard
ASROCK B365M PHANTOM GAMING 4 Gaming Motherboard
ASROCK B365M PHANTOM GAMING 4 Gaming Motherboard - 1

ASROCK B365M PHANTOM GAMING 4 Gaming Motherboard

0 Reviews
Stock : Discontinued
PID : P0002506919
Brand : ASRock
Model : B365M Phantom
Warranty : 3 Years
  • Supports 9th and 8th Gen
  • Supports DDR4 2666 MHz
  • AMD Quad CrossFireX
  • Intel Gigabit LAN

SPECIFICATIONS

Processor

Supported CPU - Supports 9th and 8th Gen Intel® Core™ Processors (Socket 1151)
- Supports CPU up to 95W
- Digi Power design
- 8 Power Phase design
- Supports Intel® Turbo Boost 2.0 Technology

Mainboard

Chipset - Intel® B365
BIOS - 128Mb AMI UEFI Legal BIOS with multilingual GUI support
- ACPI 6.0 Compliant wake up events
- SMBIOS 2.7 Support
- CPU, GT, DRAM, PCH 1.0V, VCCSA, VCCST Voltage Multi-adjustment

Memory

Memory - Dual Channel DDR4 Memory Technology
- 4 x DDR4 DIMM Slots
- Supports DDR4 2666 / 2400 / 2133 non-ECC, un-buffered memory
- Supports ECC UDIMM memory modules (operate in non-ECC mode)
- Max. capacity of system memory: 64GB*
- Supports Intel® Extreme Memory Profile (XMP) 2.0
- 15μ Gold Contact in DIMM Slots

Storage

Supported Storage - 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 17), NCQ, AHCI and Hot Plug*
- 1 x Ultra M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**
- 1 x Ultra M.2 Socket (M2_2), supports M Key type 2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**

Graphics

Graphics - Supports Intel® UHD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® UHD Graphics
- DirectX 12
- HWA Encode/Decode: AVC/H.264, HEVC/H.265 8-bit, HEVC/H.265 10-bit, VP8, VP9 8-bit, VP9 10-bit (Decode only), MPEG2, MJPEG, VC-1 (Decode only)
- Dual graphics outputs: HDMI 1.4 and DisplayPort 1.2
- Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz
- Supports DisplayPort 1.2 with max. resolution up to 4K x 2K (4096x2304) @ 60Hz
- Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required)
- Supports HDCP 2.2 with HDMI and DisplayPort 1.2 Ports
- Supports 4K Ultra HD (UHD) playback with HDMI 1.4 and DisplayPort 1.2 Ports

Networking & Connectivity

LAN - Gigabit LAN 10/100/1000 Mb/s
- Giga PHY Intel® I219V
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE

Audio & Microphone

Audio - 7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec)
- Premium Blu-ray Audio support
- Supports Surge Protection
- PCB Isolate Shielding
- Gold Audio Jacks
- Supports DTS Connect

Ports

Slots - 2 x PCI Express 3.0 x16 Slots (PCIE1/PCIE3: single at x16 (PCIE1); dual at x16 (PCIE1) / x4 (PCIE3))*
- 1 x PCI Express 3.0 x1 Slot (Flexible PCIe)
- Supports AMD Quad CrossFireX™ and CrossFireX™
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module
- 15μ Gold Contact in VGA PCIe Slot (PCIE1)
Internal I/O Ports - 1 x COM Port Header
- 1 x TPM Header
- 1 x Chassis Intrusion and Speaker Header
- 2 x RGB LED Headers*
- 1 x Addressable LED Header**
- 1 x CPU Fan Connector (4-pin)***
- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
- 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
- 1 x 24 pin ATX Power Connector
- 1 x 8 pin 12V Power Connector
- 1 x Front Panel Audio Connector
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
- 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)
- 1 x Post Status Checker (PSC)

Others

Other Features Gaming Armor:
Memory
- 15μ Gold Contact in DIMM Slots;
VGA Card
- 15μ Gold Contact in VGA PCIe Slot (PCIE1);
Internet
- Intel® LAN;
ASRock Super Alloy
- Premium 50A Power Choke;
- Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors);
- I/O Armor;
- Shaped PCB Design;
- Matte Black PCB;
- High Density Glass Fabric PCB;
ASRock Intel® 4-Layer Memory POOL (Planes on Outer Layers) Technology;
ASRock Steel Slot;
ASRock Full Coverage M.2 Heatsink;
ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3);
ASRock POST Status Checker (PSC);
ASRock Full Spike Protection (for all USB, Audio, LAN Ports);
ASRock Live Update & APP Shop;

Physical Specification

Form Factor Micro ATX Form Factor: 9.6-in x 9.52-in, 24.4 cm x 24.2 cm

Warranty Information

Warranty 3 years warranty

DESCRIPTION

B365M PHANTOM GAMING 4

●︎ Supports 9th and 8th Gen Intel® Core™ processors (Socket 1151)
●︎ Supports DDR4 2666 MHz
●︎ 2 PCIe 3.0 x16, 1 PCIe 3.0 x1, 1 M.2 Key E for WiFi
●︎ AMD Quad CrossFireX™
●︎ Graphics Output Options: HDMI, Display Port
●︎ 7.1 CH HD Audio (Realtek ALC1200 Audio Codec), Supports DTS Connect
●︎ 6 SATA3, 1 Ultra M.2 (PCIe Gen3 x4), 1 Ultra M.2 (PCIe Gen3 x4 & SATA3)
●︎ 7 USB 3.1 Gen1 (2 Front, 4 Rear, 1 Type-C)
●︎ Intel® Gigabit LAN
●︎ ASRock Polychrome SYNC
**3 years warranty.

Armour Your VR Machine
Prepare yourself well to enjoy the impressive world of Virtual Reality. Before that, you have to make sure everything is qualified, including hardware, software and drivers. Motherboard is the key to connecting every critical component, and ASRock’s VR Ready motherboards are definitely the ones you’re looking for. The premium quality is assured by rigorous testing during development. The sturdy components and rock-solid performance make you completely immersive in the VR scenario. Users can be assured of experiencing VR enjoyments without any compatibility problems.

ASROCK B365M PHANTOM GAMING
Premium 50A Power Choke
Compared to traditional chokes, ASRock’s premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.


Nichicon 12K Black Caps
Supreme 12K black capacitors with lifespans of at least 12,000 hours. Compared to other counterparts on high-end motherboards that merely have lifespans of around 10,000 hours, ASRock applied Nichicon 12K Black Caps that offer 20% longer lifespans and provide more stability and reliability.

I/O Armor
A new designed protective cover for all of the crucial parts near the motherboard's rear I/O, so that they won't easily be damaged by static electricity.

Matte Black PCB
A new mysterious matte black and copper color scheme to match the prestigious components on ASRock's high-end motherboards.

High-Density Glass Fabric PCB
High-density Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.
